810238N-0022

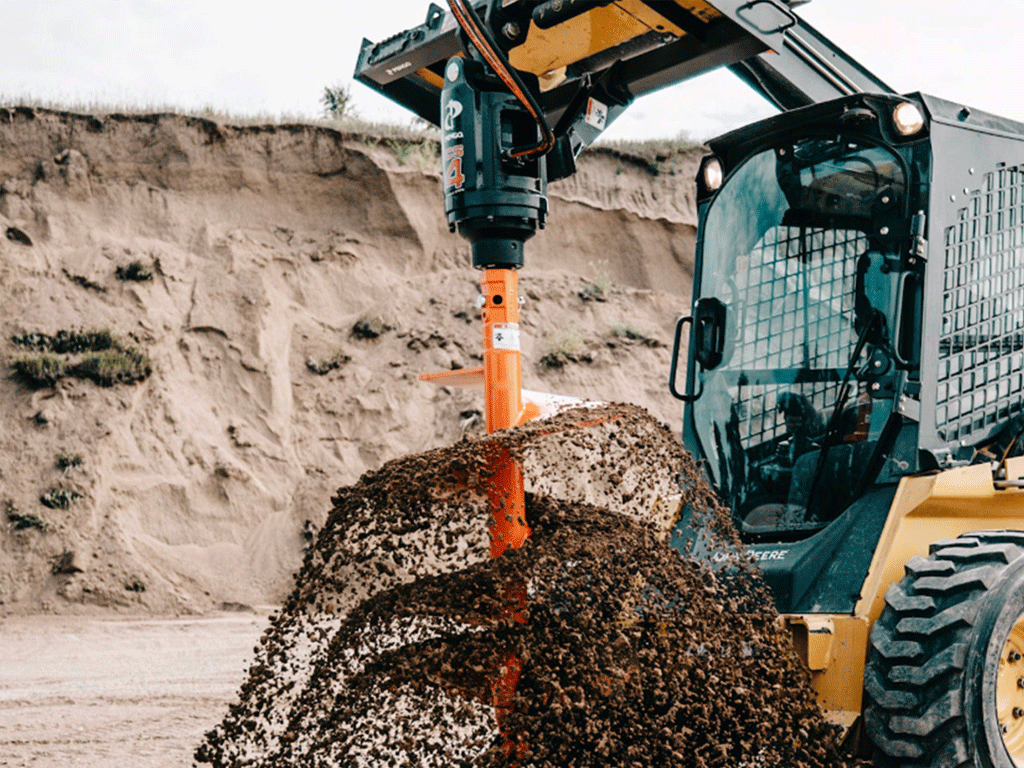

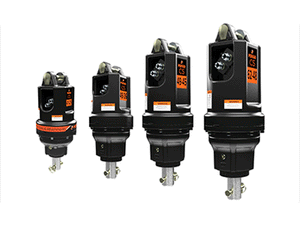

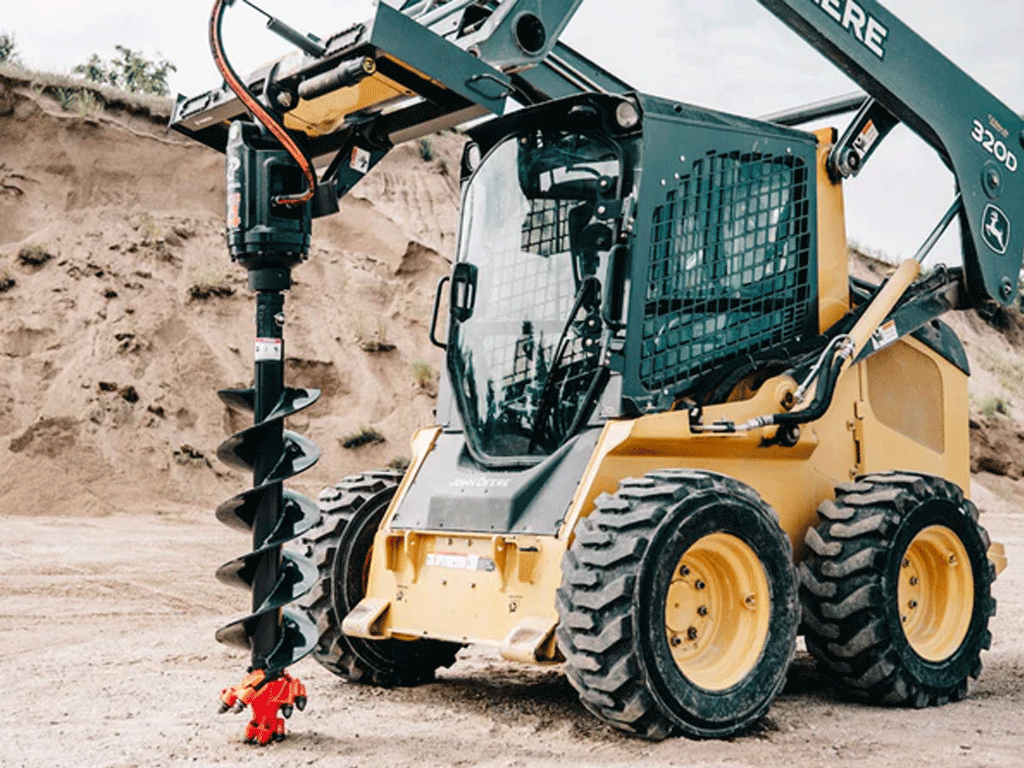

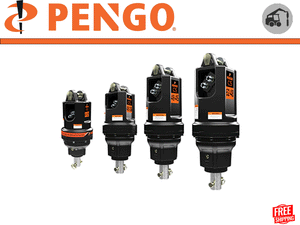

Paladin Pengo Auger Drives for skid steers
$3,281.25 - $7,873.95
1/26

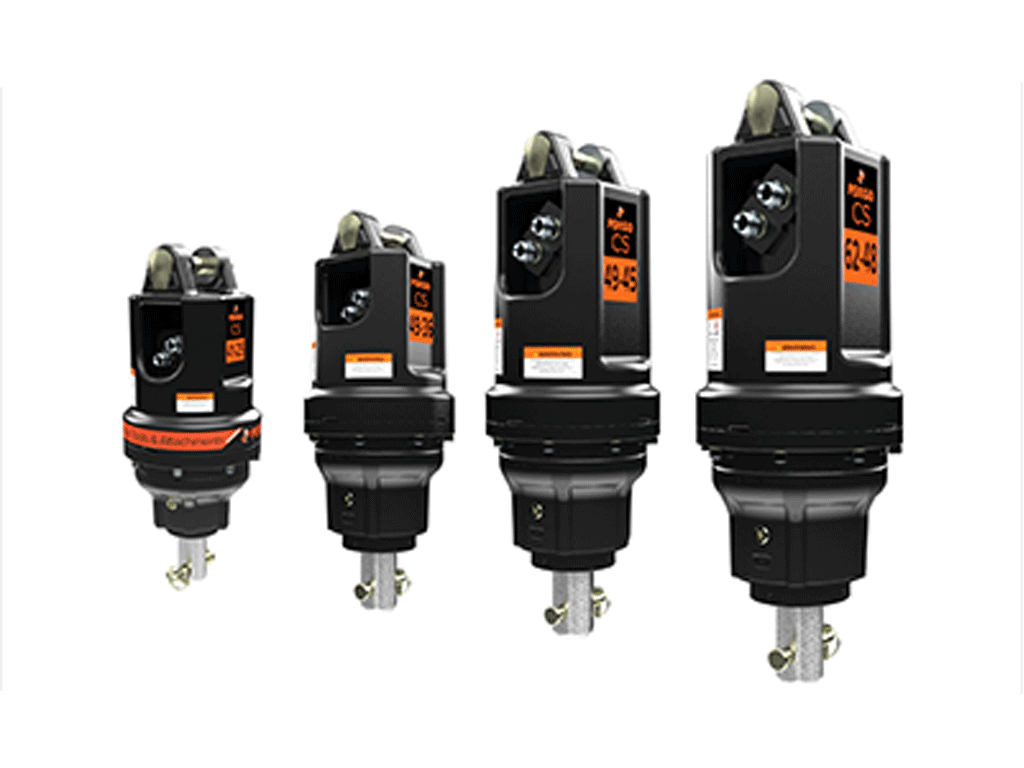

Pengo CS Auger Drives for Skid Steer Loaders deliver dependable, high-torque drilling performance in a compact, easy-to-handle design. Engineered with advanced gearing, oversized bearings, and Pengo’s Secure Lock Shaft system, the CS Series is built for long service life, low maintenance, and maximum productivity in tough soil conditions.
Designed for skid steers across a wide range of weight classes and hydraulic flows, Pengo CS auger drives provide smooth, efficient power transfer and exceptional durability. From landscaping and fencing to construction and utility work, the CS Series offers reliable performance with minimal downtime.
Key Features & Benefits
-
Hunting gearing (standard) for increased efficiency and extended drive life
-
Secure Lock Shaft system for dependable auger retention
-
Compact housing design for easy handling and added structural strength
-
Oversized bearings for improved load handling and durability
-
Extreme shaft seals to reduce service intervals
-
High-torque, efficient hydraulic motors for faster, more productive drilling
-
Easy-access service points for user-friendly maintenance
-
Full contact connection between auger hub and drive unit for maximum torque transfer
Performance & Fitment
-
Models available for skid steers from 0.8 MT up to 10 MT carrier classes
-
Supports hydraulic flows from 12 GPM to 48 GPM
-
Delivers torque outputs up to 5,948 ft-lbs
-
Shaft options include 2" Hex, 2-9/16" Round, and 2.5" Hex
- Skid steer drive packages come with skid steer mount and 1/2" QD couplers (CS62-48 comes with 3/4" QD couplers)
Built for reliability and efficiency, Pengo CS Series Auger Drives are the ideal choice for operators who demand powerful drilling performance, rugged construction, and easy maintenance on the jobsite.
| MODEL | CS 11-12 | CS 16-15 | CS 20-17 |
| CARRIER WEIGHT CLASS | 0.8-2 MT | 1-2.5 MT | 2-3 MT |
| MAX OIL FLOW WEIGHT | 12 GPM | 15 GPM | 17 GPM |
| MAX OPERATING PRESSURE | 3046 PSI | 3481 PSI | 3481 PSI |
| MAX ROTATIONAL SPEED | 101 RPM | 98 RPM | 94 RPM |
| TOTAL LENGTH | 23" | 23" | 23" |
| DIAMETER | 9.06" | 9.06" | 9.06" |
| WEIGHT | 130 LBS. | 130 LBS. | 130 LBS. |
| MAX BACK PRESSURE | 508 PSI | 551 PSI | 580 PSI |
| MAX TORQUE | 1101 FT-LBS | 1574 FT-LBS | 1951 FT-LBS |
| SHAFT TYPE |
2" HEX 2-9/16" ROUND |
2" HEX 2-9/16" ROUND |
2" HEX 2-9/16" ROUND |
| MODEL | CS 22-20 | CS 28-22 | CS 35-25 |
| CARRIER WEIGHT CLASS | 2.5-4 MT | 3-4.5 MT | 3-5 MT |
| MAX OIL FLOW WEIGHT | 20 GPM | 22 GPM | 25 GPM |
| MAX OPERATING PRESSURE | 3771 PSI | 3771 PSI | 3771 PSI |
| MAX ROTATIONAL SPEED | 103 RPM | 93 RPM | 83 RPM |
| TOTAL LENGTH | 24.3" | 24.3" | 24.3" |
| DIAMETER | 9.96" | 9.96" | 9.96" |
| WEIGHT | 156 LBS. | 156 LBS. | 158 LBS. |
| MAX BACK PRESSURE | 580 PSI | 653 PSI | 580 PSI |
| MAX TORQUE | 2213 FT-LBS. | 2788 FT-LBS. | 3492 FT-LBS. |
| SHAFT TYPE |
2" HEX 2-9/16" ROUND |
2" HEX 2-9/16" ROUND |
2" HEX 2-9/16" ROUND |
| MODEL | CS 41-25 | CS 38-30 | CS 49-36 |
| CARRIER WEIGHT CLASS | 3-5.5 MT | 4-6 MT | 4.5-7 MT |
| MAX OIL FLOW WEIGHT | 25 GPM | 30 GPM | 36 GPM |
| MAX OPERATING PRESSURE | 3771 PSI | 3771 PSI | 3771 PSI |
| MAX ROTATIONAL SPEED | 65 RPM | 91 RPM | 81 RPM |
| TOTAL LENGTH | 24.3" | 28.9" | 28.9" |
| DIAMETER | 9.96" | 11.26" | 11.26" |
| WEIGHT | 161 LBS. | 253 LBS. | 255 LBS. |
| MAX BACK PRESSURE | 653 PSI | 580 PSI | 580 PSI |
| MAX TORQUE | 4125 FT-LBS. | 3841 FT-LBS. | 4916 FT-LBS. |
| SHAFT TYPE |
2" HEX 2-9/16" ROUND |
2.5" HEX | 2.5" HEX |
| MODEL | CS 39-37 | CS 49-45 | CS 62-48 |
| CARRIER WEIGHT CLASS | 4-6 MT | 5-8 MT | 7-10 MT |
| MAX OIL FLOW WEIGHT | 37 GPM | 45 GPM | 48 GPM |
| MAX OPERATING PRESSURE | 3771 PSI | 3771 PSI | 3771 PSI |
| MAX ROTATIONAL SPEED | 118 RPM | 105 RPM | 89 RPM |
| TOTAL LENGTH | 31.7" | 31.7" | 31.7" |
| DIAMETER | 11.26" | 11.26" | 11.26" |
| WEIGHT | 268 LBS. | 271 LBS. | 273 LBS. |
| MAX BACK PRESSURE | 319 PSI | 406 PSI | 566 PSI |
| MAX TORQUE | 3890 FT-LBS. | 4925 FT-LBS. | 5948 FT-LBS. |
| SHAFT TYPE | 2.5" HEX | 2.5" HEX | 2.5" HEX |
| Pengo to Mcmillan Cross Reference |
| MODEL | CODE | MAX PSI | MAX TORQUE | REPLACES | MAX PSI | MAX TORQUE |
| CS 16-15 |
810238N 810237N |
3481 | 1574 | X0975, X900, PA15 (JD) | 3500 | 1413 |
| CS 22-20 |
810331N 810330N |
3771 | 2213 | X0975, X900, X1500 | 3500 | 1413 |
| CS 28-22 |
810336N 810335N |
3771 | 2788 | X1475D, X1500 | 3500 | 2630 |
| CS 35-25 |
810341N 810340N |
3771 | 3492 | X1975, PA30(JD) | 3500 | 3044 |
| CS 41-25 |
810346N 810345N |
3481 | 4125 | X2475 | 3500 | 3821 |
| CS 38-30 | 810395N | 3771 | 3841 | X3575 | 3500 | 4279 |
| CS 49-36 | 810398N | 3771 | 4916 | X5075 | 4000 | 5096 |
| CS 62-48 | 810410N | 3771 | 6185 | X4575, PA40(JD) | 3500 | 5437 |
Model CS 16-15 CS 22-20 CS 28-22 CS 35-25 CS 41-25 CS 38-30 CS 49-36 CS 62-48 Order Code 810238N 810237N 810331N 810330N 810336N 810335N 810341N 810340N 810346N 810345N 810395N 810398N Output shaft 2” Hex 2.56” Rnd 2” Hex 2.56” Rnd 2” Hex 2.56” Rnd 2” Hex 2.56” Rnd 2” Hex 2.56” Rnd MaxPressure(PSI) 3481 3771 3771 3771 Max Torque (FtLbs) 1574 2213 2788 Replaces X0975, X900,PA15(JD) Max pressure (PSI) 3500 Max Torque (FtLbs) 1413 X0975, X900, X1500 X1475D,X1500 3492 3481 2.5” Hexagon 2.5” Hexagon 810410N 2.5” Hexagon 3771 3771 3771 4125 3841 4916 6185 With this new product, we do not have coverage for the below units: ➢ X8075 X1975,PA30(JD) X2475 X3575 X5075 X4575,PA40(JD) 3500 3500 3500 3500 3500 4000 3500 1413 2630 3044 3821 4279 5096 5437
