PALADIN sharkbite grapple

Model
Tooth kit

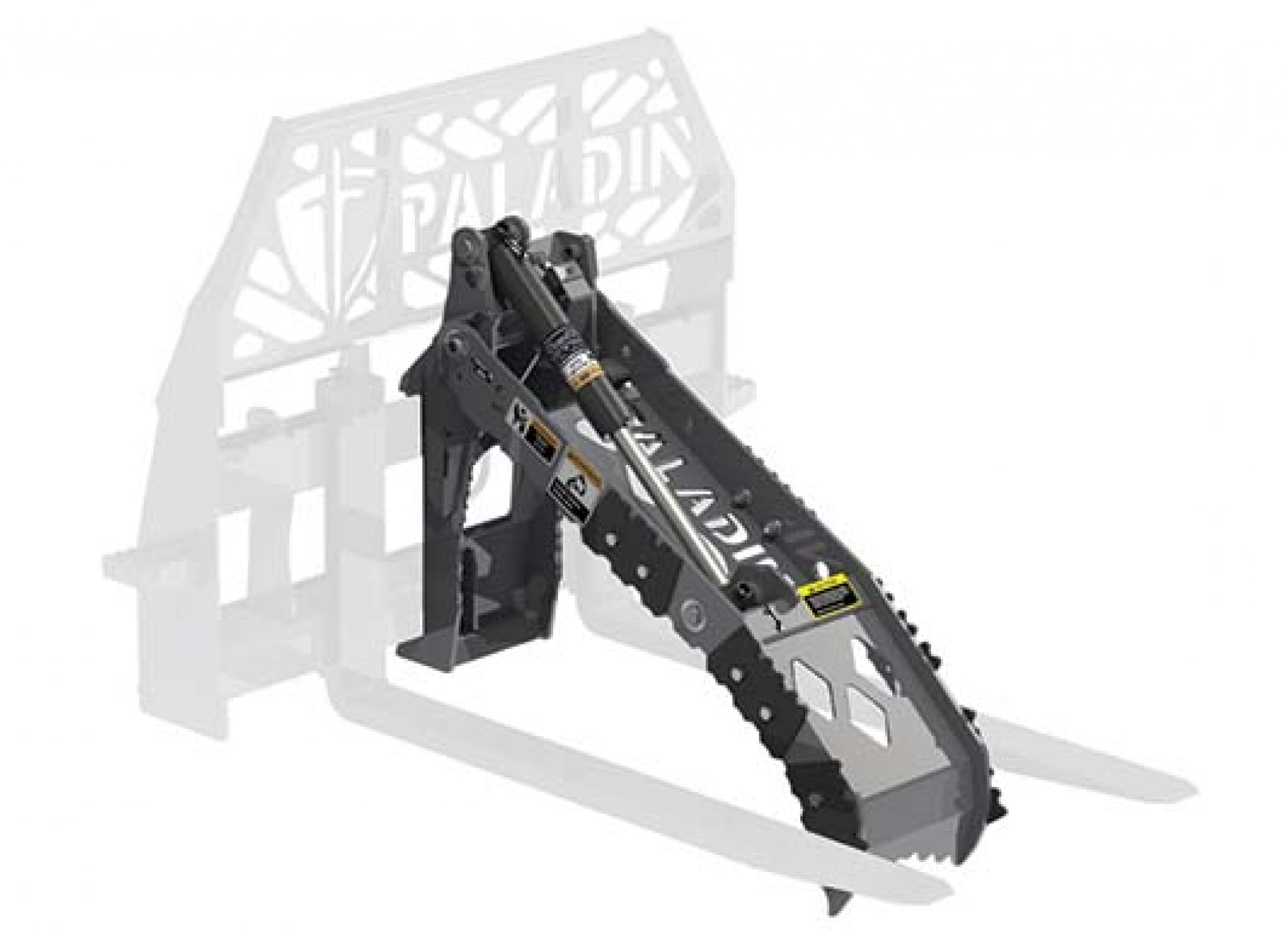

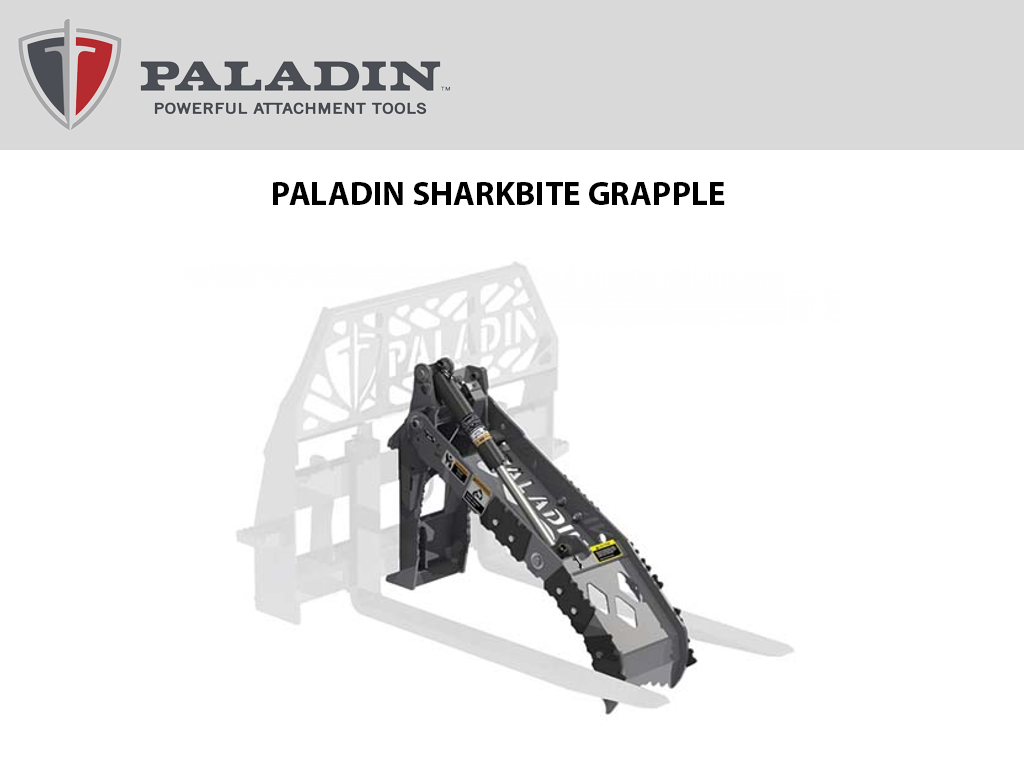

 SHARKBITE GRAPPLE

SharkBite™ installs onto any ISO-standard class II ITA fork rail, transforming a regular set of pallet forks into an ultra-versatile grapple.  Optional bolt-on Shark Teeth extend the durability and gripping performance of SharkBite, and the high-strength steel construction and powder-coat finish means SharkBite is built to last.

 FEATURES

  • Fits all standard Class II ITA fork rails
  • Field install is under 5 minutes with no tools
  • High strength steel construction
  • Powder coat finish
Specifications Standard Measurements (in) Standard Measurements (m)
Weight 175 lbs 79.3 kg
Minimum Load Diameter 14 0.36
Overall Height 63.5 1.61
Depth 46.3 1.18
Min. Envelope 7.3 0.19
Pass-Thru 7.3 0.19
Range of Motion 117° 117°
Width 13 0.33

Not available at this time.
