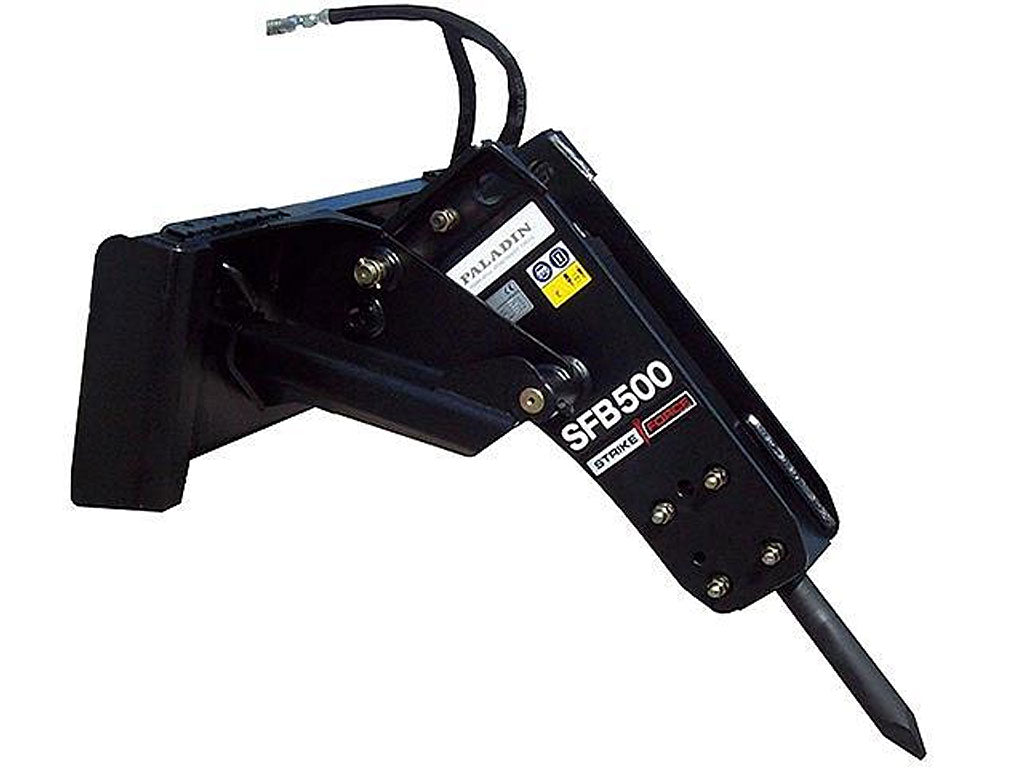

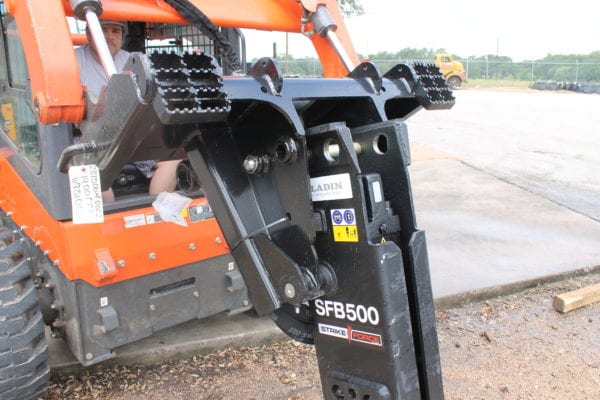

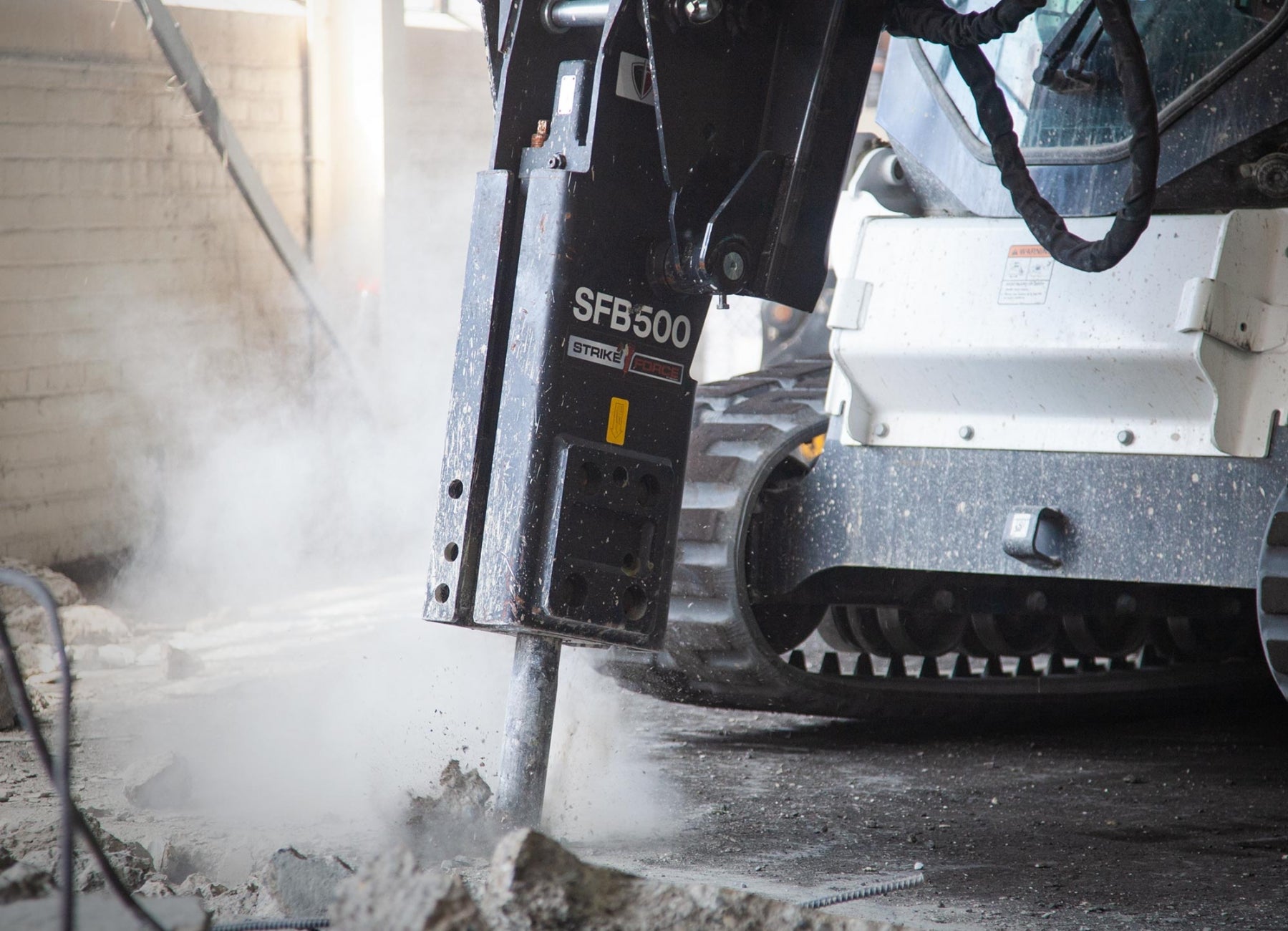

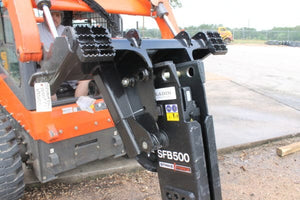

PALADIN STRIKEFORCE hydraulic hammer for skid steer
PALADIN STRIKEFORCE hydraulic hammer for skid steer
PALADIN STRIKEFORCE hydraulic hammer for skid steer
PALADIN STRIKEFORCE hydraulic hammer for skid steer
PALADIN STRIKEFORCE hydraulic hammer for skid steer
PALADIN STRIKEFORCE hydraulic hammer for skid steer

237500M-0022

PALADIN STRIKEFORCE hydraulic hammer for skid steer

$9,610.00 - $12,544.00

Business Financing Available

MODEL
Revised 2/24

Paladin Attachments Launches New Breaker Lines - Compact Equipment Magazine

Strike Force Hydraulic Breakers

 Paladin’s new Strike Force® Breakers provide exceptional performance and reliability for a variety of demolition tasks. From small excavation projects to the toughest demolition jobs, Paladin’s Strike Force Breaker series has a smooth, powerful operation for maximum output energy and efficiency. Strike Force Small Mounted Breakers are ideal for mini excavators and skid steer loaders for jobs that need a high breaking capacity. These breakers are the safe and efficient solution for road maintenance, urban demolition and building refurbishment. The Mid-Range Breakers have rugged construction and optimized power to weight ratio, specifically for trenching and demolition. With the advanced noise reduction and maximum energy transfer, the Mid-Range Strike Force Breakers are ideal for breaking hard rock and reinforced concrete. Large-Range Breakers are ideal for the largest and most heavy-duty demolition jobs, including primary excavation of quarrying, tunneling and mining. With the most efficient piston and cylinder design to transfer the highest shockwave into breaking objects, these large-range breakers provide the optimal transfer of blow energy for maximum operator results.

 FEATURES

  • Proven working principle
  • Two moving parts
  • Rugged construction
  • Wide range of models
  • Easy service and maintenance

SFB500 & SFB750 comes with skid steer mount only

SFB500R comes with skid steer mount & CP27 (TAG QC27) mounting

Model SFB250 SFB350 SFB500 SFB750 SFB1000 SFB1500 SFB2K SFB3K SFB4K SFB5K SFB6K SFB8K SFB10K SFB12K
Working Class (lb) 298 414 532 650 959 1,243 2,209 3,142 4,105 4,738 5,833 6,263 7,301 9,259
Impact Energy Class 250 350 500 750 1,000 1,500 2,000 3,000 4,000 5,000 6,000 8,000 10,000 12,000
Impact Rate (BPM)-Low Speed 400-600 350-500 350-500 350-450 300-400 300-400 250-350 200-350
Impact Rate (BPM)-High Speed 700-1500 450-1150 640-1470 620-1150 450-750 400-750 550-750 450-650 450-600 400-500 350-450 350-450 300-400 300-400
Operating Pressure (lbf/in2) 1,305-1,740 1,305-1,885 1,595-2,117 1,566-2,175 1,377-1,880 1,880-2,175 2,030-2,320 2,175-2,465 2,320-2,610 2,320-2,610 2,320-2,610 2,320-2,610 2,320-2,610 2,620-2,610
Relief Pressure (lbf/in2) 2,320-2,610 2,320-2,610 2,320-2,610 2,320-2,610 2,320-2,610 2,320-2,610 2,755-2,900 2,755-2,900 2,900-3,045 2,900-3,045 2,900-3,045 2,900-3,045 2,900-3,045 2,900-3,045
Oil Flow Range (gpm) 4-9.2 6.6-11.9 10-21.9 11.9-21.9 10.6-21.1 11.9-22.5 21.1-29 23.8-31.7 26.4-39.6 31.7-47.6 39.6-55.5 47.6-63.4 52.8-68.7 66-79.3
Tool Diameter (in) 1.57 2.15 2.63 2.67 2.93 3.32 3.9 4.88 5.27 5.46 5.85 6.05 6.44 7.1
Pressure Line Size (in) 0.5 0.5 0.75 0.75 0.5 0.75 0.75 1 1 1 1 1.25 1.25 1.25
Return Line Size (in) 0.5 0.5 0.75 0.75 0.5 0.75 0.75 1 1 1 1 1.25 1.25 1.25
Carrier Weight (lb) 2,204-6,614 4,409-9,921 5,070-13,227 7,054-15,873 9,921-19,842 15,432-26,455 24,251-35,274 28,660-39,683 35,274-46,297 39,683-57,320 55,116-66,139 61,729-77,162 66,139-99,208 88,145-121,254

Not available at this time
