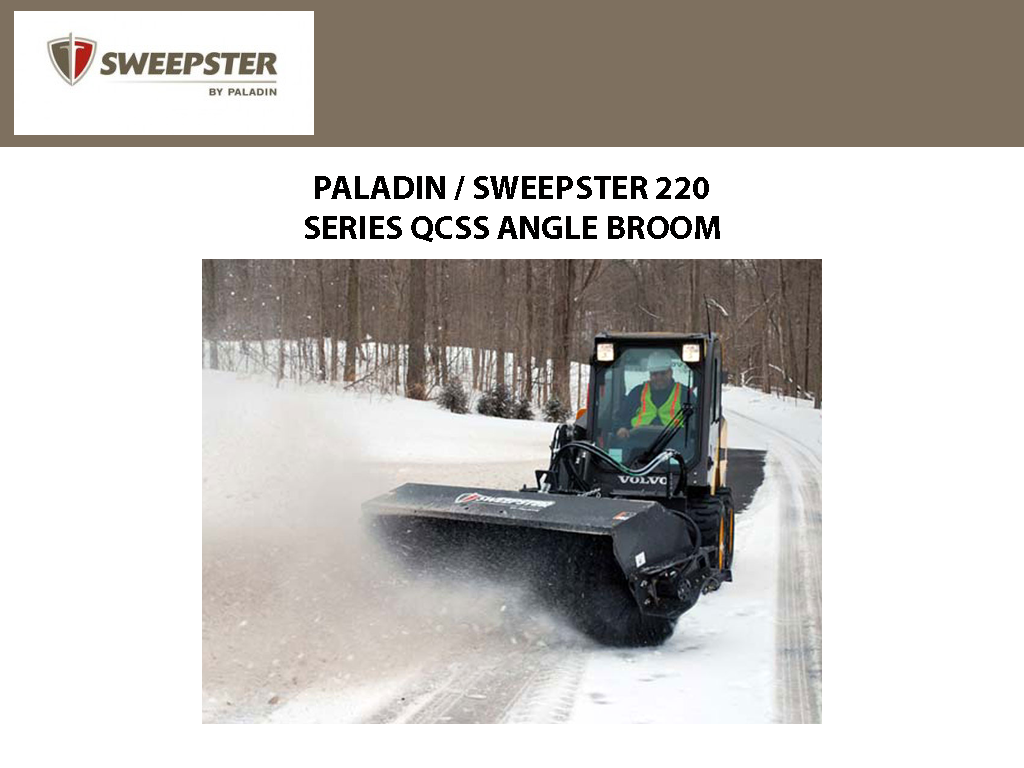

PALADIN / SWEEPSTER QCSS HYDRAULIC ANGLE BROOM 220 SERIES POLY / STEEL BRUSH

SIZE
GPM FLOW
HARNESS (REQUIRED)

Sweepers, 220 Series, QCSS Hydraulic Angle Broom

  • POLY-WIRE MIX BRISTLE MATERIAL
  • CALL FOR PRICES ON  100% POLY BRISTLES
  • SINGLE/DUAL MOTOR (CALL FOR MOTOR SPECIFICATIONS)
  • CONTROL BOX WITH POWER LEAD OR HYDRAULIC ANGLE

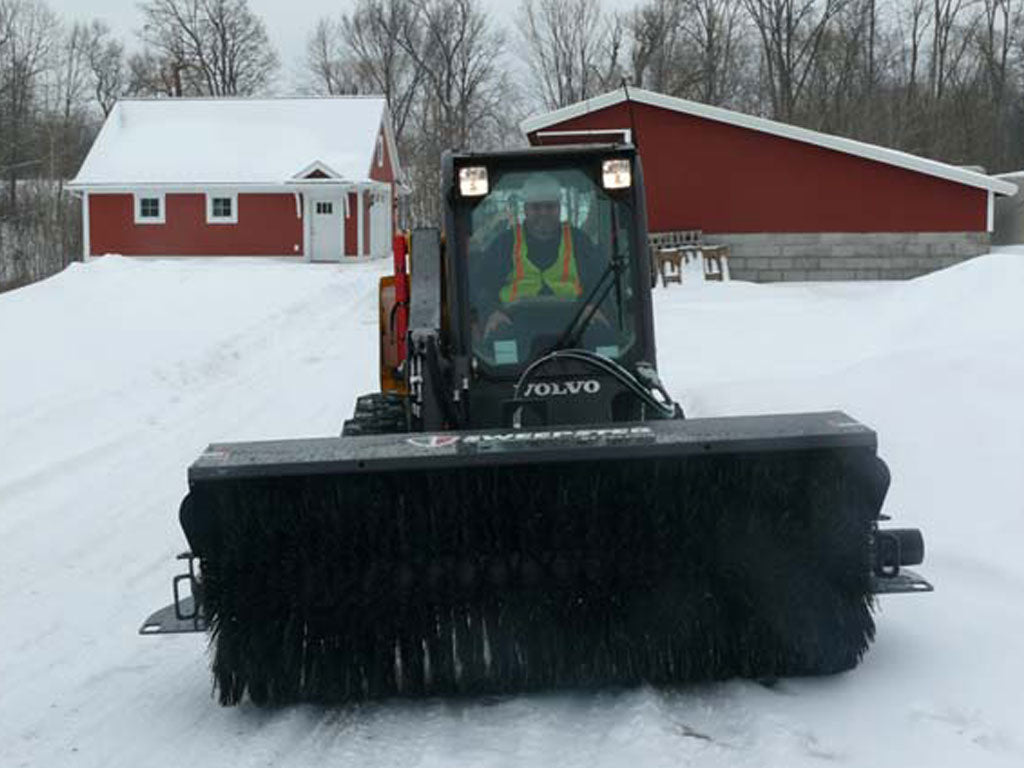

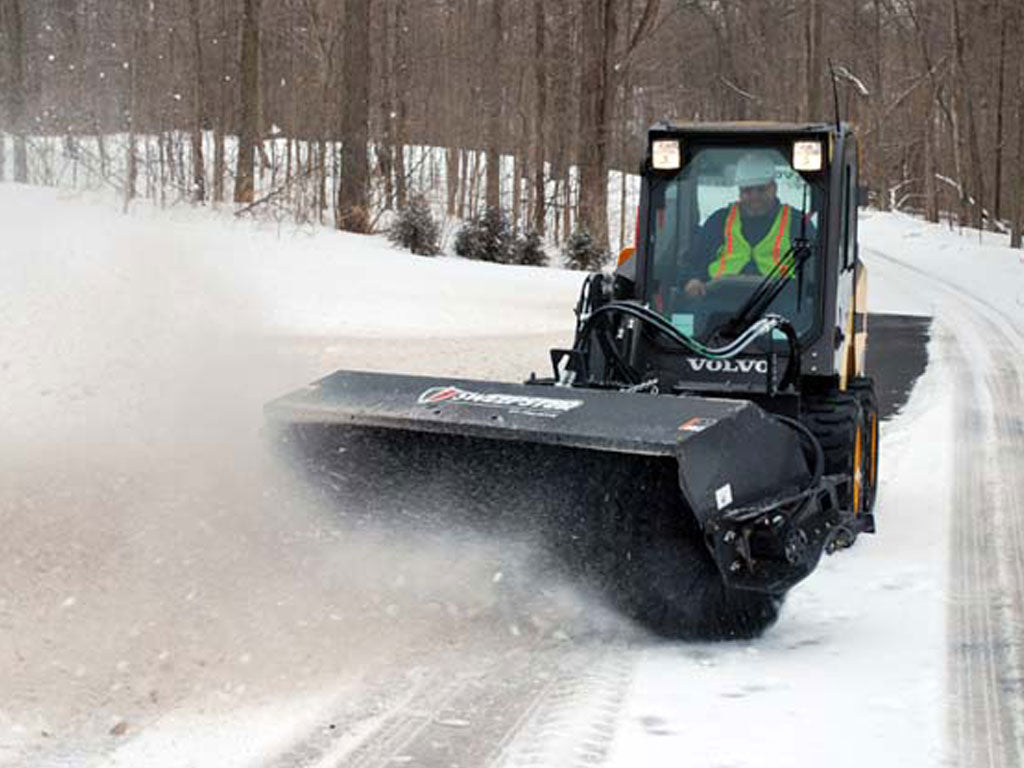

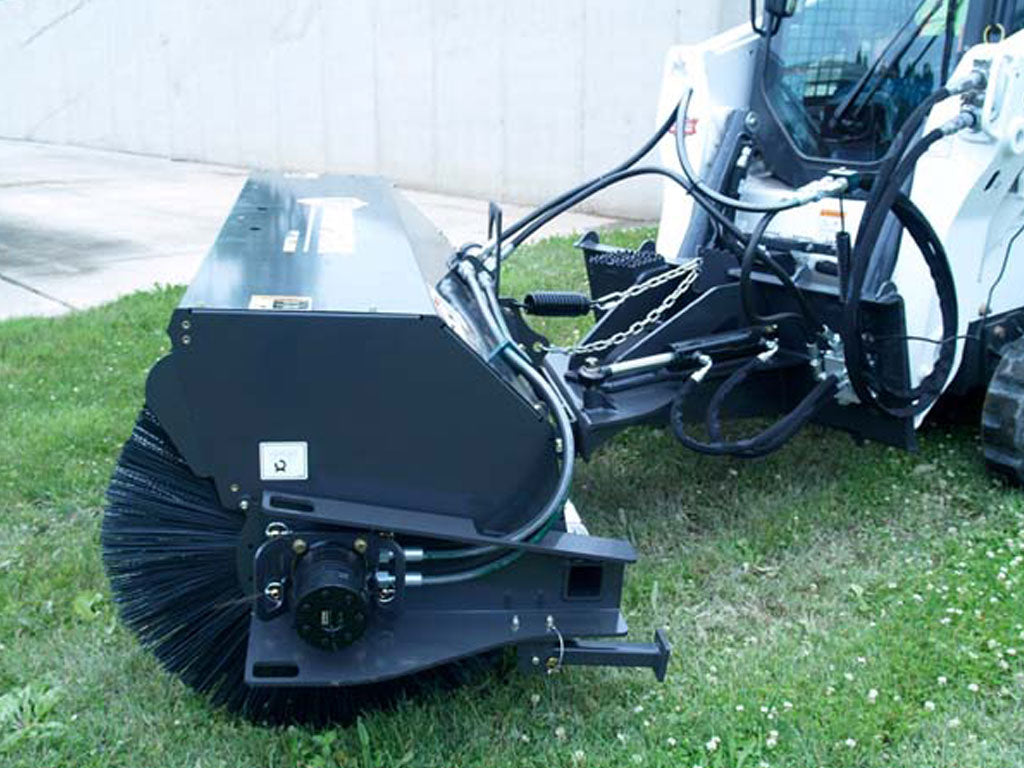

The Sweepster QCSS Angle Broom (SSL Angle Sweeper — Hydraulic Drive) is designed for skid steer mount. Use for wind-rowing material left, right or straight. Available with manual and hydraulic angle and widths from 60 to 84 inches. This product is also available CE certified. The dual motor set up creates more torque for more severe applications like cleaning up asphalt millings.

FEATURES

  • Drive slips out of core without removing hydraulic lines from wheel motor
  • Brush core is reversible for even brush wear
  • 32" diameter brush for longer life
  • Angles manually 30 degrees left/right
  • Faceted hood design provides maximum strength at ends of the hood
  • Choose poly, wire, or poly/wire brush
  • Includes skid steer mounting
 STYLE WIDTH ANGLE BRUSH GPM WEIGHT
HYDRAULIC 60" 52" 32" 12-25 845 lb
HYDRAULIC 72" 62.5" 32" 12-25 / 20-36 895 lb
HYDRAULIC 84" 73" 32" 12-25 / 20-36 945 lb
HYDRAULIC 96" 83" 32" 12-25 / 20-36 995 lb

Not available at this time.
