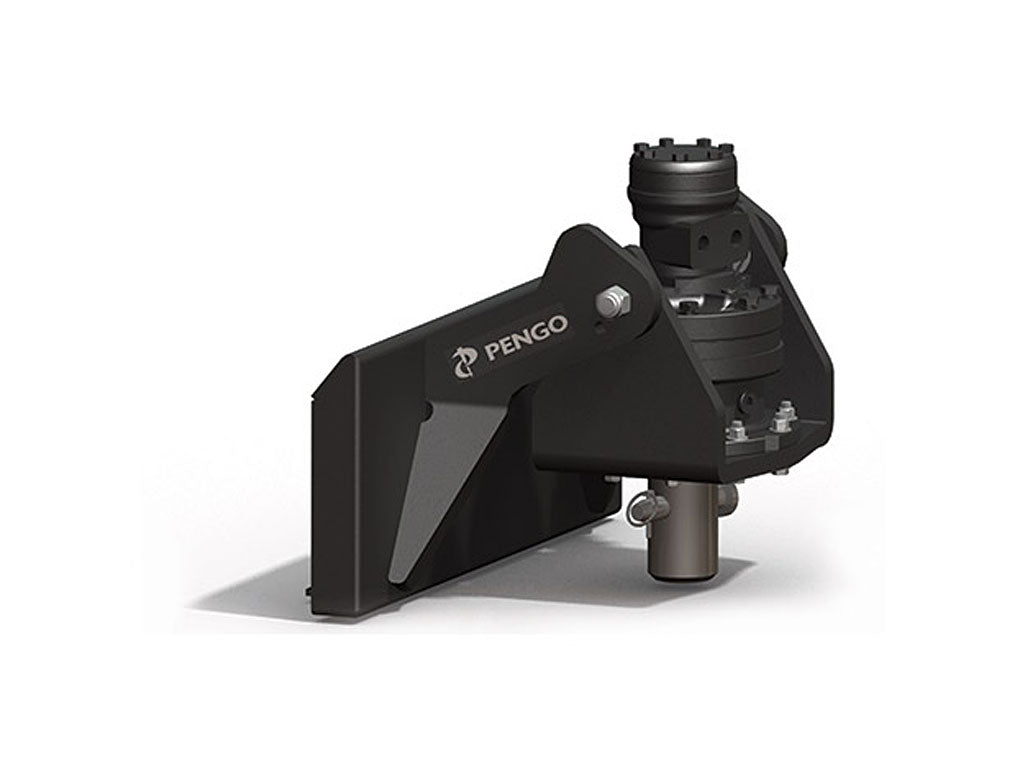

PENGO MS-100 drilling auger drive

CONNECTION
BRACKET

PENGO MS-100 MS Series (Drilling)

The MS series drives are made specifically for mini-skid machines. They are lightweight and offered with either a 2 9/16” round output shaft or 2” hex. The MS series is perfect for backyard drilling projects. Its compact size perfectly accommodates Pengo’s Landscape Aggressor® auger.

This single speed Revolution Drive for mini skid steer is your solution to backyard dirt digging. It's compact size accommodates the Landscape Aggressor auger perfectly. Universal Compact Skid Mount and Hydraulic Hoses included. Note that both theoretical and actual torque values are listed, but that Pengo recommends to go by ACTUAL torque listings.

  • HIGHLY EFFICIENT GEARBOX DESIGN FOR LONG DUTY CYCLES

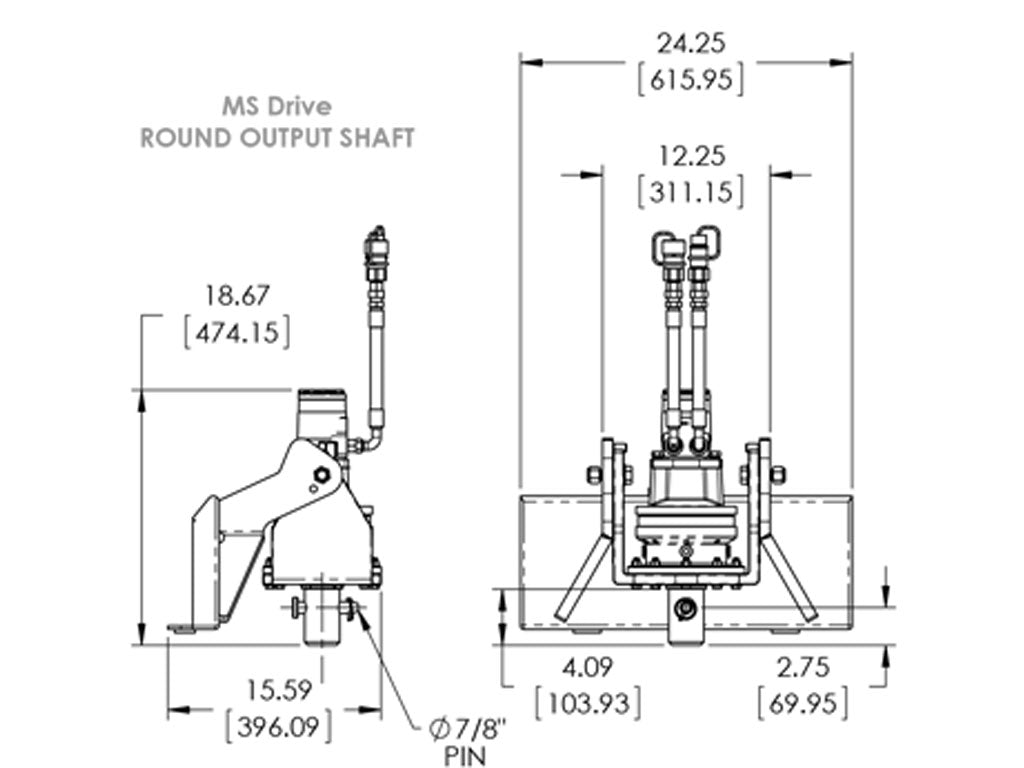

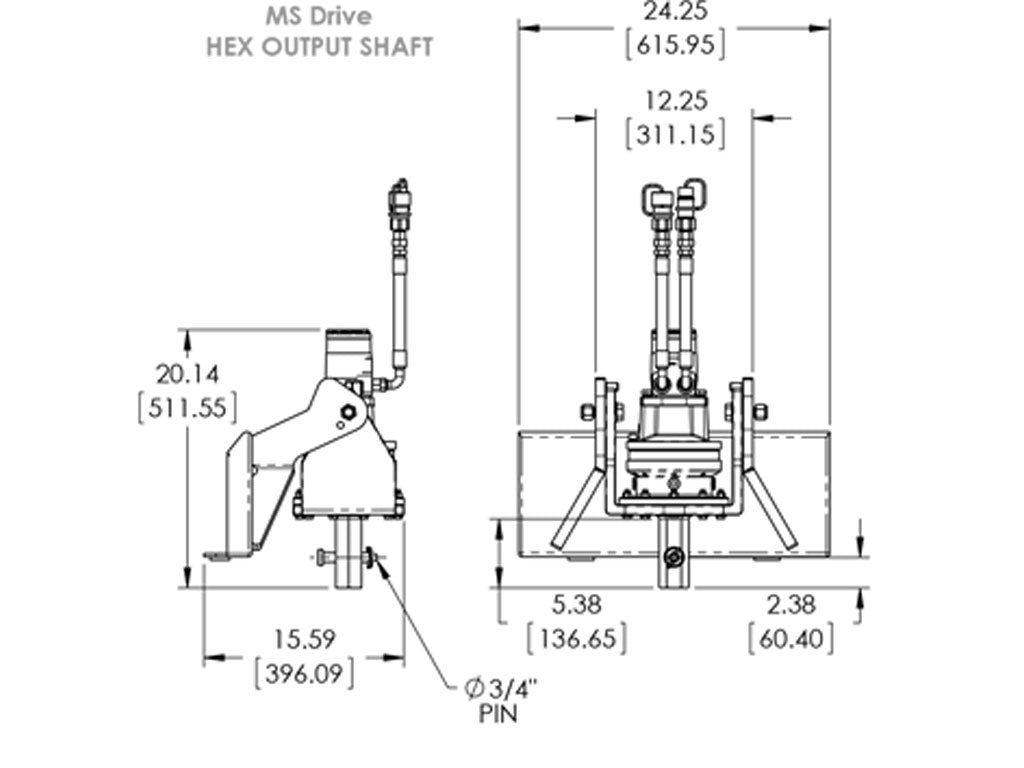

  • (2) CONNECTIONS AVAILABLE 2" HEX OR 2 9/16" ROUND
  • (2) BRACKETS SINGLE OR DOUBLE
DISPLACEMENT 16.1 CU IN
MOTOR TYPE SINGLE SPEED, BI DIRECTIONAL
MOTOR OUTPUT 7/8" SPLINE 14T
MOTOR MOUNT SAE A 2 BOLT
MOTOR PARTS 1/2" BSP
CROSS OVER  NA
GEARBOX PLANETARY SINGLE STAGE
REDUCTION RATIO 5.77:1
OUTPUT SHAFT 2" HEX OR 2 9/16" ROUND
INTERNAL OIL CAP .13 GAL
OIL TYPE SAE 80W90 GL-5
MAX HOLE DEPTH 4'
MAX HOLE DIAMETER 4'
WEIGHT 146 LB



 SPEED

 FLOW GPM SPEED
10 54
15 80
20 108
25 134



TORQUE CHART

 PRESSURE THEORETICAL ACTUAL
1200 560 459
1400 654 536
1600 747 613
1800 840 689
2000 934 766
2200 1027 842
2400 1121 919
2600 1308 995
2800 2550 1073
3000 2733 1149
