PENGO

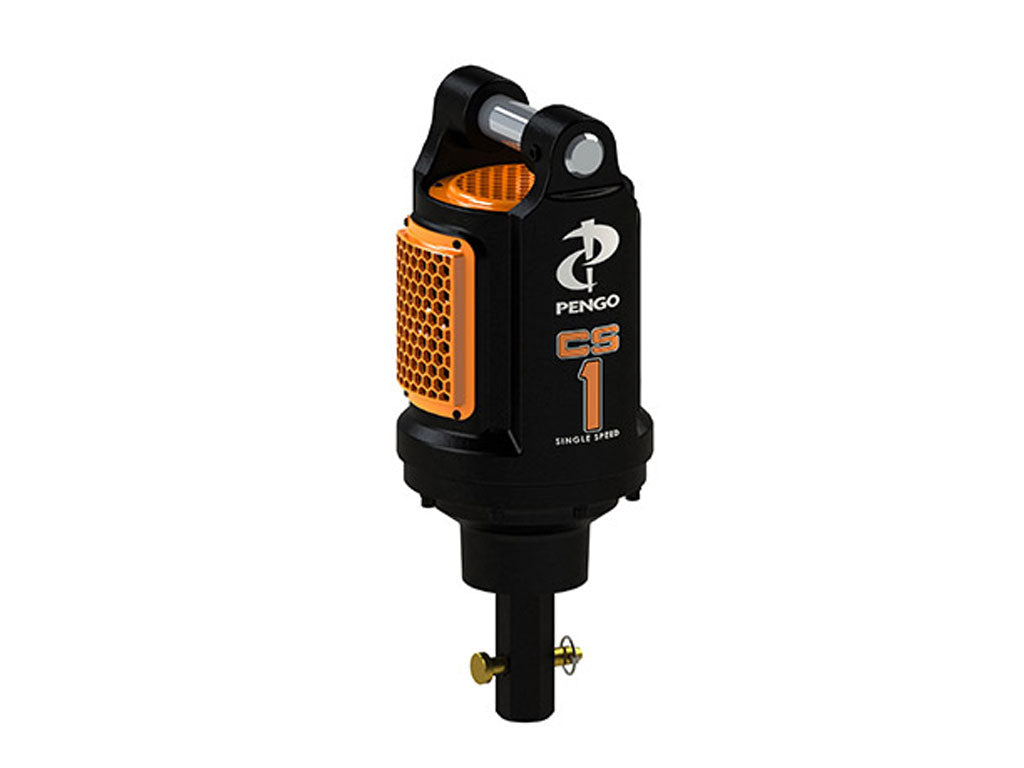

PENGO CS-1 DRILLING DRIVE (SSL)(CTL)

PENGO CS-1 CS Series (Drilling)

Pengo's latest addition to the Revolution Series Drilling drives are the CS Models. These models compact and light weight and are designed to work with our General Purpose 2" Hex Aggressor®, TriMax® and Severe Rock Ripper® augers. Combining this drive with the CS-1 Mount and your Pengo auger gives you a complete auger package.

  • LIGHT WEIGHT COMPACT DESIGN
  • ONE PIECE CAST HOUSING
  • (1) CONNECTION AVAILABLE 2" HEX
  • UNIVERSAL SKID STEER BRACKET (BOBCAT)
  • WARRANTY - 24 MONTH GEAR BOX, 12 MONTH HYDRAULIC

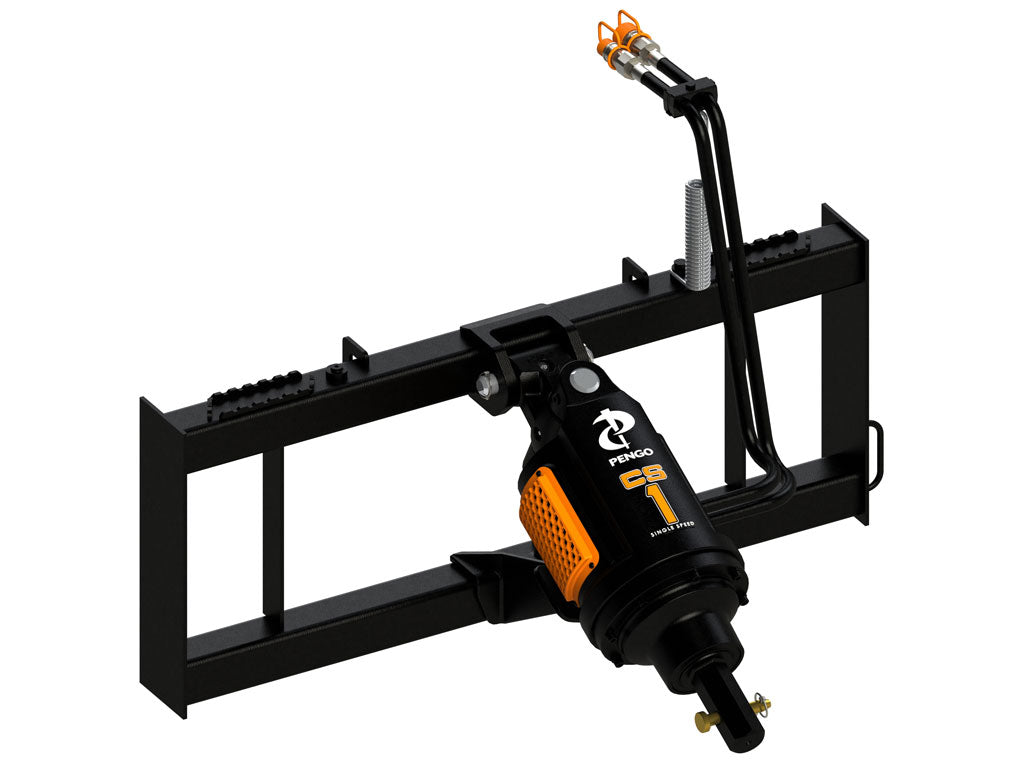

 MOUNT for CS-1

This CS-1 Drive and Mount are sold as a unit. Couple your Aggressor®, TriMax® or Severe Rock Ripper® with this unit for a complete General Purpose drive package.

DISPLACEMENT 12.1 CU IN
MOTOR TYPE SINGLE SPEED, BI DIRECTIONAL
MOTOR OUTPUT 1 1/4" SPLINE 14T
MOTOR MOUNT SAE A 2 BOLT
MOTOR PARTS 7/8-14 UNF-2B O-RING
CROSS OVER  NA
GEARBOX PLANETARY SINGLE STAGE
REDUCTION RATIO 3.69:1
OUTPUT SHAFT 2" HEX
INTERNAL OIL CAP 25 OZ
OIL TYPE SAE 80W90 GL-5
MAX HOLE DEPTH 8'
MAX HOLE DIAMETER 24"
WEIGHT 130 LB DRIVE / 300 LB WITH SSL MOUNT
MIN / MAX FLOW 5 - 15 GPM
MAX PRESSURE 3600
MAX DIAM AUGER 24"



 SPEED

 FLOW GPM SPEED
5 26
10 52
15 78



TORQUE CHART

 PRESSURE THEORETICAL
1200 709
1400 828
1600 946
1800 1064
2000 1183
2200 1301
2400 1419
2600 1538
2800 1656
3000 1774
3200 1893
3400 2011
3600 2129

 This unit usually ships in (5) to (10) days

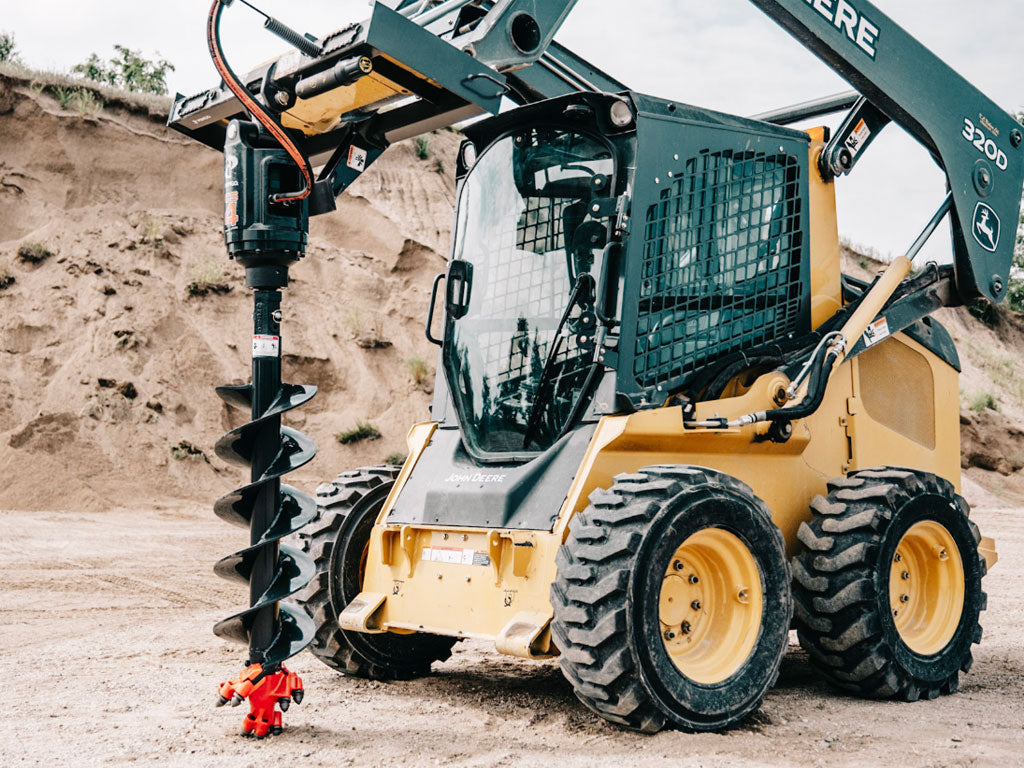

 This drive is for smaller skid steers or possibly tractors. The flow range is only 5 to 15 GPM.
