PENGO

12/30-MA-42 TREE-42-1

PENGO TRIMAX AUGER BIT, DOUBLE FLIGHT (SSL)(CTL)(TLB)(EXC)

Size
LENGTH
HUB

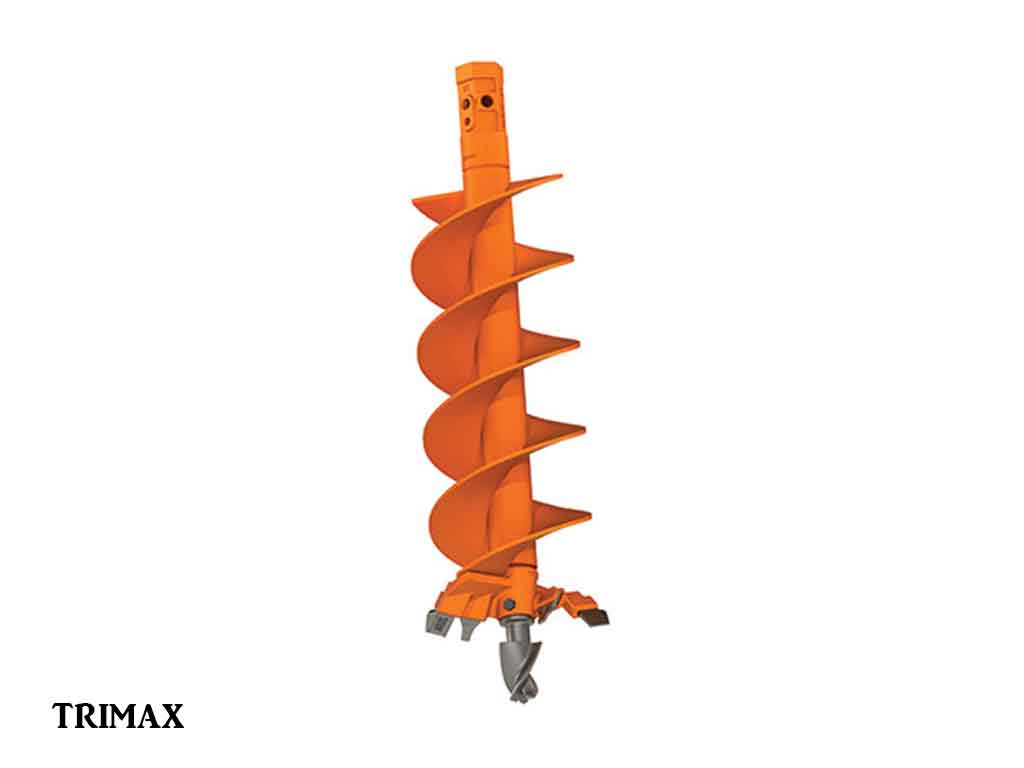

TRIMAX®  AUGER

The TriMax® auger is designed to handle your most challenging applications across a variety of drilling conditions, including dirt, sand, silt or gravel. Available in both single- and double-flight configurations, the TriMax features a compound angle cutting head to provide unmatched drilling productivity.

  • SINGLE vs. DOUBLE: The TriMax® auger is available with either single or double flight. Single flight is great for clay while double flighted augers give extra capacity and compacts loose soil on the flights
  • Cast Alloy Steel Hub
  • 5/16" Thick, Single Flight
  • Fas-N-Lok® 37 Gage Teeth on the outside
  • Cast Head with Compound Angles
  • Fas-N-Lok® 5T30 Teeth to penetrate compacted soils
  • TriFlow® 350 Standard Pilot Bit
  • Cut diameter is 1 1/2" larger than auger diameter.



ITEM TEETH LB DIAMETER
6-TM-48D 2 58 6
8-TM-48D 4 65 8
9-TM-48D 4 80 9
10-TM-48D 4 83 10
12-TM-48D 4 94 12
14-TM-48D 6 108 14
16-TM-48D 6 122 16
18-TM-48D 6 135 18
20-TM-48D 6 140 20
24-TM-48D 8 162 24
30-TM-48D 10 180 30
36-TM-48D 12 293 36
42-TM-48D 15 355 42
48-TM-48D 18
48


RECOMMENDATIONS

  • Single flight is great for clay
  • Double flighted augers give extra capacity and compacts loose soil on the flights


       USUALLY SHIPS IN (5) TO (10) DAYS

      Pengo’s TriMax® auger is designed to handle your most challenging applications across a variety of drilling conditions. Available in both single and double flight configurations, the TriMax® features our TriFlow® Pilot, which provides unmatched stability and wear characteristics. Combined with our FasN-Lok® teeth and cast head with compound angles; dirt, sand, silt or gravel are no match for the TriMax®
