PENGO

12/30-MA-42 TREE-42-1

PENGO TRIMAX AUGER BIT, SINGLE FLIGHT (SSL)(CTL)(TLB)(EXC)

Size
LENGTH
HUB

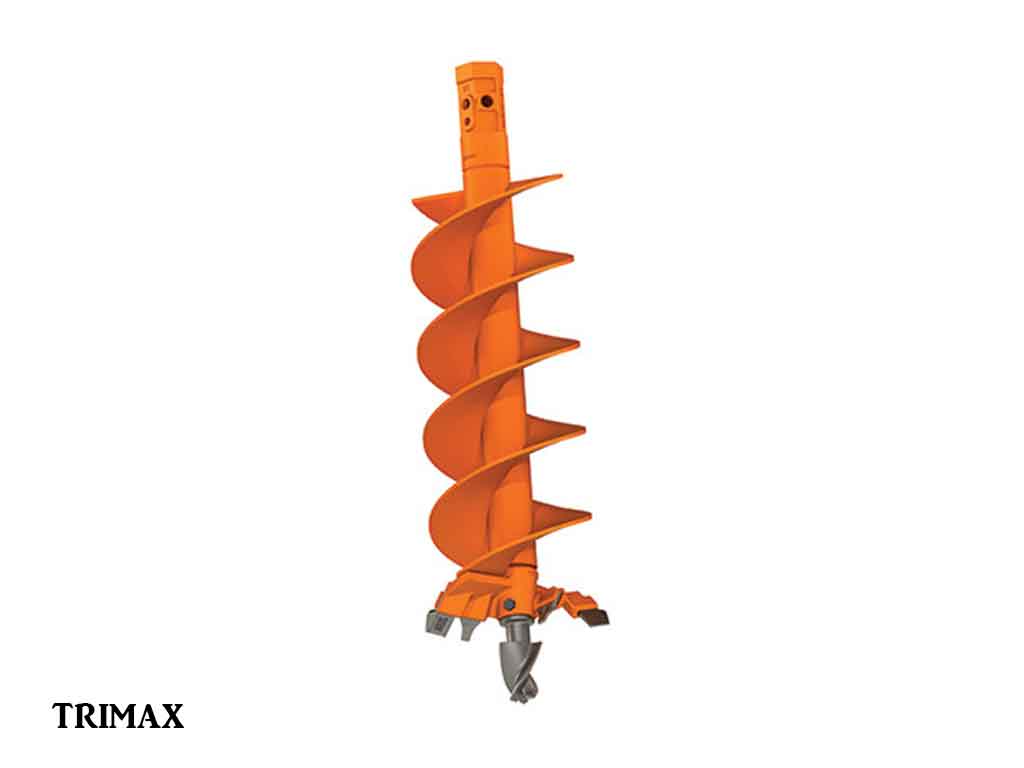

TRIMAX®  AUGER

The TriMax® auger is designed to handle your most challenging applications across a variety of drilling conditions, including dirt, sand, silt or gravel. Available in both single- and double-flight configurations, the TriMax features a compound angle cutting head to provide unmatched drilling productivity.

  • SINGLE vs. DOUBLE: The TriMax® auger is available with either single or double flight. Single flight is great for clay while double flighted augers give extra capacity and compacts loose soil on the flights
  • Cast Alloy Steel Hub
  • 5/16" Thick, Single Flight
  • Fas-N-Lok® 37 Gage Teeth on the outside
  • Cast Head with Compound Angles
  • Fas-N-Lok® 5T30 Teeth to penetrate compacted soils
  • TriFlow® 350 Standard Pilot Bit
  • Cut diameter is 1 1/2" larger than auger diameter.



ITEM TEETH LB DIAMETER
6-TA-42 2 46 6
8-TA-42 4 55 8
9-TA-42 4 59 9
10-TA-42 4 66 10
12-TA-42 4 76 12
14-TA-42 6 91 14
16-TA-42 6 97 16
18-TA-42 6 112 18
20-TA-42 6 117 20
24-TA-42 8 115 24
30-TA-42 10 168 30
36-TA-42 12 270 36
42-TA-42 15 302 42
48-TA-42 18 380 48


RECOMMENDATIONS

  • Single flight is great for clay
  • Double flighted augers give extra capacity and compacts loose soil on the flights


       USUALLY SHIPS IN (5) TO (10) DAYS

      Pengo’s TriMax® auger is designed to handle your most challenging applications across a variety of drilling conditions. Available in both single and double flight configurations, the TriMax® features our TriFlow® Pilot, which provides unmatched stability and wear characteristics. Combined with our FasN-Lok® teeth and cast head with compound angles; dirt, sand, silt or gravel are no match for the TriMax®
