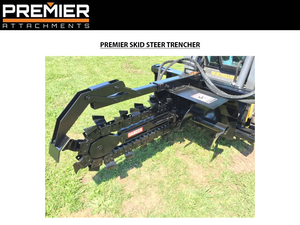

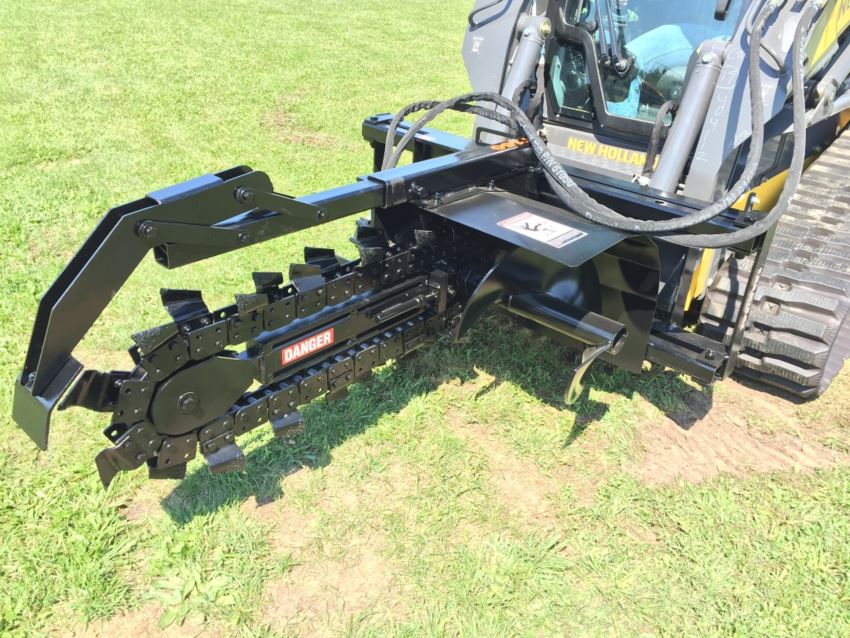

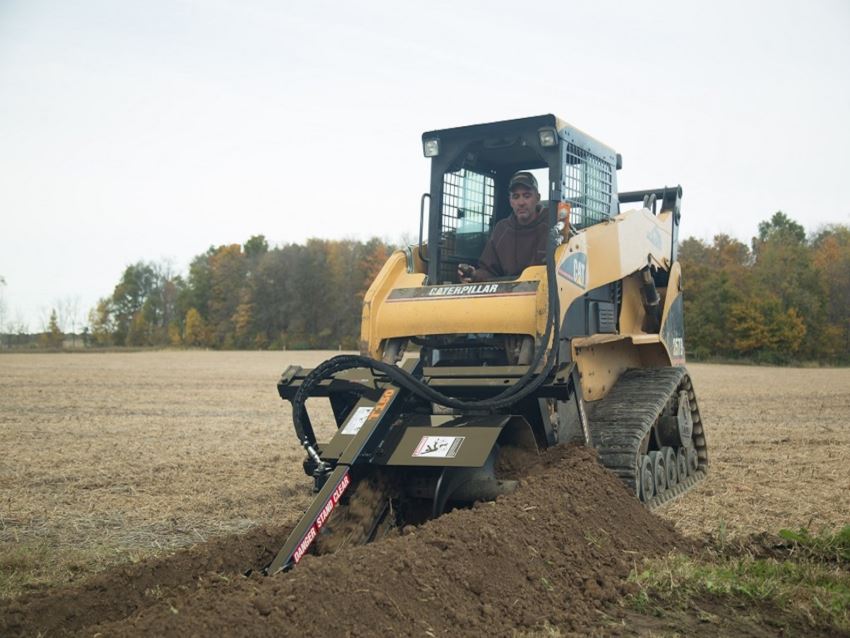

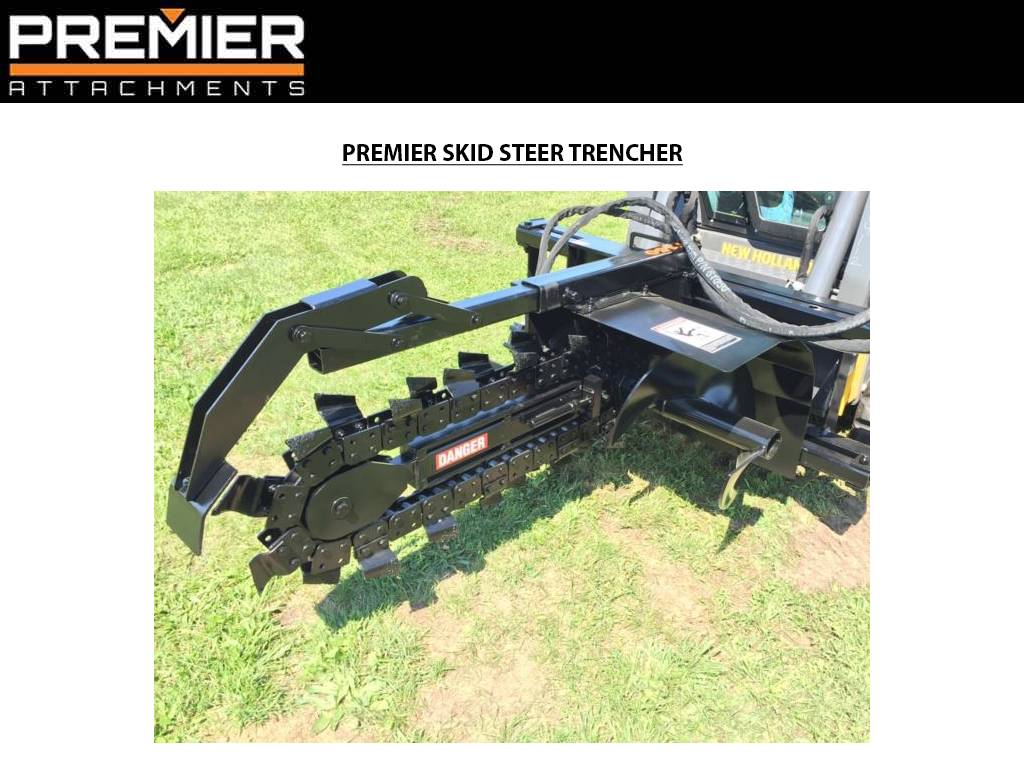

Duo-Tach® Trencher Attachment

Premier’s patented (PAT. 11,280,057) Duo-Tach® Trencher line of attachments offer unmatched versatility at any job site. The Duo-Tach® allows our trencher attachment to easily go from use on a mini skid steer to a full size skid steer without the need to even touch a wrench. The ability to have one attachment work on two styles of mounting systems is unparalleled and offers incredible value. Don’t Just Attach it, Duo-Tach® It!

Premier Attachments Duo-Tach® is available in two models of our trencher attachment line. The T100 is better suited for older lower flow mini skids vs the much more popular T125 that fits up nicely to most all of today’s mini skid steers and standard flow skid steers equally. These trenchers are heavy duty in design. We use a robust planetary gear system to power the digging chain efficiently and, most importantly, reliably. We take our quality even a step further by also using a labyrinth style cartridge shaft seal on these gearboxes. This heavy duty sealing system provides superior protection of seal failures as compared to others that rely on the standard single lip seal.

When combining the reliability of our trencher attachment with the versatility of the Duo-Tach® mounting system you get an incredible value in one attachment. The Duo-Tach® allows you to effortlessly go from using our trencher attachment on a full-size skid steer, or compact track loader, to a mini skid steer instantly. Now you can be on one jobsite with multiple machines and only need one attachment to fit them all. It even has convenient guides that allow the Bobcat MT style mount to attach with ease.

The T100 and T125 are available with a 3’ and 4’ digging depth with chain widths from 4”, 6”, 8”, 10” and 12” wide. Our Spoil Shield helps to ensure that the spoil is moved, not only from the trench, but also away from the skid shoe of the trencher allowing for a much more consistent, and accurate, trenching depth. The crumber comes standard on all of our trenchers and helps to keep the bottom of the trench clean as your digging.

Rest assured that no matter what your digging conditions are, we offer the right chain for you. Below are the chain styles that are available on Premier’s Trencher Attachments

Features

• Duo-Tech Mounting System available on T100 and T125

• Trencher attachments ship already assembled and ready for work

• Heavy-duty Planetary Drive system eliminates chain reduction

• No third drain line required

• Digging depths 3’

• Digging widths 6”, 8”, 10” and 12”

• Common chain/tooth options in stock: Double Standard Cup Tooth, 50/50 Bullet Tooth, 50/50 Carbide Shark Tooth, 70/30 Carbide Scorpion Tooth

• Heavy-duty crumber shoe accessory for loose soil removal

• Replaceable spoil auger that mounds most soil to one side of the trench

• Manual side-shift for trenching close to structures

• Built-in skid shoe provides proper auger depth control

• Built-in mechanical depth gauge

• 2-year Motor and Planetary/1-year Frame warranty

*** PRICES INCLUDE HOSES AND COUPLERS
