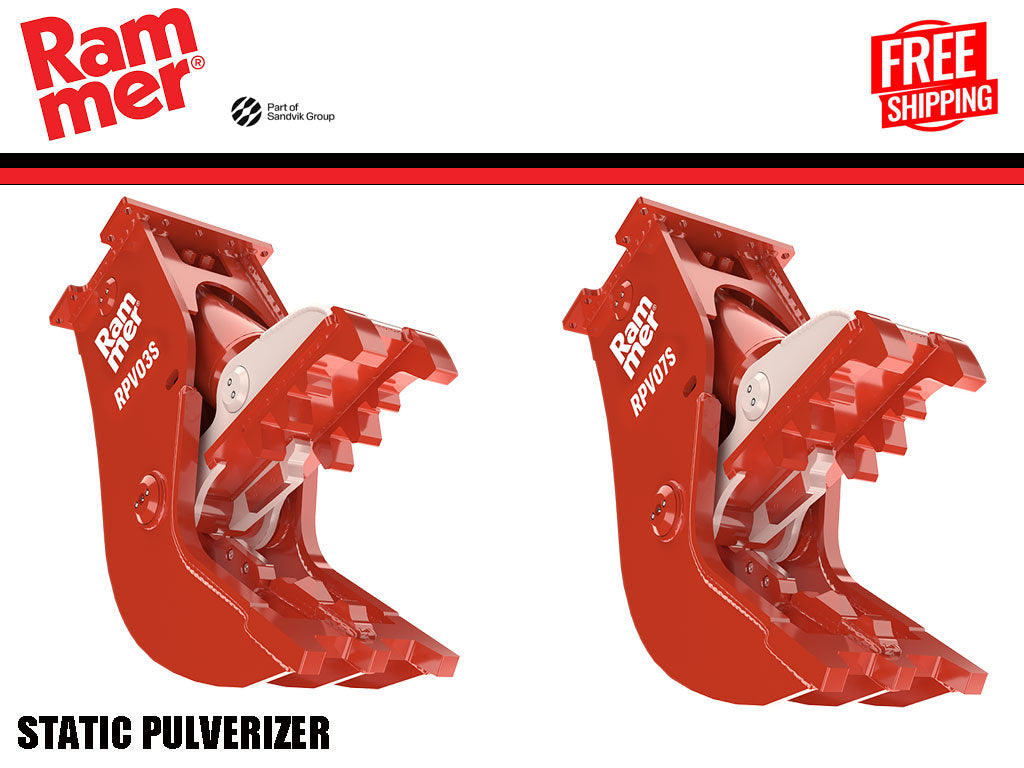

RAMMER Static pulverizer for skid steer loader

SIZE
5/25

Static Pulverizers

SKID STEER

Rammer® RPV Static Pulverizer range is ideally suited to a wide range of secondary demolition and recycling duties. The RPV range of models are designed for fast and effective material separation, a key aspect of the recycling process.

Static Pulverizers are your reliable solution to secondary demolition and recycling applications for carriers between 1.5 and 45 tons.

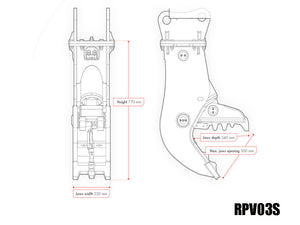

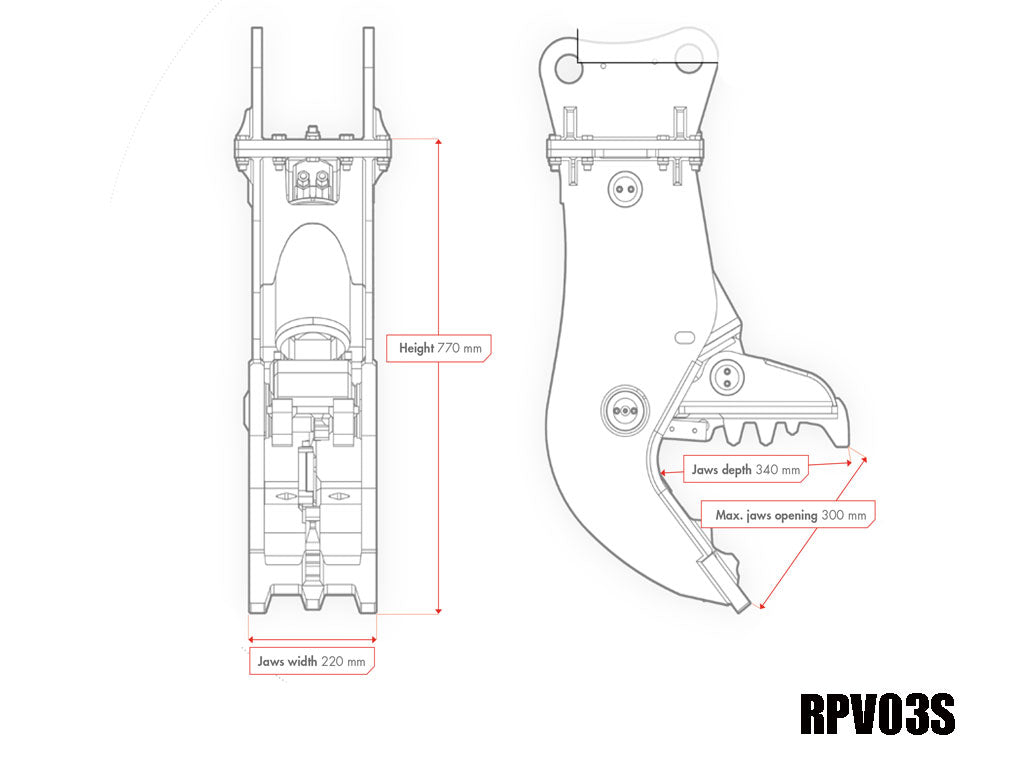

RPV03S

The RPV03S is ideal attachment for secondary demolition. The 140 kg Static Pulverizer is suitable for carriers in the 1.5 to 4 tonne range.

The Rammer RPV03S is the perfect tool for crushing reinforced concrete and separating the rebar from the aggregate.

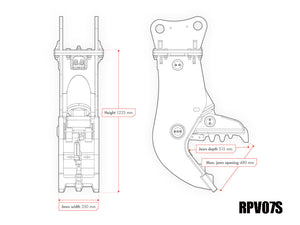

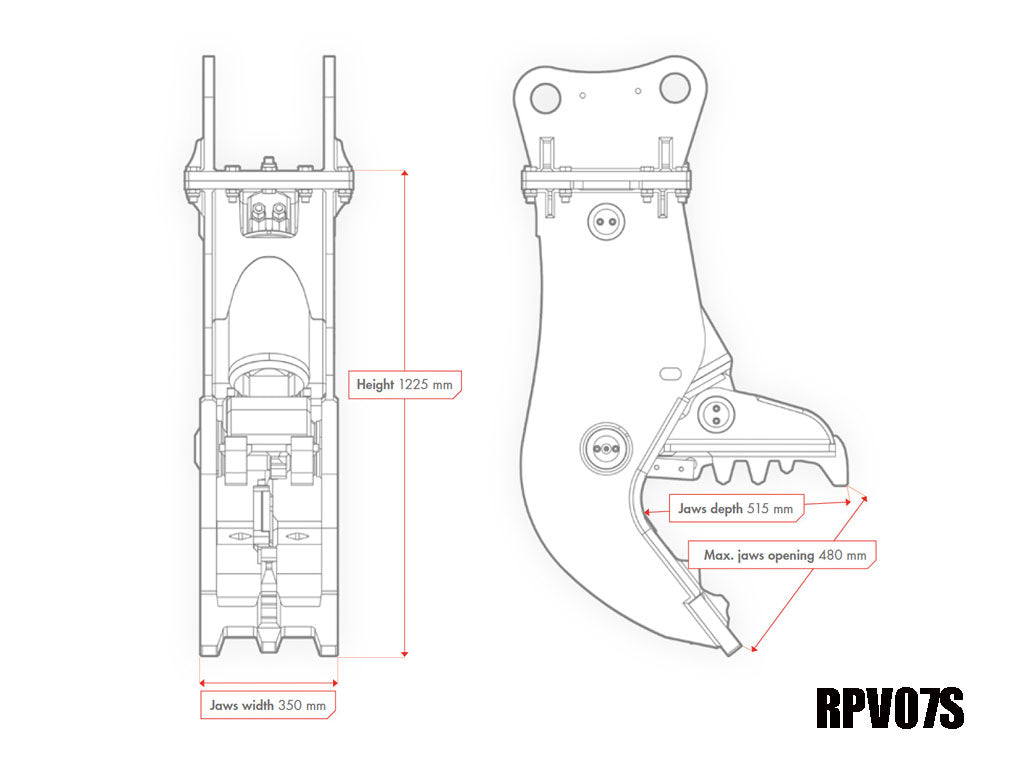

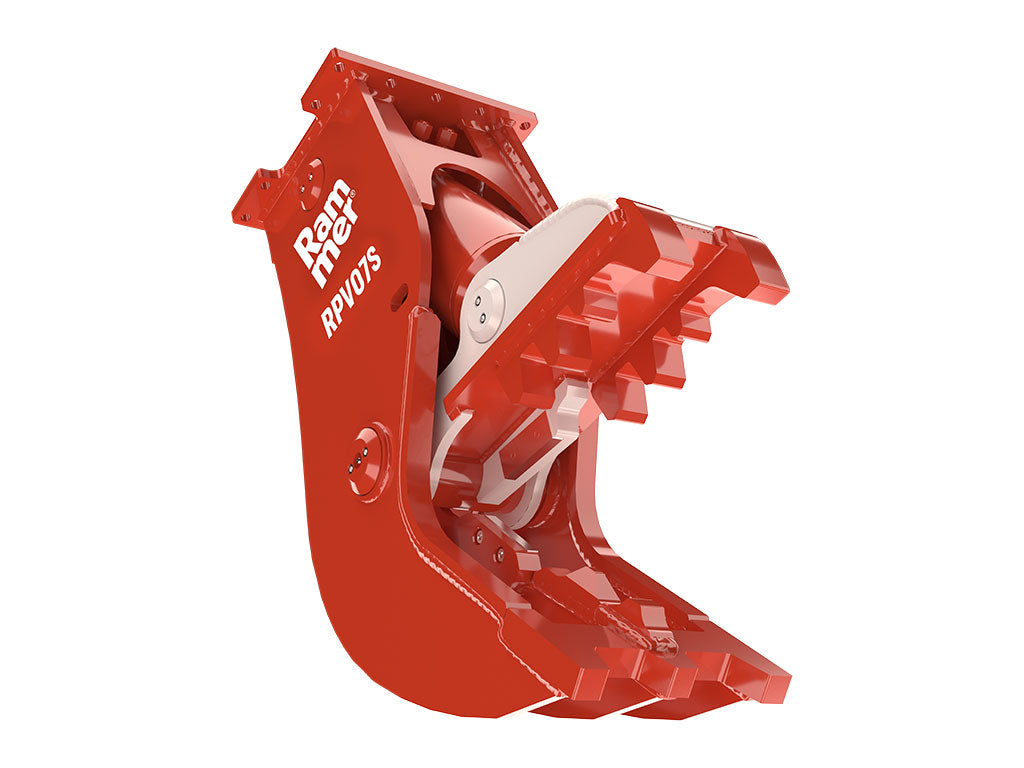

RPV07S

The RPV07S is ideal attachment for secondary demolition. The 490 kg Static Pulverizer is suitable for carriers in the 4 to 10 tonne range.

The Rammer RPV07S is the perfect tool for crushing reinforced concrete and separating the rebar from the aggregate.

Features

  • Grated jaw design - The fixed jaw allows crushed material to pass through increasing productivity
  • Manufactured from HB400 steel- Highly resistant material to work on concrete.
  • Field replaceable cutting blades - Field replaceable, reversible and adjustable cutting blades increase the cutting capacity and availability. This reduces maintenance costs and keeps performance at a high level.
  • Hardened pins and bushings - Hardened parts are more wear resistant, extending their working life and lowering owning and operating costs

Applications

  • Pulverizing - Separating rebar from concrete, Preparation of material for crusher or landfill
  • Secondary demolition - Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
  • Recycling - Re-using parts or material which has been extracted from existing buildings or structures. Recycling of products: Re-use of material or parts as such. Recycling of material: Re-use of material for other purposes

MODEL RPV03S RPV07S
MIN WORKING WEIGHT 310 LBS. (140 KG) 1080 LBS. (490 KG)
WEIGHT 260 LBS. (120 kg.) 930 LBS. (420 KG)
MAX JAW OPENING 11.81" (300 mm) 18.9″ (480 mm)
JAW WIDTH 8.66" (220 mm) 13.8″ (350 mm)
OPERATING PRESSURE 2900.76-3625.95 psi (200-250 bar) 4060 psi (280 bar)
MAX CUT .059" (15mm) 0.98″ (25 mm)
OIL FLOW 7.93-15.9 GPM (L /MIN 30-60)
BLADE LENGTH  3.15" (80mm) 4.72″ (120 mm)
CARRIER WEIGHT RANGE 3000 lbs. - 8000 lbs. (1.5-4 T) 8800 lbs-22000 lbs (4-10 T)
