REMLINGER

RP-500-20D-TR

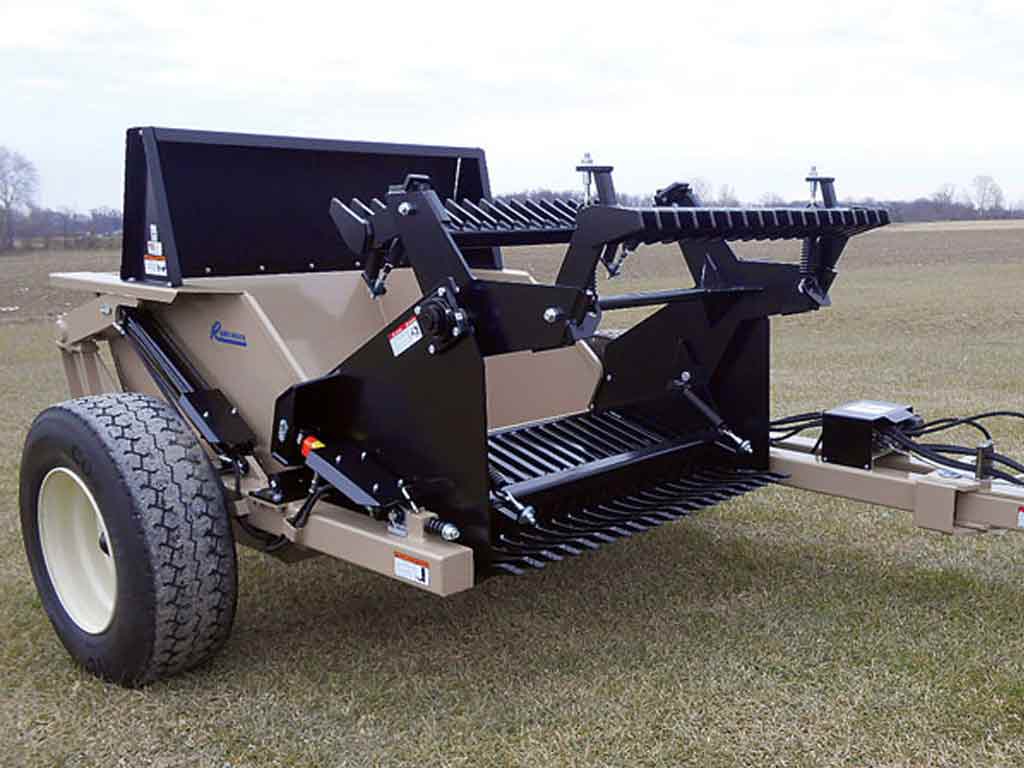

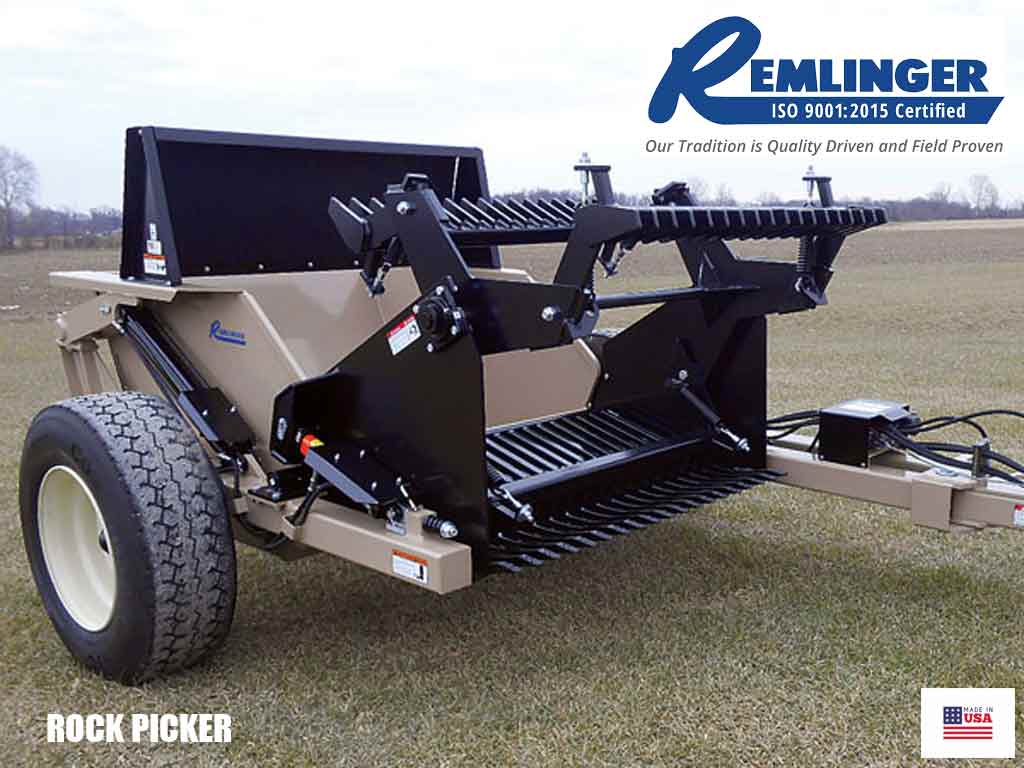

REMLINGER Rock Picker Series 500

Remlinger Manufacturing offers the PFM Series 500 Hydraulic Powered Rock Picker as a simple, economical approach to continuous picking machines for stones, rocks and boulders. The simple design and straight forward picking action results in a highly reliable machine with minimum maintenance and excellent performance for years to come.

Key Benefits

  • Ideal for strip mines, reclamation, concrete debris, demolition and more
  • Economical machine for continuous picking of stones, rocks, windrows and boulders
  • Reduces downtime and damage to tillage and harvesting equipment
  • Efficient valve and remote switch box hydraulic system
  • Operator controls all functions without leaving the tractor

Standard Features

  • 2 1/4 cubic yard hopper
  • 60" picking width
  • 1 1/2" - 24" size rocks
  • 5" HD frame
  • 60 HP min tractor
  • spring cushion reel
  • Fits category III clevis
  • Hard surface scoop tines
  • Hard surface bar reel teeth

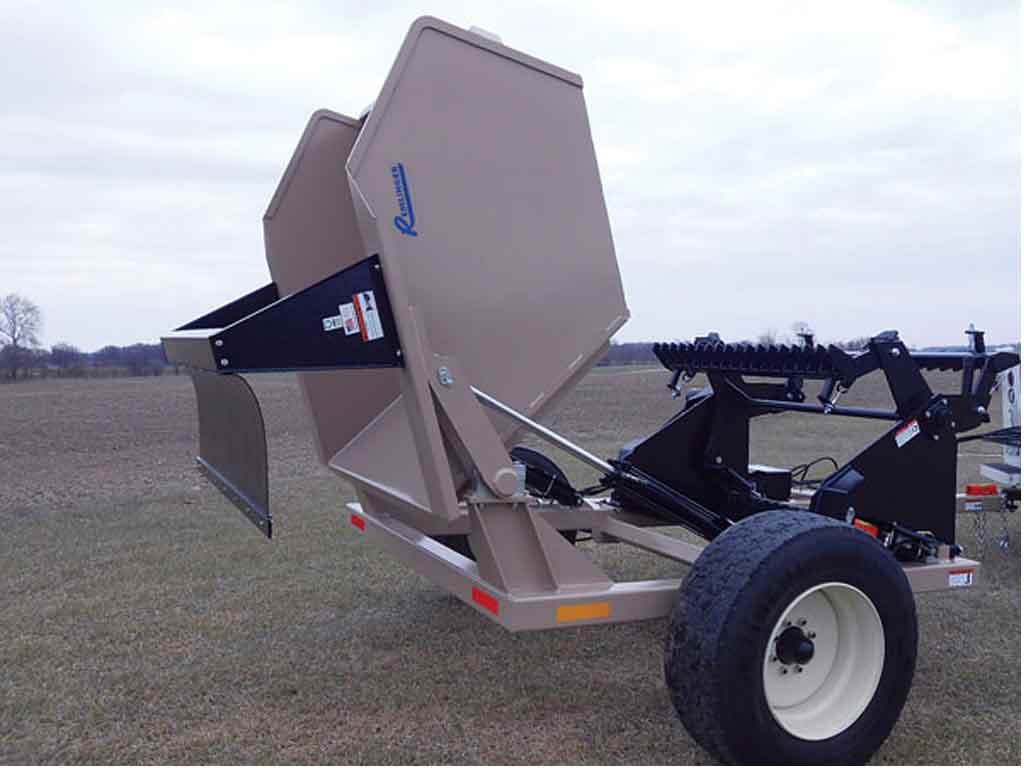

  • Hydraulic dump hopper
  • Hydraulic reel drive
  • Hydraulic tine scoop

You need two sets of hydraulic outlets

MODEL Series 500-20
FRAME

Welded Construction using Heavy Plate

and 5” Square Tubing

HOPPER

Constructed with Grated Bottom and 1/4”

Steel Gusseted Back Rock Guard Heavy

1/2” Thick Rubber Deflector

HOPPER SIZE 2-1/4” Cubic Yards
TINE SCOOP

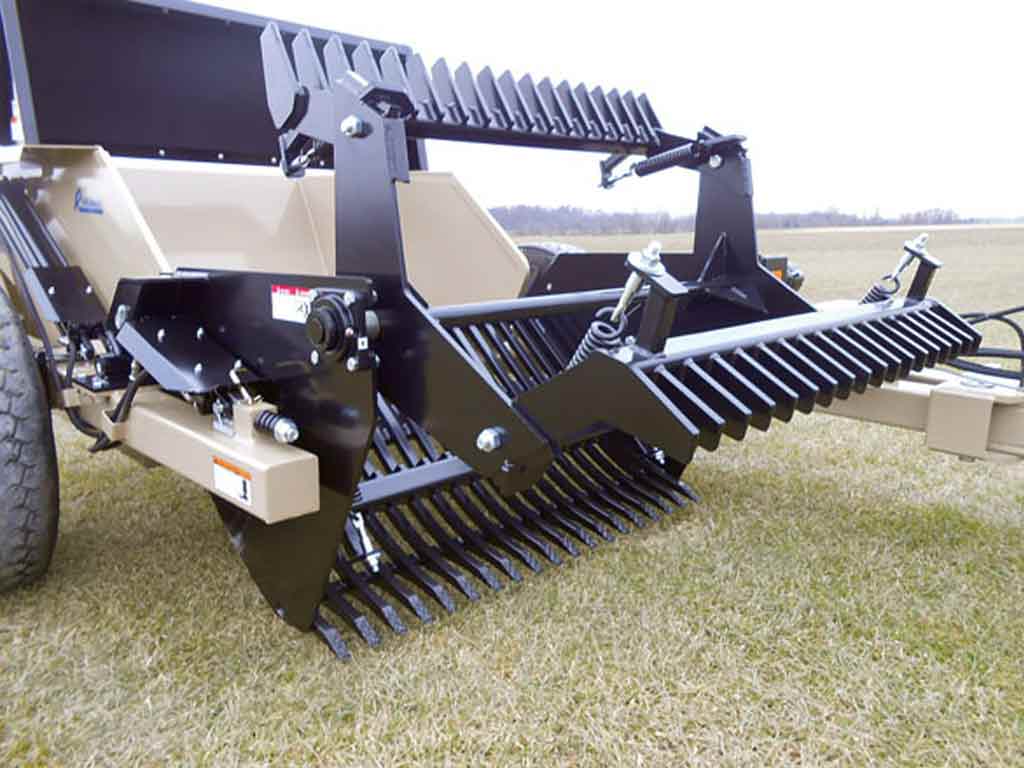

Specially Designed, Hard Surfaced Contoured

Tine Bar Reel Large Diameter with Hard

Surfaced Teeth, Protected by Heavy Duty

Spring Cushion Trip Action Swing Hitch Hydraulic Controlled From Tractor

TRACTOR Implement Hitch Category 3 with Clevis
Hydraulics Scoop Two 3 x 8 Cylinders
Hydraulics Swing One 3 x 8 Cylinder
Hydraulics Hopper Two 3-1/2 x 30” Cylinders
Reel Drive Hydraulic Motor with Cross Over Relief Valve
Tractor Hydraulics Two Remotes Required — 12 GPM at 1,500 PSI Minimum with Flow Control
Axle and Hub  7,500 lbs. Hub and Axle Assembly
Tire Size Standard 10 Ply x 12.5L x 15
Optional Tire Size Optional 385 / 65R x 22.5
Used Tractor HP 60 HP
Minimum Rock Size  1-1/2” to 24”
Picking Width  60”
Transport Length and Width 17’ 6” x 9’ 8”
Weight  4,800 lbs
