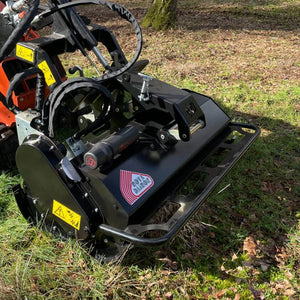

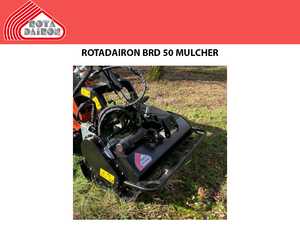

BRD50
Mulcher for Skid-steer (mini-loader) and hydraulic loader
This mulcher was designed to grind dense herbs and brambles. It achieves a very high performance thanks to the floating system (Rotadairon® Patent) which allows to follow perfectly and automatically the unevenness of the ground.
It is equipped with a device that complies with the regulations in force (EN12733) allowing the machine to be stopped quickly: as soon as the operator releases the controls and the machine ceases to be supplied with oil, our system brakes and stops the rotor in less than 7 seconds.

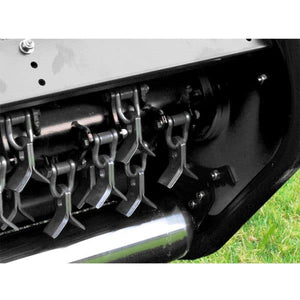

The Y-mounting of knives on shackles contributes to a better grinding.
* Some machines have had hydraulic issues where the auxiliary valve has been bypassed for a direct connection. Please call to see if you machine will need to have this done.
| WORKING WIDTH |
1270 mm (50") |
|---|---|
| TOTAL WIDTH |
1440 mm (56" 3/4) |
| WEIGHT |
276 Kg (608 lb) |
| CARRIER: HYDRAULIC FLOW |
40 to 60 l/min (10.5 to 15.8 us gpm) |
| CARRIER: PRESSURE |
200 bars (2900 PSI) |
| CARRIER: MAXIMUM TRACK WIDTH |
1.27 meters (50’’) |
| WORKING HEIGHT | |
| ROTOR OUTER DIAMETER |
360 mm (14" 1/4) |
| WORKING HEIGHT |
Adjustable skids 3 positions |
| NUMBER OF KNIVES |
76 |
| NUMBER OF SHACKLES |
38 |
| HITCH PLATE |
Toro / Ditch Witch / Vermeer conventional quick coupler system or equivalent |
| FORWARD SPEED OF THE CARRIER |
0,8 to 1,5 Km/h (0.5 to 0.9 mph) |
| ROTOR TRANSMISSION | |
| SECURITY |
Hydraulic safety block |
| TRANSPORT DIMENSION (MM) |
* Some machines have had hydraulic issues where the auxiliary valve has been bypassed for a direct connection. Please call to see if you machine will need to have this done.
This a French company. They have a warehouse in PA but not all models are in stock.
