STH36
Stone buriers for mini loader

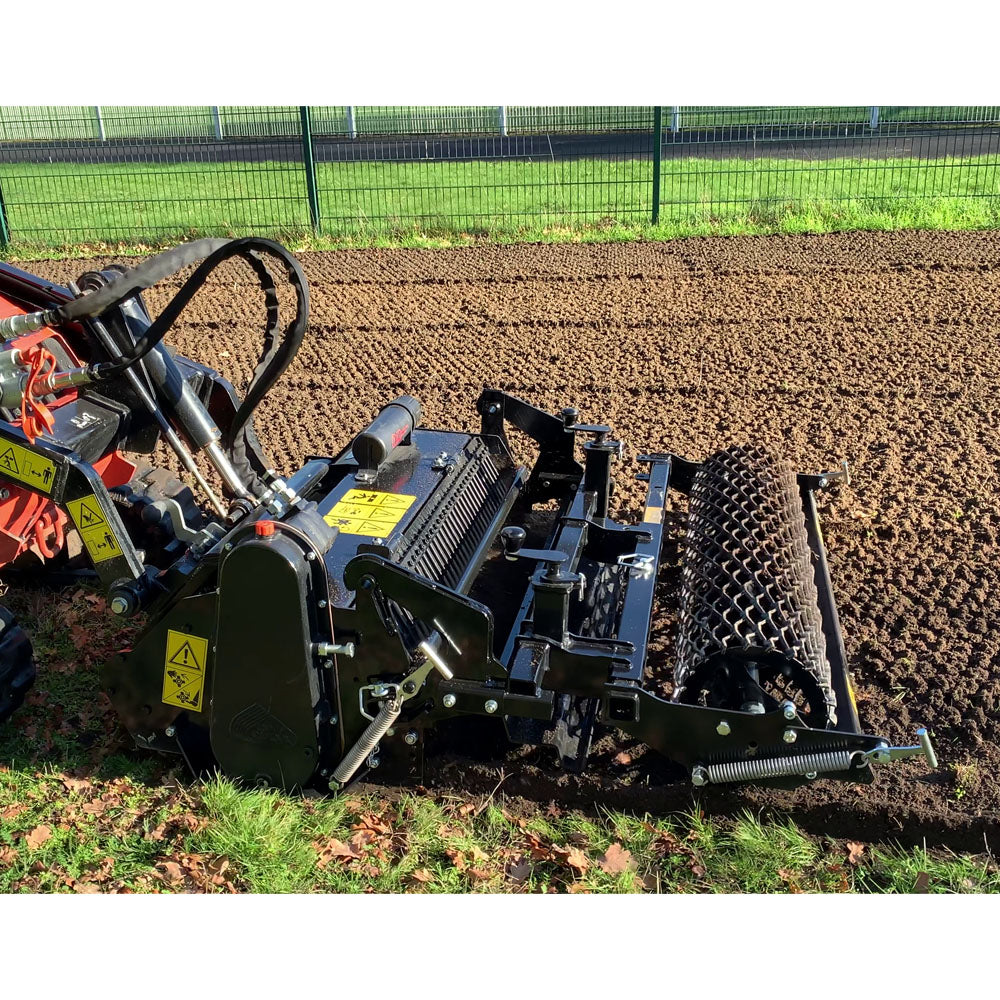

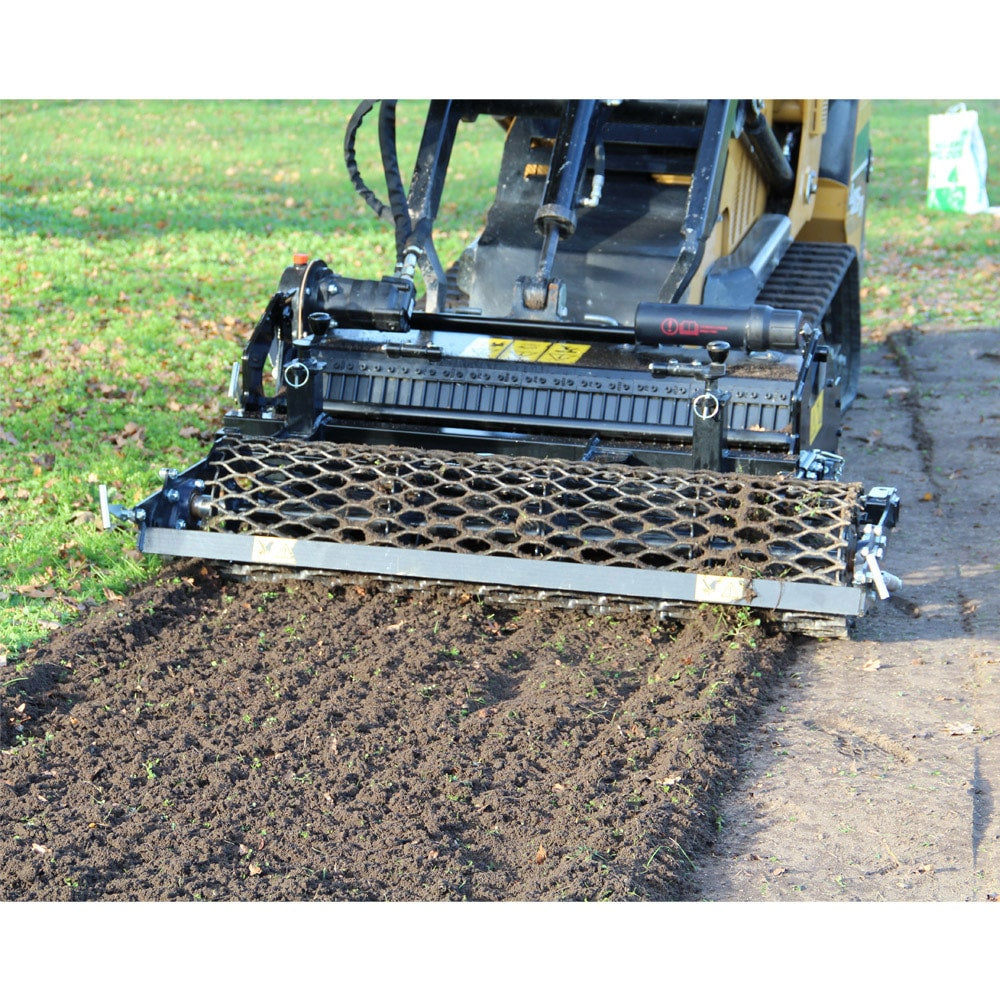

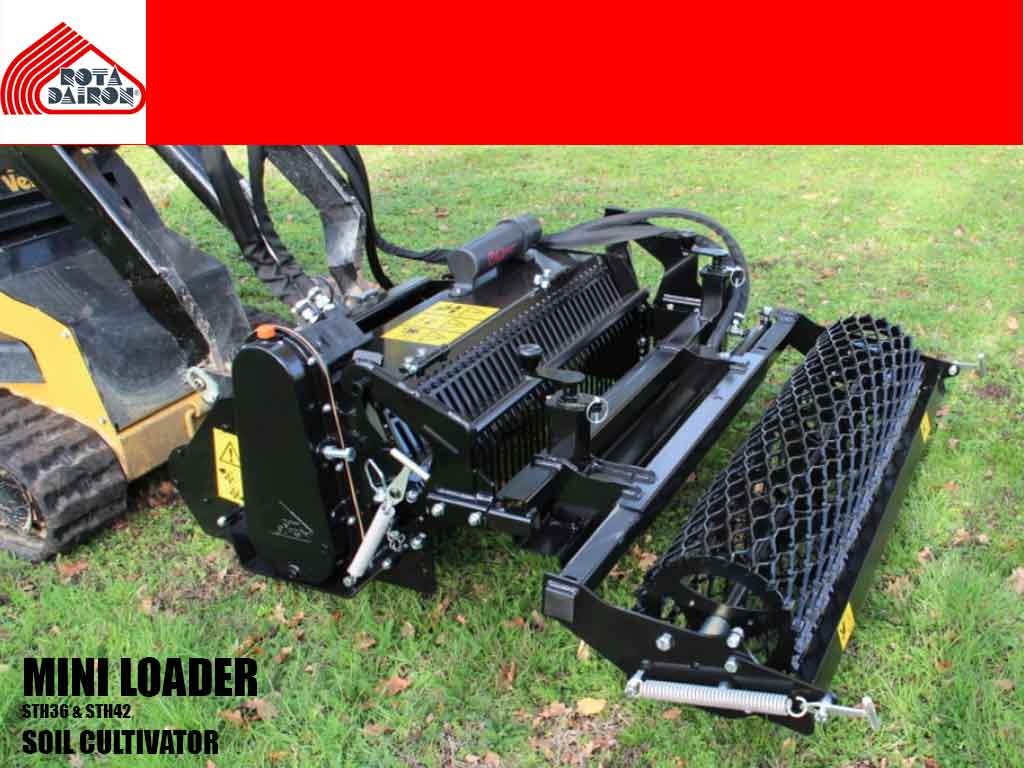

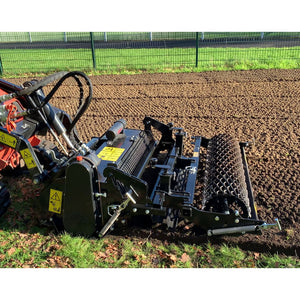

This soil and stone burier is designed for mini loaders. There are three versions of the STH 36 machine hitch:
This soil and stone burier is designed for mini loaders. There are two versions of the STH 42 machine hitch :
It allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously de-compacted in depth and cleared of large stones.
STH 36 : HITCH PLATE |
Toro / Ditch Witch / Vermeer |
---|---|
STH 36 B : HITCH PLATE |
Bobcat |
STH 36 ADAPT : HITCH PLATE |
Without hitch plate, without hoses, without couplers |
WORKING WIDTH |
963 mm (38'') |
TOTAL WIDTH |
1330 mm (52" 1/4) |
WEIGHT |
STH 36 : 265 Kg (584.2 lb) |
CARRIER: HYDRAULIC FLOW |
30 to 45 l/min (7.9 to 11.8 US gpm) |
CARRIER: PRESSURE |
200 to 250 Bars (2900 to 3625 psi) |
CARRIER: MAXIMUM TRACK WIDTH |
STH 36 : 1.15 meters (45'' 1/4) |
WORKING DEPTH (MAX) |
140 mm (5’’ 1/2) |
ROTOR OUTER DIAMETER |
400 mm (15’’ 3/4) |
DEPTH ADJUSTMENT |
Rear roller height adjustable 4 positions |
NUMBER OF BLADES |
20 |
GRID FINGER SPACING |
22 mm (7/8'') |
FORWARD SPEED OF THE CARRIER |
0,8 to 1,5 Km/h (0.5 to 0.9 mph) |
ROTOR TRANSMISSION | |
SECURITY |
Made by the carrier |
TRANSPORT DIMENSION (MM) |
STH 42 : HITCH PLATE |
Toro / Ditch Witch / Vermeer |
---|---|
STH 42 ADAPT : HITCH PLATE |
Without hitch plate, without hoses, without couplers |
WORKING WIDTH |
1100 mm (43'' 1/4) |
TOTAL WIDTH |
1440 mm (56" 3/4) |
WEIGHT |
STH 42 : 285 Kg (628.3 lb) |
CARRIER: HYDRAULIC FLOW |
40 to 55 l/min (10.5 to 14.5 us gpm) |
CARRIER: PRESSURE |
200 to 250 Bars (2900 to 3625 psi) |
CARRIER: MAXIMUM TRACK WIDTH |
STH 42 : 1.30 meters (51'' 1/4) |
WORKING DEPTH (MAX) |
140 mm (5’’ 1/2) |
ROTOR OUTER DIAMETER |
400 mm (15’’ 3/4) |
DEPTH ADJUSTMENT |
Rear roller height adjustable 4 positions |
NUMBER OF BLADES |
24 |
GRID FINGER SPACING |
22 mm (7/8'') |
FORWARD SPEED OF THE CARRIER |
0,8 to 1,5 Km/h (0.5 to 0.9 mph) |
ROTOR TRANSMISSION | |
SECURITY |
Made by the carrier |
TRANSPORT DIMENSION (MM) |
Not available at this time
