SIMEX

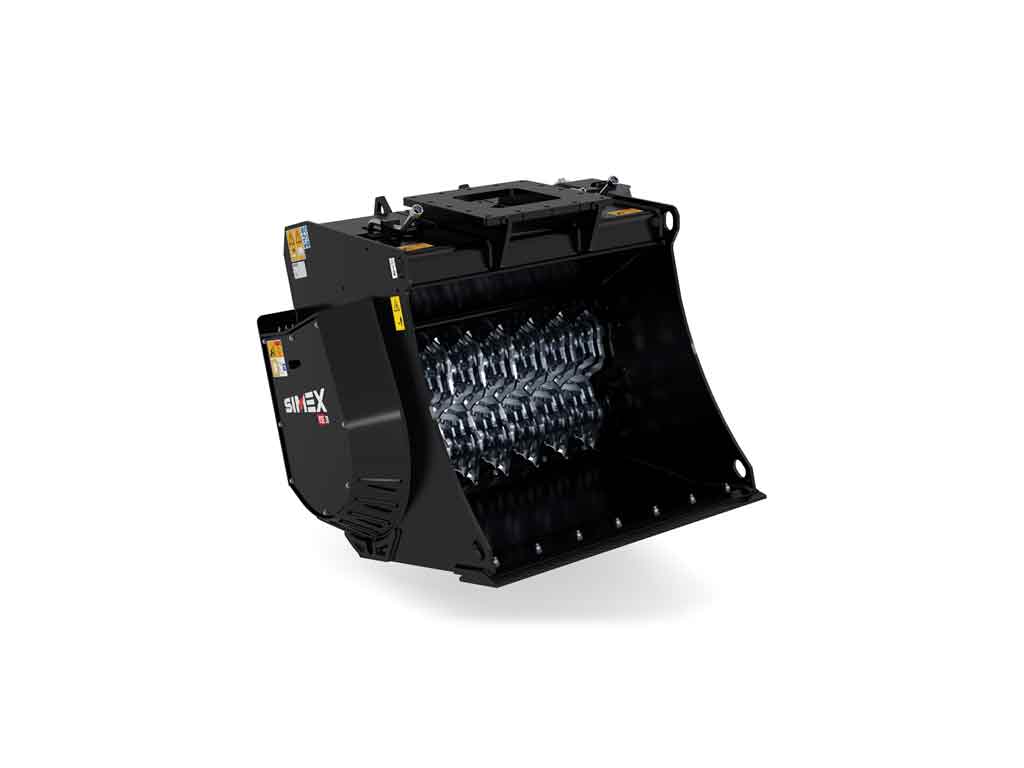

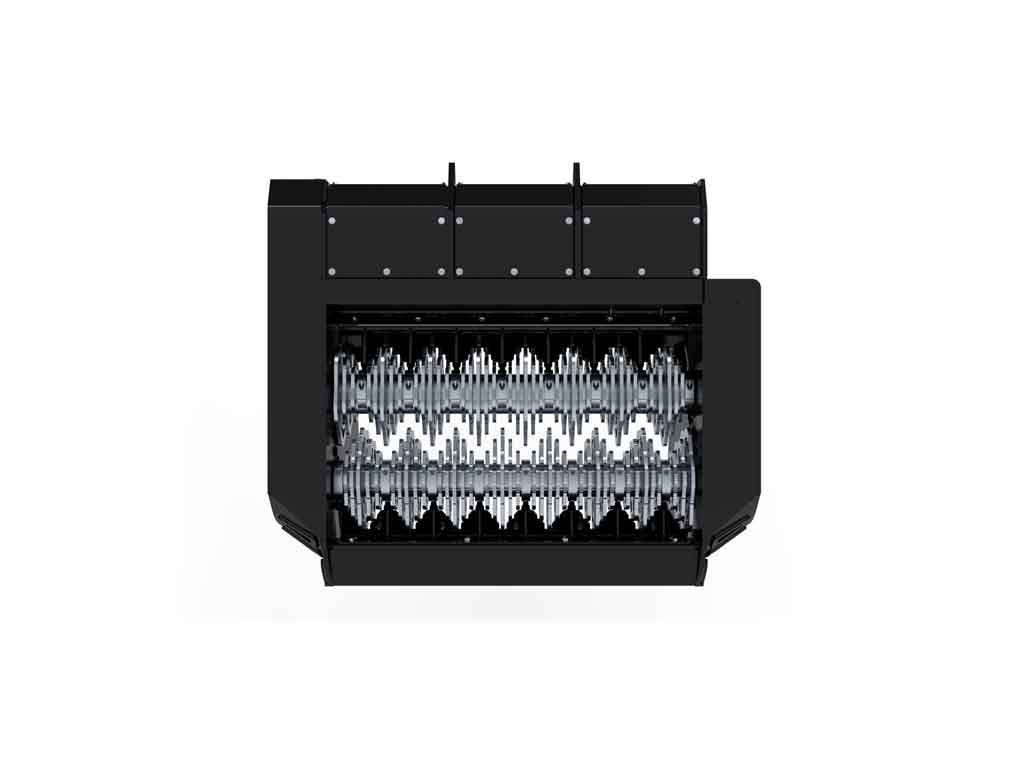

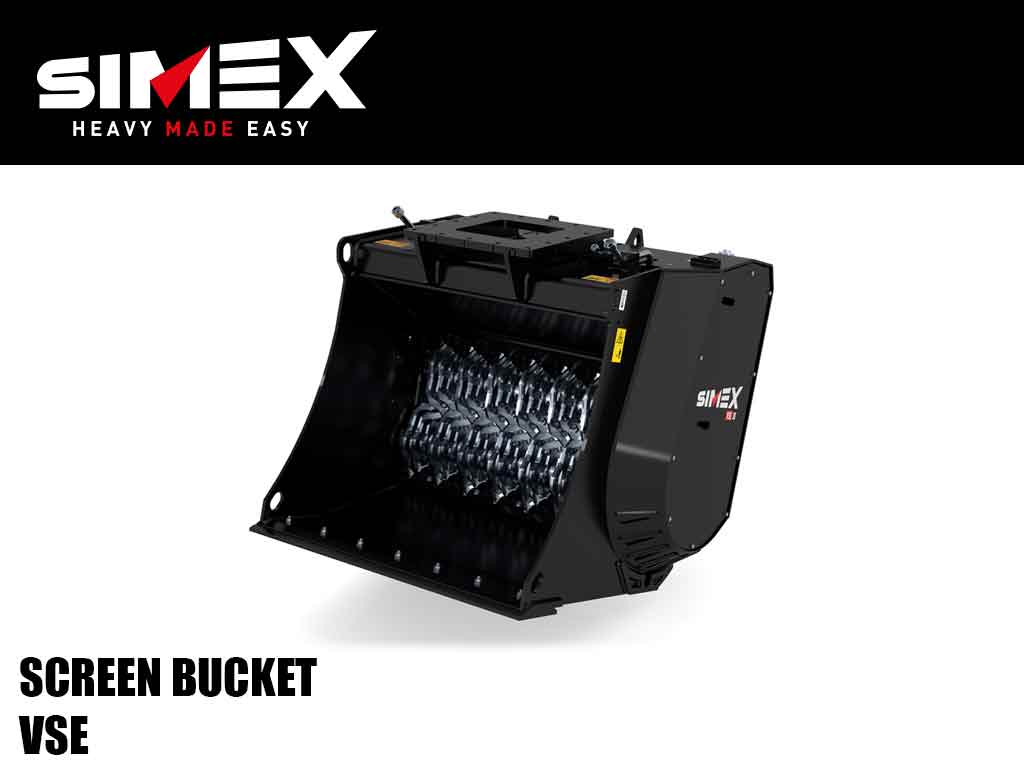

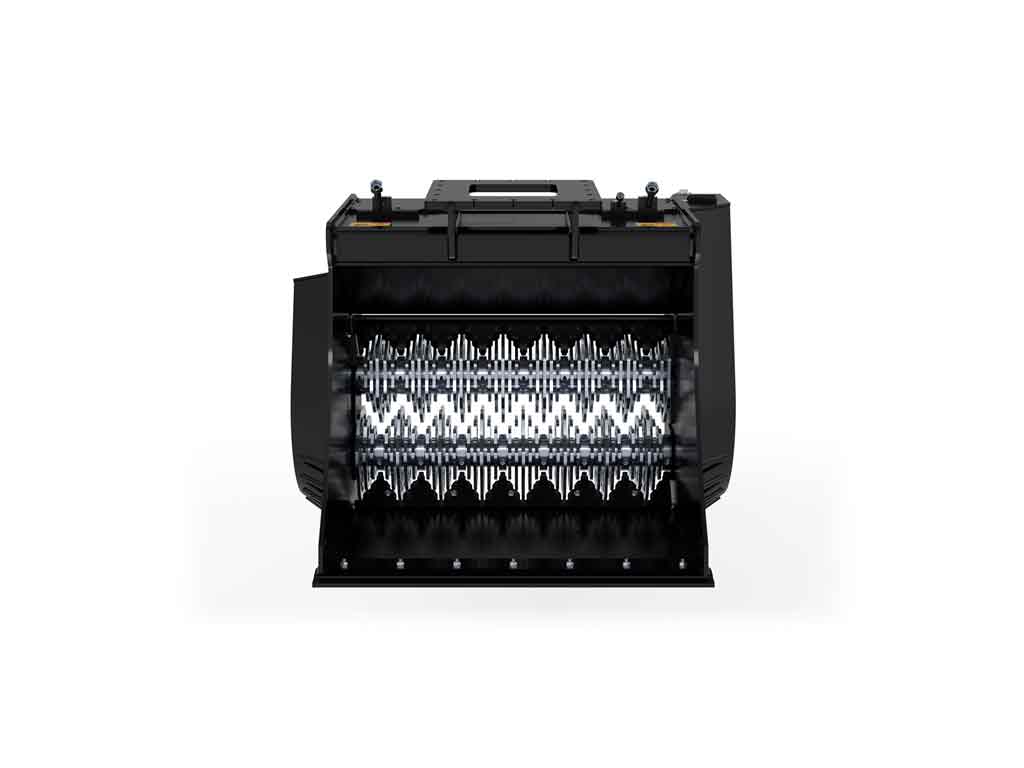

SIMEX excavator screening bucket

SCREENING BUCKETS

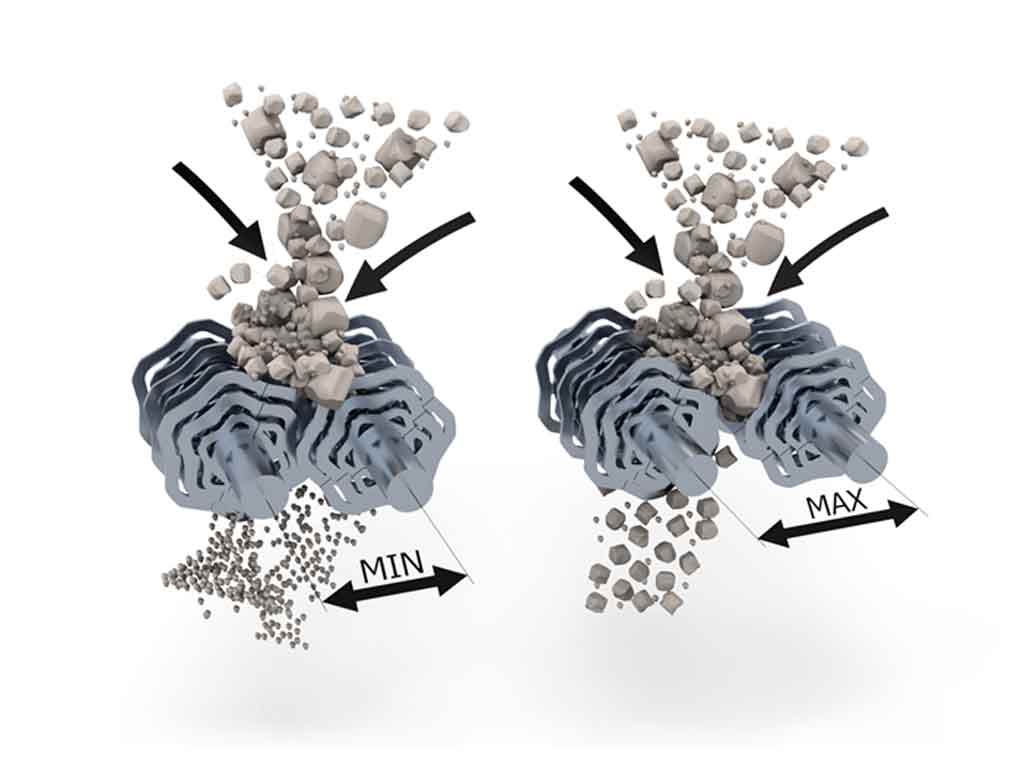

Designed for separating different-sized materials on the work site, Simex VSE screening buckets are unique for their easy loading, very simple operation and high productivity. The exclusive Simex patent allows rapid adjustment of output size of the screened material in only seconds via a control in the operator cabin.

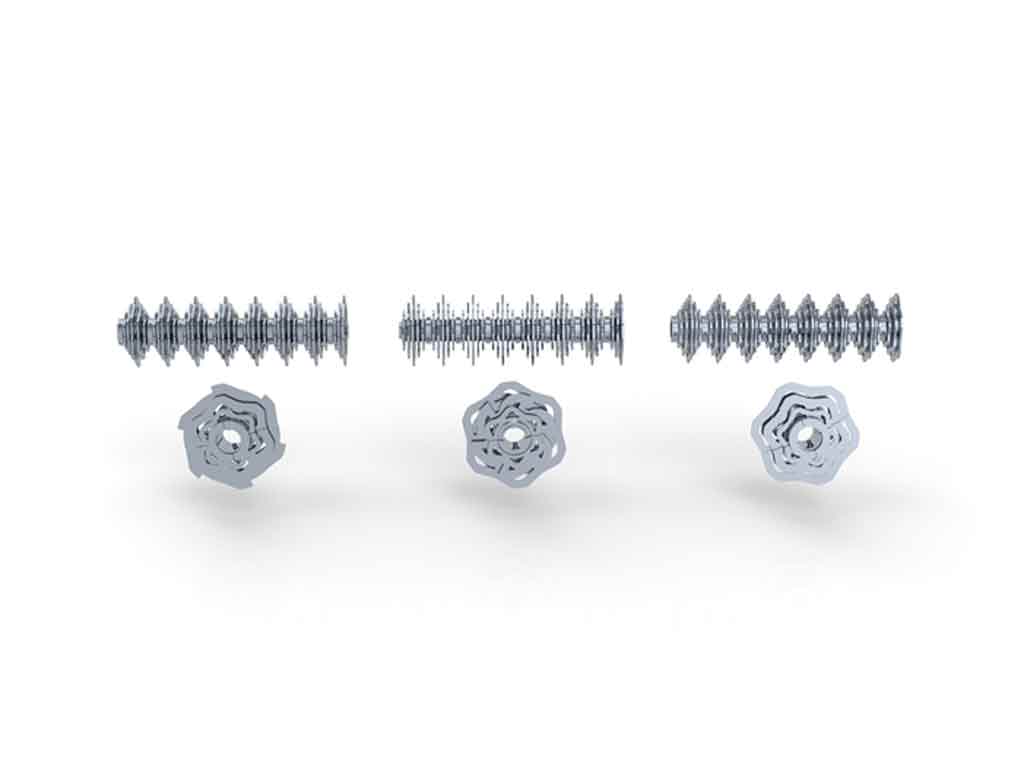

FIT: the new screening tool configuration system.
Each element is composed of 5 independent parts, designed to easily interlock with each other with no weldings. They are easily replaceable without difficult operations and without the need of shafts unstrapping: this means 75% less maintenance costs, since it is possible to replace even just one single disc or blade. The system allows multiple configurations depending on the materials to be screened. Simex provides to the users 3 different set-ups, but many others are possible thanks to screening elements that are 100% interchangeable.

FEATURES

  • Quick adjustment of output size
  • Effective with wet material
  • High productivity
  • Simple operation
  • Easy loading
  • Easily replaceable screening tools


 TECHNICAL DATA VSE10 VSE20 VSE30 VSE40
Recommended excavator weight LBS 17500 - 29000 26000 - 40000 35000 - 66000  66000 - 99000
Mouth width INCHES 34 43 50 53
Bucket capacity (SAE) YD3 .52 .92 1.30 2.35
Screening area YD2 .67 .96 1.20 1.63
Number screening shafts 2 2 2 3
Operating weight LBS 2125 3080  4060 6000
Required oil flow GPM 24 - 33 27 - 40 44 - 58 48 - 74
required oil pressure PSI 3600 3600 3600 3600
