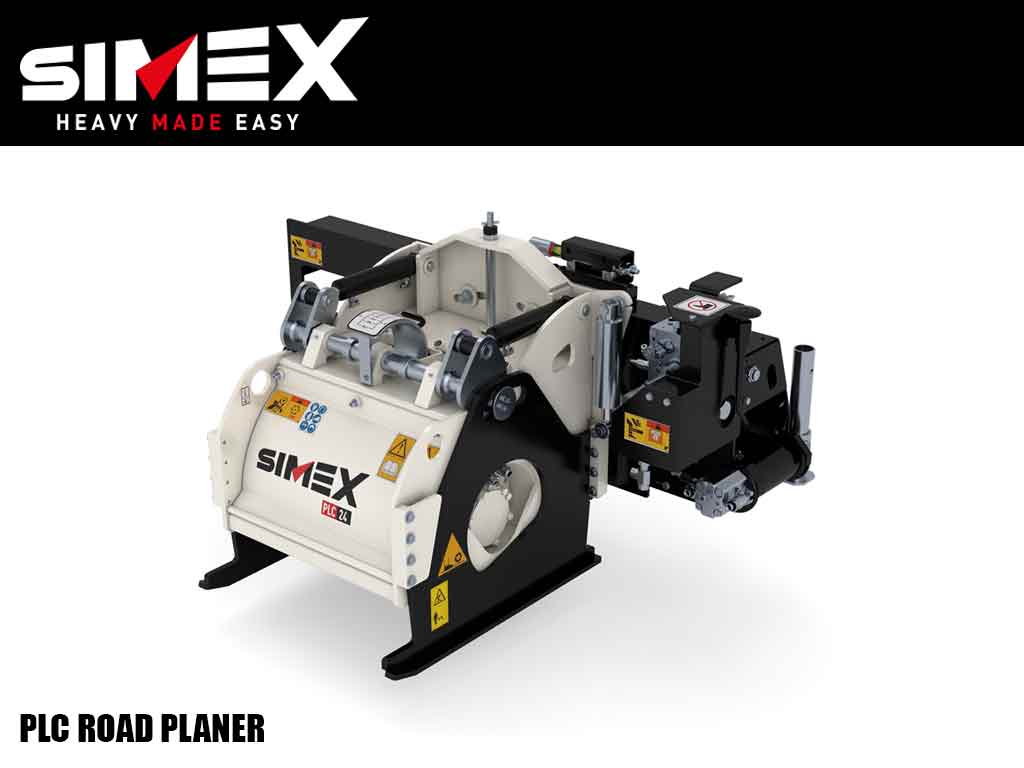

SIMEX PLC ROAD PLANER

MODEL
HYDRAULICS

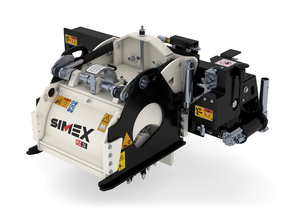

PLC ROAD PLANERS - SELF-LEVELING WITH CONVEYOR BELT

SIMEX PLC self-leveling planers clean the milled trench and deposit the extracted material to the right or left. Thanks to the self-leveling system, planning depth is constant in any condition.
Self-leveling planers are indispensable for optimizing collection of milled material for reuse on site or for transporting away.
Can be installed with spray system for dust control.

FEATURES

  • CLEAN TRENCH
  • CONSTANT PLANNING DEPTH
  • PERFECT SURFACES WITH SIDE-BY-SIDE PASSES
  • MAX. SAFETY
  • STABILITY AND NO VIBRATIONS
  • EXCELLENT VISIBILITY FOR OPERATOR

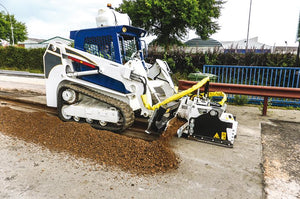

PLC18
Standard drum width 450 mm 18 inch
Max. depth 150 mm 6 inch
Required oil flow 85-120 l/min 22-32 gpm

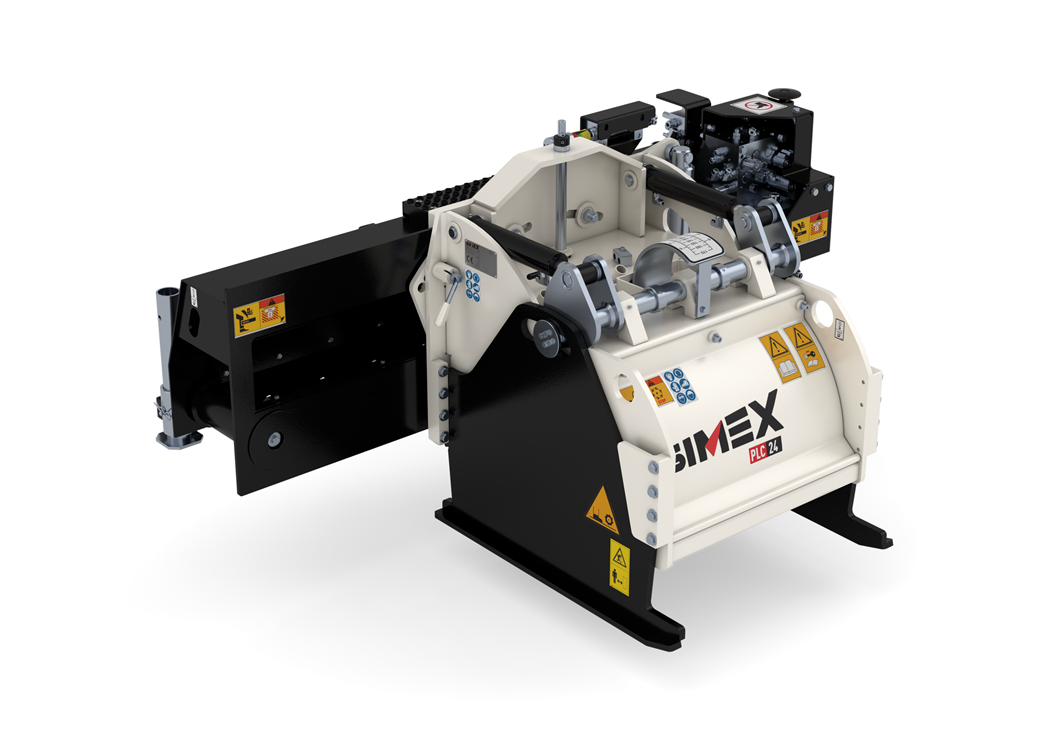

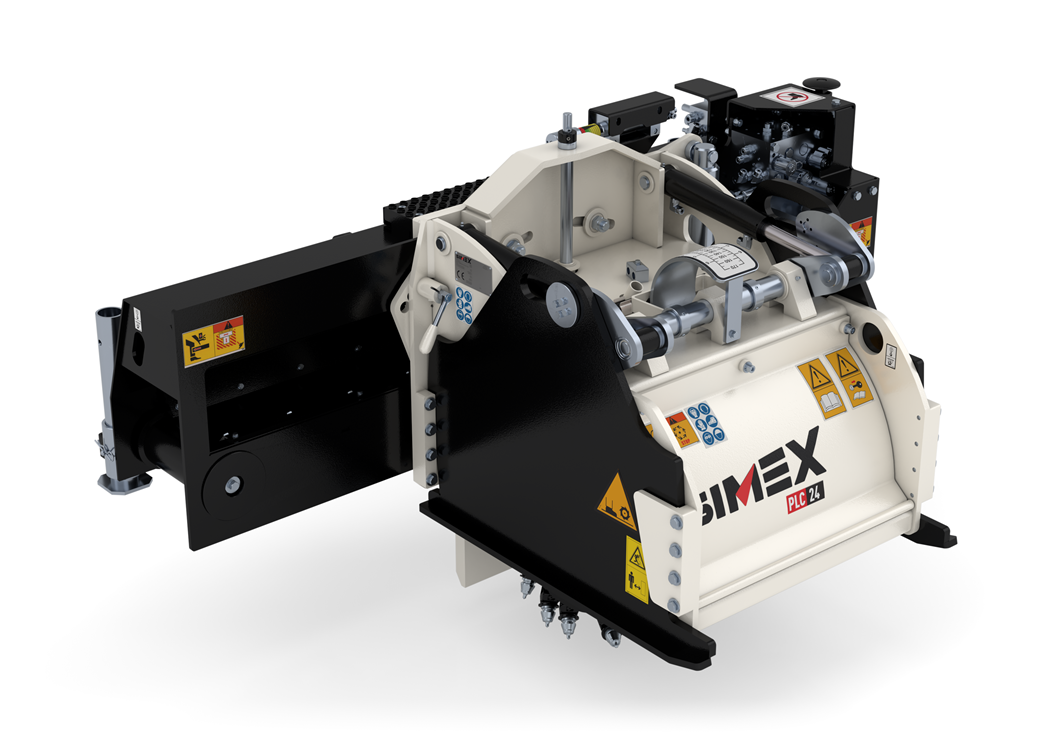

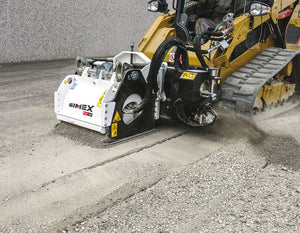

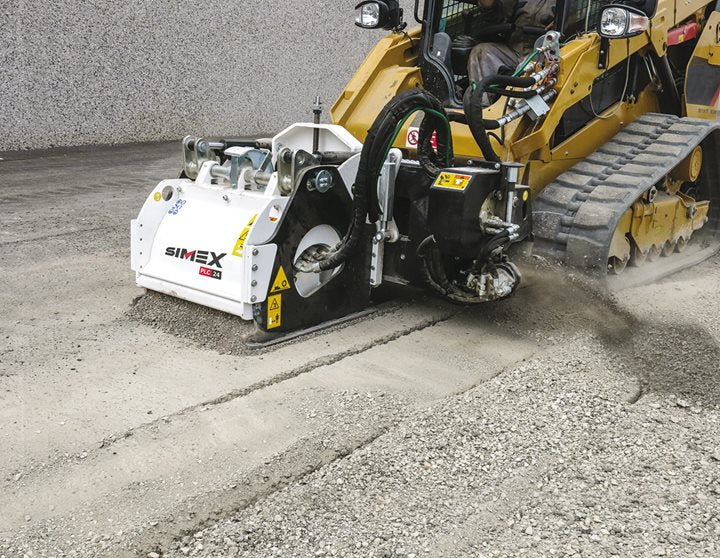

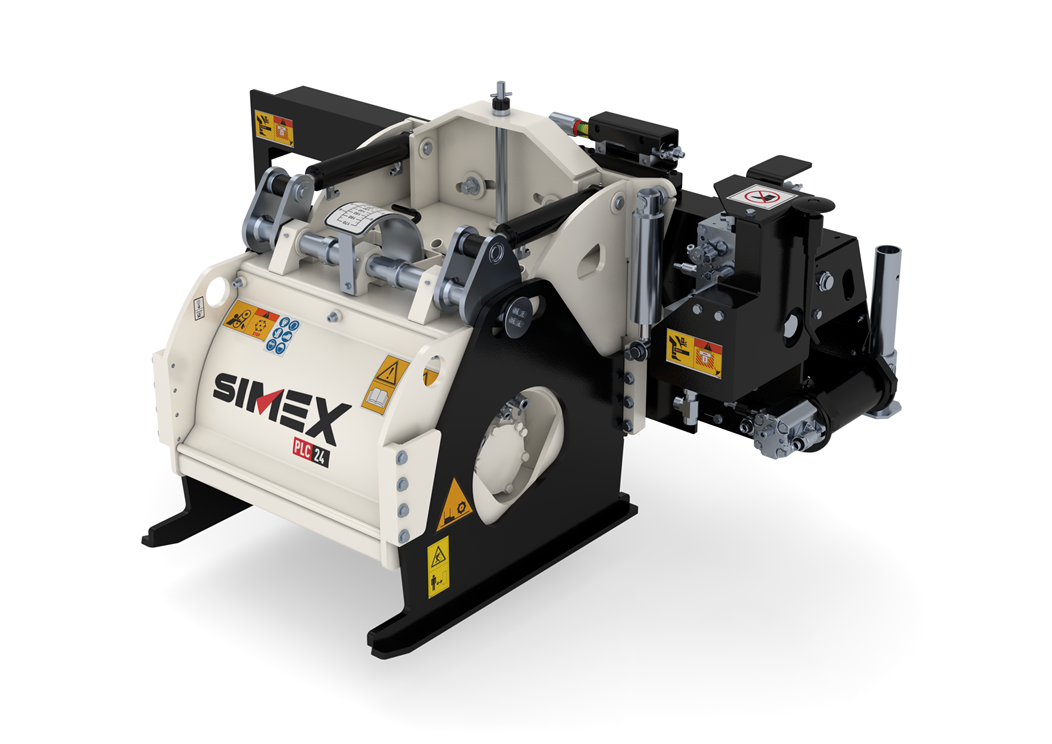

PLC24
Standard drum width 600 mm 24 inch
Max. depth 170 mm 7 inch
Required oil flow 100-150 l/min 27-40 gpm
PLC30
Standard drum width 750 mm 30 inch
Max. depth 170 mm 7 inch
Required oil flow 110-170 l/min 29-45 gpm

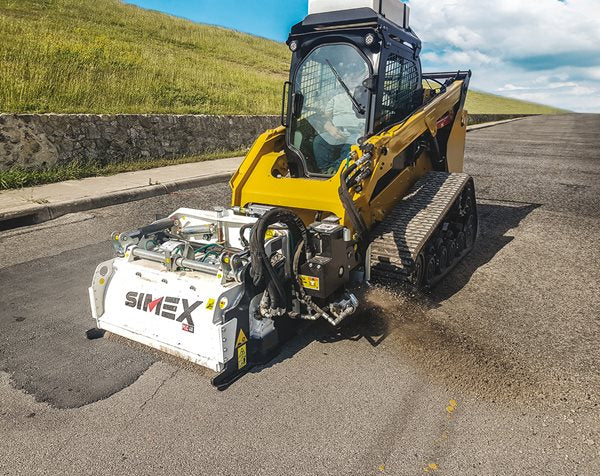

PLC40
Standard drum width 1000 mm 40 inch
Max. depth 130 mm 5 inch
Required oil flow 110-190 l/min 29-50 gpm

COMMON STOCK ITEMS

PLC 18 Planer with removal belt Planers for asphalt and concrete, fitted with standard drum; -Asphalt type teeth. -Independent left and right hydraulic depth adjustment. -Hydraulic side shift with universal couplings. -Bidirectional REMOVAL BELT to discharge material to the right or left of the trench. -For Skid steer loaders with double auxiliary system. P+T+D-A+B (5 hydraulic lines)

PLC 24 Cold Planer with removal belt Planers for asphalt and concrete, fitted with standard drum; -Asphalt type teeth. -Independent left and right hydraulic depth adjustment. -Hydraulic side shift with universal couplings. -Bidirectional REMOVAL BELT to discharge material to the right or left of the trench. -For ski steer loaders with double auxiliary system. P+T+D-A+B (5 hydraulic lines)

PLC 30 Planer with removal belt Planers for asphalt and concrete, fitted with standard drum; -Asphalt type teeth. -Independent left and right hydraulic depth adjustment. -Hydraulic side shift with universal couplings. -Bidirectional REMOVAL BELT to discharge material to the right or left of the trench. -For ski steer loaders with double auxiliary system. P+T+D-A+B (5 hydraulic lines)

PLC 40 Planer with removal belt Planers for asphalt and concrete, fitted with standard drum; -Asphalt type teeth. -Independent left and right hydraulic depth adjustment. -Hydraulic side shift with universal couplings. -Bidirectional REMOVAL BELT to discharge material to the right or left of the trench. -For ski steer loaders with double auxiliary system. P+T+D-A+B (5 hydraulic lines)
