SIMEX

SIMEX ROAD PLANER

MODEL
DUST CONTROL
HYDRAULICS

Notify me when this product is available:

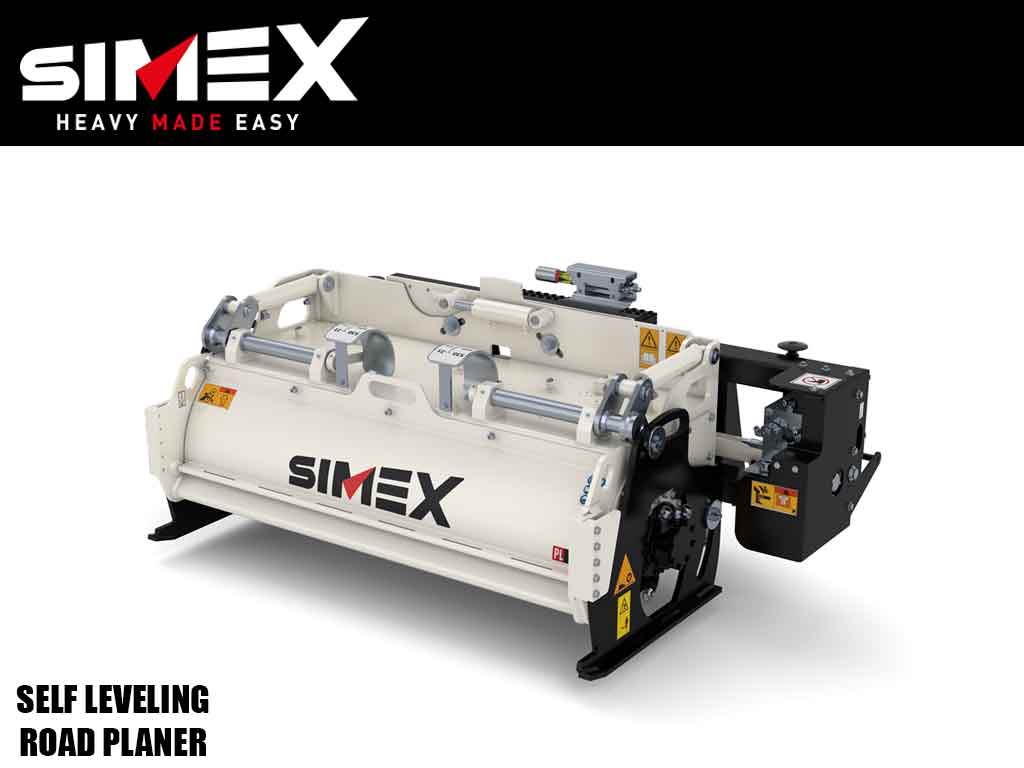

PL SELF LEVELING ROAD PLANERS

SIMEX PL self-levelling road planers are designed for milling deteriorated sections for later resurfacing. Designed specifically to remove completely the deteriorated asphalt surface. Thanks to the exclusive self-levelling system, planning depth is constant in any condition.

ADVANTAGES

  • Constant planning depth
  • Perfect surfaces with side-by-side passes
  • Maximum safety
  • Stability and no vibrations
  • Optimal visibility for the operator
TECHNICAL DATA PL1000 PL1200 PL1500 PL2000
WIDTH 40 48 60 80
DEPTH 0-5 0-5 0-5 0-5
DEPTH ADJUSTMENT HYD/MECH HYD/MECH HYD/MECH HYD/MECH
SIDE SHIFT HYD HYD HYD HYD
TRANSVERSE TILT AUTO AUTO AUTO AUTO
TILT 16 16 16 16
WEIGHT LBS 2400 2660 2840 3600
LBS WITH SPRAY 2750 3000 3430 4170
REQUIRED FLOW GPM 29-50 32-50 34-53 34-53
MAX OIL PREASURE 4350 4350 4350 4350
DUST CONTROL KIT KIT KIT KIT

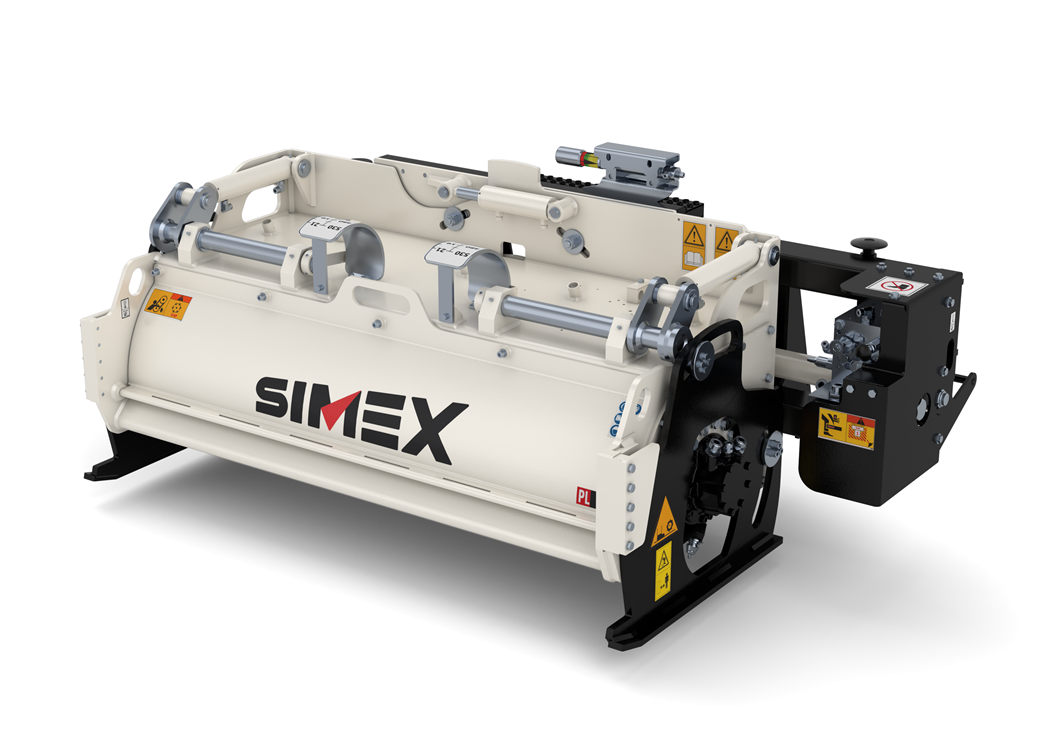

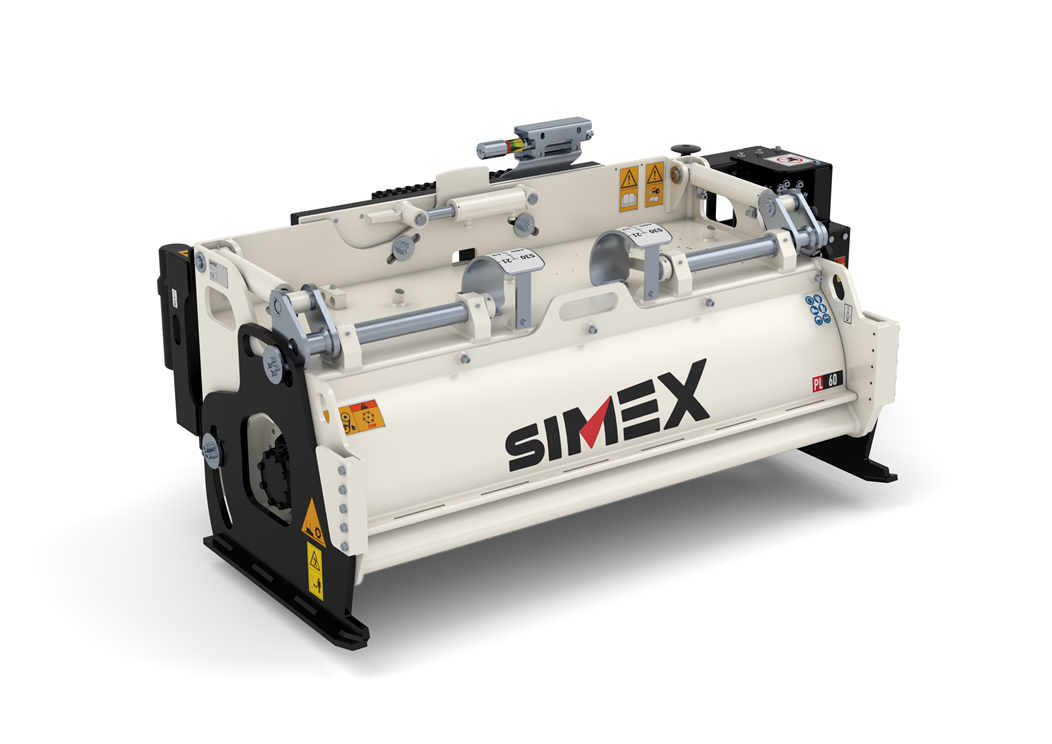

PL 60 Planer for asphalt and concrete with self leveling system Standard drum with asphalt teeth Hydraulic Side shift ISO 24410 Coupling Skid steers with P+T+D hydraulic lines With 60" Depth 0-5" Required Oil Flow 34-53 GPM Max oil pressure 4,350 PSI Independent right and left hydraulic depth adjustment Water spray system

PL 80, 80" Wide Cold planer, 3 Hydraulic lines V3 kit, 34-53 GPM required @ max of 4500 PSI, Right and left depth adjustment, Performer valve, water spray manifold, In -Frame Water Tank
