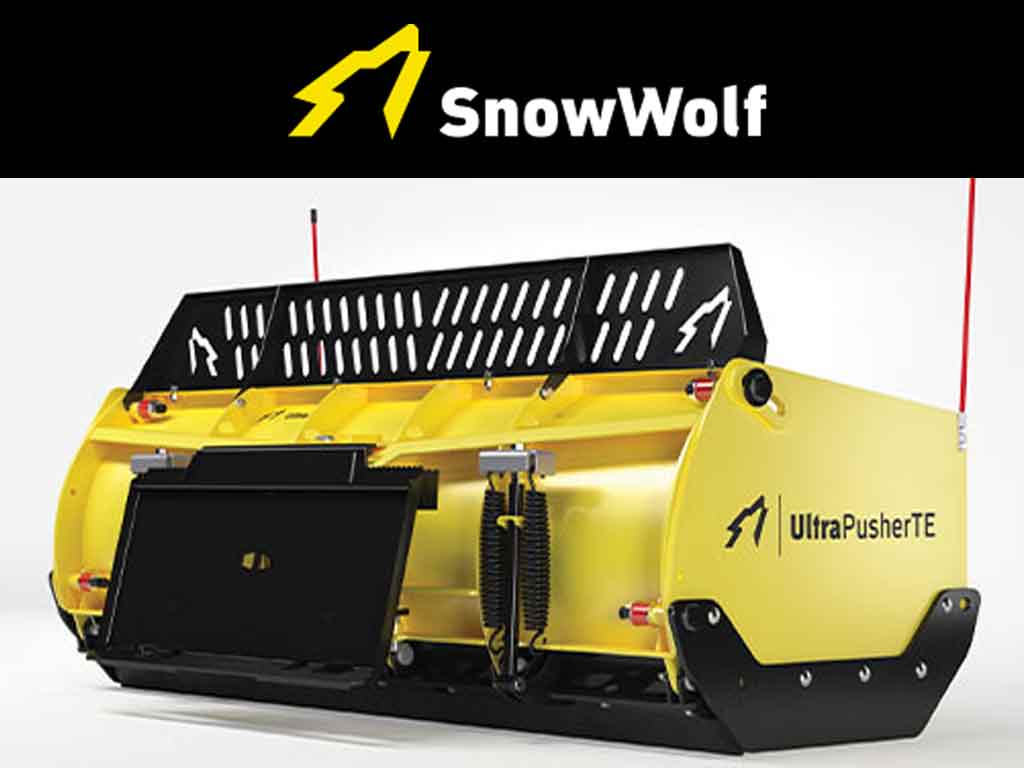

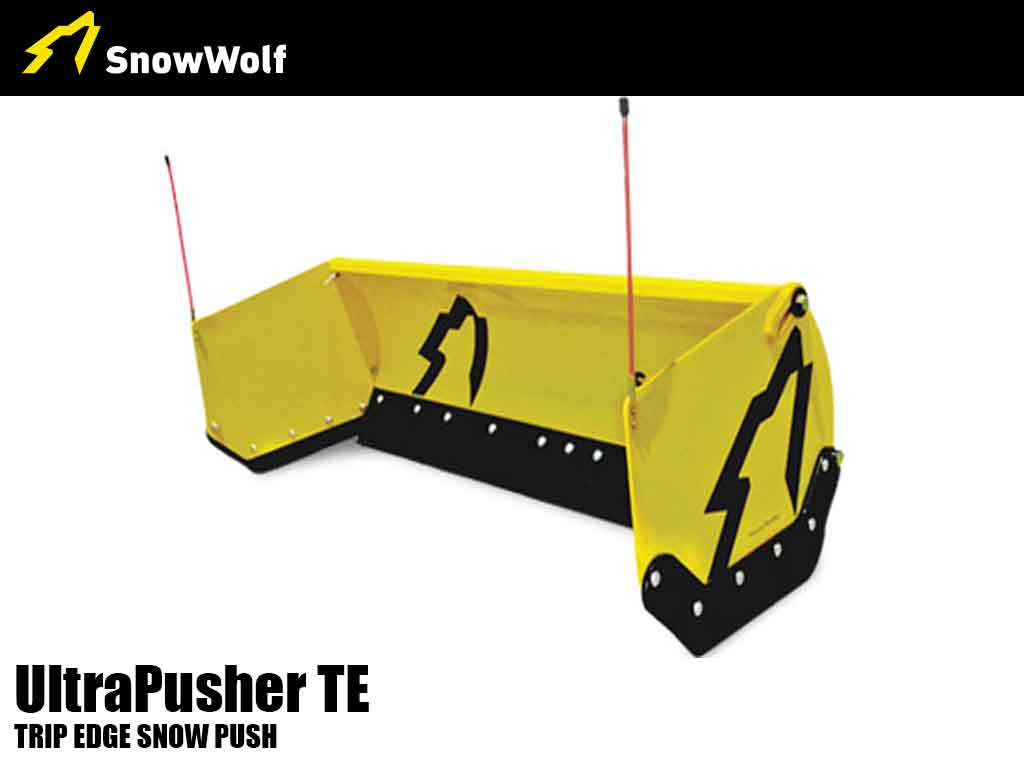

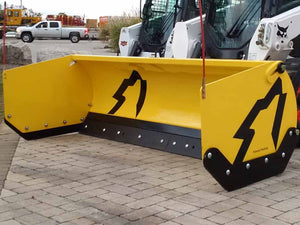

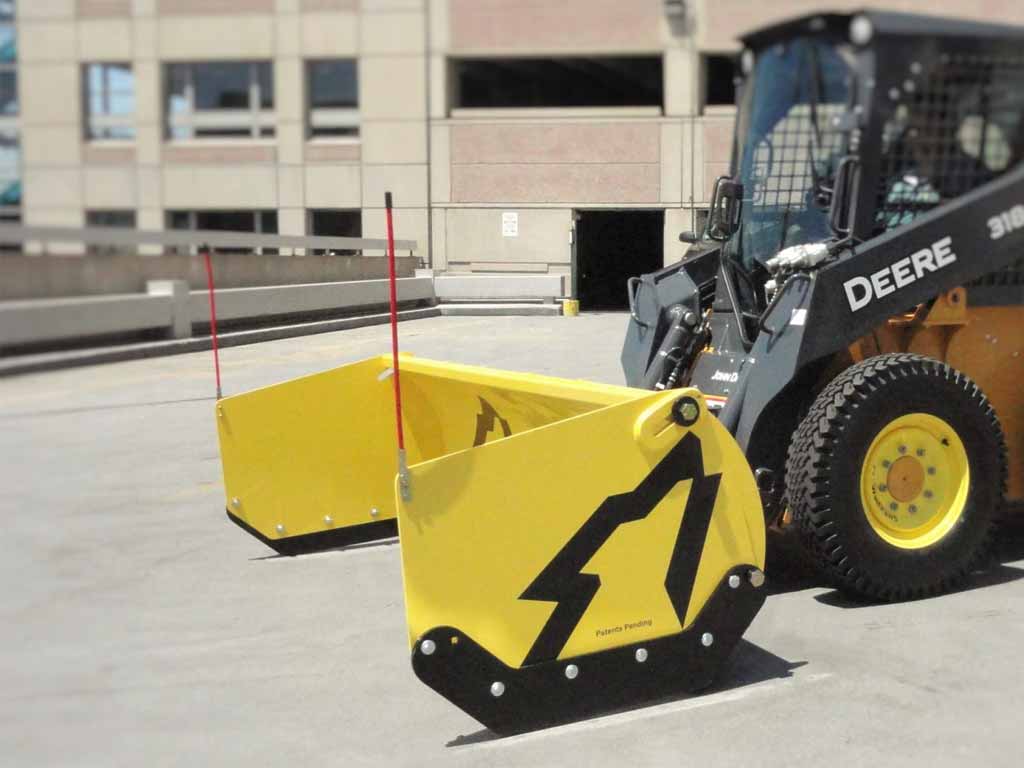

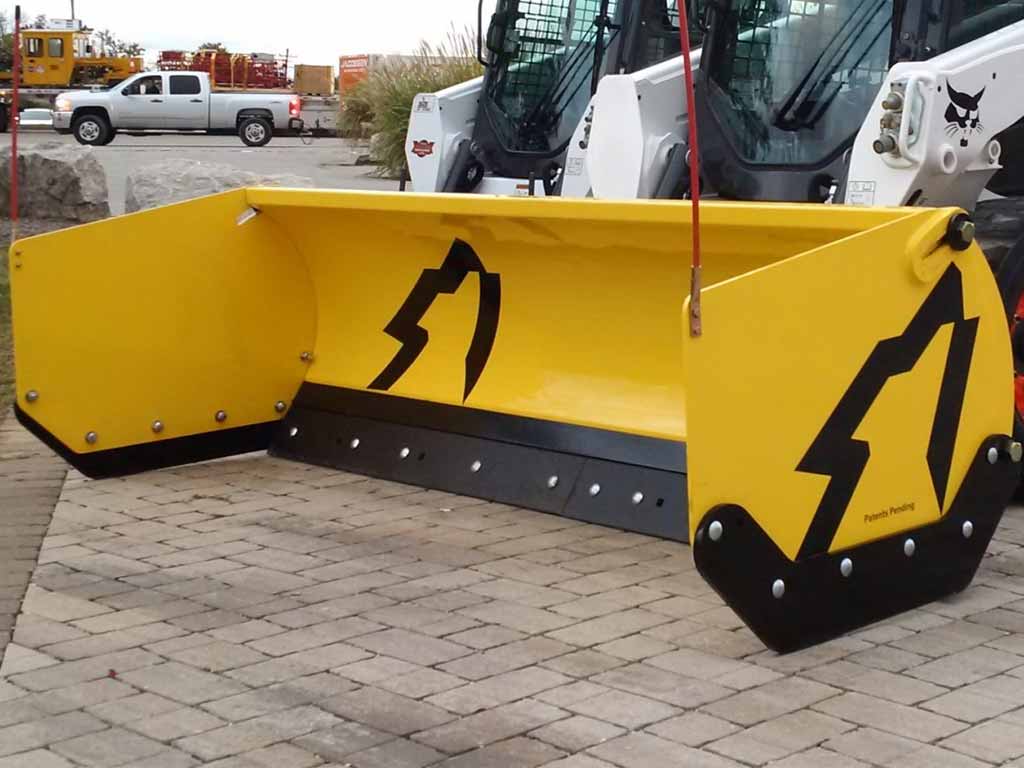

UltraPusherTE
Gain a biting edge with the UltraPusherTE.
This innovative new snowpusher has a steel cutting edge for the cleanest scrape you can get. Industry-first cushioned sideplates provide ultimate protection for the operator, machine and snowpusher. And without sideplate-to-moldboard supports, it completely eradicates snow buildup to maximize rolling and overall efficiency.
Features | Benefits |
---|---|
Class-Exclusive Cushioned Sideplates | Industry-first urethane springs protect sideplates from bending by providing up to 10 inches of lateral flex if the pusher hits something at an angle. |

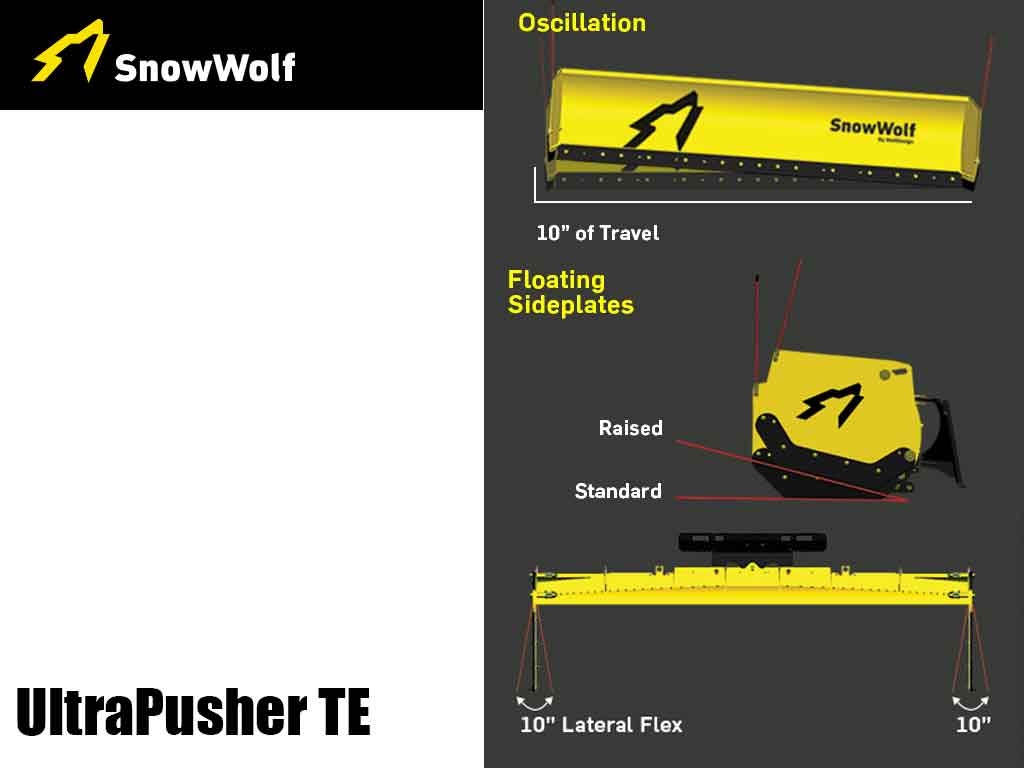

Floating Sideplates | Up-down pivoting sideplates follow surface contours, move the blade over head-on obstacles and allow for down pressure on the cutting edge. |
Strutless Sideplates | Elimination of supports between the sideplates and moldboard means no snow buildup and nearly effortless rolling. Tough AR400 sideplate shoes ensure long wear life. |
Oscillation | Pusher follows contours with up to 10 inches of oscillation to keep the blade on the surface. |
Tight Moldboard Curvature | Tight curve keeps snow ‘live” and rolling properly so you can push more snow with less horsepower and traction. |
Trip Edge | The full 9-inch trip edge easily clears obstacles and protects the operator and machine. |
Cutting Edge | Put down pressure on the 6-inch, high-carbon steel cutting edge for a clean scrape every time. |
Image | Part Number | Description |
---|---|---|
![]() |
AE-7 AE-8 AE-9 AE-10 |
ActivEdge® AR-400 Sectional Cutting Edge |
![]() |
AE-7-CBD AE-8-CBD AE-9-CBD AE-10-CBD |
ActivEdge® Carbide Sectional Cutting Edge |
![]() |
SG-7 SG-8 SG-9 SG-10 |
SpillGuard, Perforated Steel 10″ Blade Height Extension |
UltraPusherTE: 6,000-10,000 lbs. | |||
Model Number | UPTE-72 | UPTE-84 | UPTE-96 |
Overall Height | 30.7" | ||
Overall Length | 36.1" | ||
Overall Width | 74" | 86" | 98" |
Unit Weight (lbs.) | 852 | 891 | 933 |
Width Between Sideplates | 72" | 84" | 96" |
Moldboard Gauge | 10 Ga. | ||
Cutting Edge | 1/2" x 6" Steel | ||
Vertical Ribs | 6 | ||
Sideplate Thickness | 3/8" | ||
Sideplate Wear Shoes | 5/8" x 37" AR400 Steel | ||
Trip Springs | 4 Ext. | ||
Full Down Pressure | Yes | ||
Oscillation | Yes | ||
Hook Up | Universal Skid Steer | ||
SpillGuard | Optional |
