UPTE-84A
Containment. Simplicity. Reliability.

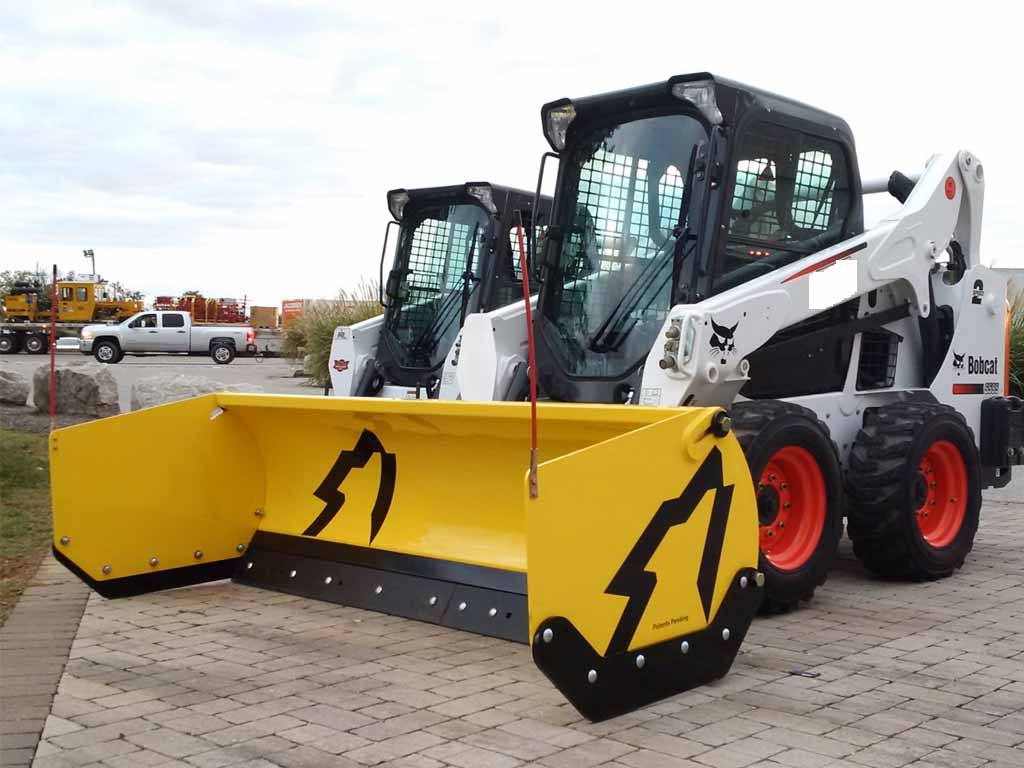

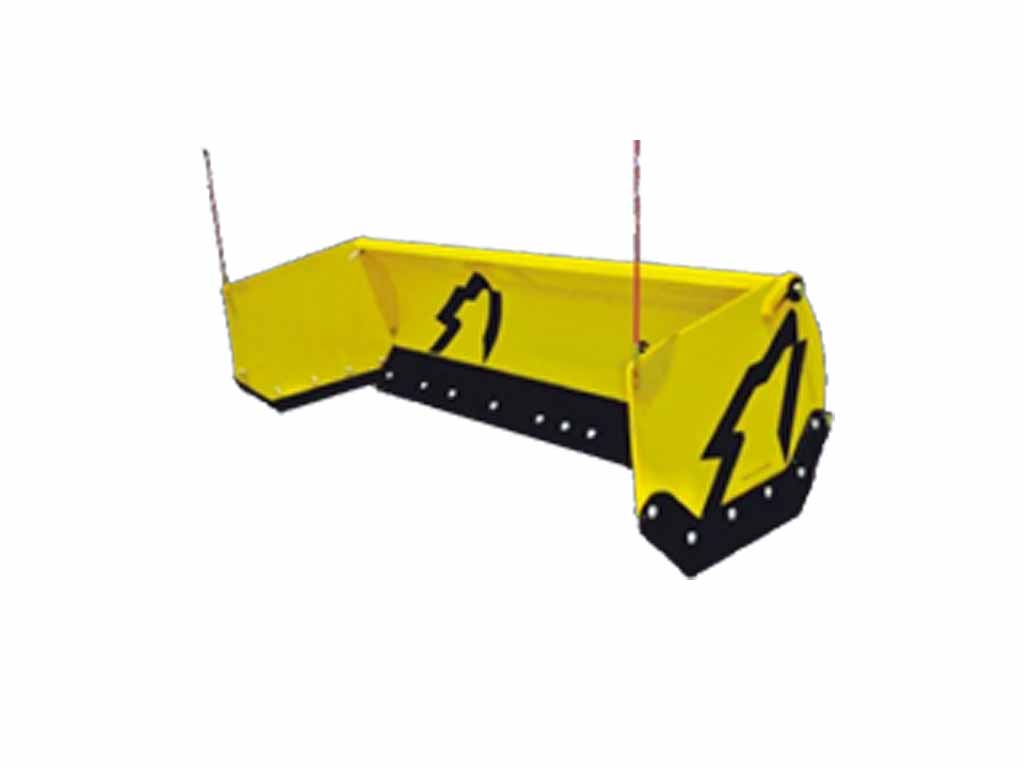

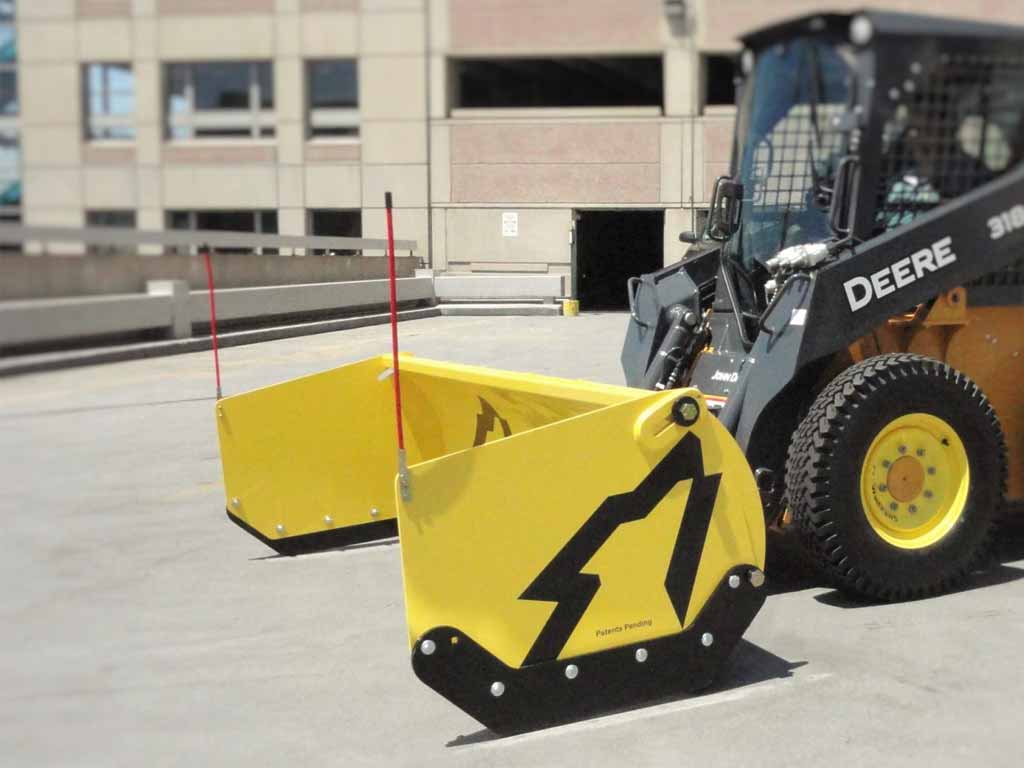

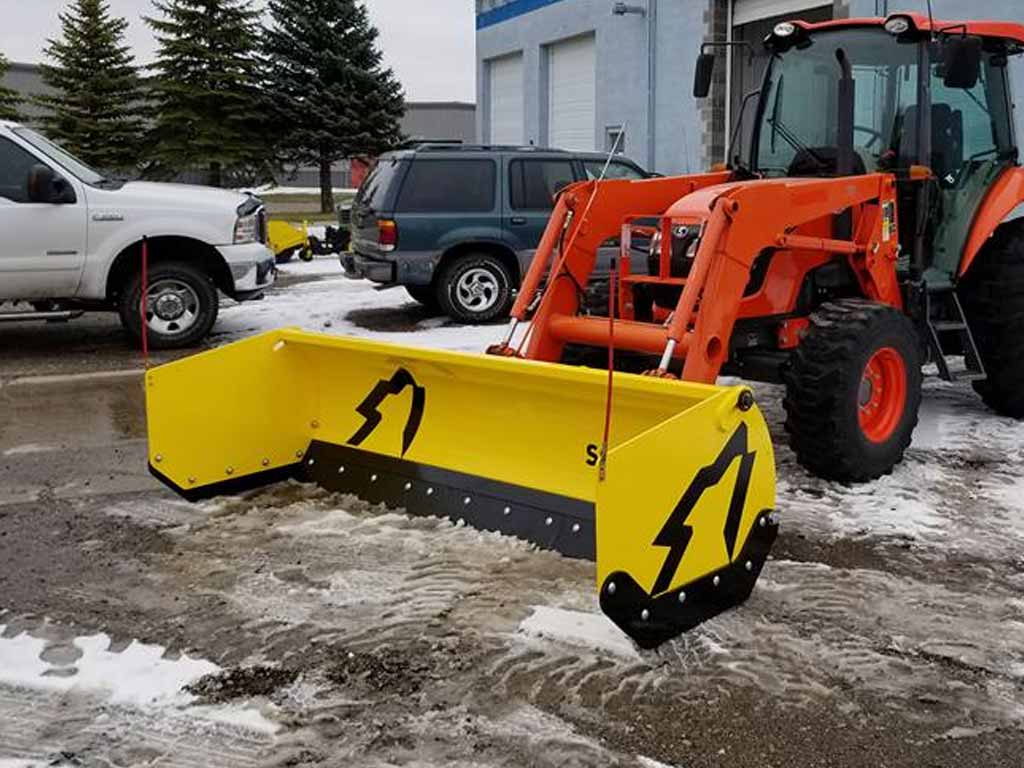

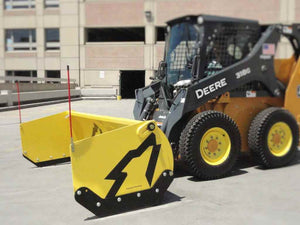

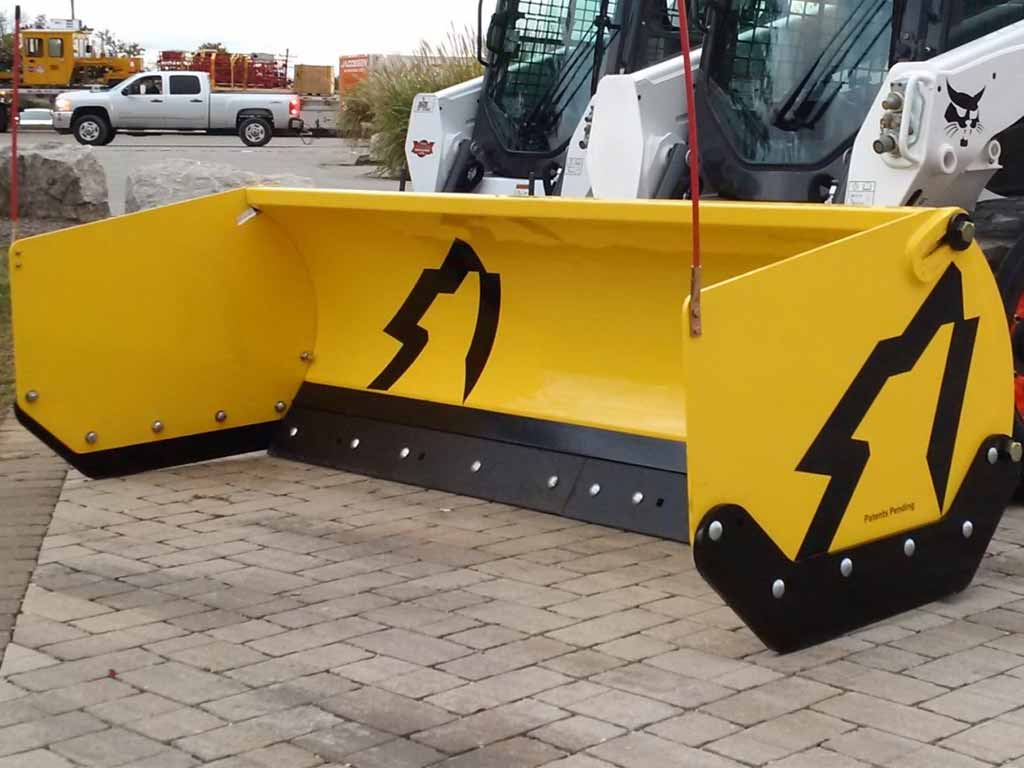

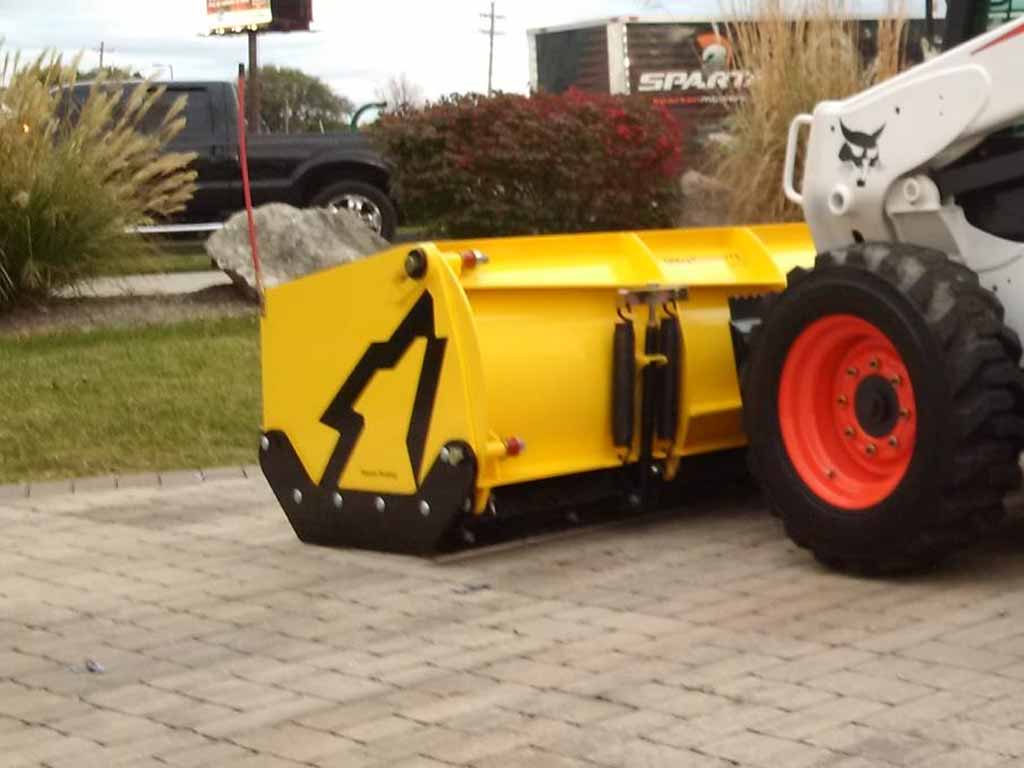

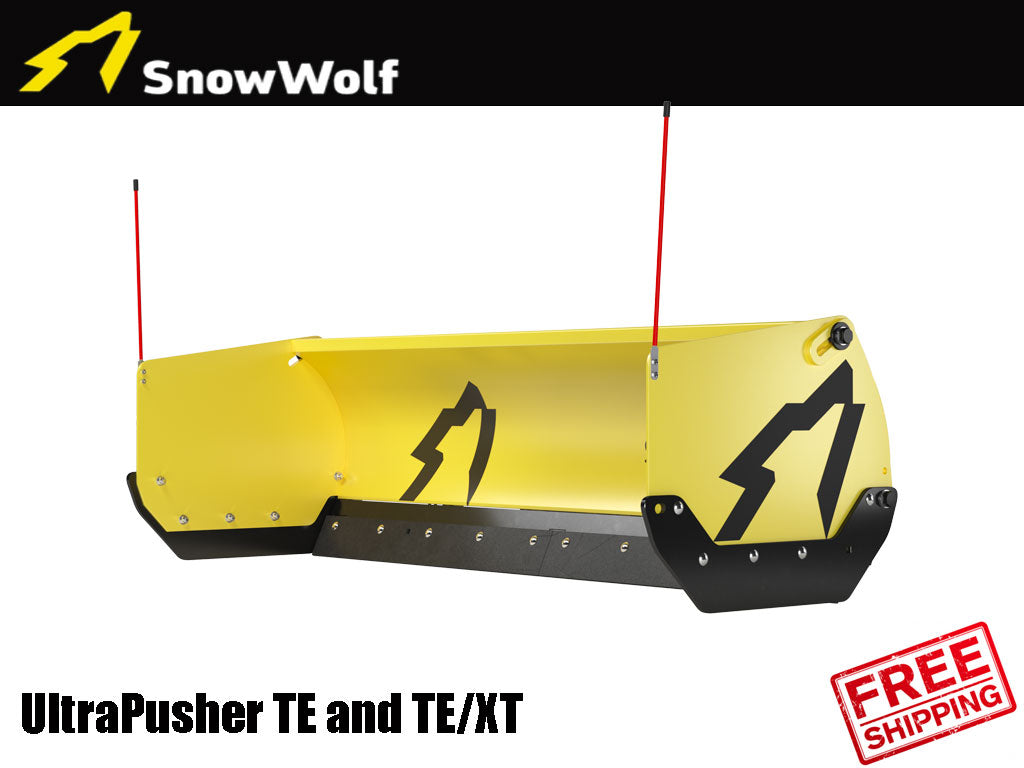

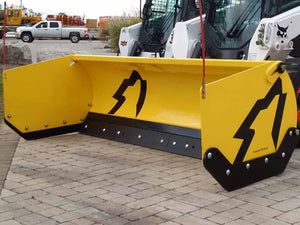

When Pushing’s Your Job ...If you’re sick of high costs of ownership and just need a reliable, heavy-duty pusher that gets the job done, the UltraPusherTE™ is for you. From maximum containment to close scraping to overall efficiency, this pusher has everything you need.
Machine operating weight: 6,000 lbs. – 15,000 lbs.
Features | Benefits |
---|---|

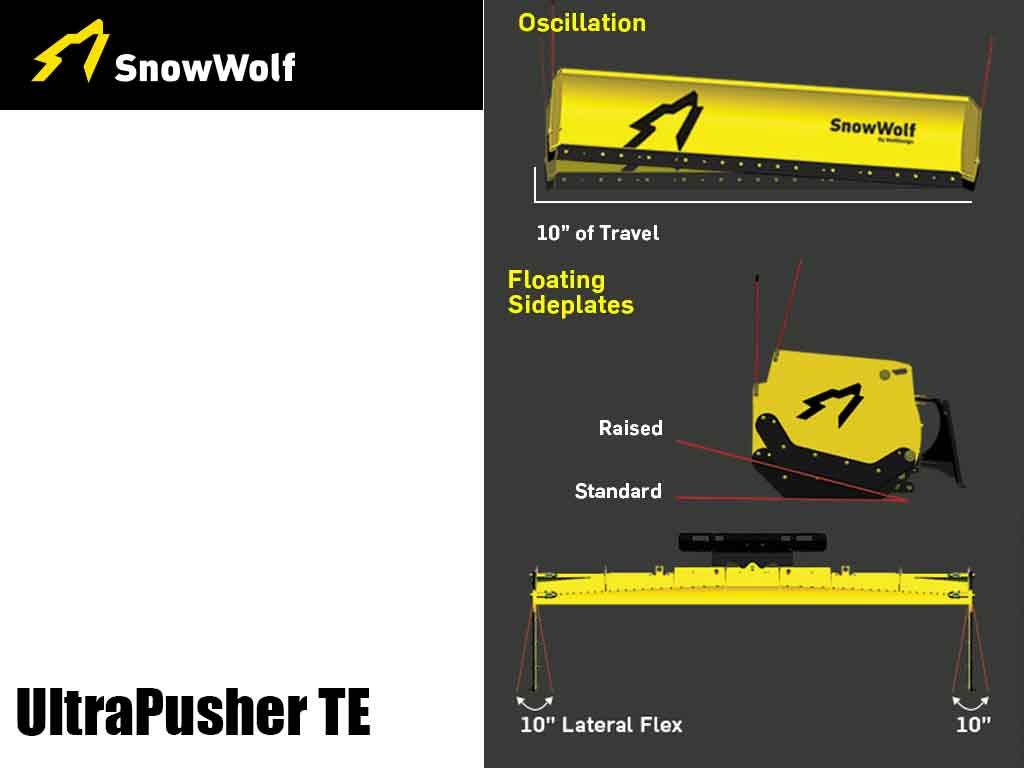

Class-Exclusive Cushioned Side plates | Industry-first urethane springs protect side plates from bending by providing up to 10 inches of lateral flex if the pusher hits something at an angle. |
Floating Side plates | Up-down pivoting side plates follow surface contours, move the blade over head-on obstacles and allow for down pressure on the cutting edge. |
Strutless Side plates | Elimination of supports between the side plates and moldboard means no snow buildup and nearly effortless rolling. Tough AR400 side plate shoes ensure long wear life. |
Oscillation | Pusher follows contours with up to 10 inches of oscillation to keep the blade on the surface. |
Tight Moldboard Curvature | Tight curve keeps snow ‘live” and rolling properly so you can push more snow with less horsepower and traction. |

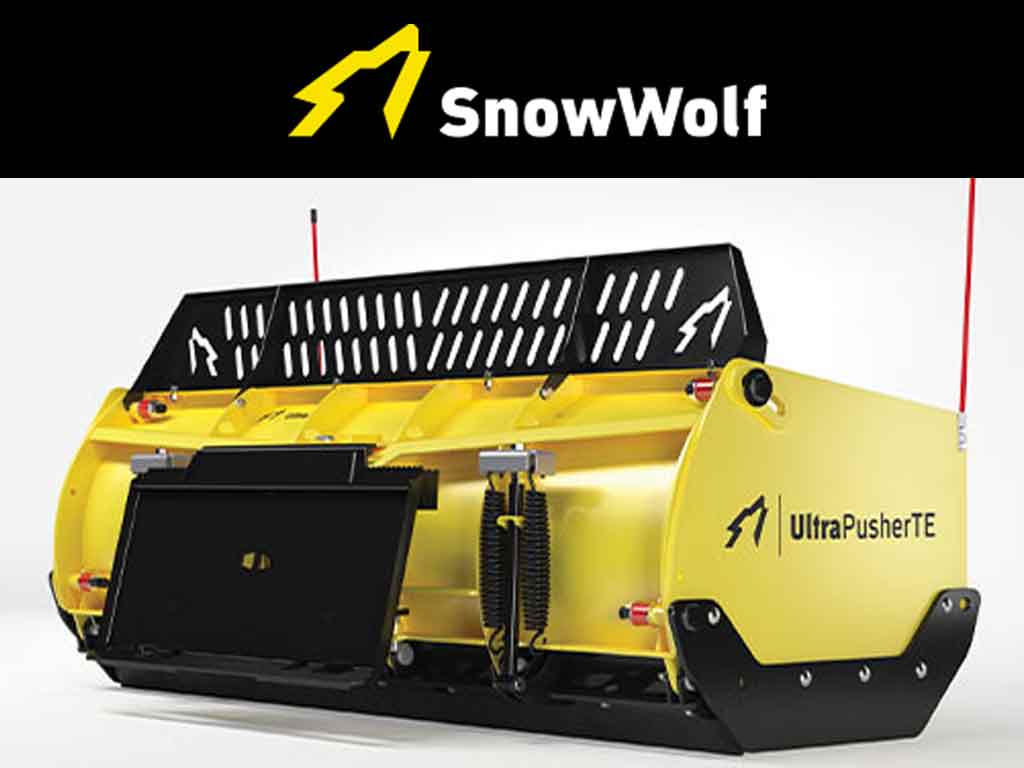

Trip Edge | The full 9-inch trip edge easily clears obstacles and protects the operator and machine. |
Cutting Edge | Put down pressure on the 6-inch, high-carbon steel cutting edge for a clean scrape every time. |
UltraPusherTE: 6,000-10,000 lbs. | |||
Model Number | UPTE-72 | UPTE-84 | UPTE-96 |
Overall Height | 30.7" | ||
Overall Length | 36.1" | ||
Overall Width | 74" | 86" | 98" |
Unit Weight (lbs.) | 852 | 891 | 933 |
Width Between Sideplates | 72" | 84" | 96" |
Moldboard Gauge | 10 Ga. | ||
Cutting Edge | 1/2" x 6" Steel | ||
Vertical Ribs | 6 | ||
Sideplate Thickness | 3/8" | ||
Sideplate Wear Shoes | 5/8" x 37" AR400 Steel | ||
Trip Springs | 4 Ext. | ||
Full Down Pressure | Yes | ||
Oscillation | Yes | ||
Hook Up | Universal Skid Steer | ||
SpillGuard | Optional |
UltraPusherTE/XT: 10,000-15,000 lbs. | |||
Model Number | UPTEXT-108 | UPTEXT-120 | UPTEXT-132 |
Overall Height | 30.7" | ||
Overall Length | 36.1" | ||
Overall Width | 110" | 122" | 134" |
Unit Weight (lbs.) | 1039 | 1103 | 1145 |
Width Between Sideplates | 108" | 120" | 132" |
Moldboard Gauge | 10 Ga. | ||
Cutting Edge | 1/2" x 6" Steel | ||
Vertical Ribs | 6 8 8 | ||
Sideplate Thickness | 3/8" | ||
Sideplate Wear Shoes | 5/8" x 37" AR400 Steel | ||
Trip Springs | 4 Ext. | ||
Full Down Pressure | Yes | ||
Oscillation | Yes | ||
Hook Up | Universal Skid Steer | ||
SpillGuard | Optional |
