SPIDER ATTACHMENTS

005200000

SPIDER Attachments Boom / Jib (SSL)(ML)

MODEL
MOUNTING

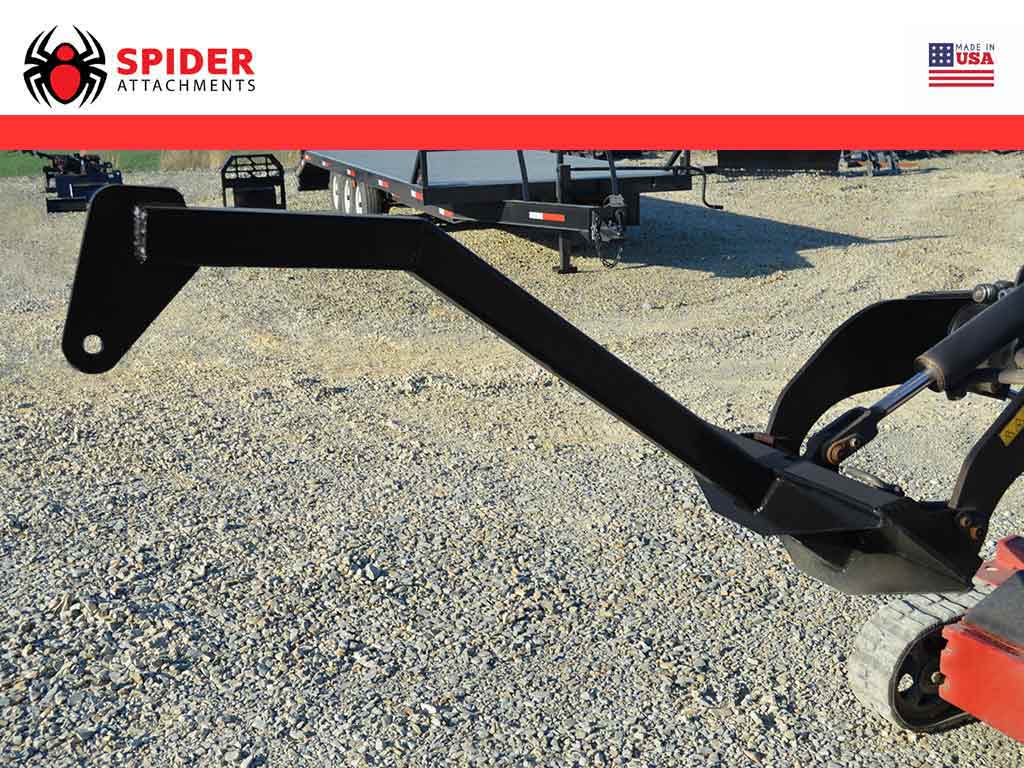

Spider Boom / Jib Heavy Duty and Extreme Duty configurations.

The Spider Attachments boom is designed for setting materials in hard to reach places. One application this attachment has worked really well is setting new trees or moving cut trees. This attachment is sometime referred to as a "tree boom"

 There are four model options for this attachment.

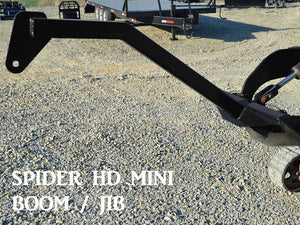

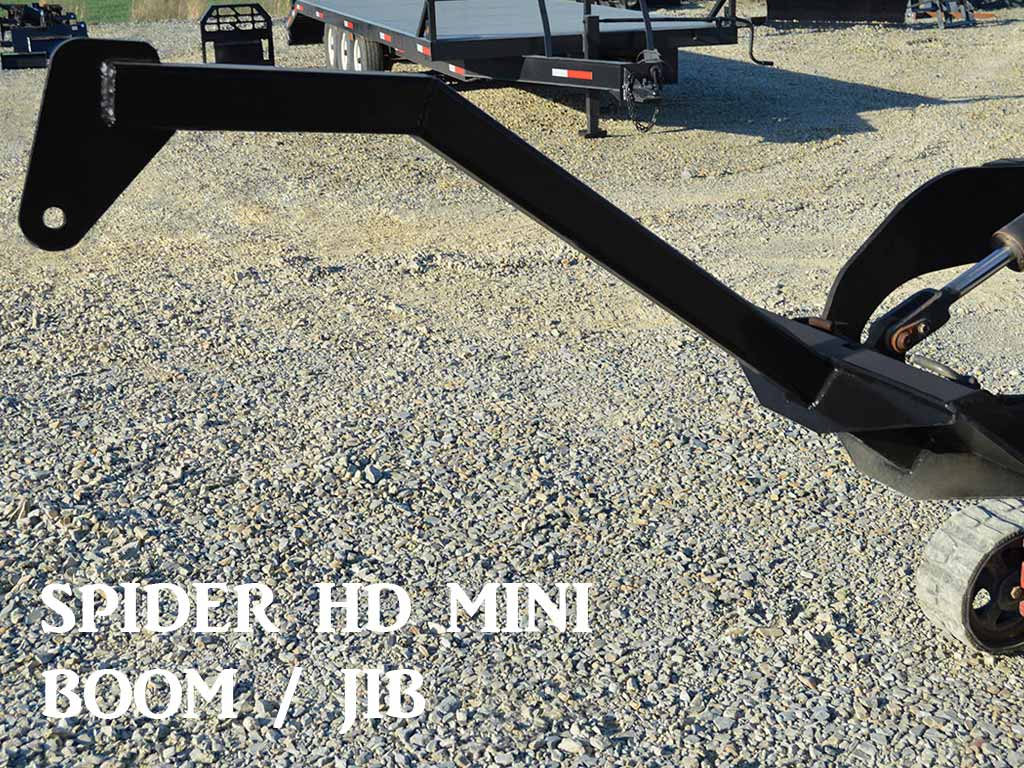

  1. Mini Loader boom - Heavy Duty (HD MINI)
  2. Mini loader boom - Extreme Duty (EX MINI)
  3. Skid steer boom - Heavy Duty (HD SSL)

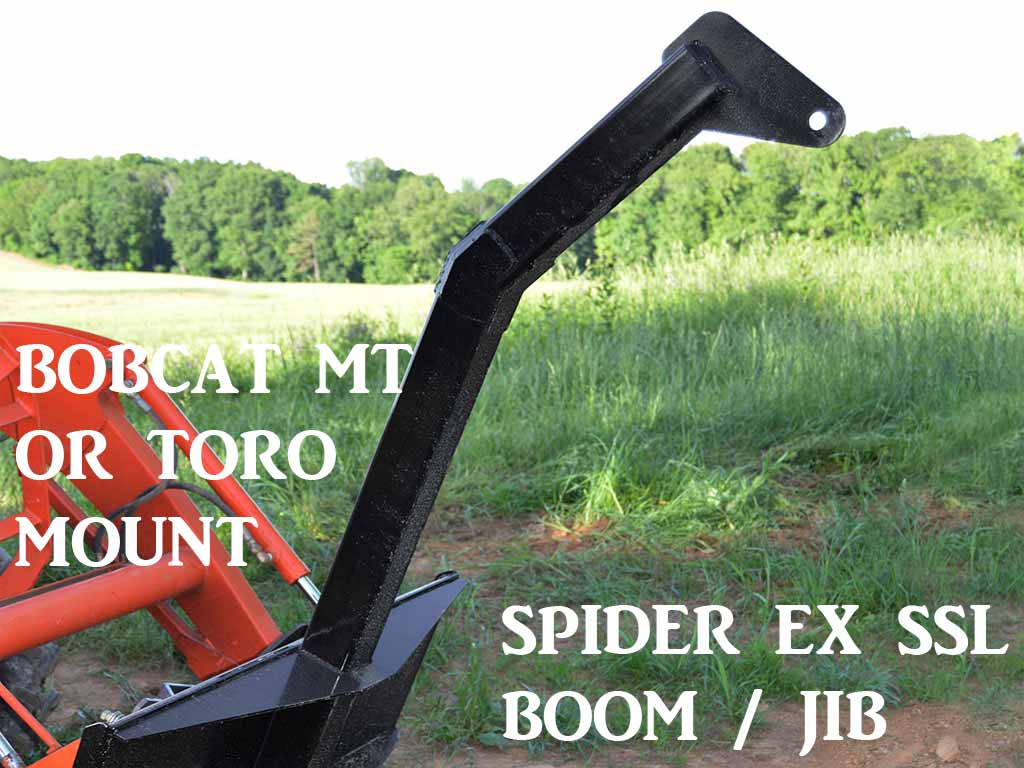

  4. Skid steer boom - Extreme Duty (EX SSL)
MODEL HD MINI EX MINI HD SSL EX SSL
CAPACITY 2500 LB 3500 LB 3500 LB 4500 LB
CONSTRUCTION 3X3 SQUARE 4X4 SQUARE 4X4 SQUARE 4X4 SQUARE
HEIGHT 55.5" 69.5" 69.5" 70.3"
LENGTH 17" 20.3" 20.3" 23.9
WIDTH VARIABLE VARIABLE 45.7" 45.8"
QUICK TACH STD STD STD REINFORCED
GUSSETED NO NO NO YES
MOUNTING TORO, BOBCAT MT TORO, BOBCAT MT BOBCAT, UNIVERSAL BOBCAT, UNIVERSAL
EYELET YES YES YES YES
EST WEIGHT 86 LB 173 LB 173 LB 203 LB
  • USUALLY SHIPS IN (3) TO (5) DAYS
  • IF BACK ORDERED (4) TO (6) WEEKS
