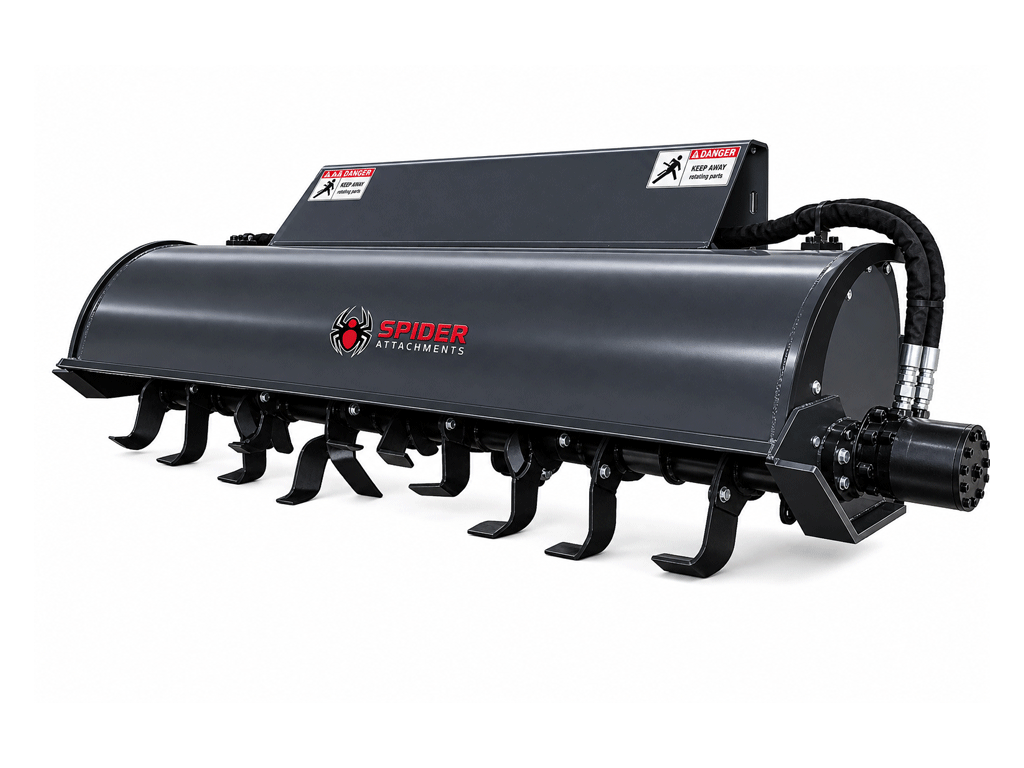

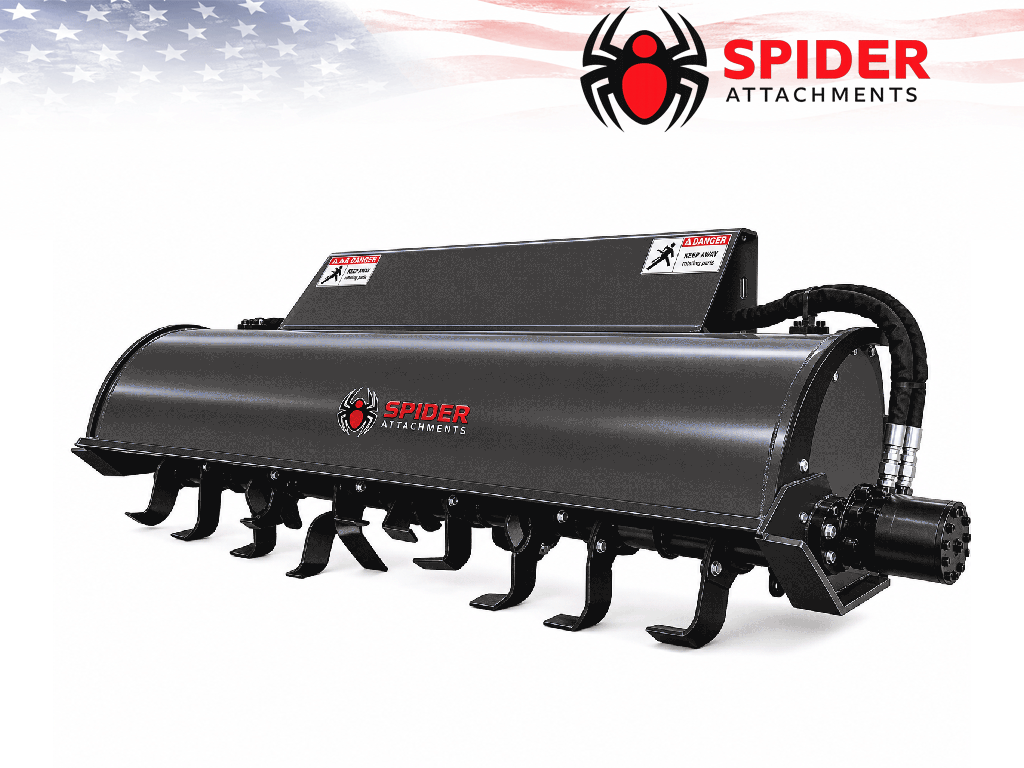

Spider Attachments Skid Steer Rotary Tiller

Break up hard ground, prepare seedbeds, and build food plots faster with theSpider Attachments Skid Steer Rotary Tiller. Built for contractors, landscapers, farmers, and landowners, this heavy-duty tiller gives your skid steer the ability to loosen, mix, and condition soil in a single pass.

Designed for bothstandard-flow and high-flow skid steers, the Spider Rotary Tiller is available with hydraulic configurations to match a wide range of machines.

Built for Serious Ground Preparation

Whether you're preparing a garden, renovating compacted soil, working a small field, or creating a deer food plot, the Spider Skid Steer Rotary Tiller is built to work aggressively through tough ground.

Itsbi-directional rotation allows the tiller to operate in either direction, helping break apart hard soil and produce a more consistent finish. Depending on ground conditions, it can till soil up to6 inches deep.

Standard Flow or High Flow

Choose the hydraulic configuration that matches your skid steer's auxiliary flow.

Standard Flow: A single hydraulic motor designed for skid steers producing14–20 GPM.

High Flow: A dual hydraulic motor system designed for machines producing20–40 GPM.

This gives operators the ability to match the tiller to their machine rather than compromising performance with an improperly sized hydraulic system.

Replaceable Bolt-On Tines

Ground-engaging components take abuse. That's why the Spider Rotary Tiller usesbolt-on replaceable tines.

When the tines eventually wear, they can be replaced individually, helping reduce repair costs and keep the attachment working longer.

Heavy-Duty Construction

Built for demanding skid steer applications, the Spider Rotary Tiller features a1/4-inch rolled steel housing,3/8-inch side plates, and3/8-inch thick wear shoes.

It's a simple, heavy-duty design built around the areas that take the most punishment.

Spider Rotary Tiller Features

• Bi-directional tilling
• Up to6-inch tilling depth
• Bolt-on replaceable tines
• 1/4-inch rolled steel housing
• Heavy-duty 3/8-inch side plates
• 3/8-inch thick wear shoes
• 14–20 GPM standard-flow configuration
• 20–40 GPM high-flow configuration
• Single or dual hydraulic motor configurations
• Multiple working widths available
• Universal skid steer quick attach

Built for More Than Gardens

TheSpider Attachments Skid Steer Rotary Tiller is ideal for:

• Deer and wildlife food plots
• Seedbed preparation
• Landscaping
• Gardens
• Small fields
• Soil conditioning
• Property maintenance
• Agricultural applications
• Breaking up compacted ground

Why Choose the Spider Skid Steer Rotary Tiller?

The Spider Rotary Tiller combinesheavy-duty construction, replaceable wear components, bi-directional operation, and standard- or high-flow hydraulic options in one straightforward attachment.

Match the hydraulic configuration and working width to your skid steer and turn tough, compacted ground into workable soil—without adding another dedicated machine to your fleet.
