SPIDER ATTACHMENTS

SPD0100101060

SPIDER EX series 4-in-1 combination bucket

MODEL
EDGE

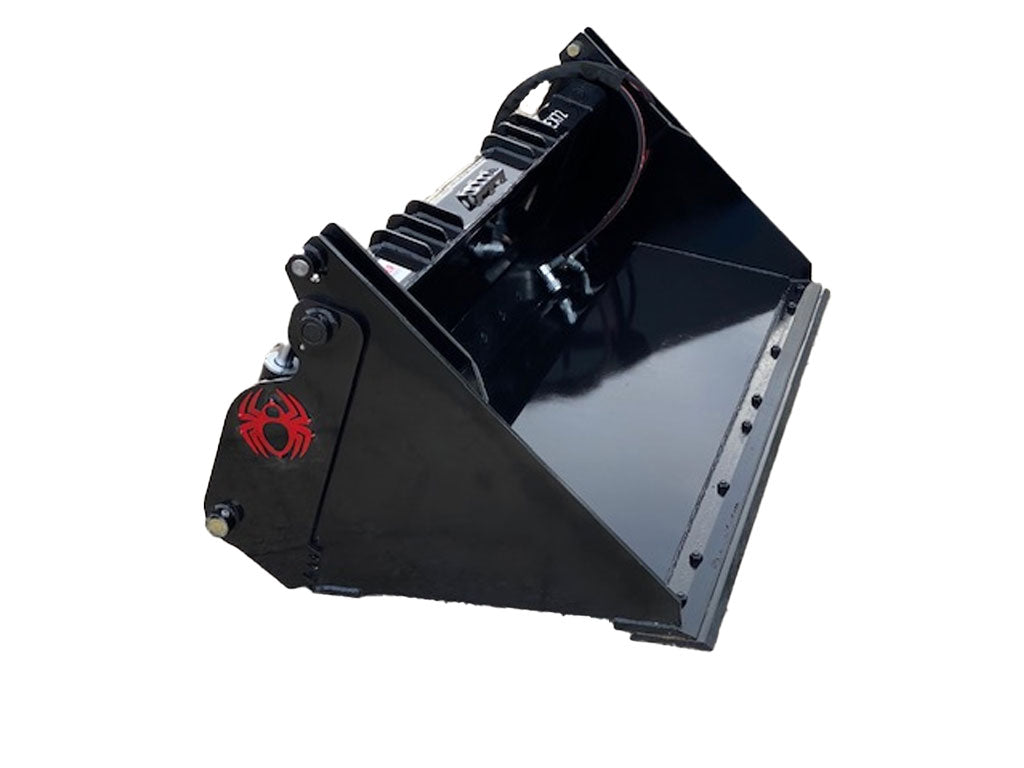

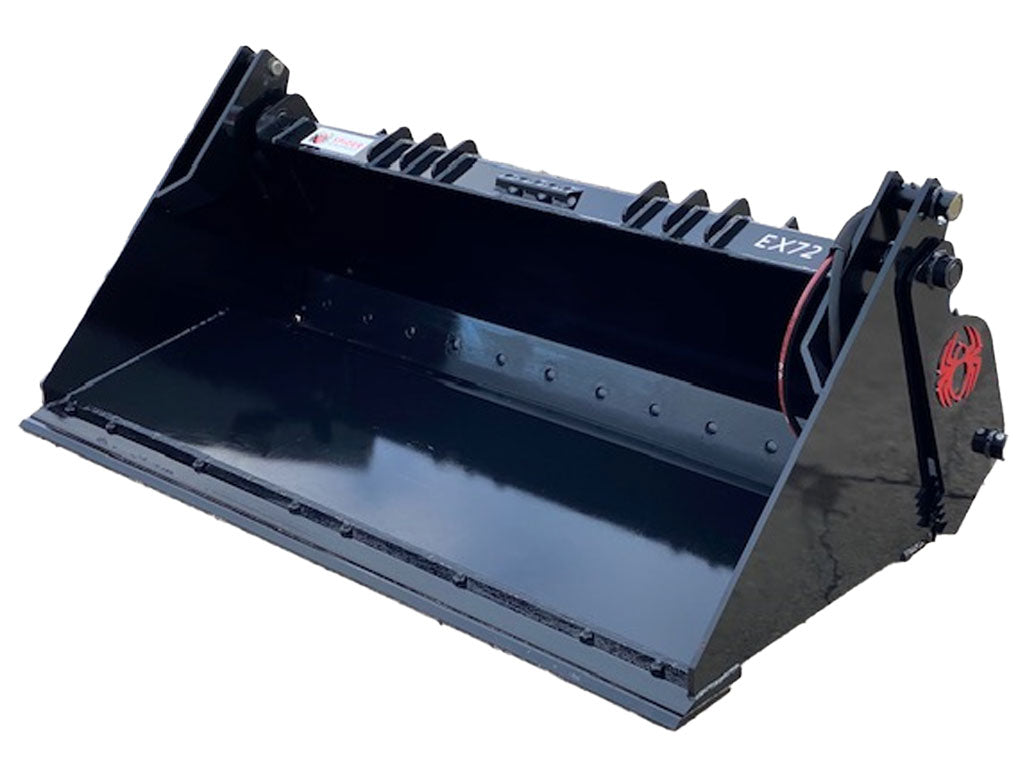

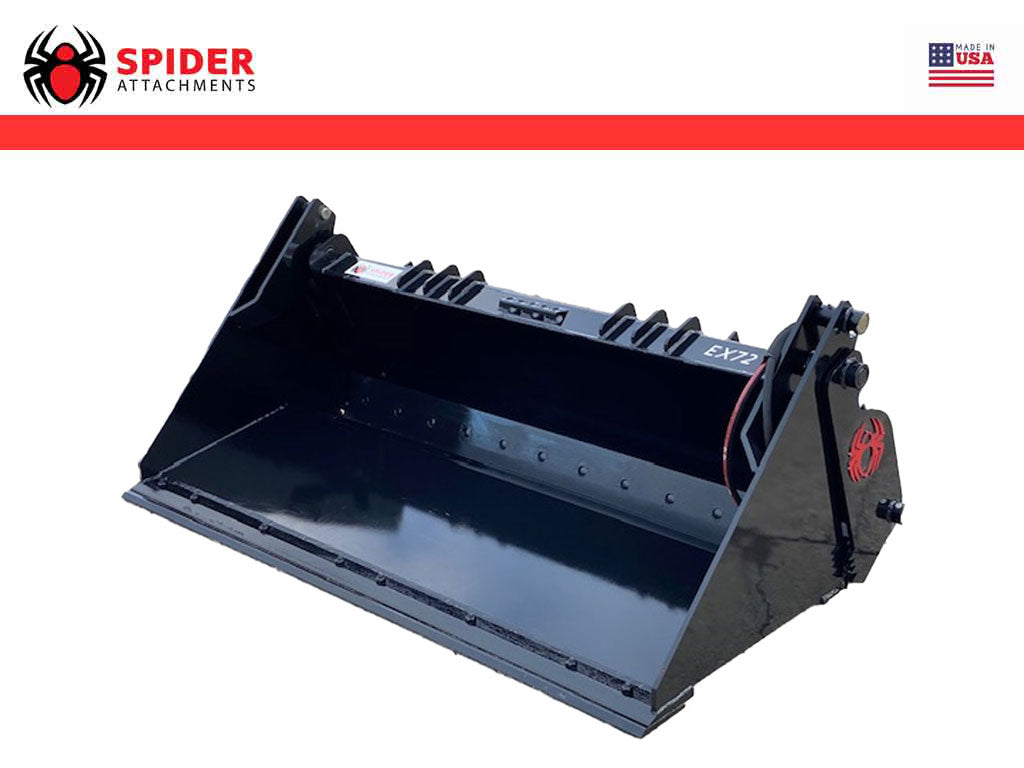

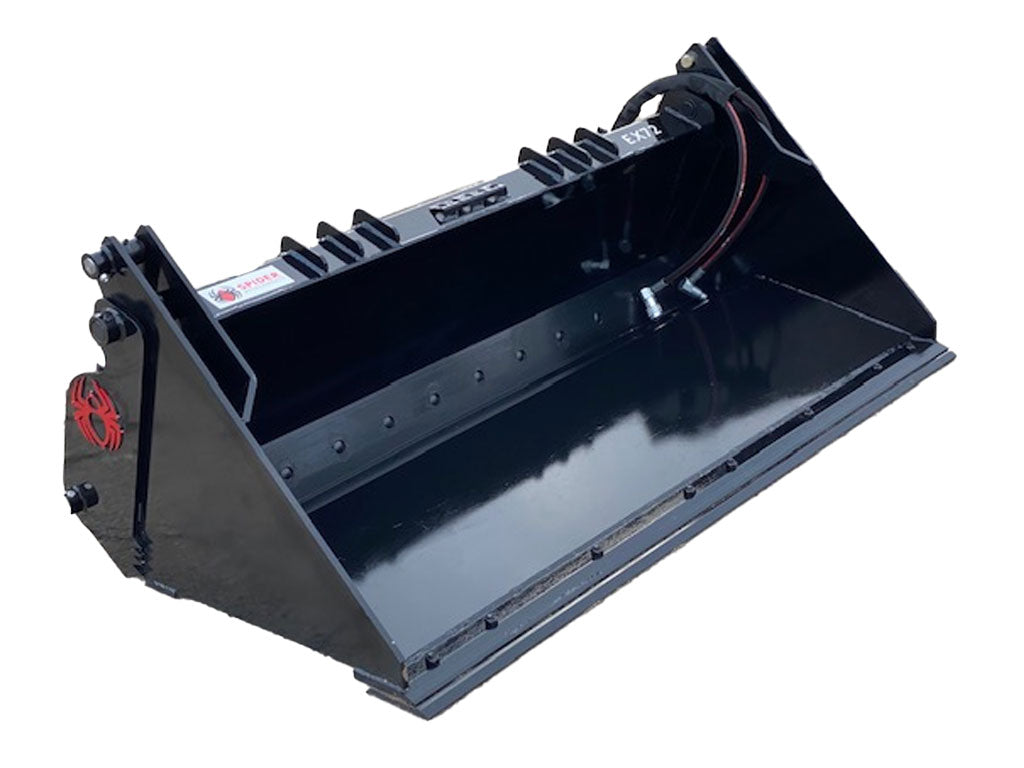

SPIDER EXTREME DUTY 4-IN-1 COMBINATION BUCKET

The EX series extreme duty 4-in-1 combination bucket is the most versatile bucket you can equip a skid steer or compact track loader with. Doze, dig grab or carry with this awesome attachment. Durable construction was the main goal when designing this bucket. Featuring 1/2" thick steel side plates, 1/4" reinforced steel floor plate and a reinforce gusseted mounting plate. Multiple edge options are available for this bucket. Choose from welded on edge, BOCE - bolt on cutting edge, teeth or tooth bar.


MODEL EX60 EX66 EX72
WIDTH 60" 66" 72"
HEIGHT 29" 29" 29"
LENGTH 38" 38" 38"
OPENING 38" 38" 38"
LB WELD ON 873 921 986
LB BOCE 930 982 1052
LB TEETH 960 1020 1080
STEPS YES YES YES
MODEL EX78 EX84 EX90
WIDTH 78" 84" 90"
HEIGHT 29" 29" 29"
LENGTH 38" 38" 38"
OPENING 38" 38" 38"
LB WELD ON 1011 1019 1067
LB BOCE 1082 1100 1150
LB TEETH 1120 1140 1200
STEPS YES YES YES
MODEL EX96
WIDTH 96"
HEIGHT 29"
LENGTH 38"
OPENING 38"
LB WELD ON 1115
LB BOCE 1205
LB TEETH 1260
STEPS YES
  • Two 212” X 8″ hydraulic cylinders
  • Oversized, greaseable pins
  • Front cutting edge  34” thick X 6″ wide, rear cutting edge (dozing edge) 58” thick X 6″ wide heat treated bolt-on reversible double edge
  • Comes equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)
  • Treaded step



  • SINGLE ITEMS USUALLY SHIP IN (3) DAYS OR LESS
  • IF BACK ORDERED IT CAN TAKE (4) TO (6) WEEKS
  • LARGER VOLUME ORDER WILL TAKE (4) TO (6) WEEKS
  • 90" AND 96" BUCKETS ARE CUSTOM ORDERS AND NO STOCK ITEMS
