SPIDER ATTACHMENTS

SPD0140101060

SPIDER heavy duty low profile buckets (SSL)(CTL)

Size
Edge

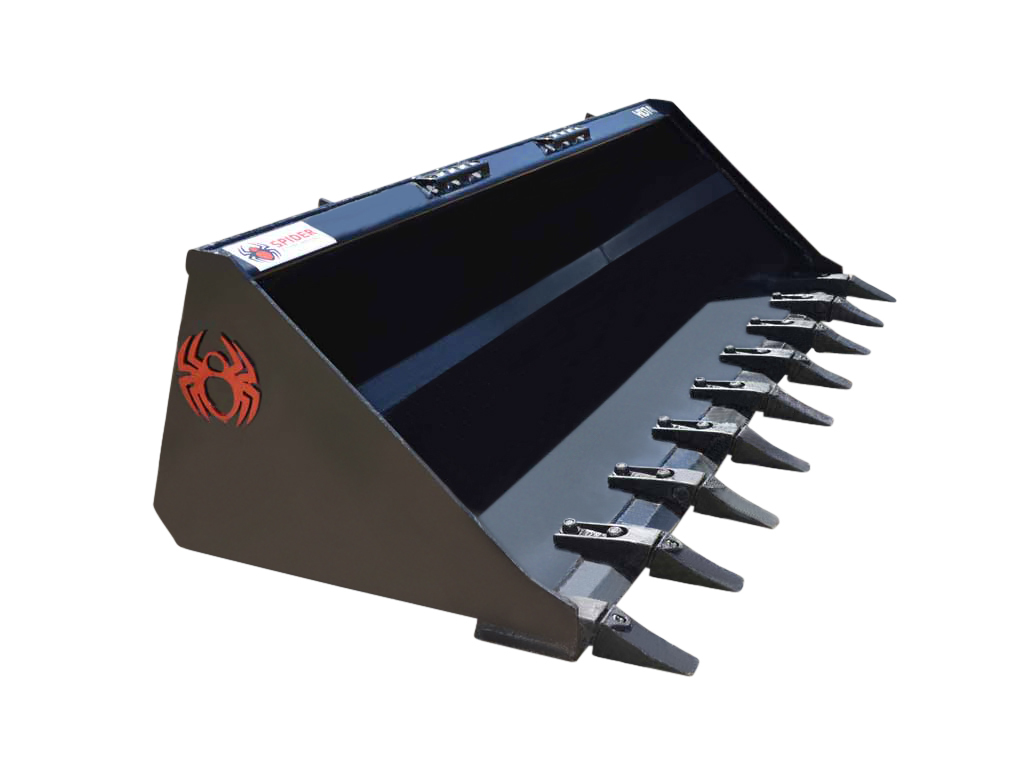

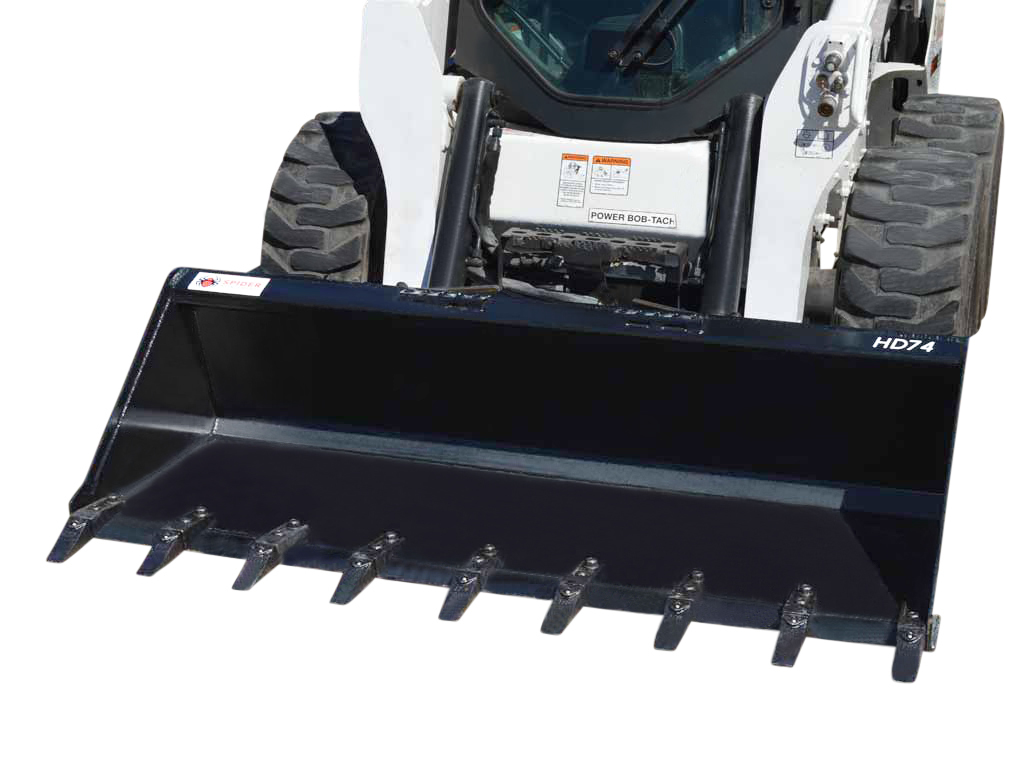

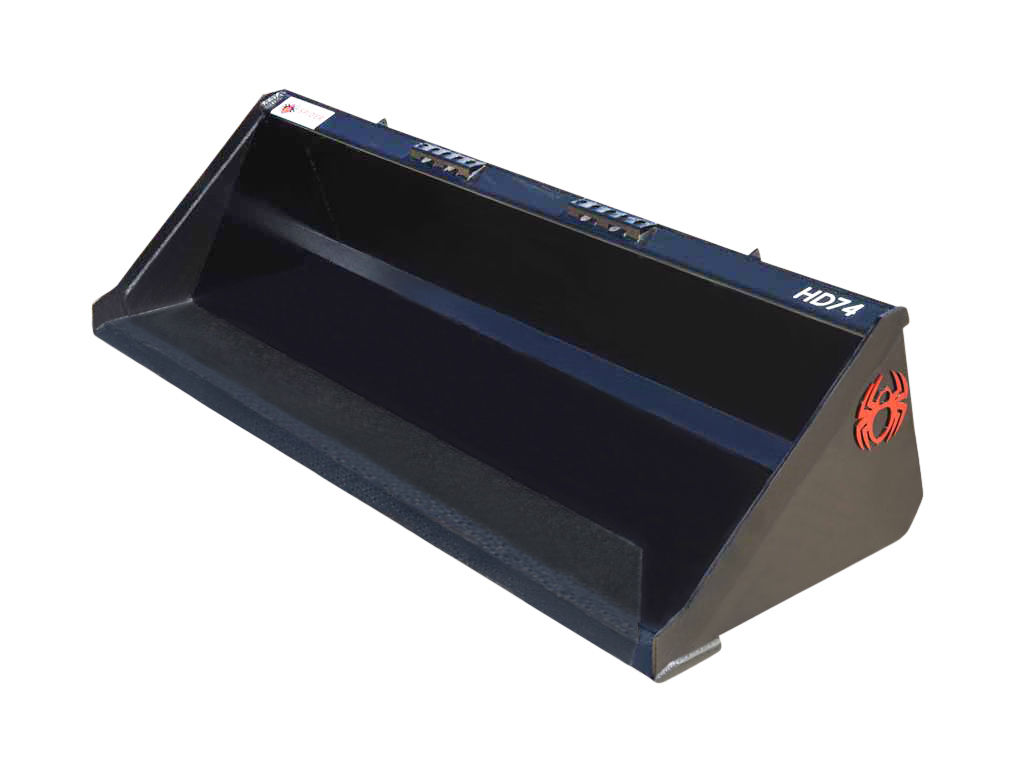

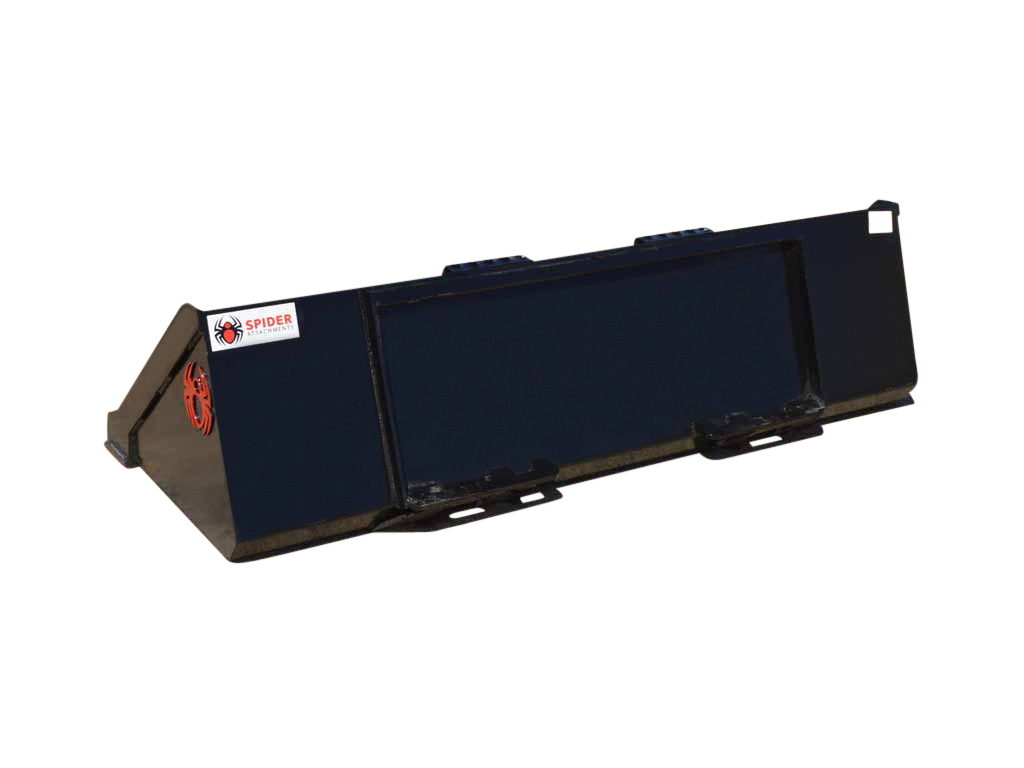

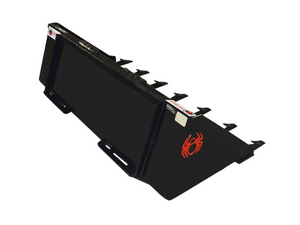

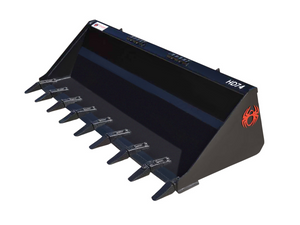

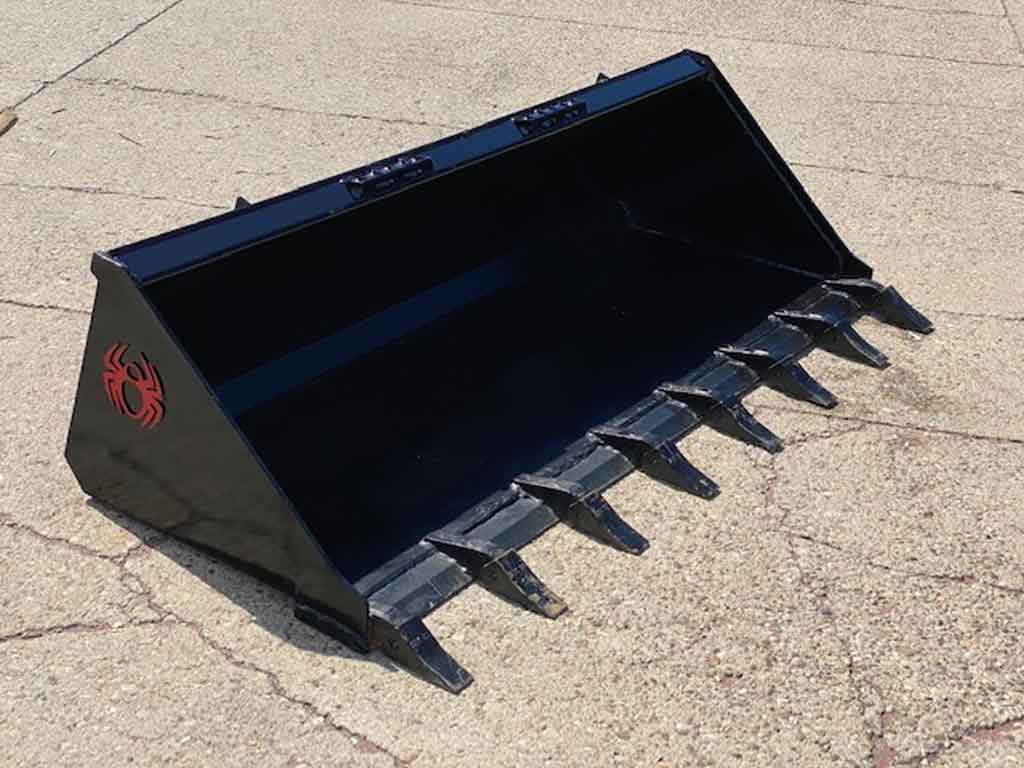

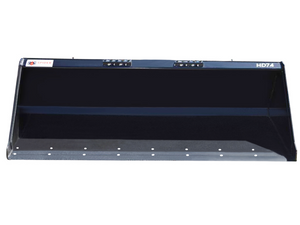

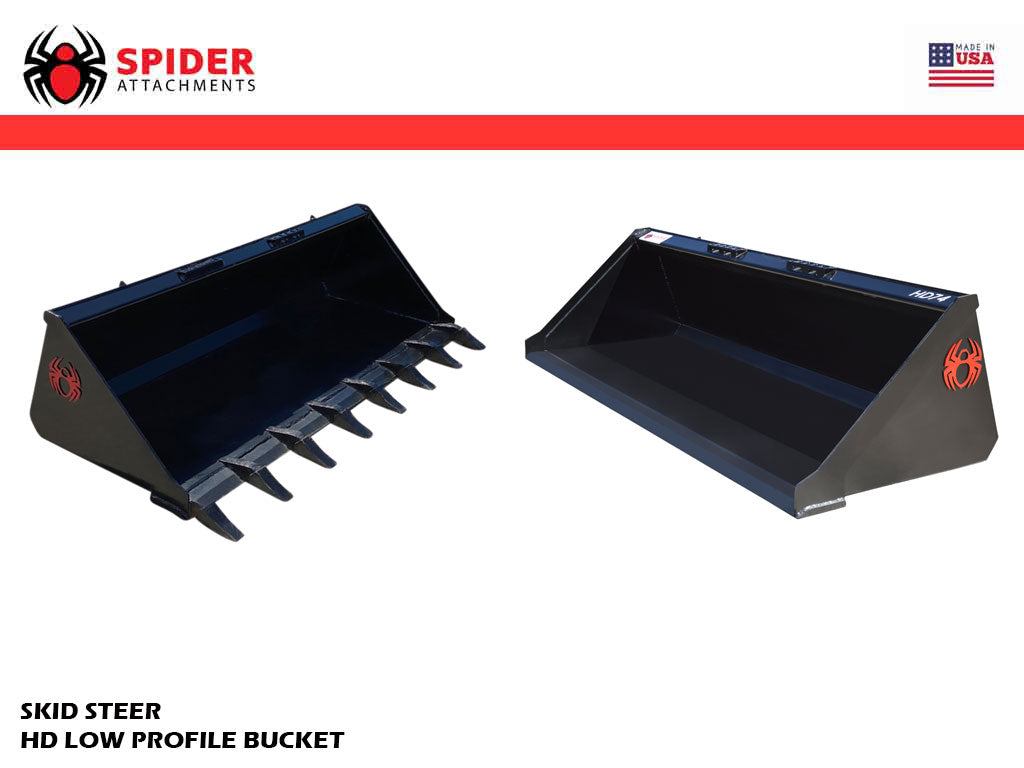

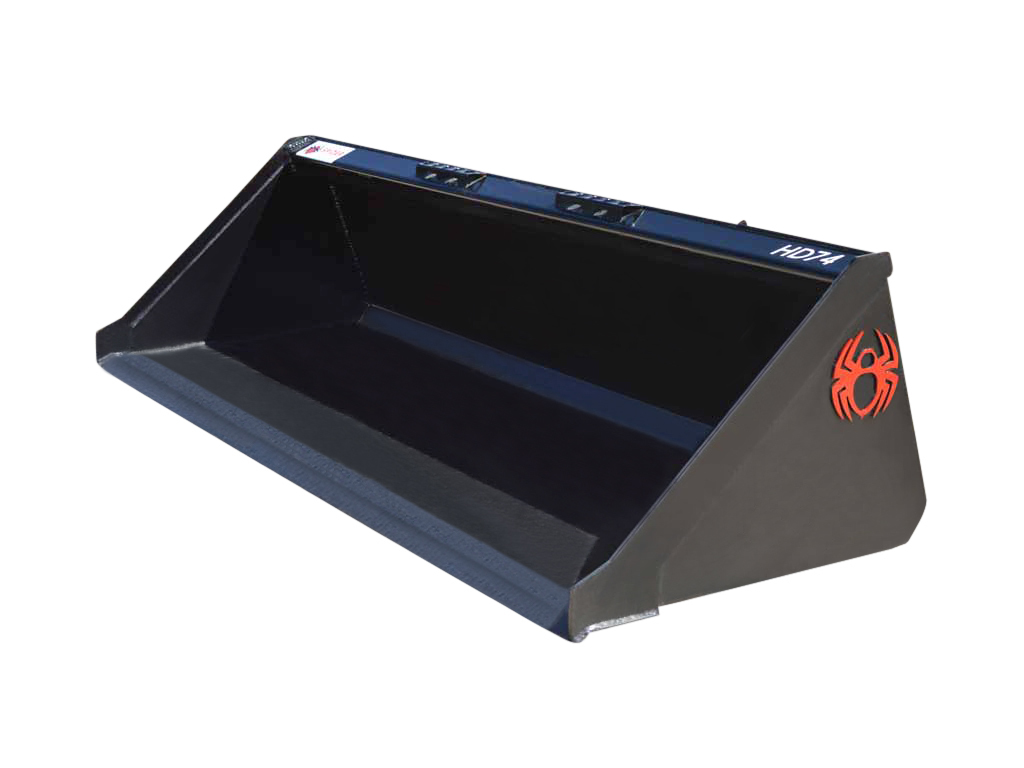

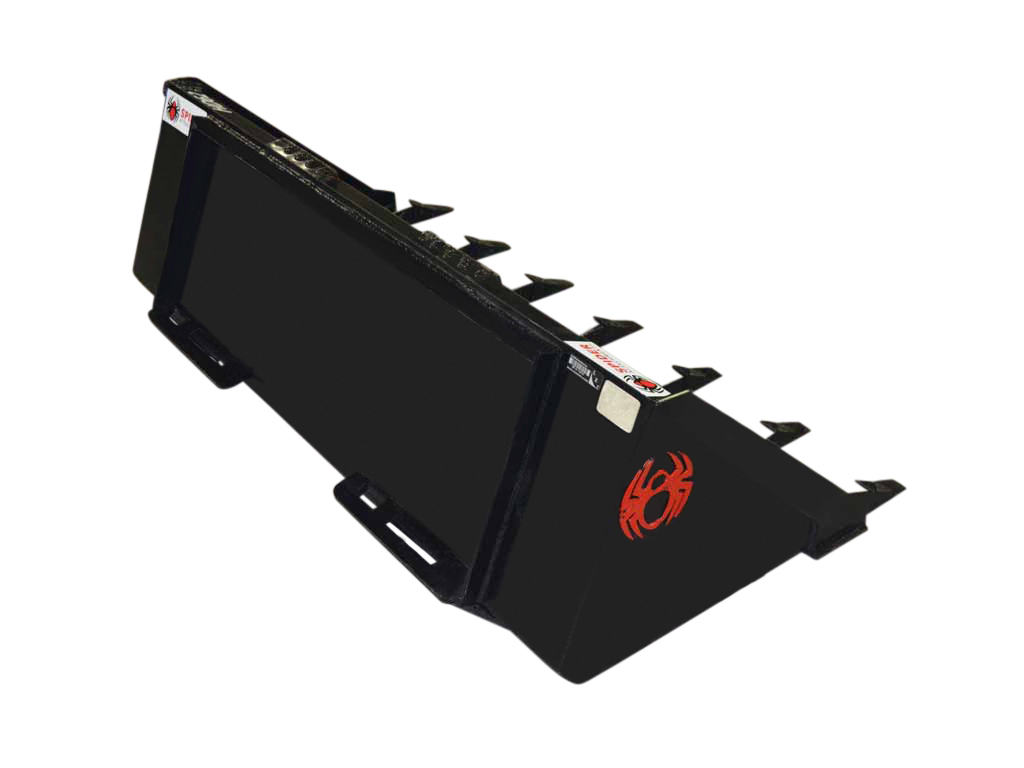

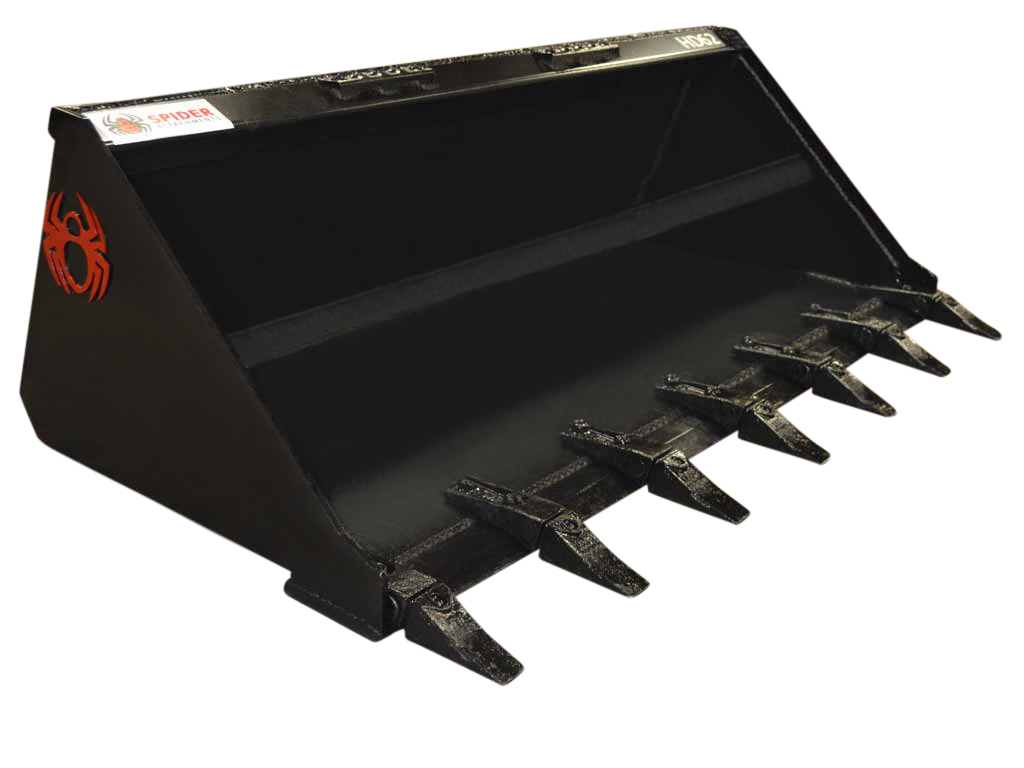

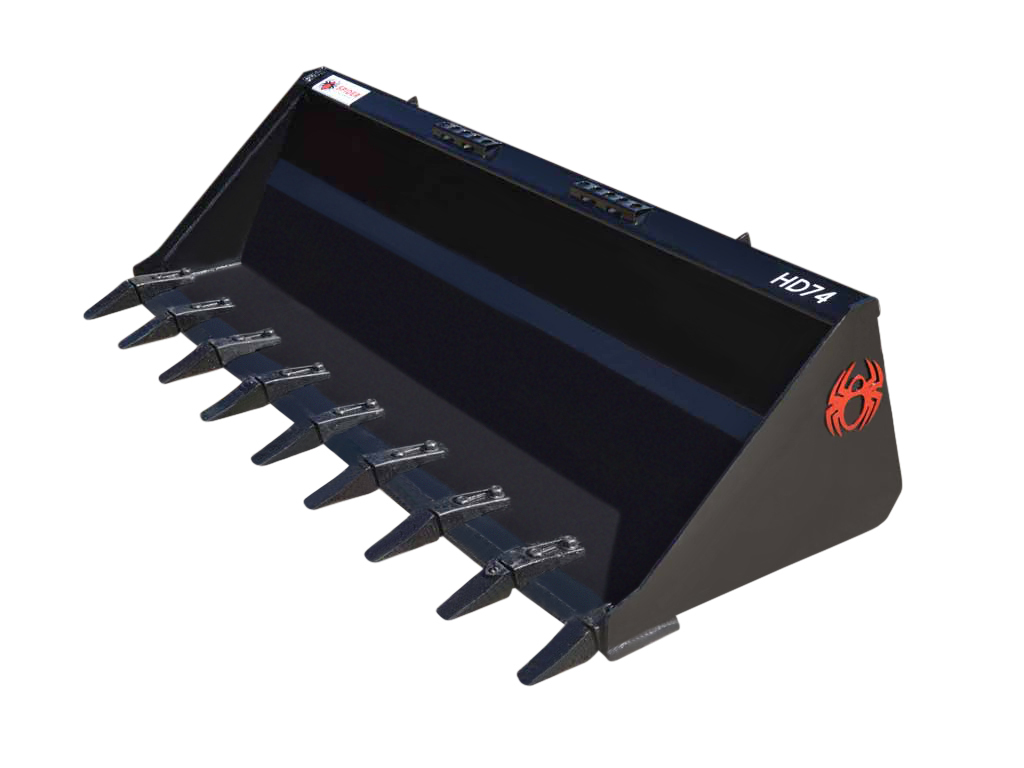

SPIDER HEAVY DUTY LOW PROFILE BUCKETS

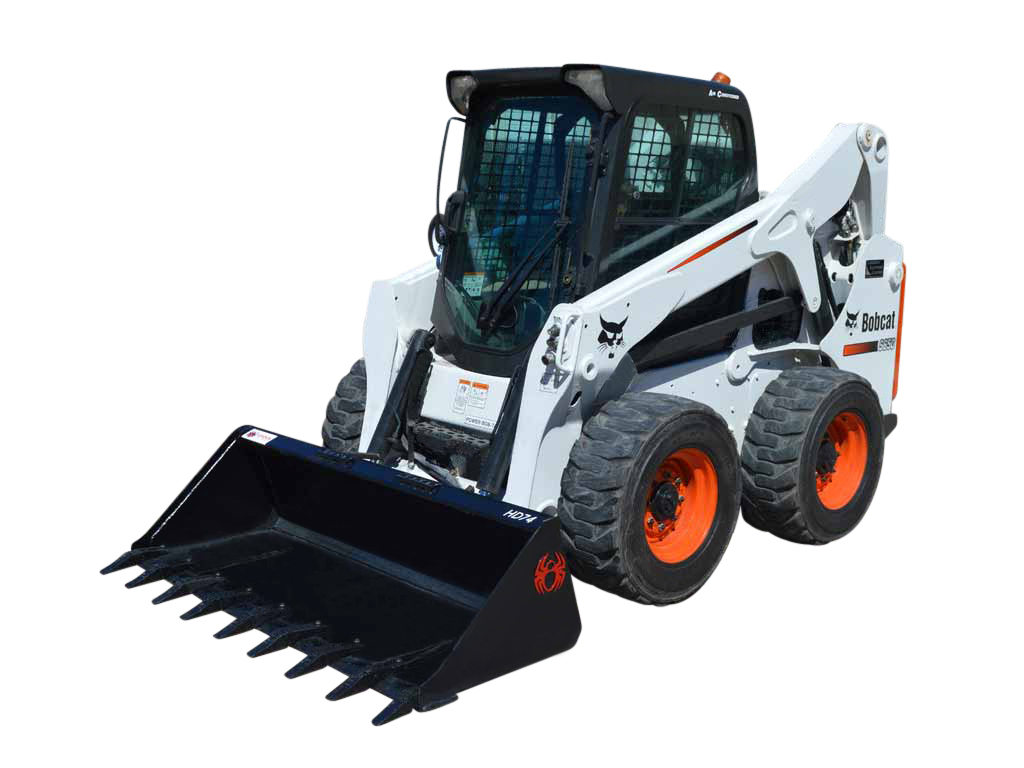

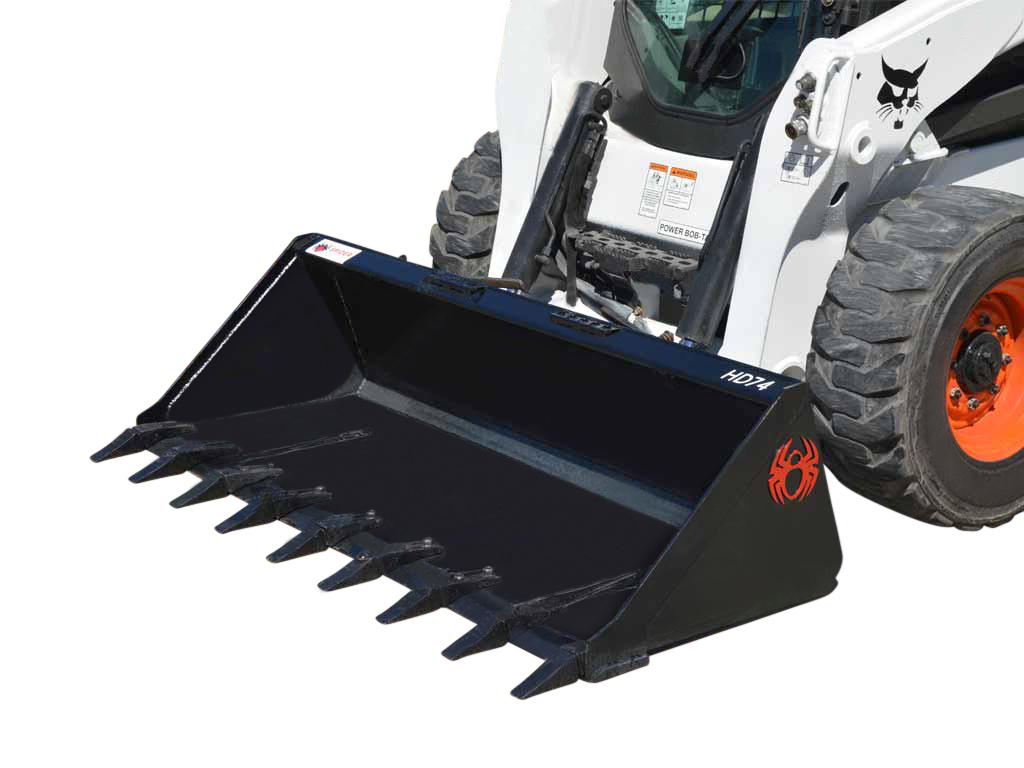

This rugged bucket has been designed and build for the demands today's modern skid steer loaders. As time has passed the machines keep getting bigger and wider but the buckets have not changed. After researching the machines that are currently in the market place we decided the bucket widths needed to change. The low profile design provides excellent visibility to the cutting edge. Choose this bucket for your skid steer loader, compact track loader or tractor with universal (Bobcat) coupler.

    Why Spider HD60, HD62, HD68, HD72, HD74, HD78, HD80, & HD84 low profile buckets...

    • New widths - match up with the new machines in the market place.
    • Heavy duty design - increases durability and longevity of the bucket
    • Low profile - provides excellent visibility to the cutting edge

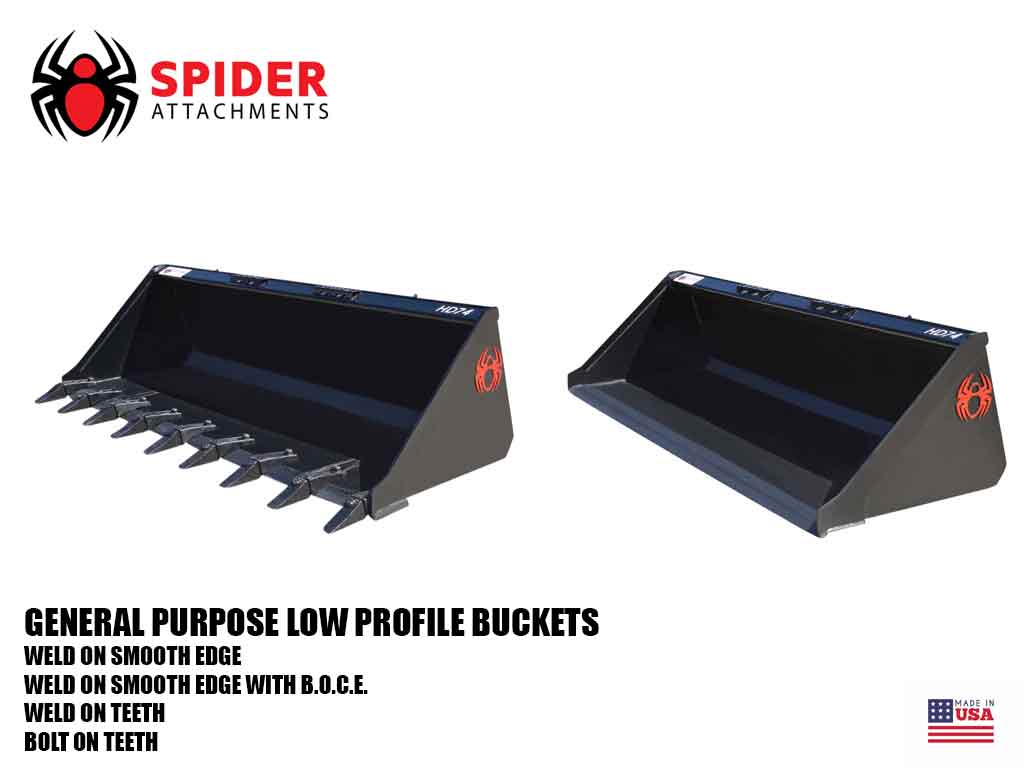

    OPTIONS

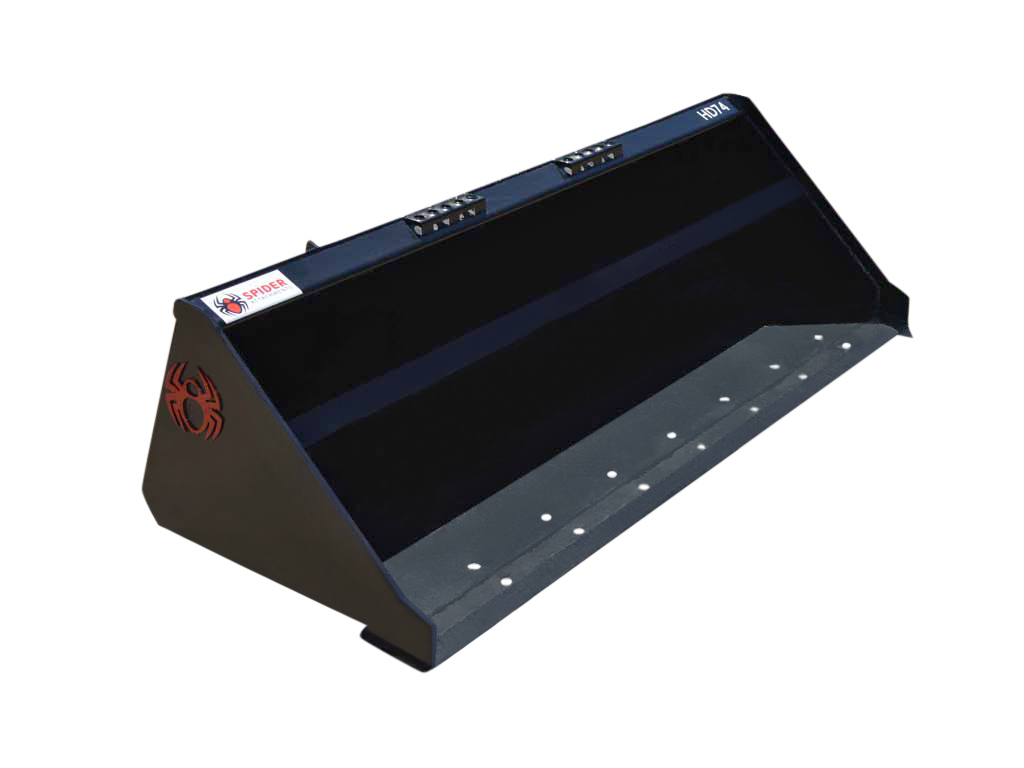

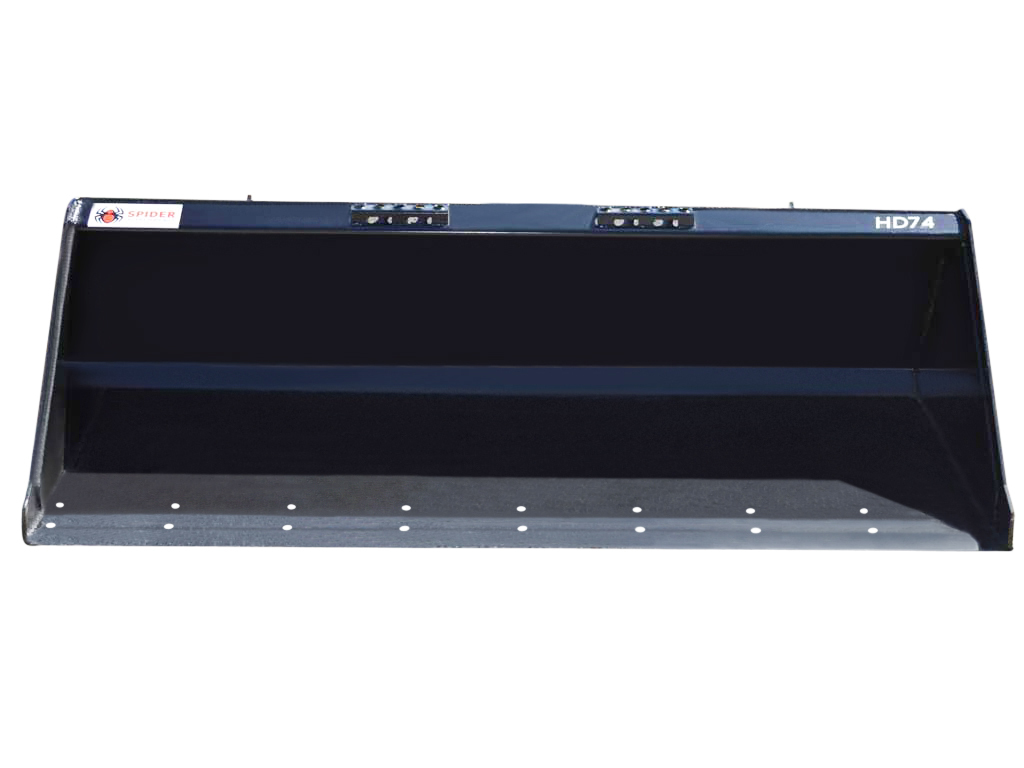

    • Double hole punched cutting edge - accepts bolt on shanks & teeth or bolt on reversible edge

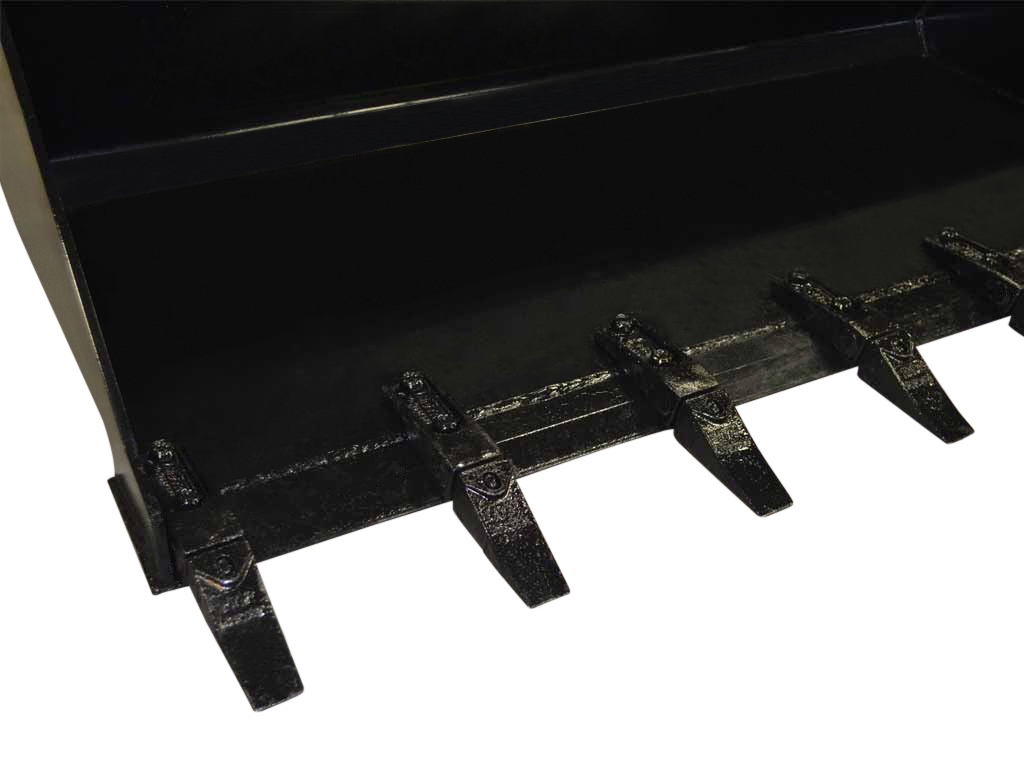

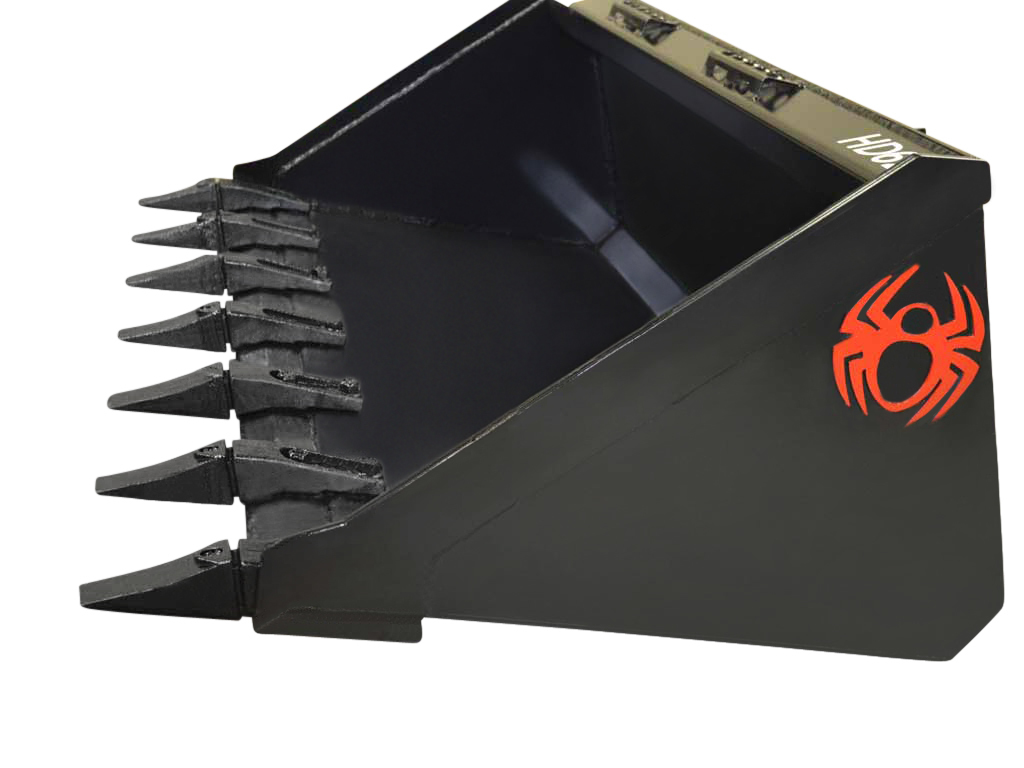

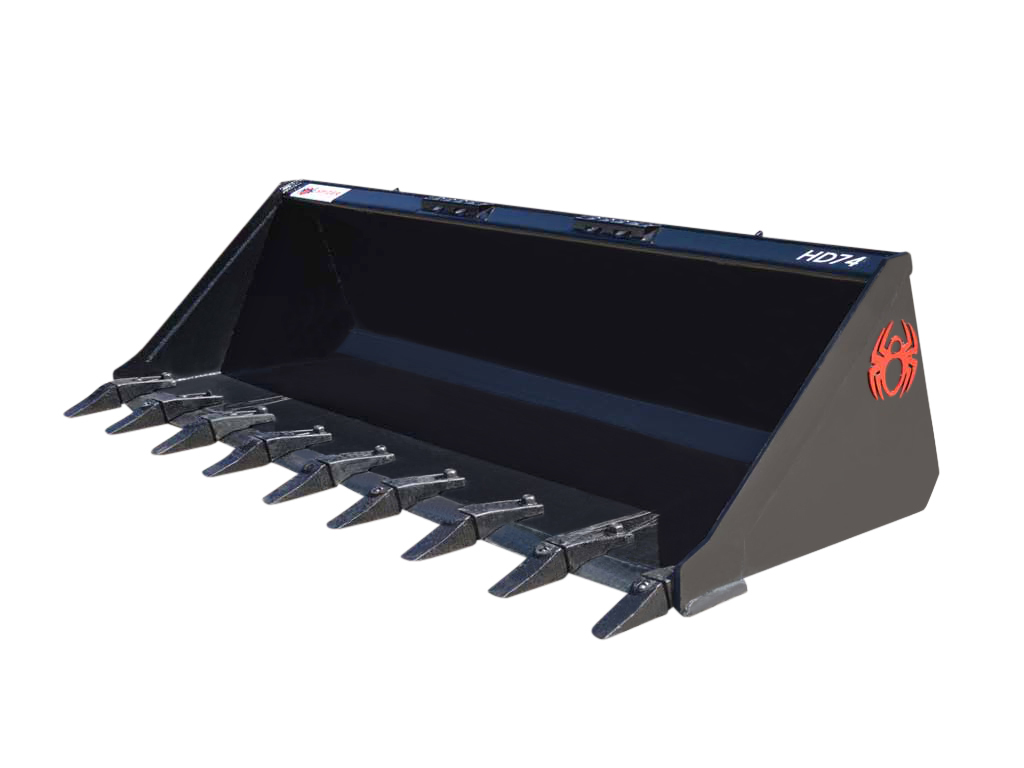

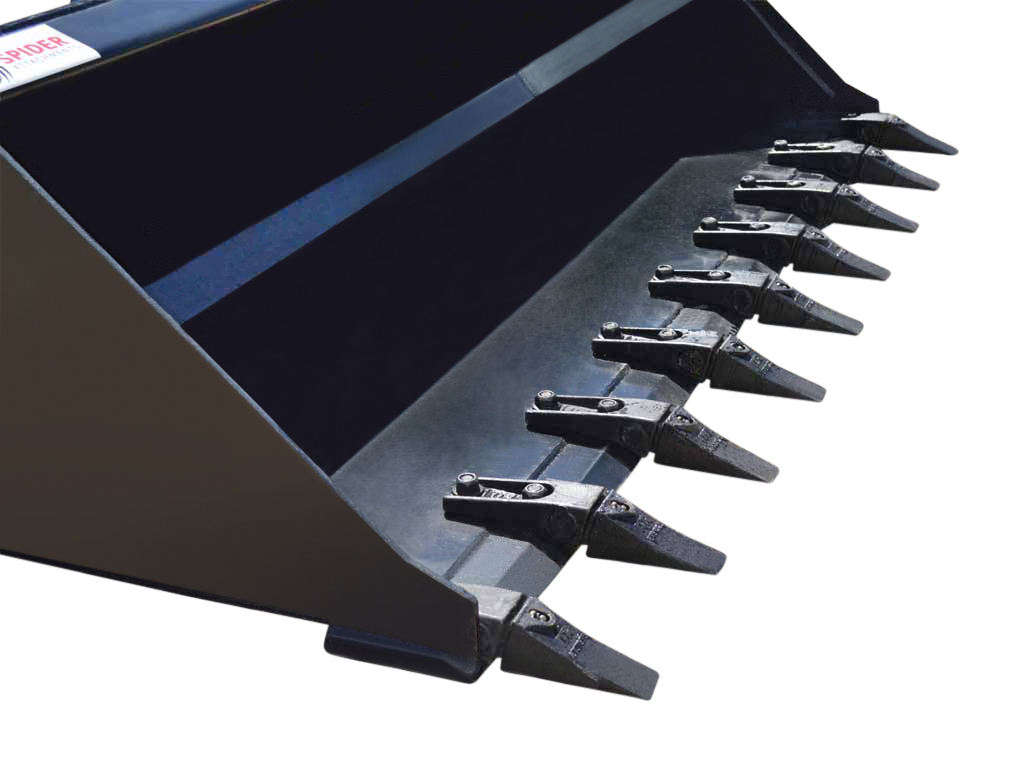

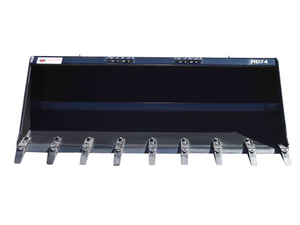

    • Weld on teeth

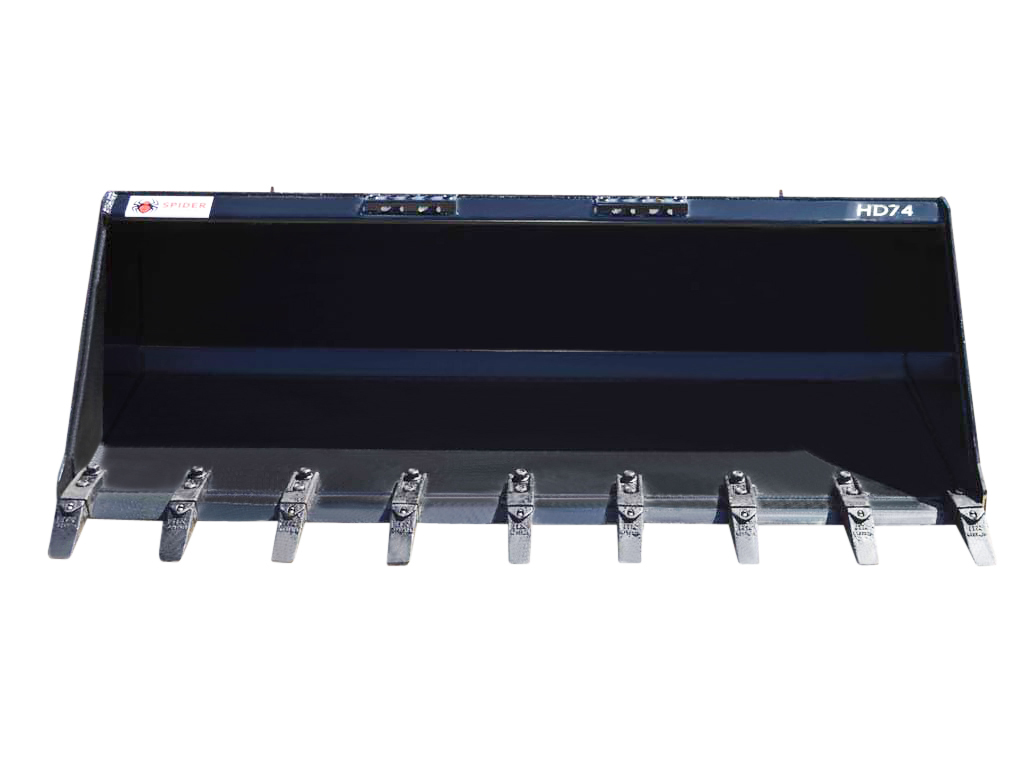

    • Bolt on teeth
    • Bolt on cutting edge (BOCE)



    OEM SIZES

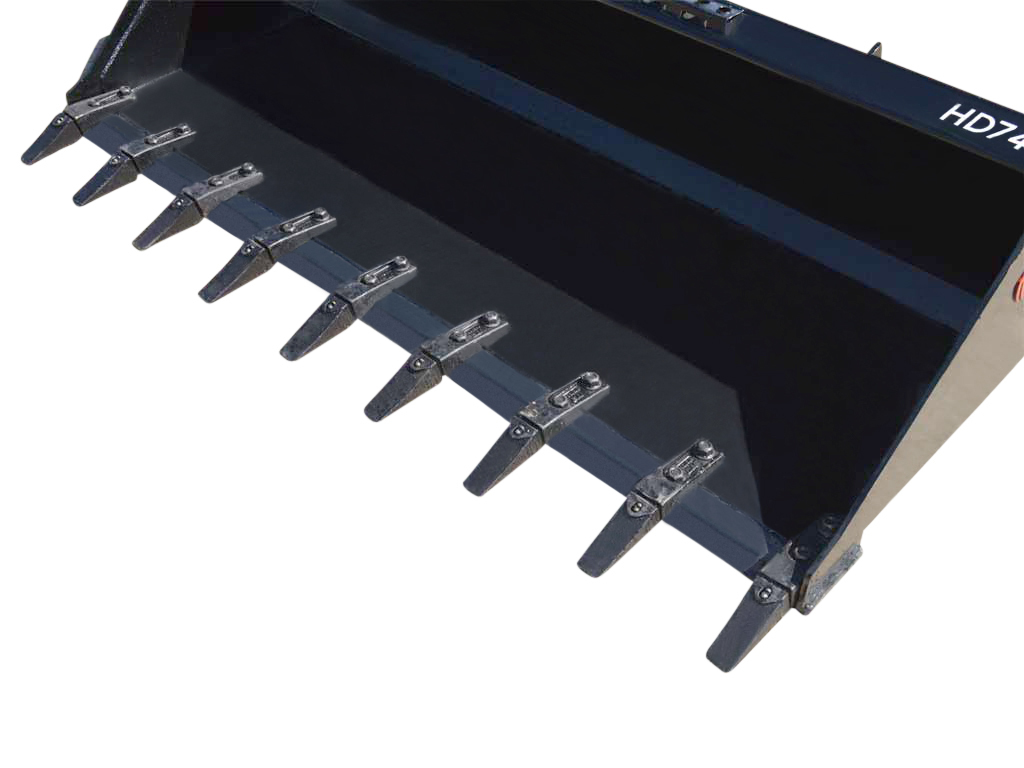

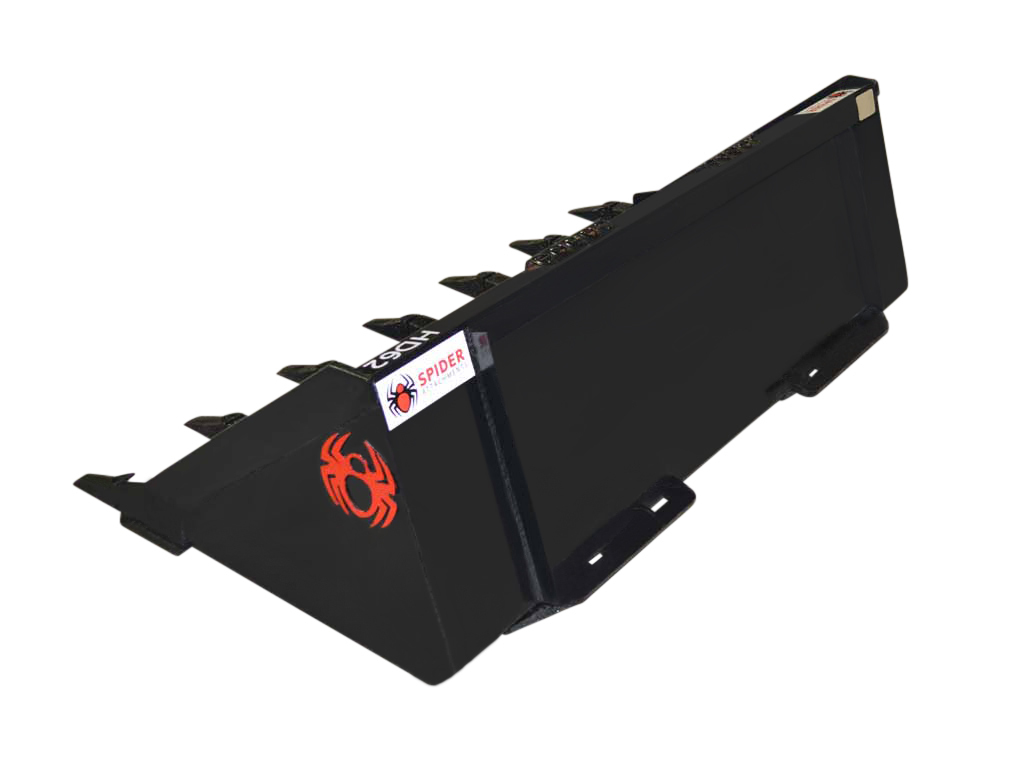

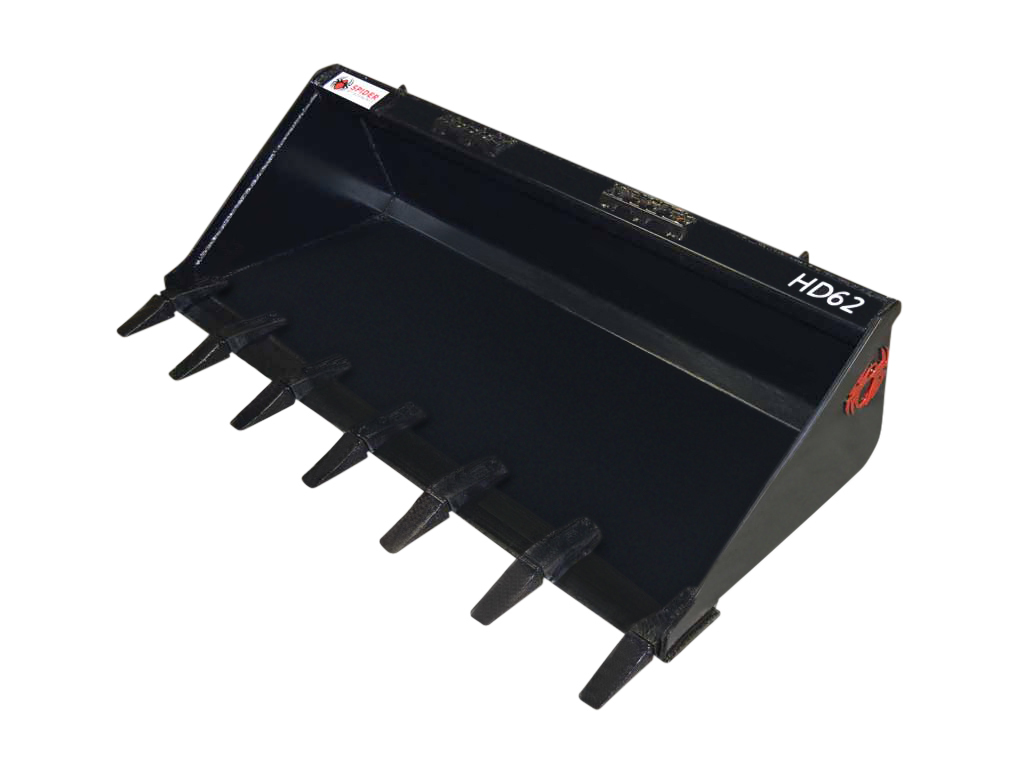

    MODEL HD62 HD68 HD74 HD80 HD84
    WEIGHT 344 LB 368 LB 402 LB 432 LB 442 HD
    LENGTH 28.8" 28.8" 28.8" 28.8" 28.8"
    WIDTH 62" 68" 74" 80" 84"
    HEIGHT 22.3" 22.3" 22.3" 22.3" 22.3"
    2 HOLE EDGE YES YES YES YES YES
    # OF TEETH 6 7 8 8 9



    AFTERMARKET SIZES

    MODEL HD60 HD66 HD72 HD78 HD84
    WEIGHT 345 LB 354 LB 378 LB 412 LB 442 HD
    LENGTH 28.8" 28.8" 28.8" 28.8" 28.8"
    WIDTH 60" 66" 72" 78" 84"
    HEIGHT 22.3" 22.3" 22.3" 22.3" 22.3"
    2 HOLE EDGE NO NO NO NO NO
    # OF TEETH 6 7 8 8 9
    • TEETH - 23 SERIES TEETH, WELD ON SHANK, FLEX PIN ADAPTERS,
    • BOCE = BOLT ON CUTTING EDGE



    • TEETH AND SHANK KIT INCLUDES - 23 SERIES TEETH, 2 HOLE BOLT ON SHANK, FLEX PIN ADAPTERS, TWO BOLTS AND TWO NUTS PER SHANK

    BOCE = BOLT ON CUTTING EDGE

    Item # 6718005, CENTER EDGE, 62" BUCKET

    • Bobcat style bolt on center cutting edge.  This is a double bevel reversible bucket cutting edge that is .625” thick, 8” wide and 61.8” in length.  It takes 7 of a 5/8” X 2 ¾” (625X275) plow bolt and 7 of a 5/8” (625 HEX NUT) hex nut.  The bolt hold spacing is 9.625” from center to center of the bolt holes, and 2.125” when measured from the edge of the bucket cutting edge to the center of the first hole.

    Item # 6718006, CENTER EDGE, 68" BUCKET

    • Bobcat style bolt on center cutting edge.  This is a double bevel reversible bucket cutting edge that is .625” thick, 8” wide and 67.95” in length.  It takes 7 of a 5/8” X 2 ¾” (625X275) plow bolt and 7 of a 5/8” (625 HEX NUT) hex nut.  The bolt hold spacing is 10.6” from center to center of the bolt holes, and 2.22” when measured from the edge of the bucket cutting edge to the center of the first hole.

    Item # 6718007, CENTER EDGE, 74" BUCKET

    • Bobcat style bolt on center cutting edge.  This is a double bevel reversible bucket cutting edge that is .625” thick, 8” wide and 74” in length.  It takes 8 of a 5/8” X 2 ¾” (625X275) plow bolt and 8 of a 5/8” (625 HEX NUT) hex nut.  The bolt hold spacing is 9.94” from center to center of the bolt holes, and 2.3” when measured from the edge of the bucket cutting edge to the center of the first hole.

    Item # 6718008, CENTER EDGE, 80" BUCKET

    • Bobcat style bolt on center cutting edge.  This is a double bevel reversible bucket cutting edge that is .625” thick, 8” wide and 80.14” in length.  It takes 8 of a 5/8” X 2 ¾” (625X275) plow bolt and 8 of a 5/8” (625 HEX NUT) hex nut.  The bolt hold spacing is 10.8” from center to center of the bolt holes, and 2.22” when measured from the edge of the bucket cutting edge to the center of the first hole.
    • SINGLE ITEMS USUALLY SHIP IN (3) DAYS OR LESS
    • IF BACK ORDERED IT CAN TAKE (4) TO (6) WEEKS
    • LARGER VOLUME ORDER WILL TAKE (4) TO (6) WEEKS

    These are the best buckets for the money...HANDS DOWN!
