SPIDER ATTACHMENTS

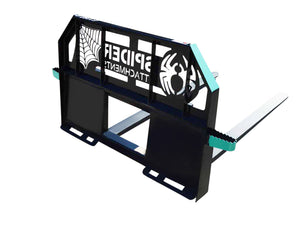

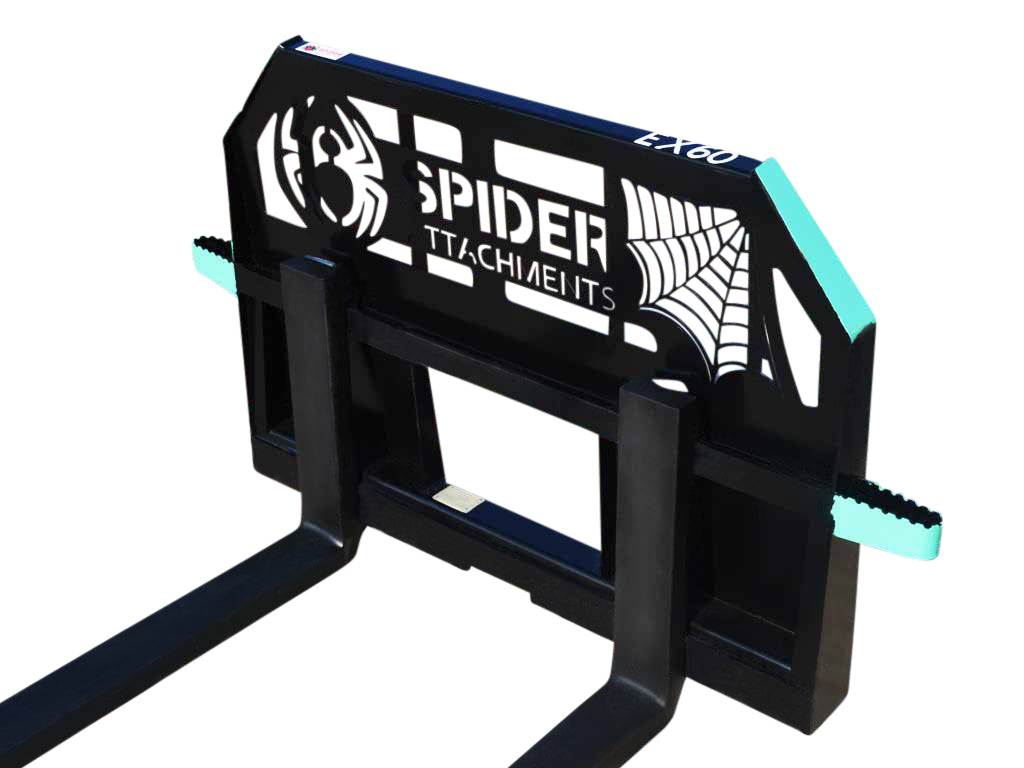

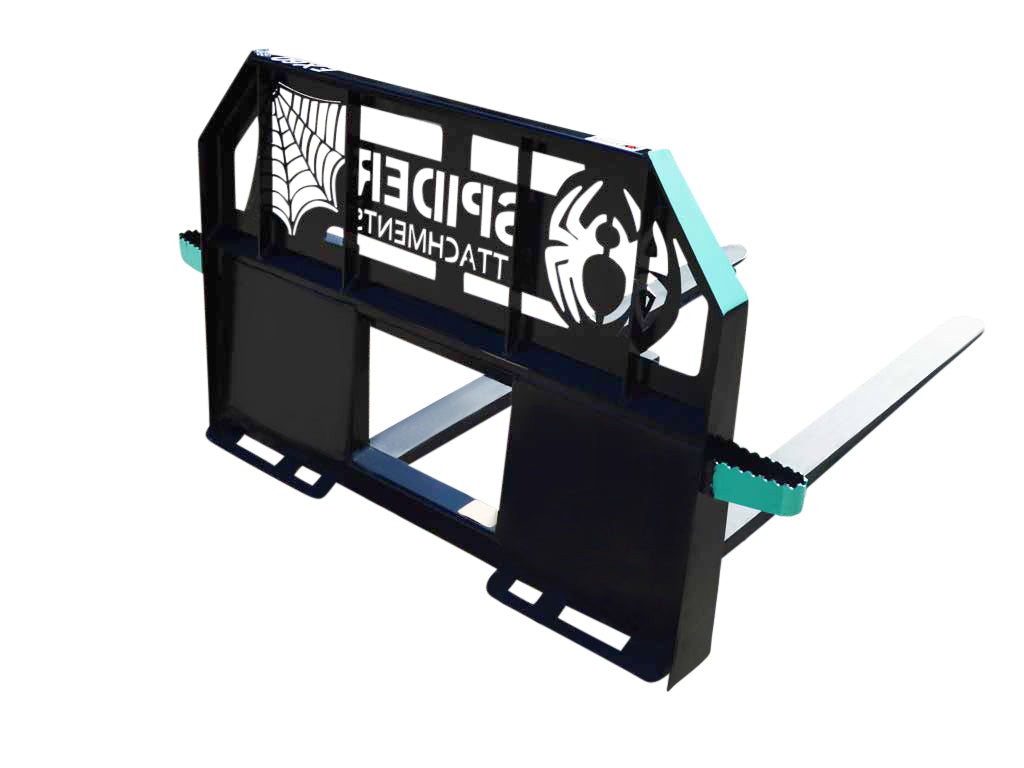

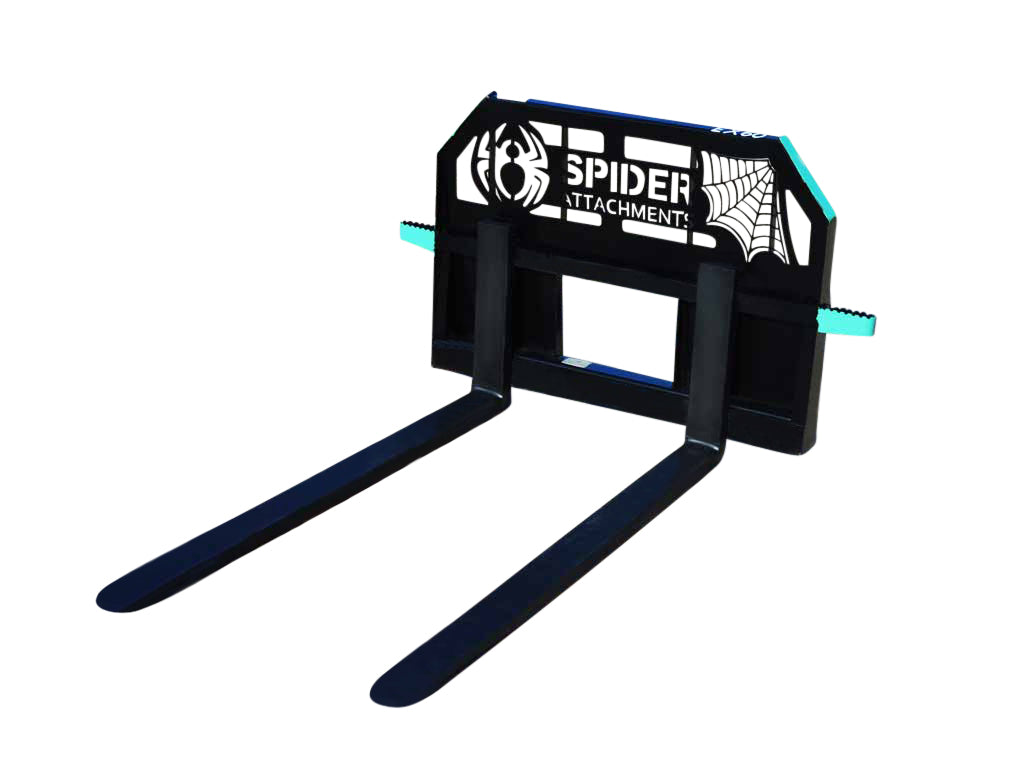

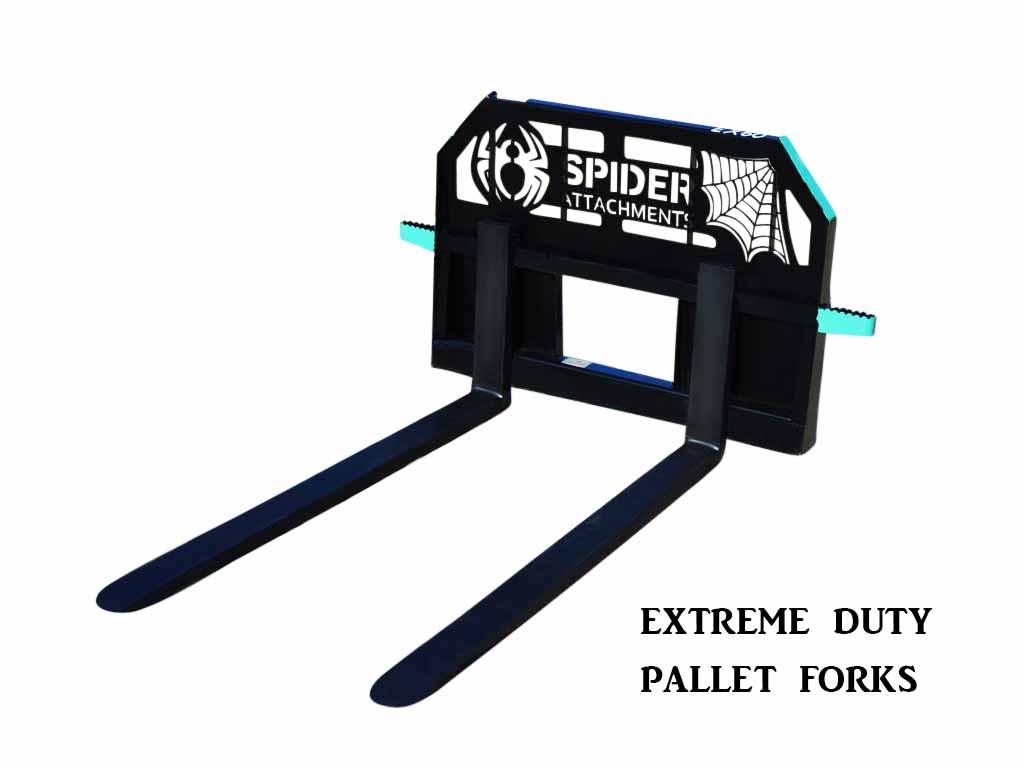

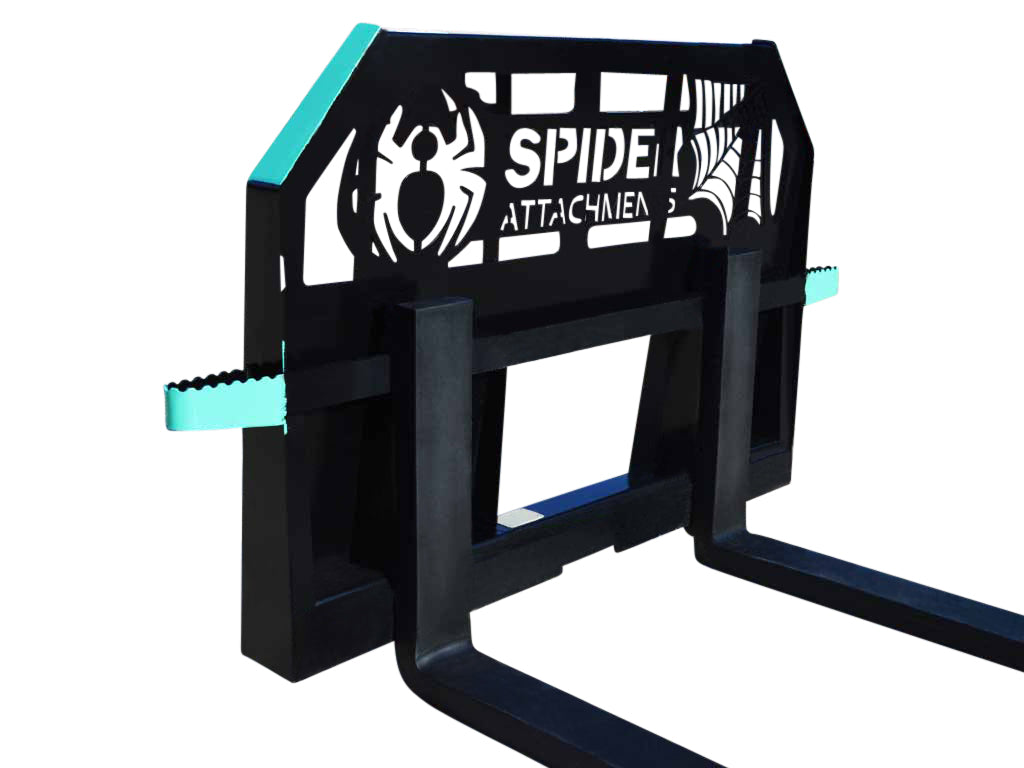

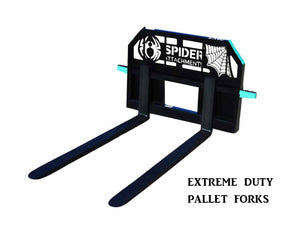

SPIDER extreme duty frame pallet forks for skid steer

Size

The Extreme duty pallet fork frame and forks are an everyday attachment to use on farms, constructions sites and nurseries. This is a great attachment to move pallet-ed material, building supplies, landscape material or nursery stock. Need stronger pallet forks? Here the are!

Why Spider EX48EX60 or EX72 pallet forks....

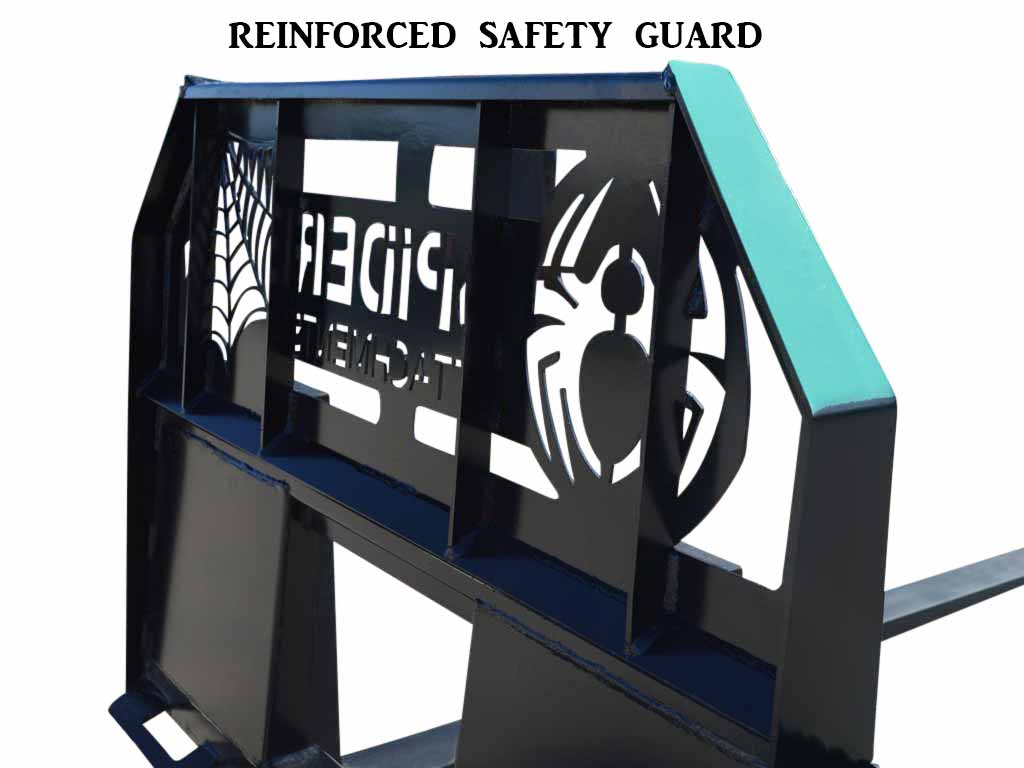

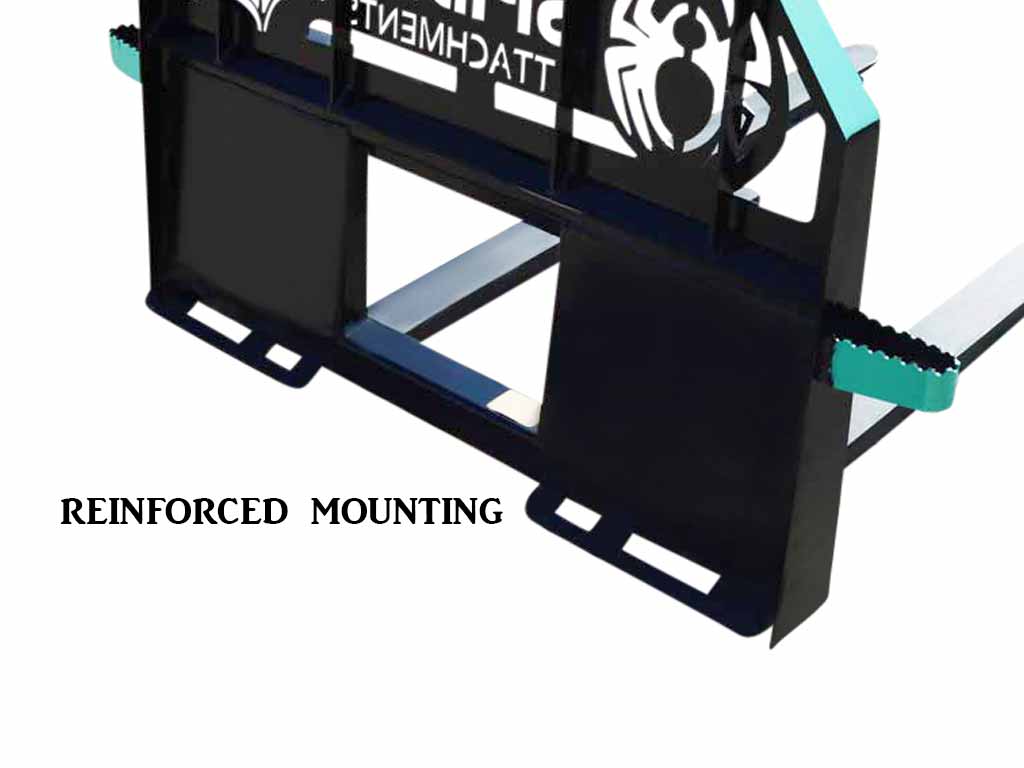

  • Superior frame strength   the frame guard is reinforced and the mounting plate has two solid mounts.
  • Extreme fork tines  We use the thickest class 2 fork tines available to help prevent bending of the tines.

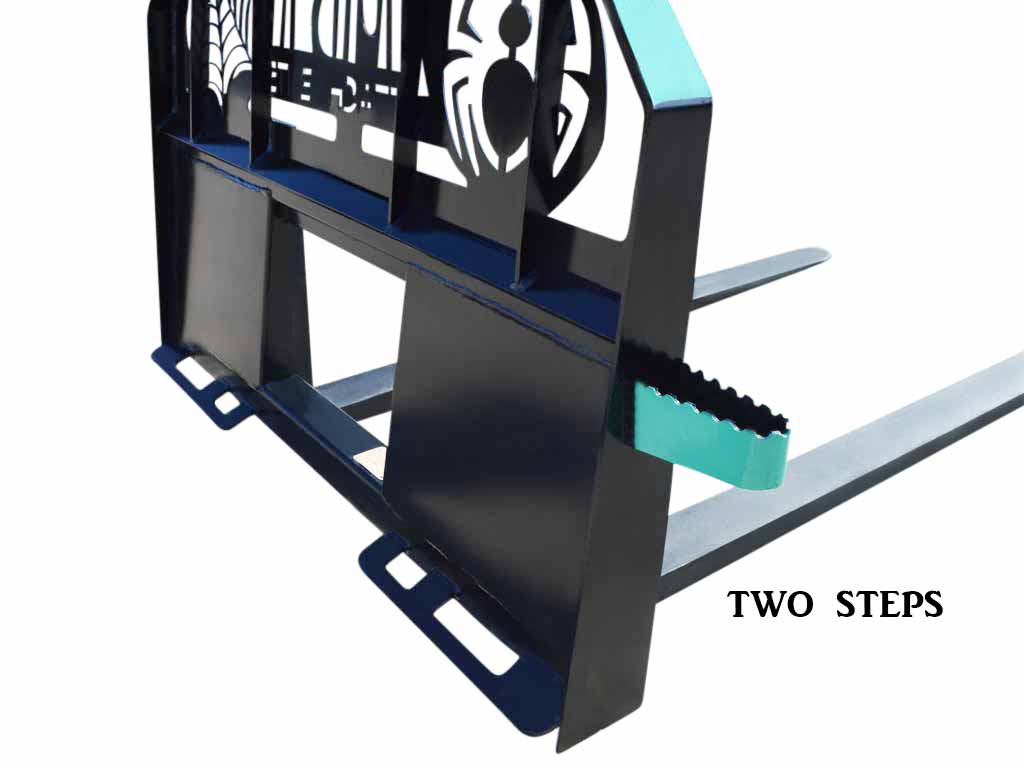

  • Safety   by having steps on both sides of the frame for the operator.
  • Durability   by having a one piece machined billet steel carriage bar
  • Flexibility   by having three adjustment locking positions for each fork tine

These rail style pallet forks have steps on both sides, multiple locking positions and a universal Bobcat style mounting plate.

 HEAVY DUTY FRAME EX48 EX60 EX72
LENGTH (FRAME) 6" 6" 6"
WIDTH 56.5" 56.5" 56.5"
HEIGHT 32.4" 32.4" 32.4"
WEIGHT 452 lb 500 lb
CAPACITY (FRAME) 5000 lb 5000 lb 5000 lb
FRAME MATERIAL 1 3/8" ALLOY, 4X4 TUBE 1 3/8" ALLOY, 4X4 TUBE 1 3/8" ALLOY, 4X4 TUBE
GUARD MATERIAL 1/4" PLATE 1/4" PLATE 1/4" PLATE
RAIL MATERIAL BILLET STEEL BILLET STEEL BILLET STEEL
TINE OPTIONS 1.75"x4"x48" 1.75"x4"x60" 1.75"x4"x72"
WEIGHT 124 lb 148 lb
THICKNESS 1.75" 1.75" 1.75"
WIDTH 4" 4" 4"
LENGTH 48" 60" 72"
CAPACITY 6990 lb 6990 lb 6990 lb
CLASS 2 2 2





    This is the most durable designed fork frame and forks for the money
