SPIDER ATTACHMENTS

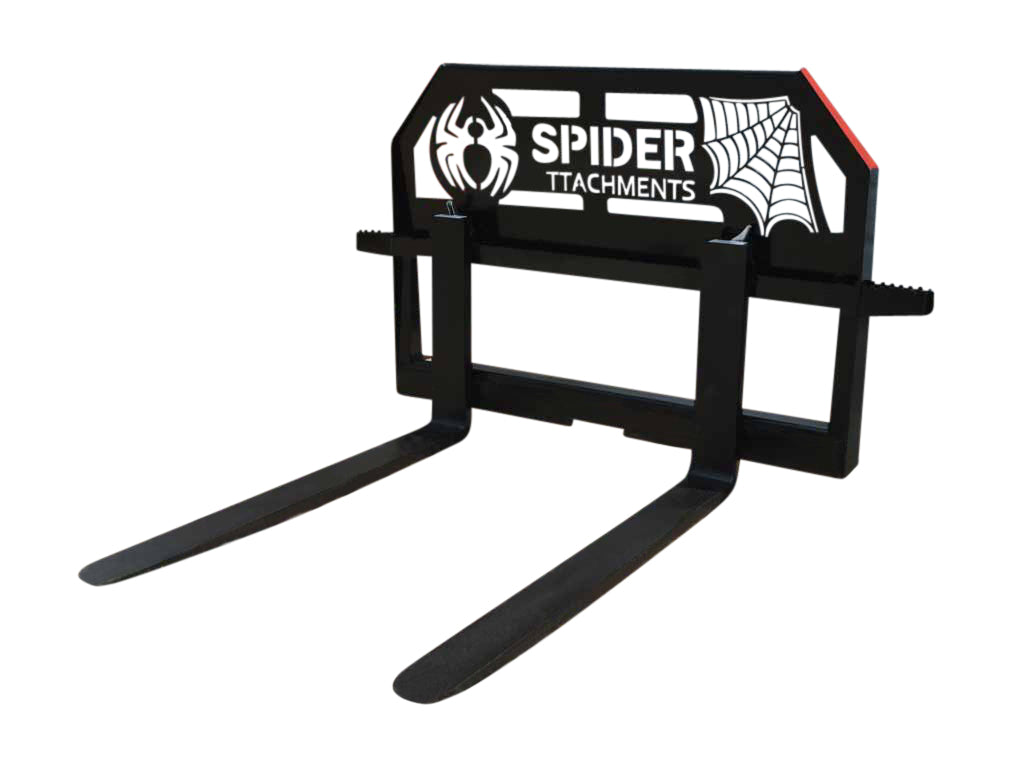

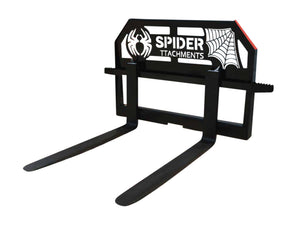

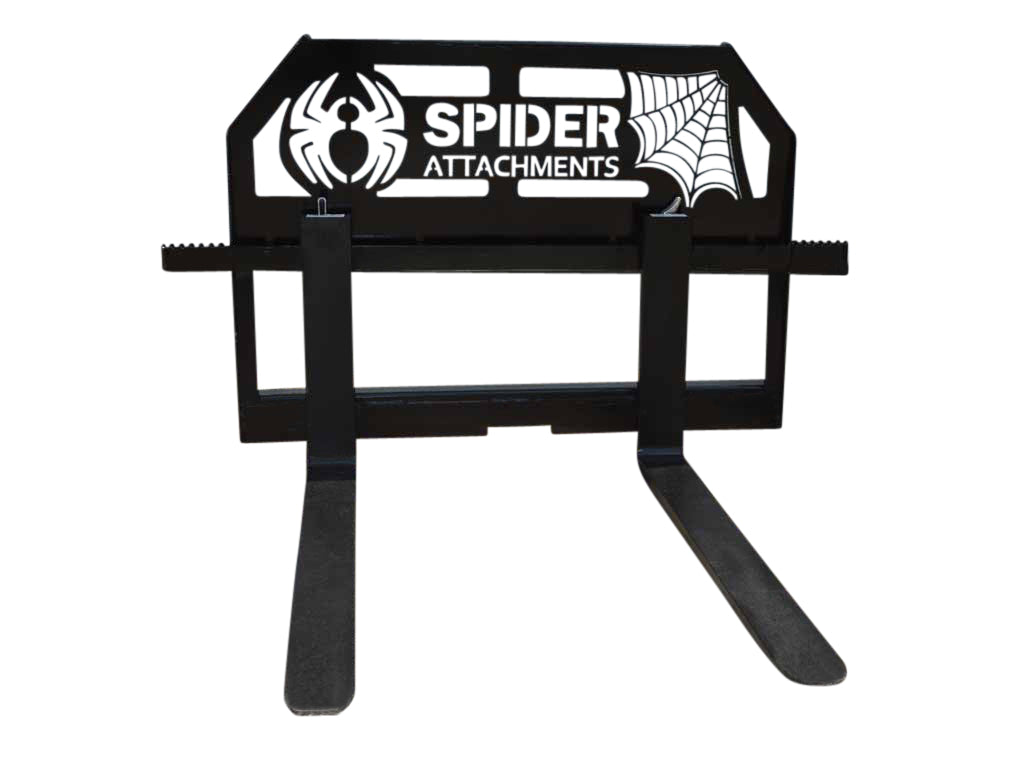

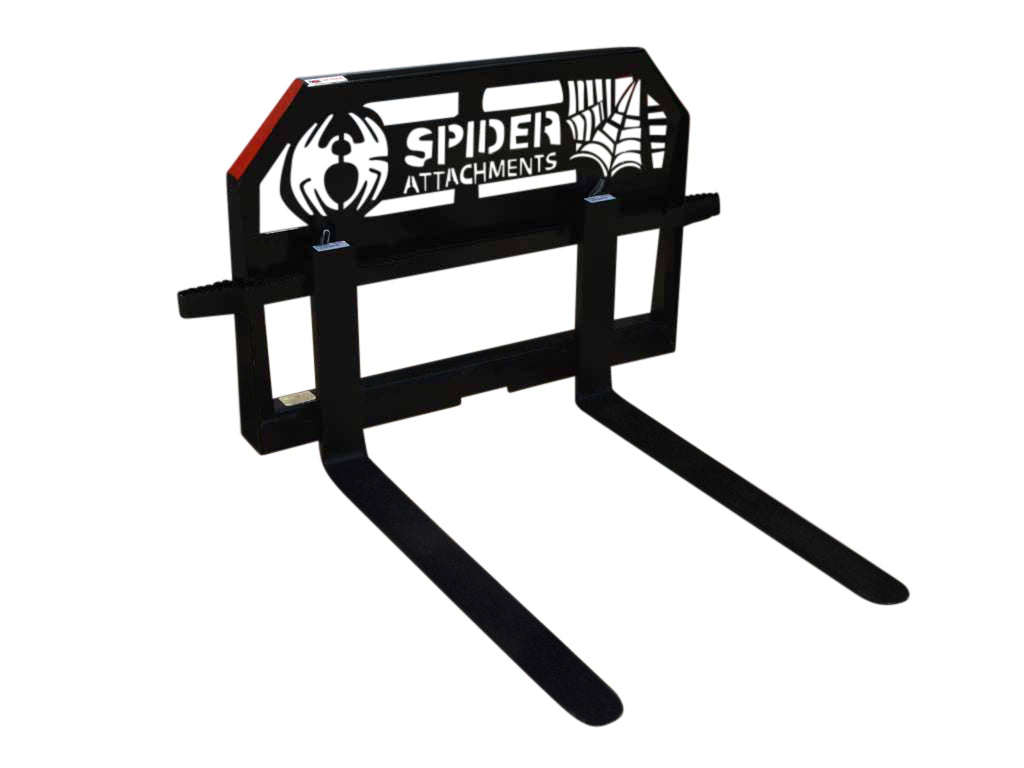

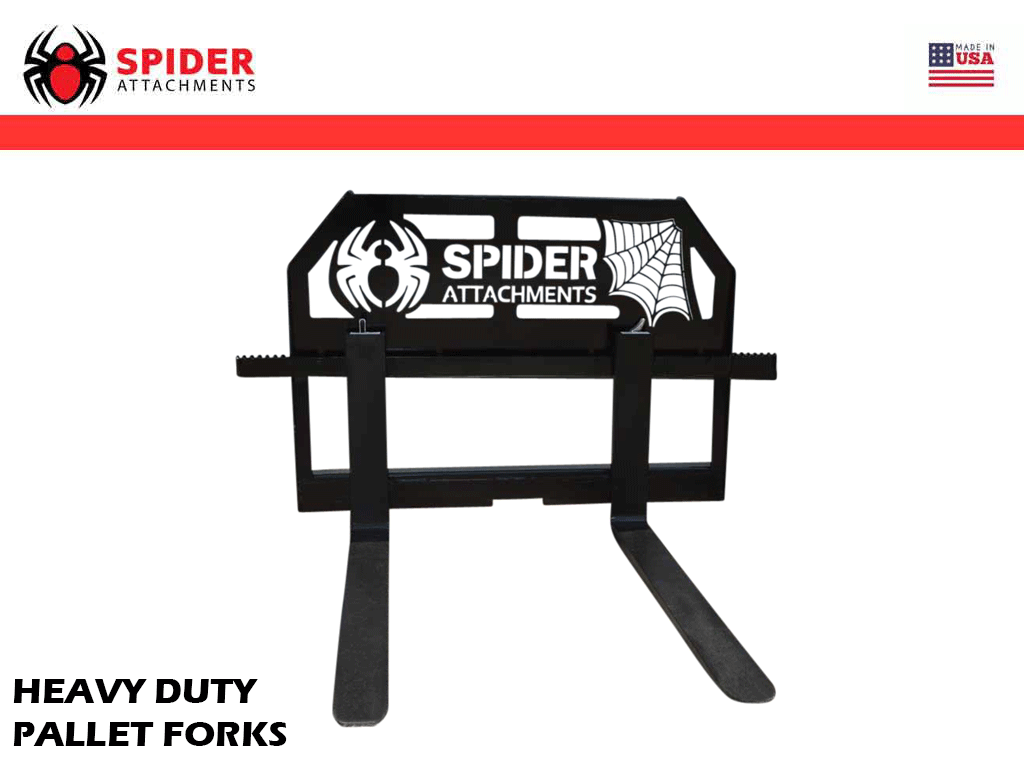

SPIDER PALLET FORKS, HEAVY DUTY FRAME (SSL)(CTL)

Size

The heavy duty pallet fork frame and forks are an everyday attachment to use on farms, constructions sites and nurseries. This is a great attachment to move pallet-ed material, building supplies, landscape material or nursery stock.

Why Spider HD42 or HD48 pallet forks....

  • Superior visibility   through the heavy duty frame
  • Safety   by having steps on both sides of the frame for the operator.
  • Durability   by having a one piece machined billet steel carriage bar
  • Flexibility   by having three adjustment locking positions for each fork tine

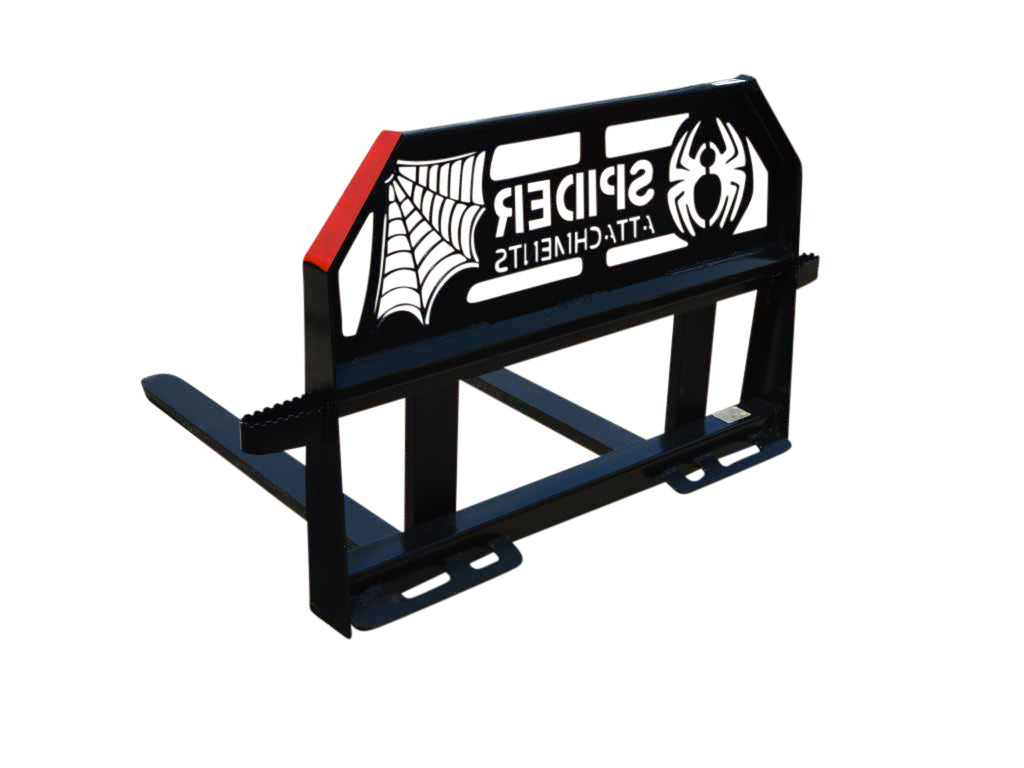

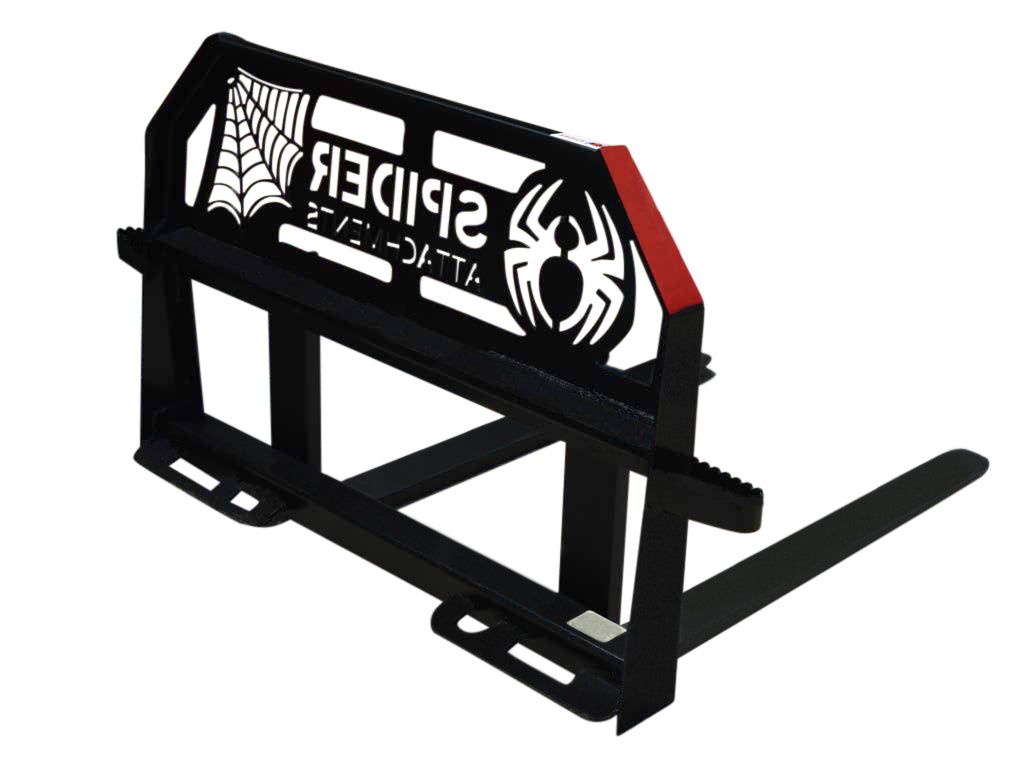

These rail style pallet forks have steps on both sides, multiple locking positions and a universal Bobcat style mounting plate.



HEAVY DUTY FRAME HD42 HD48
LENGTH 6" 6"
WIDTH NO STEPS 45.5" 45.5"
WIDTH WITH STEPS 56.5" 56.5"
HEIGHT 32.4" 32.4"
WEIGHT FRAME 127 LB 127 LB
WEIGHT ASSEMBLY 299 LB  353 LB
CAPACITY (FRAME) 4000 LB 4000 LB
FRAME MATERIAL 1 3/8" ALLOY, 4X4 TUBE 1 3/8" ALLOY, 4X4 TUBE
GUARD MATERIAL 1/4" PLATE 1/4" PLATE
RAIL MATERIAL BILLET STEEL BILLET STEEL
 FORK TINES 42" 48"
MANUFACTURE MSI MSI
COUNTRY MADE USA USA
TINE SIZE 1.25X4X42 1.5X4X48
THICKNESS 1.25" 1.50"
WIDTH 4" 4"
LENGTH 42" 48"
CAPACITY SET (24" LOAD) 4230 LB 5250 LB
WEIGHT PER TINE 86 LB 113 LB
CLASS 2 2
  • USUALLY SHIPS IN (3) TO (5) DAYS
  • IF BACK ORDERED IT CAN TAKE UP TO (4) WEEKS
  • TINES AND FRAMES ORDERED SEPARATELY WILL HAVE LONGER DELIVERY TIMES.

This is the most durable designed fork frame and forks for the money
