SPIDER ATTACHMENTS

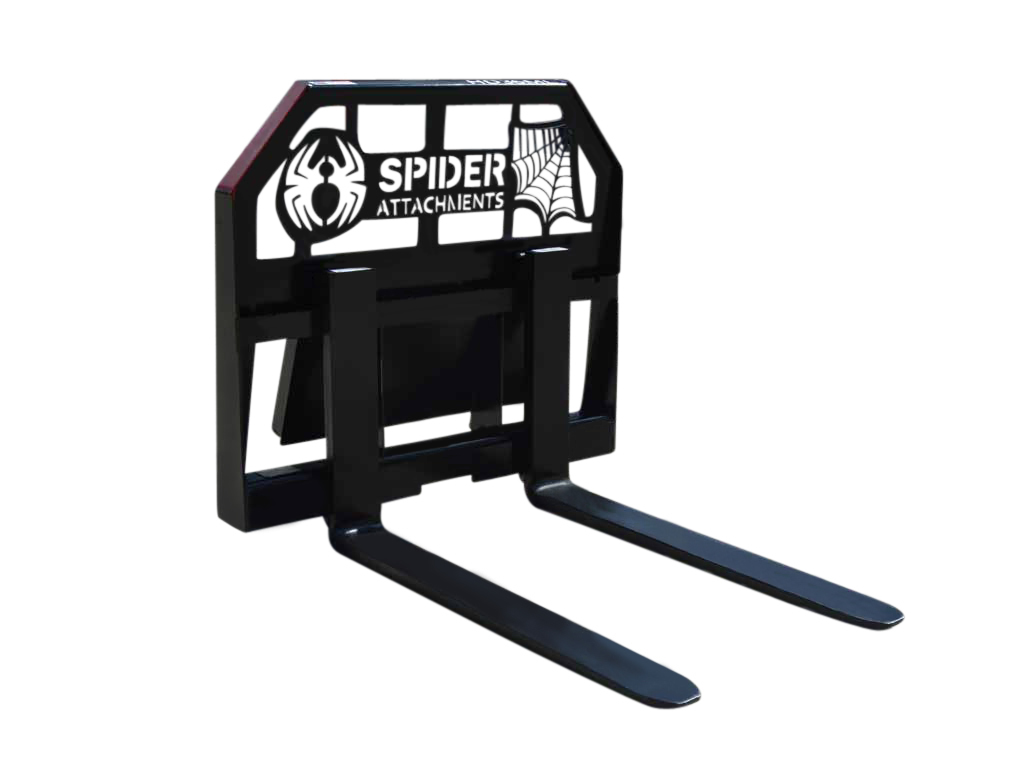

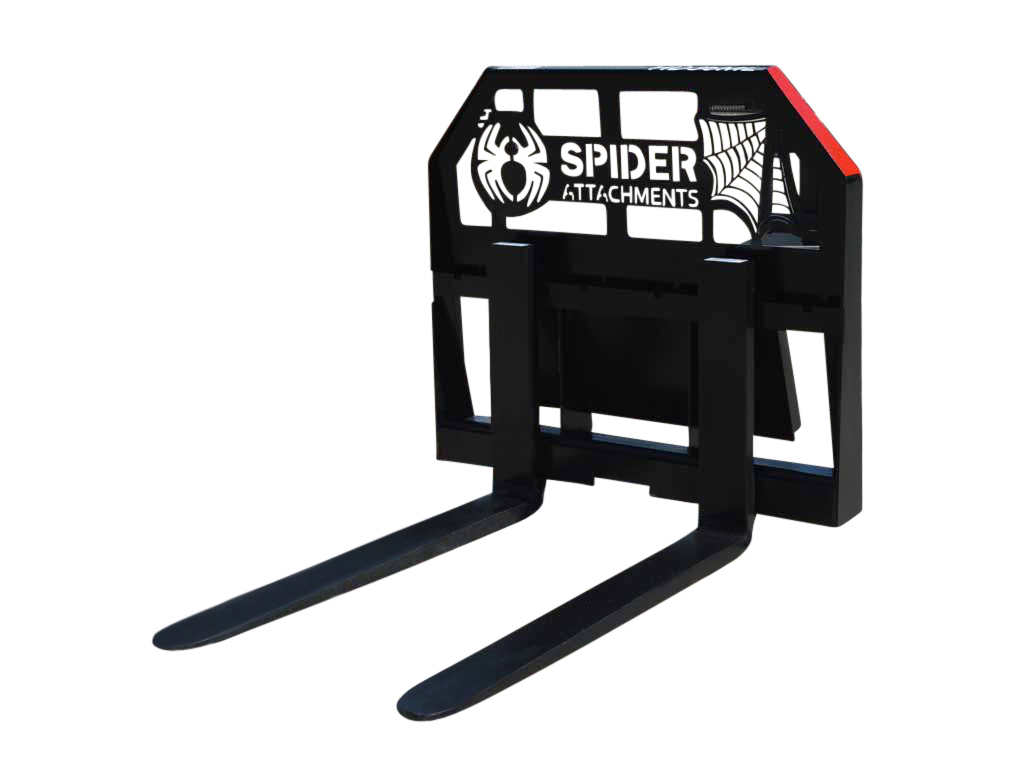

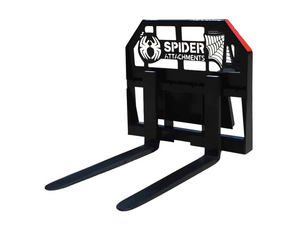

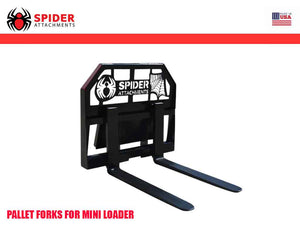

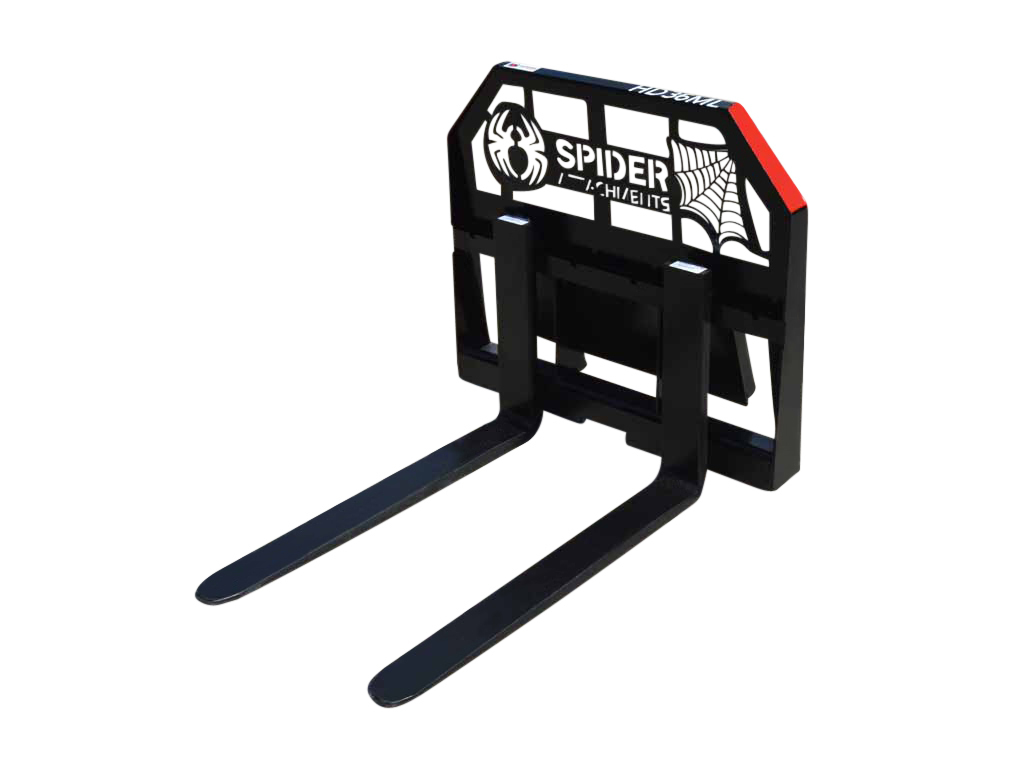

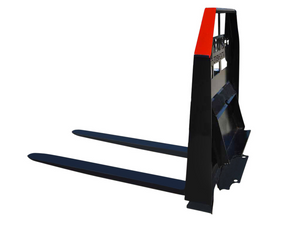

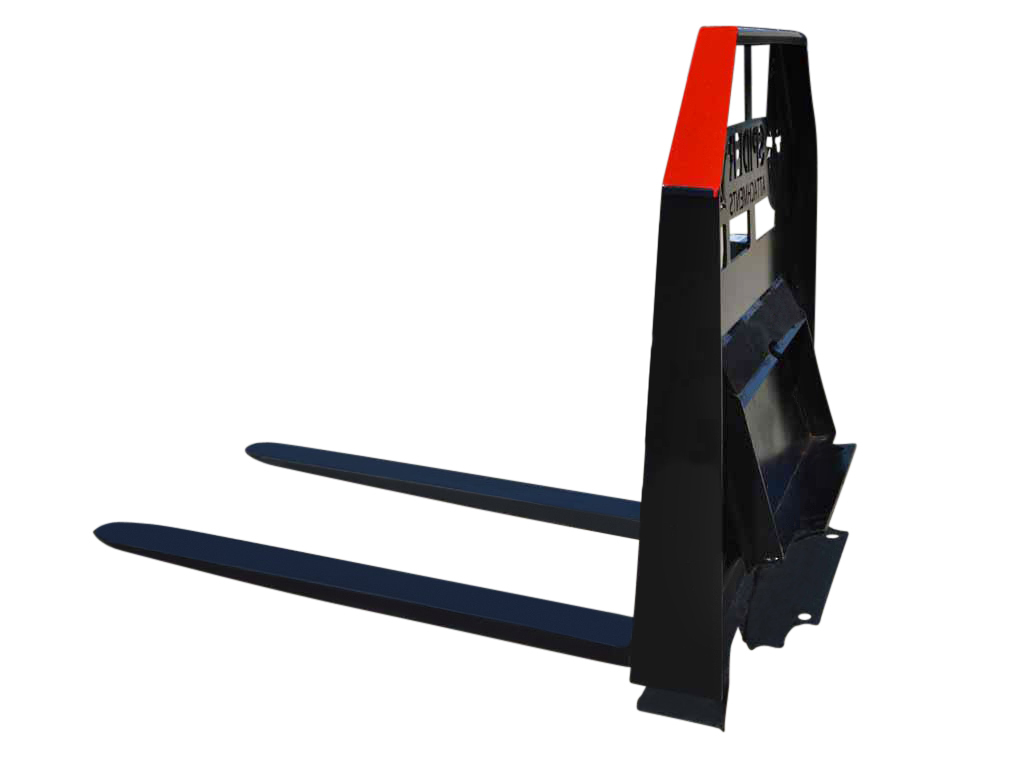

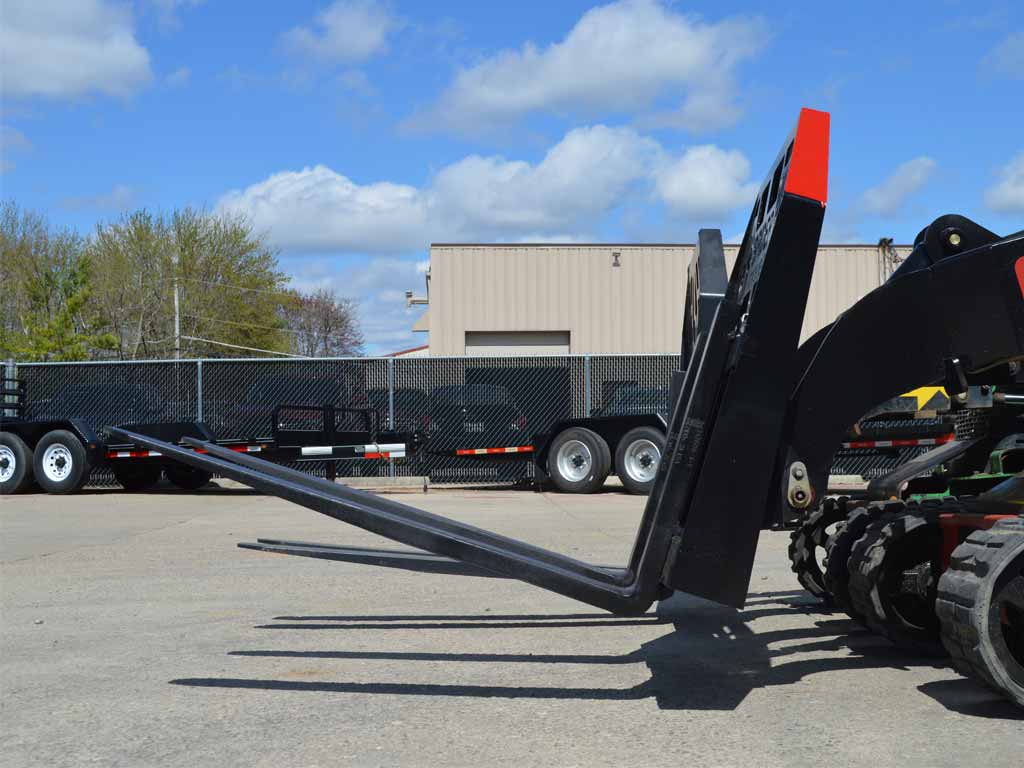

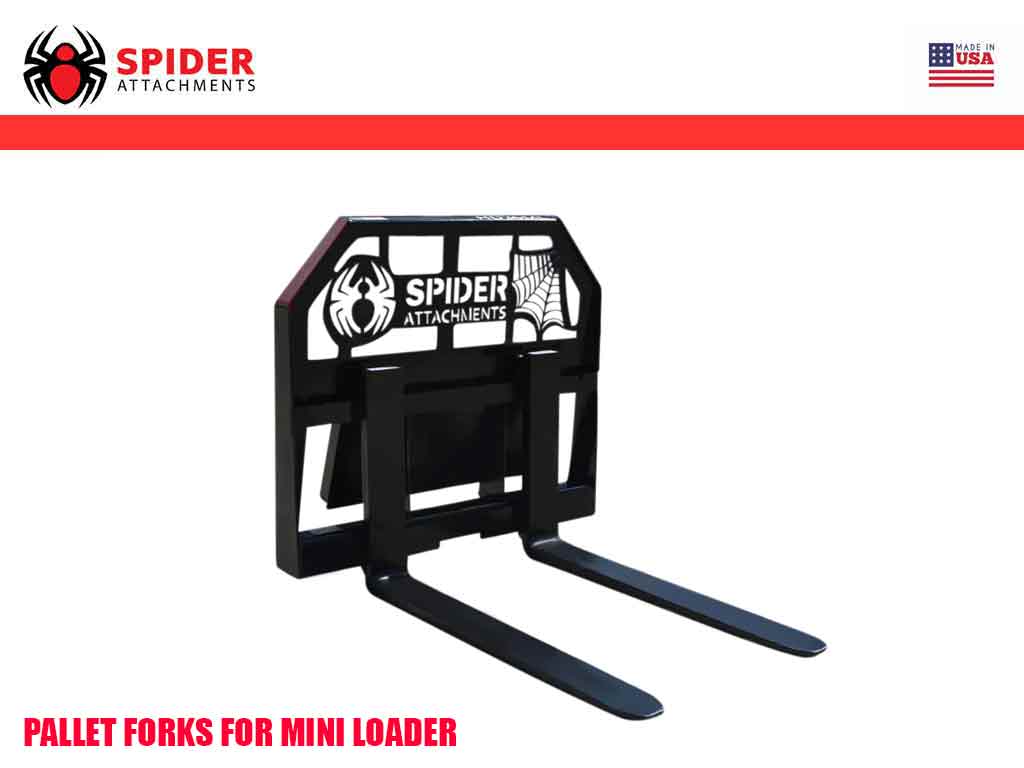

SPIDER PALLET FORKS, HEAVY DUTY MINI LOADER (ML)

Size

The heavy duty pallet fork frame and forks are an everyday attachment to use on farms, constructions sites and nurseries. This is a great attachment to move pallet-ed material, building supplies, landscape material or nursery stock.

Why Spider HD36ML or HD42ML pallet forks....

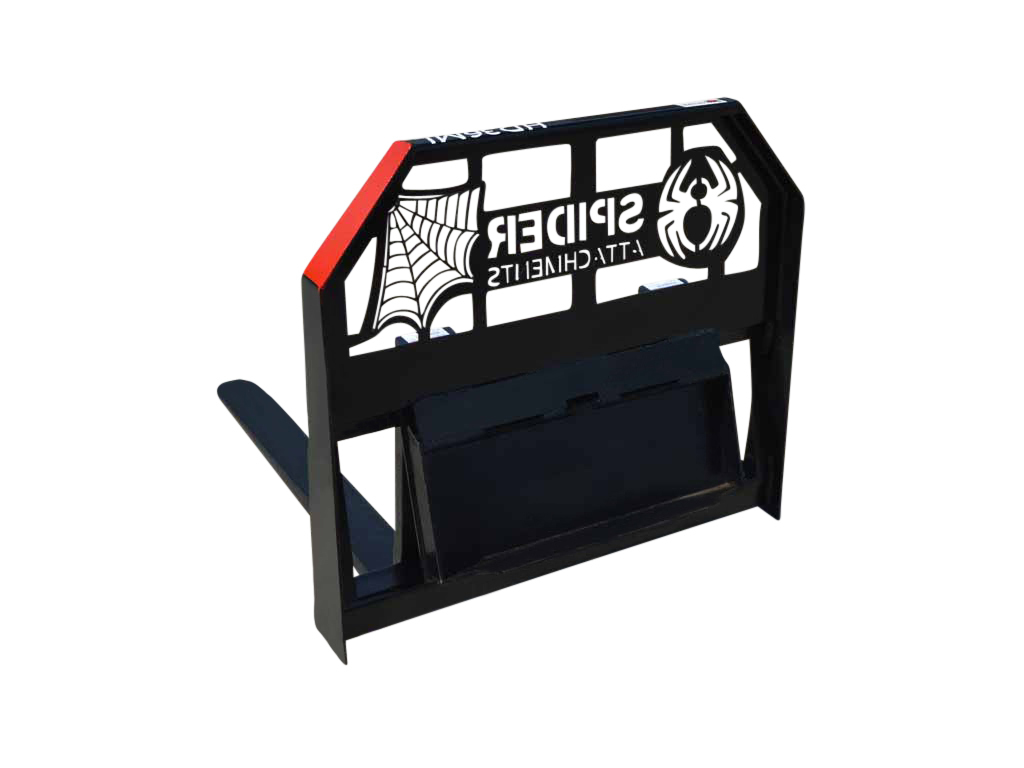

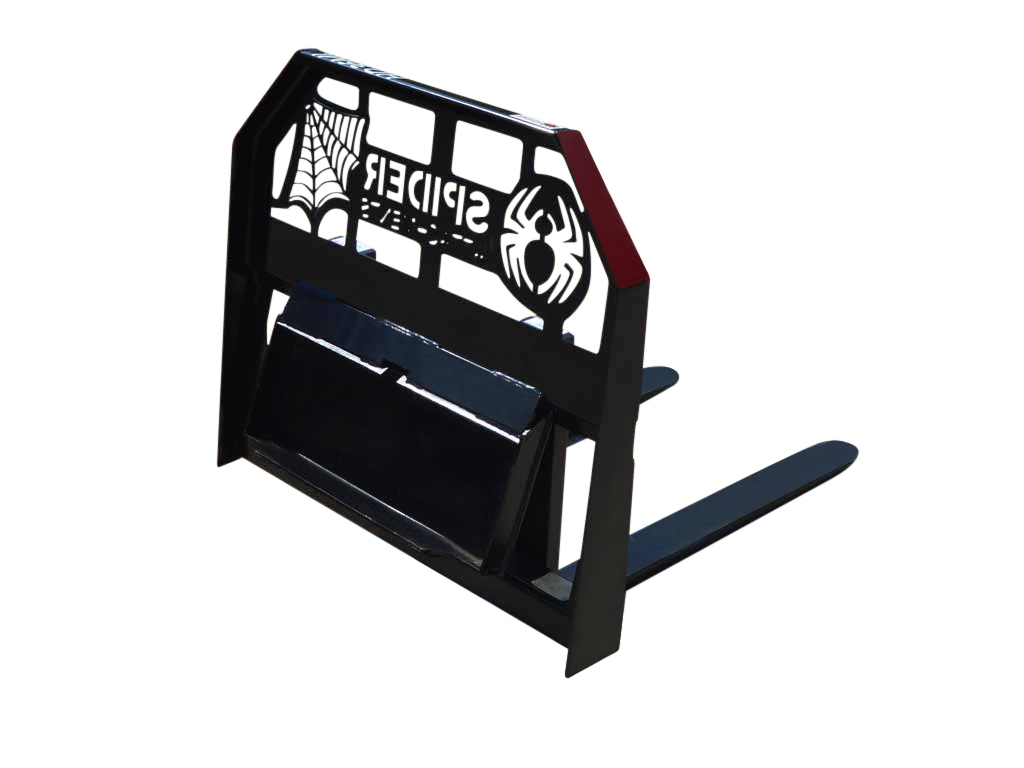

  • Superior visibility..... through the heavy duty frame
  • Durability ................  by having a one piece machined billet steel carriage bar
  • Flexibility ................  by having three adjustment locking positions for each fork tine

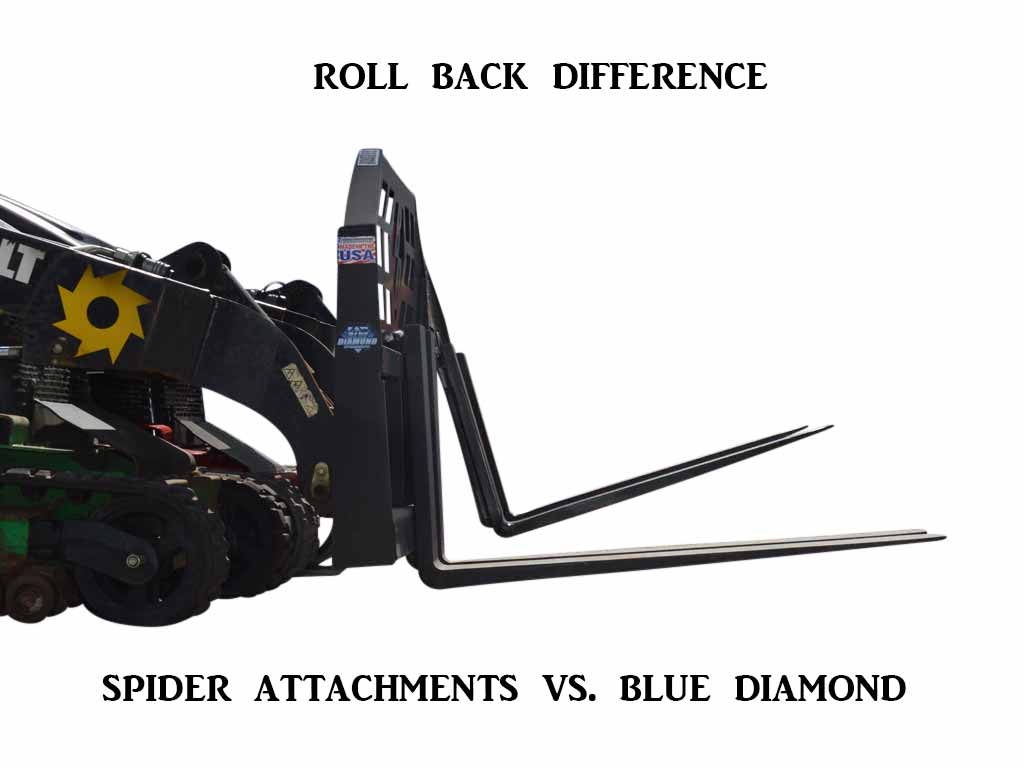

  • Carry better ............  we have positioned the mounting bracket at a increased angle in order to                                          improve the attachment roll back. BEST ROLL BACK!

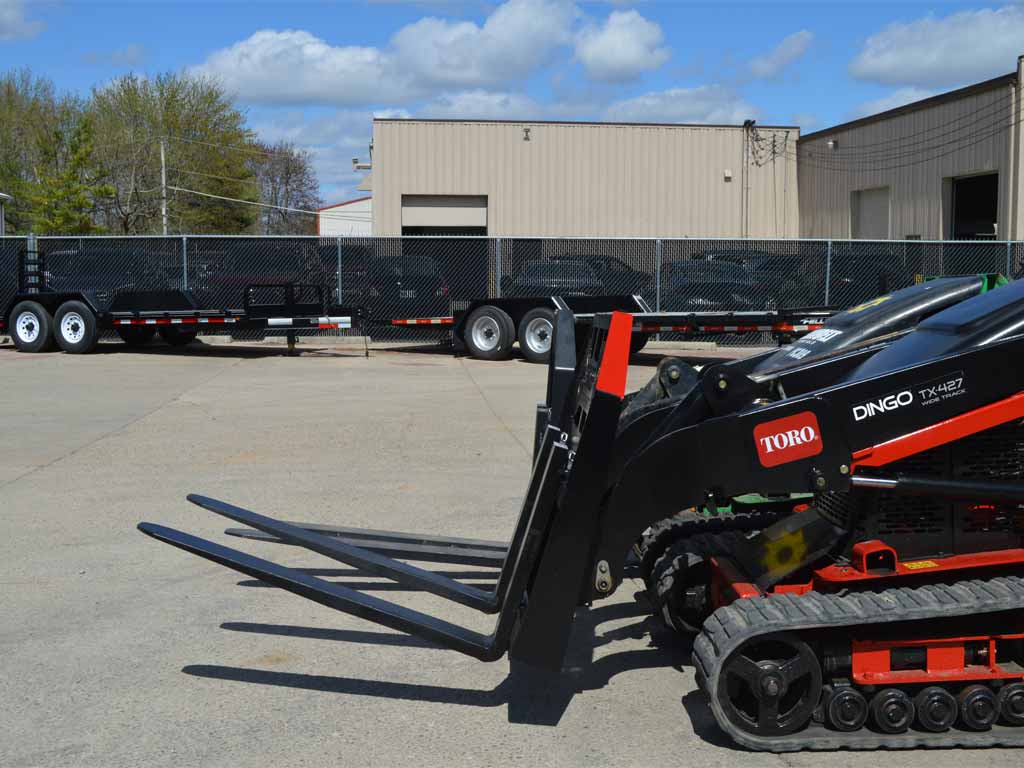

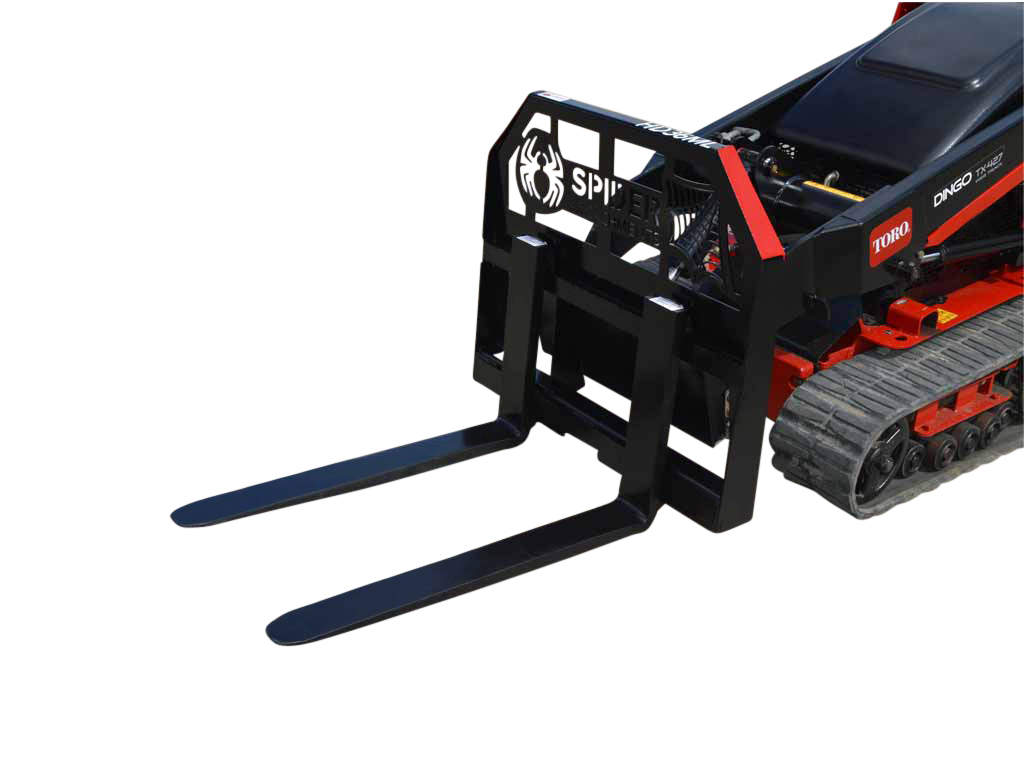

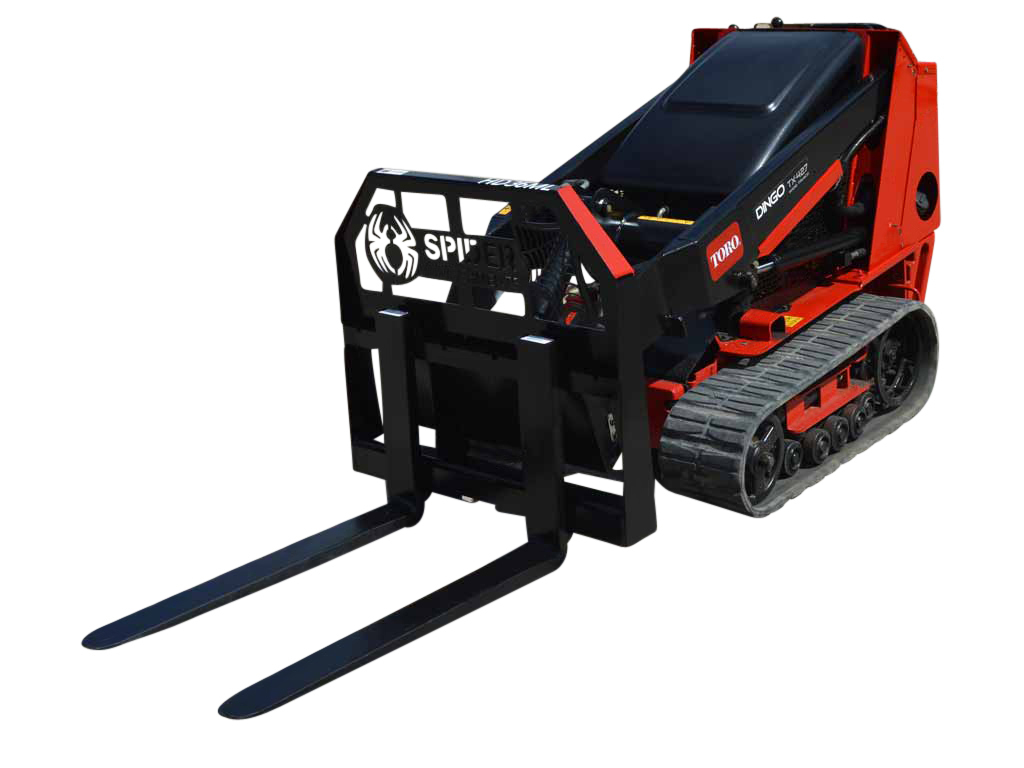

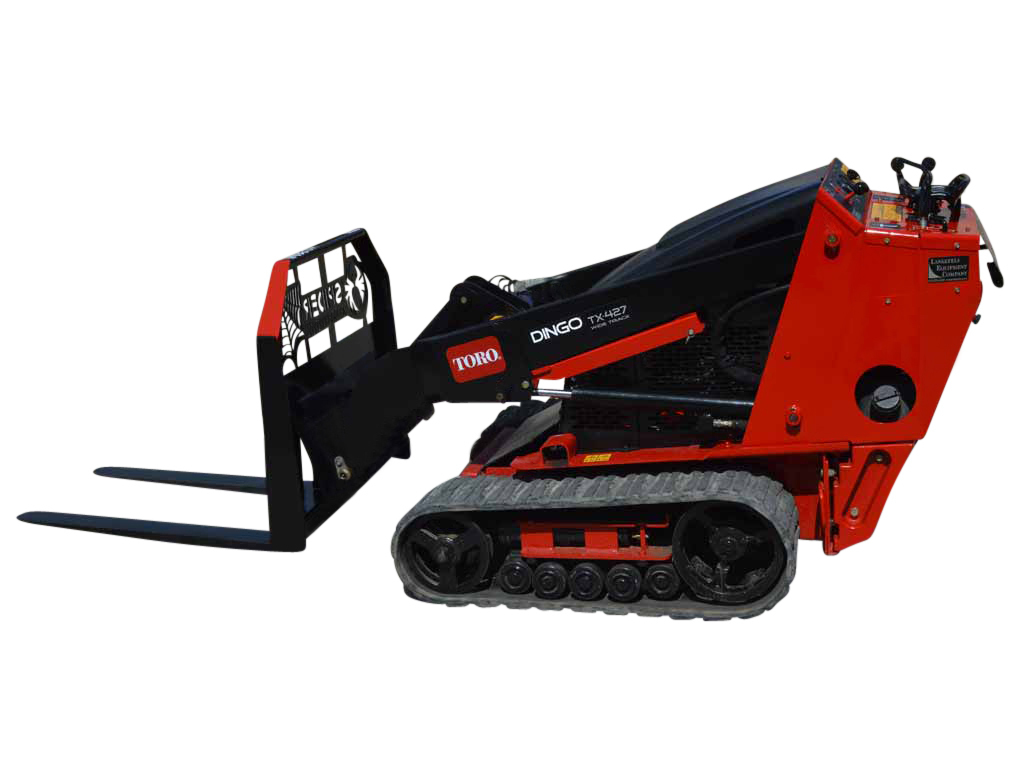

These rail style pallet forks have multiple locking positions and a universal (Toro Dingo) style mounting plate.

HEAVY DUTY FRAME HD36 HD42
LENGTH (FRAME) 8" 8"
WIDTH NO STEPS 36" 36"
HEIGHT FRAME 32.4" 32.4"
HEIGHT WITH FORKS 35" 35"
WEIGHT FRAME 139 LB 139 LB
WEIGHT ASSEMBLY 295 LB  311 LB
CAPACITY (FRAME) 3000 LB 3000 LB
FRAME MATERIAL 1 3/8" ALLOY, 4X4 TUBE 1 3/8" ALLOY, 4X4 TUBE
GUARD MATERIAL 1/4" PLATE 1/4" PLATE
RAIL MATERIAL BILLET STEEL BILLET STEEL
STEPS NO NO
 FORK TINES HD36 HD42
MANUFACTURE MSI MSI
COUNTRY MADE USA USA
TINE SIZE 1.25X4X36 1.25X4X42
THICKNESS 1.25" 1.25"
WIDTH 4" 4"
LENGTH 36" 42"
CAPACITY SET (24" LOAD) 3530 LB 3530 LB
WEIGHT PER TINE 78 LB 86 LB
CLASS 2 2
  • USUALLY SHIPS IN (3) DAYS OR LESS
  • IF BACK ORDERED IT CAN TAKE UP TO (4) WEEKS
  • TINES AND FRAMES ORDERED SEPARATELY WILL HAVE LONGER DELIVERY TIMES.

This is the most durable designed fork frame and forks for the money
