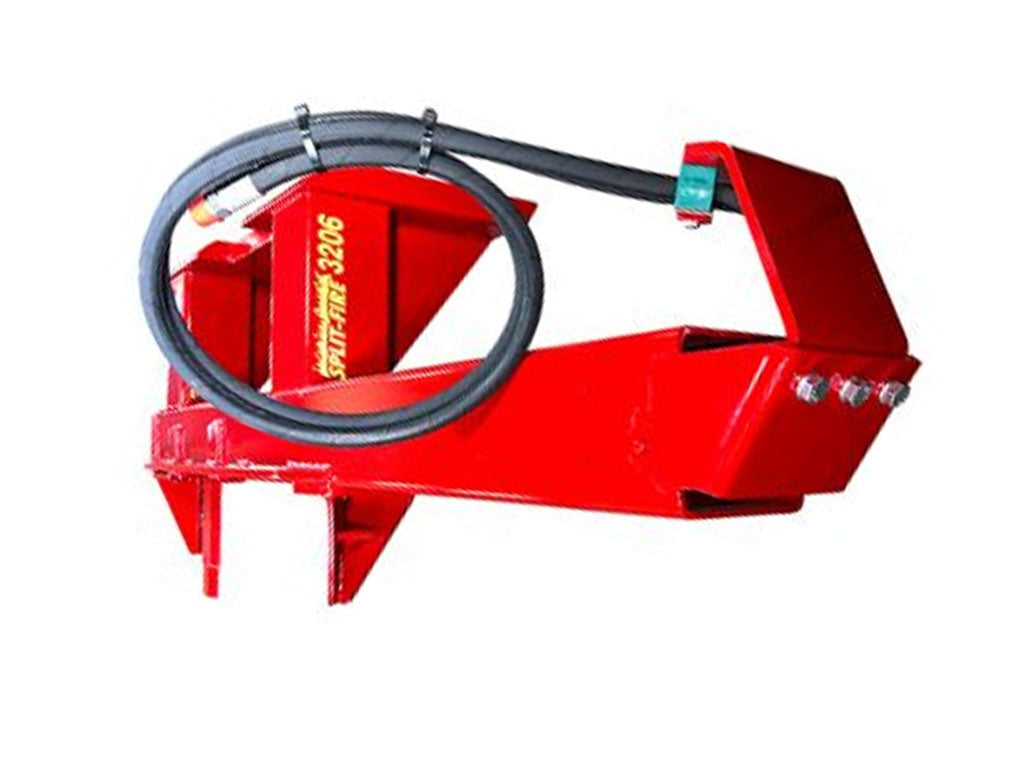

SPIT-FIRE 3206 log splitter for mini loader
$2,334.00 - $2,871.00
4/25
Log Splitter 3206
MINI LOADER

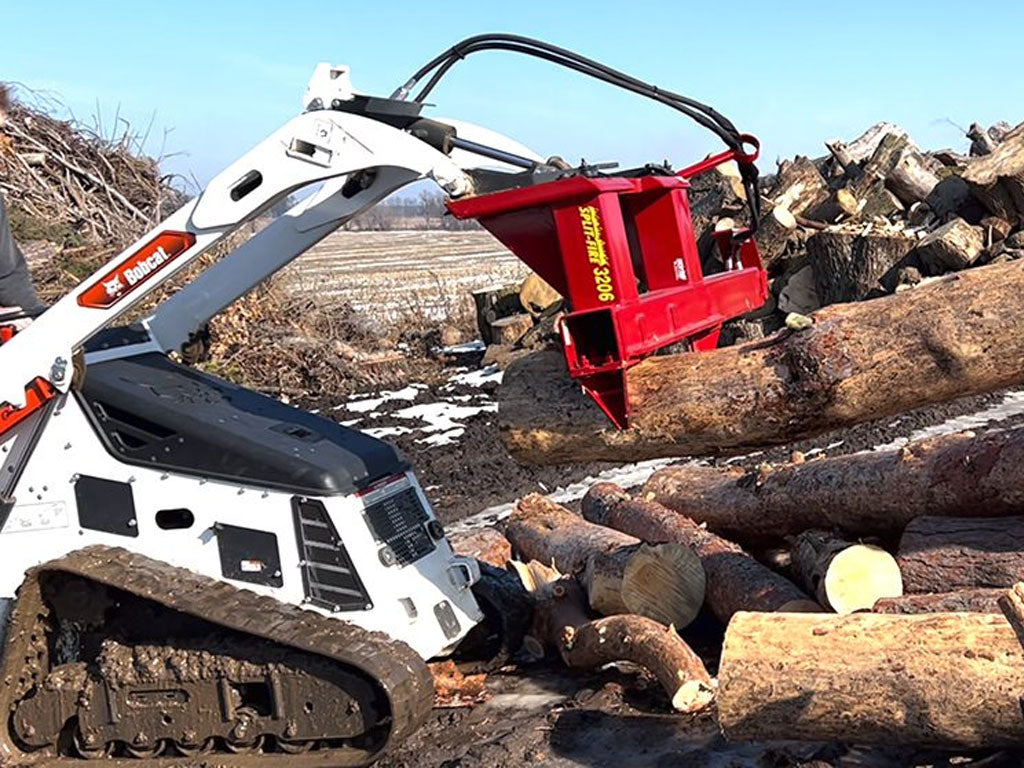

The perfect machine for a mini skid steer or compact tractor with third function. If you’re an arborist or serious firewood producer consistently splitting +30” rounds, this will easily break them down without breaking your back. The 3206 is designed to mount perpendicular to your machine for great visibility, and to maximize lifting force. Either split the large rounds down to boiler size, or to further process with regular self-contained splitter.
| FRAME | 6" x 6" steel tube |
| LOG CAPACITY | 30" - 48" diameter |
| TONNAGE | 20 tons @ 2900 psi |
| CYCLE SPEED | 9 SEC. @ 12GPM | 14 SEC. @ 8 GPM | 28 SEC. @ 4 GPM |
| POWER SOURCE | SKID STEER |
| PUMP | Skid Steer Pump Displacement |
| RESERVOIR | Skid Steer |
| STROKE LENGTH | 24"-36" |
| QUICK CONNECTS | OPTIONAL |
| OVERALL WIDTH | 74" |
| OVERALL LEGTH | 28" |
| OVERALL HEIGHT | 18" |
| WEIGHT | 275 lbs. |
| BED HEIGHT | Skid Steer Plates raise / Lower /Tilt |
| KNIFE HEIGHT | 11" |
| CYLINDER SIZE | 3½” x 24" |
| HYDRAULIC FLOW | 8 GPM - 20 GPM |
| CYCLE TIME | 4.679(Stroke/GPM) |
