DH1500

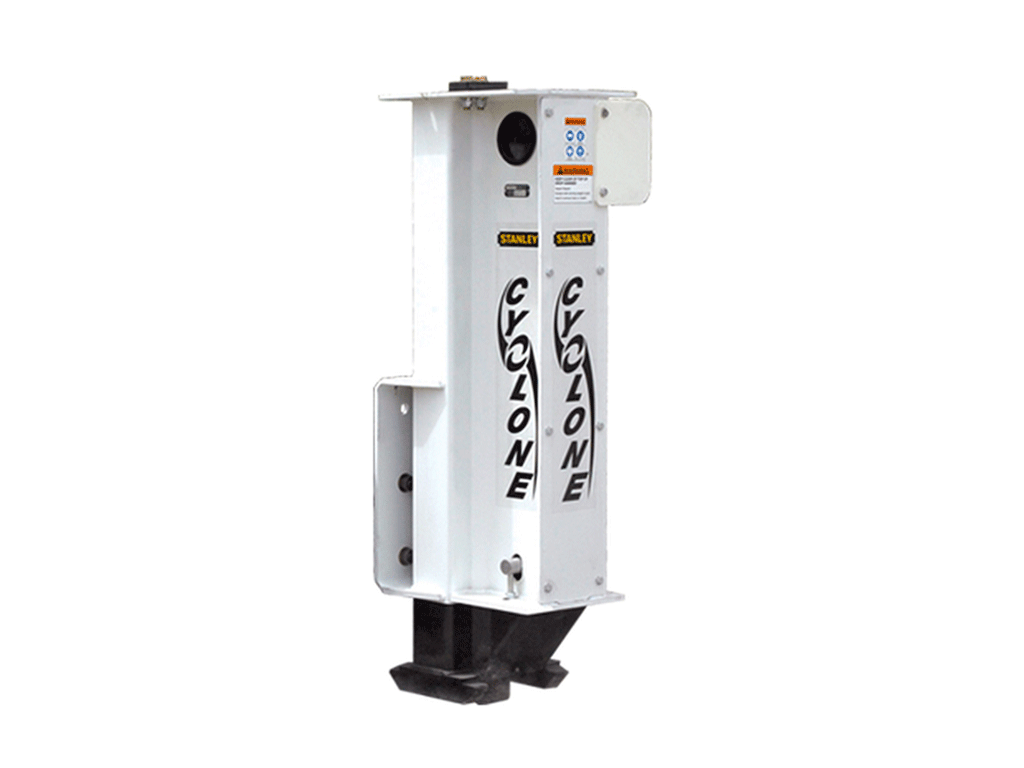

STANLEY DROP HAMMER for skid steer loaders

MODEL
Revised 3/24

Drop Hammers

DH1500 / DH3500 / DH9000

The Cyclone Drop Hammer was developed specifically for the demolition and recycling industries to break-up or crack concrete slabs.

Features:
  • Shock Free - Patented “skid” system keeps the Cyclone grounded and dissipates the shock as it pulverizes the concrete.
  • Moveable Hammer Pin - For adjusting impact energy.
  • Minimal Setup Time - Increased productivity.
  • Low Maintenance - Field serviceable, no special tools required.
  • Heavy Duty Buffer System - Absorbs impact of a “mis-hit”.
  • Easy Operation - Reduces operator error and fatigue.
  • Compact Design - Makes transport simple.
  • Simple Hook-Up - Allows for easy change of attachments.
  • Low Investment - High production results in the lowest cost per yard-ton figures attainable.

SPECIFICATIONS
MODEL IMPACT ENERGY BLOW (FT LBS) MAX BLOWS PER MINUTE BRACKET WEIGHT W/BRACKET (LBS) OVERALL LENGTH (IN) HYDRAULIC FLOW (GPM) CARRIER WEIGHT CLASS (LBS)
DH1500 1,500 32 SS BRKT 750 63.75 8.7-20.6 880-15,400
DH1502 1,500 32 Q-TACH BRKT 750 63.75 8.7-20.6 880-15,400
DH3500 3,500 32 SS BRKT 1,540 65.5 10.6-20.6 15400-26,500
DH9000 9,000 23 SS BRKT 3,150 74 21-31 26,500 +
