STAR

1360B

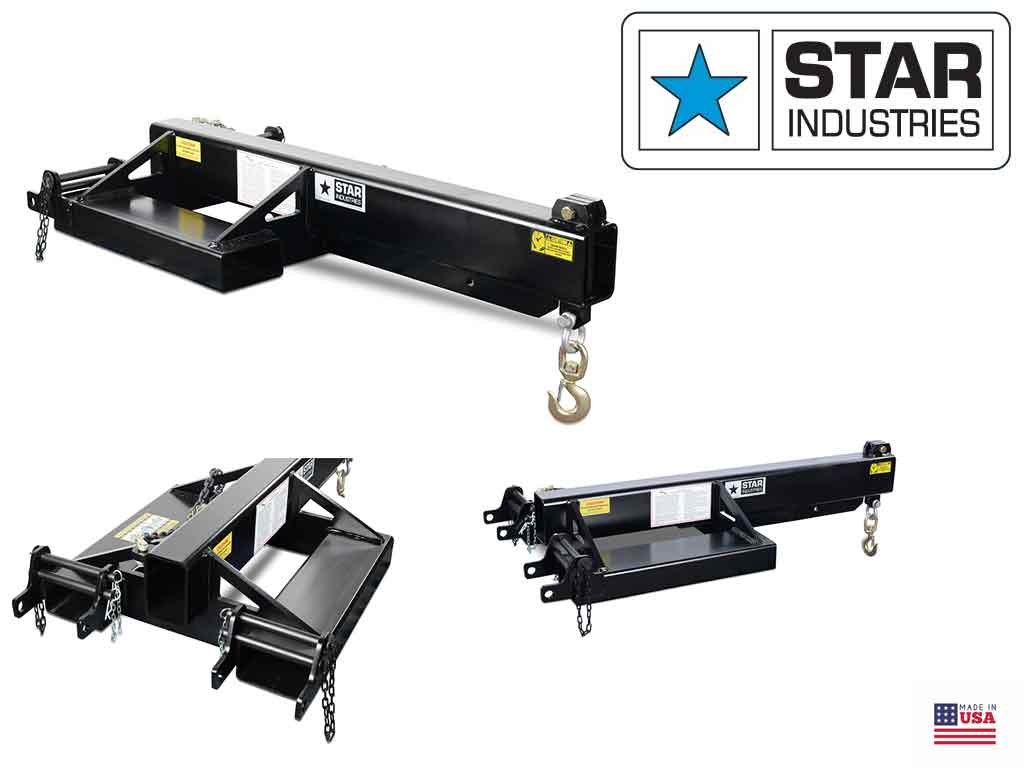

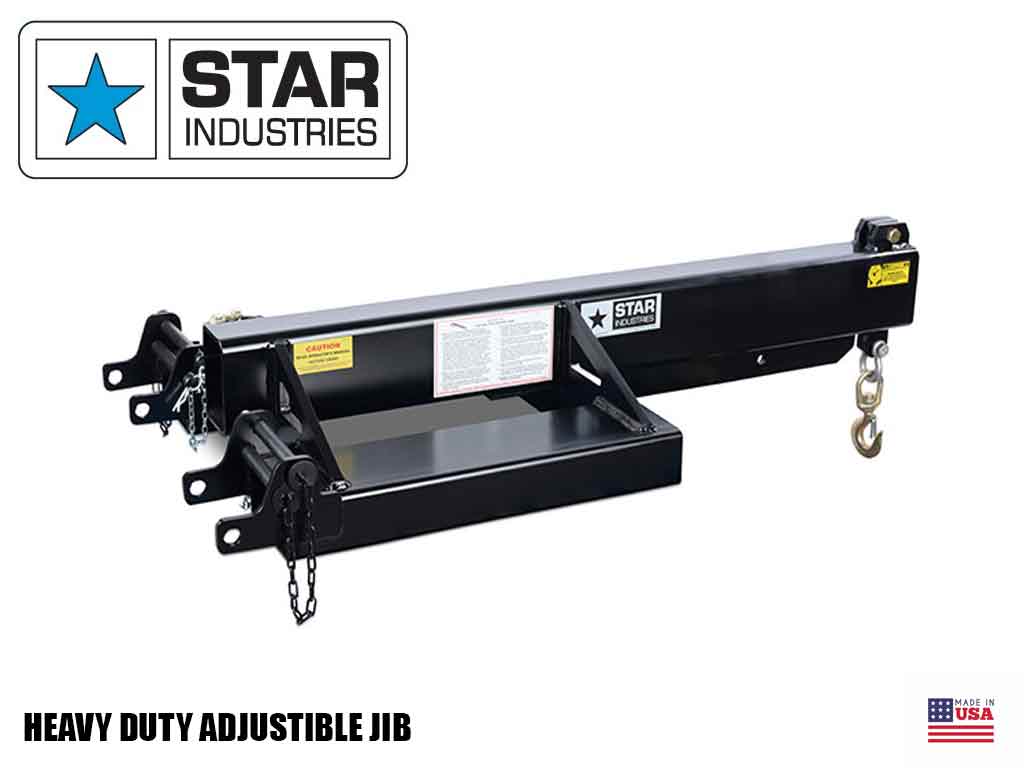

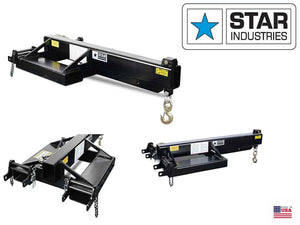

STAR Heavy Duty Jib

Forklift Jib Boom

Extend the reach of your forklift

  • Suitable for straight-mast and extendable-reach type forklifts
  • Telescopic two section tubular steel boom
  • Manually telescopes from 7′ to 12′

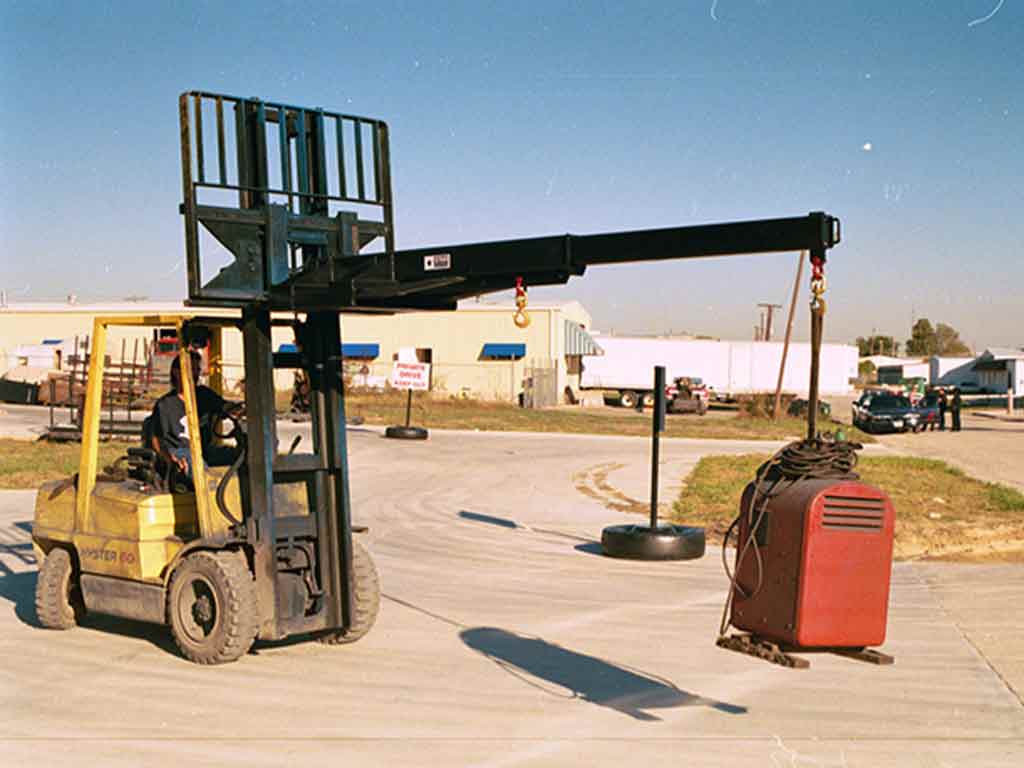

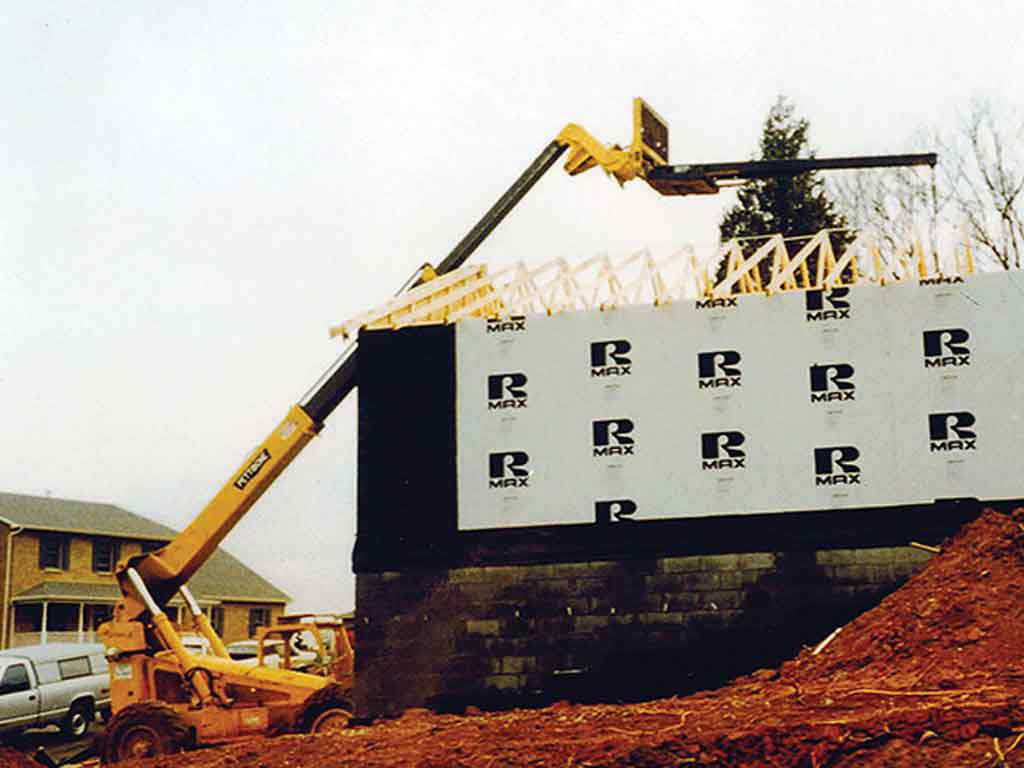

Extend the reach of your forklift with a Star Industries heavy duty forklift jib. The telescopic boom extends up to a massive 12 feet making it the perfect solution to place heavy loads over or under obstacles.

Features

  • Pull spring-loaded pin to telescope—release pin and boom locks in desired position
  • Internal stop ensures telescopic section cannot be accidentally pulled all the way out
  • Jib slides on the forks and is pinned behind the heel to secure it to the forklift
  • Universal fit (slip-on-the forks) design permits use on most all forklifts
  • One bolted shackle and swivel hook is included
Model 1360B
Max Load Capacity 6000 lbs @ 4′
Empty Weight 585 lbs
Extends 7’ 0” to 12’ 0”

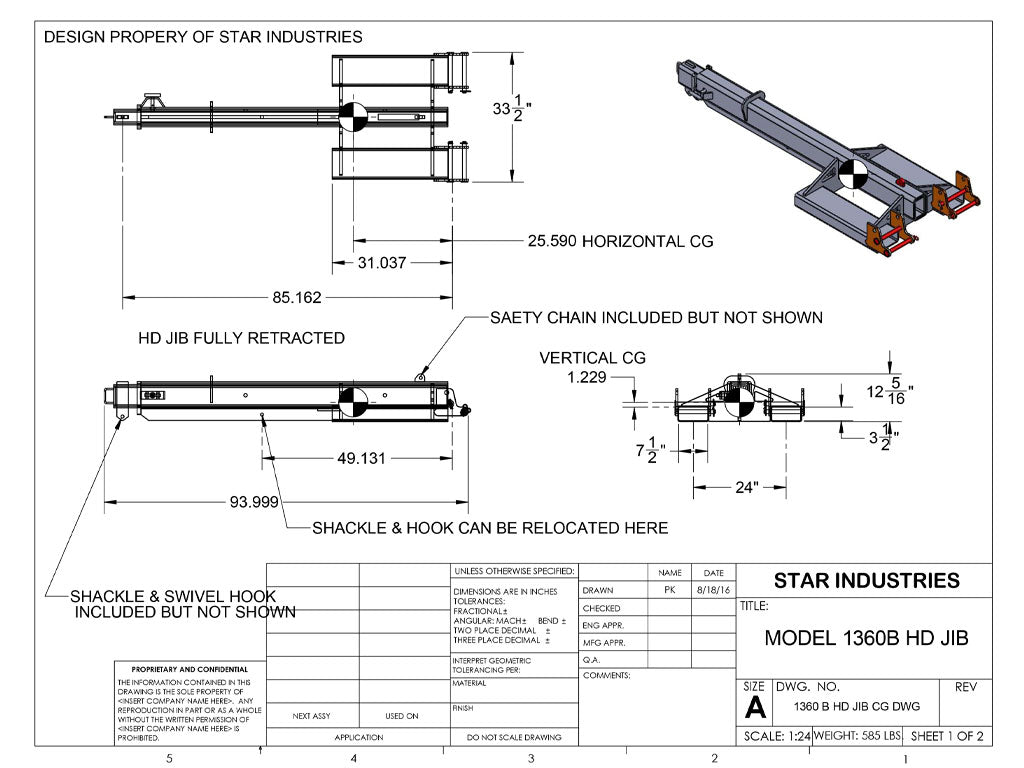

Vertical Center of Gravity Centerline
Horizontal Center of Gravity Fully retracted 36 5/16″
Horizontal Center of Gravity Extended midway 43 ¾”
Horizontal Center of Gravity Fully extended 54 7/16″

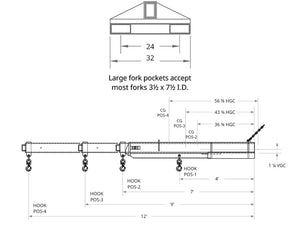

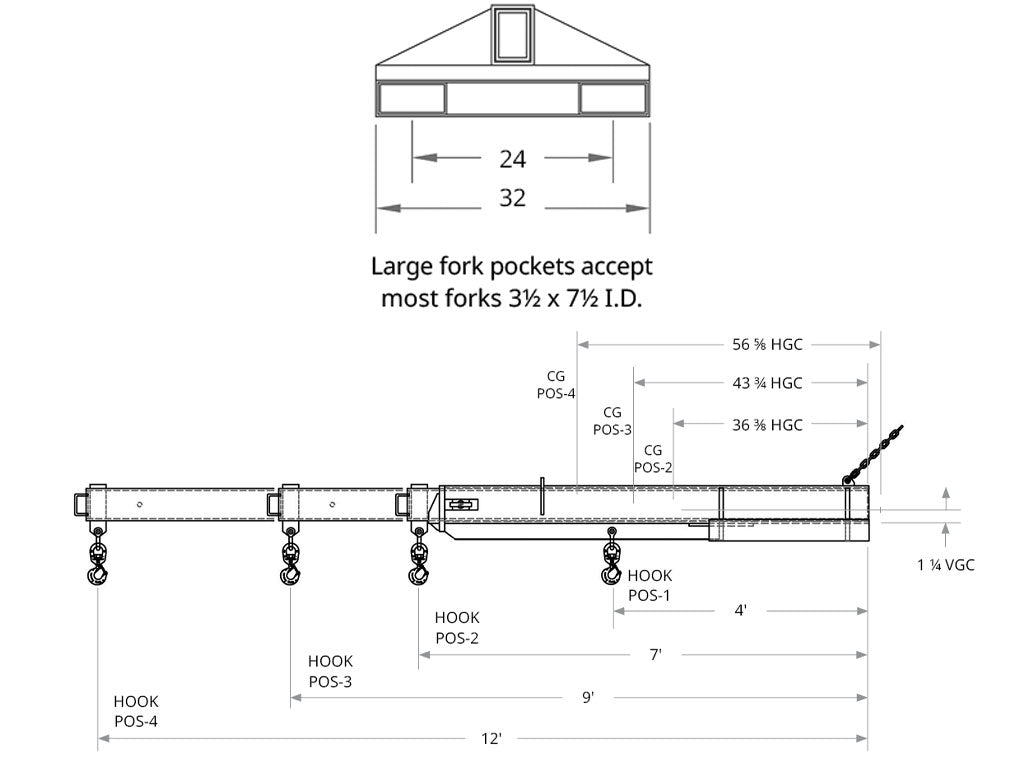

Hook Positions:

Hook Position 4 3 2 1
Distance 12′ 0″ 9′ 0″ 7′ 0″ 4′ 0″
Maximum load on a single hook 2,000 lbs 3,000 lbs 4,000 lbs 6,000 lbs



Fork Pocket Size:
30″ long x 7½” x 3½” ID

Center to Center of Fork Pockets:
24″ / Pocket Ends are open.

Fixed Length JIB Options:

Model Capacity Reach
1360B Varies (see chart on technical drawings tab) Varies (see chart on technical drawings tab)
1360B-5FXL 6,000 lbs 5′ (ft)
1360B-6FXL 5,000 lbs 6′ (ft)
1360B-7FXL 4,000 lbs 7′ (ft)



USUALLY SHIPS IN 1-2 WEEKS
