175-MI-44

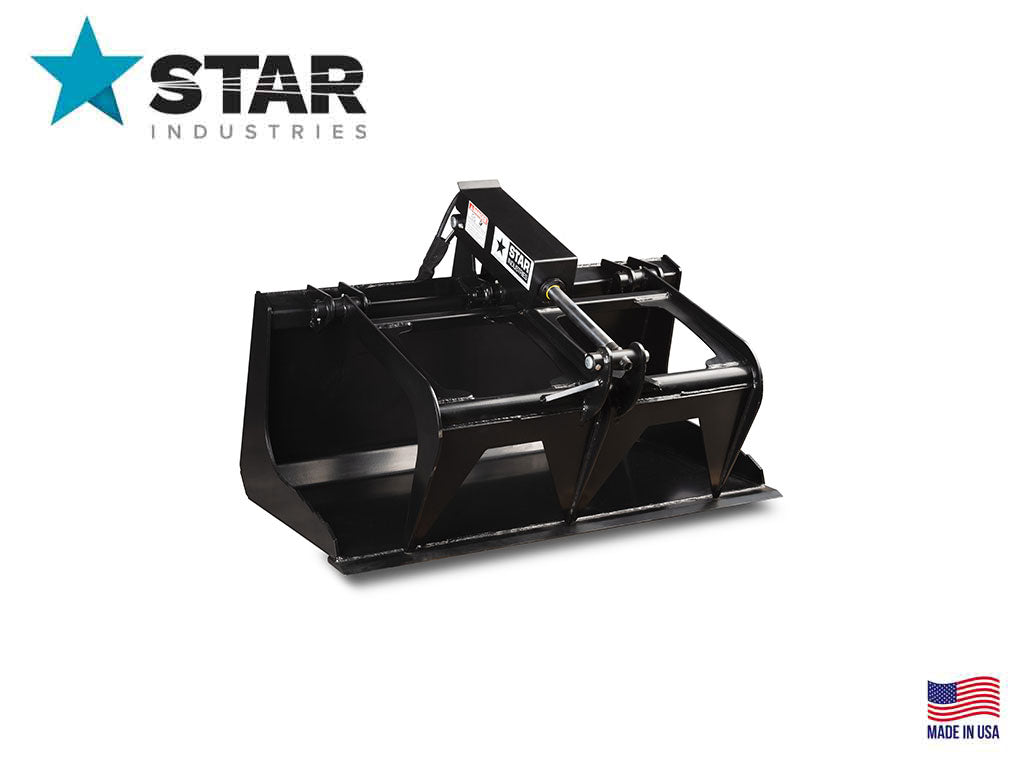

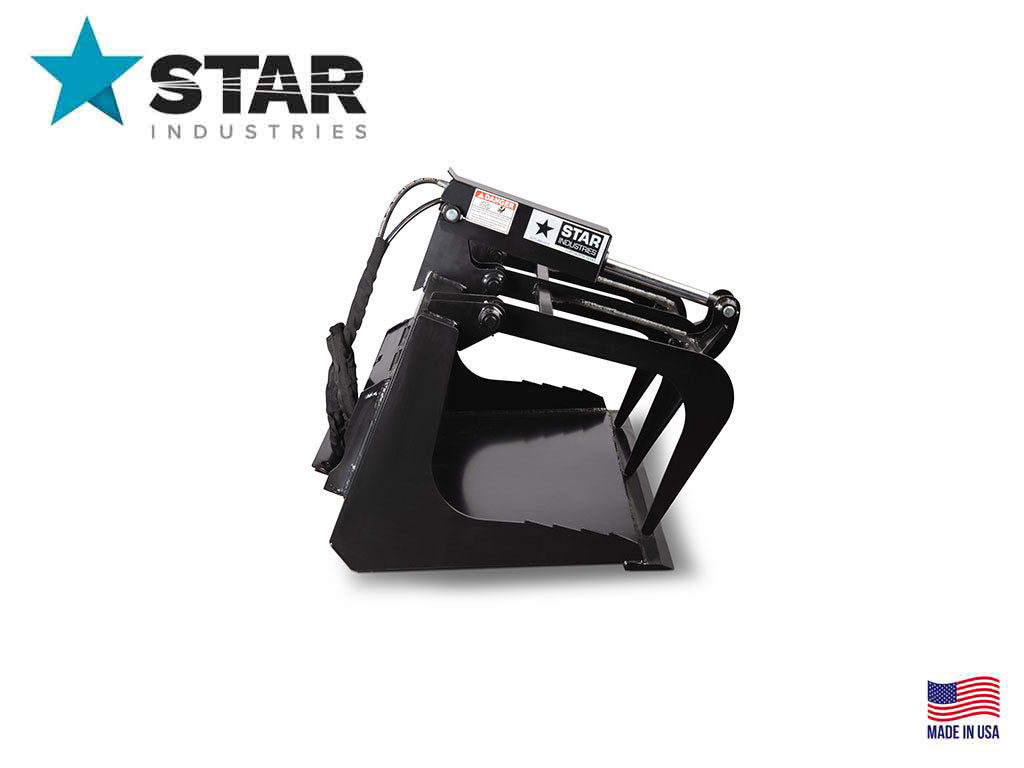

STAR Mini Loader Industrial Grapple Bucket

Style
Size

Mini Industrial Grapple Buckets

Move bulky, hard-to-handle materials like brush and logs easily with a Star Industries Mini Root Grapple or Grapple Bucket. The root grapples let dirt sift out when loading large rocks and trash making it the perfect attachment of debris clean up. The grapple bucket has a solid bottom to keep all material in the bucket. Both open extra wide for a full load.

  • Made for Dingo, Ditchwitch, Vermeer, Boxer, Ramrod and Bobcat Mini Skid-Steers
  • Protective sleeves on all hydraulic lines



     model # fits size lbs
    175-MI-44 Ditchwitch, Vermeer, Boxer, Ramrod 44" 263
    175-MIBC-36 Bobcat 36" 223
    175MIBC-44 Bobcat 44" 263


    Mini Grapple Bucket

    Model 175-MI-44 175-MIBC-44
    Fits Dingo, Ditchwitch, Vermeer, Boxer and Ramrod Bobcat
    Empty Weight 263 lbs 263 lbs


    Measurements Grapple Bucket
    Width 44” O.D.
    Hyd. Cylinder 2” Bore by 10” Stroke
    Grapple Tines 5/16” thick
    Grapple Max Opening 30”
    Overall Depth 35 ¾”
    Overall Height 27 ¾”
    Bucket Height 21”
    Bucket Depth 26 3/8”
    Pivot Pins 1” DIA: Grease fittings on all pivot points
    Hyd. Hoses Protective sleeves on all hydraulic lines
    Hyd. Quick-Disconnects ½” flat body couplers included
