170-MI-44

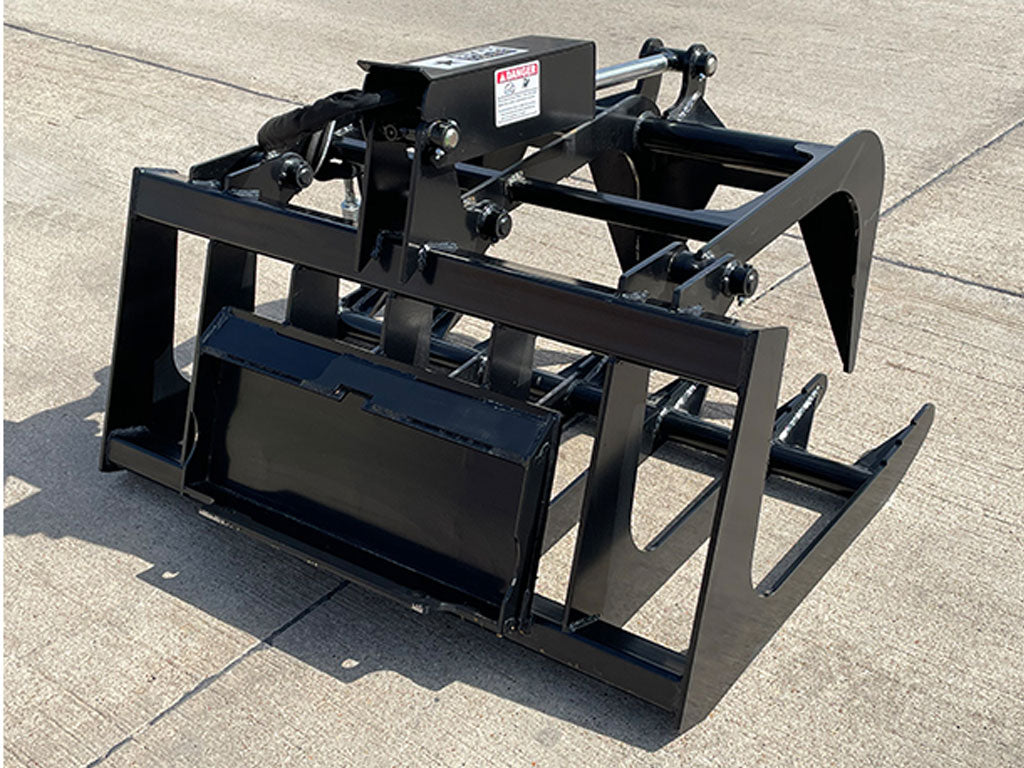

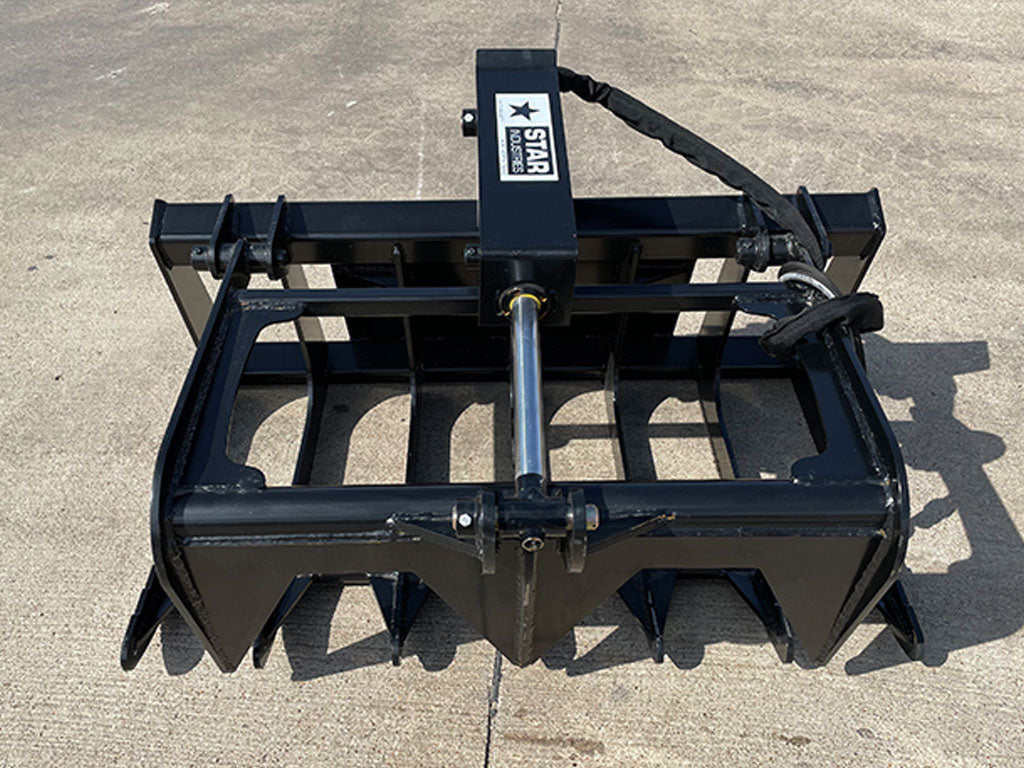

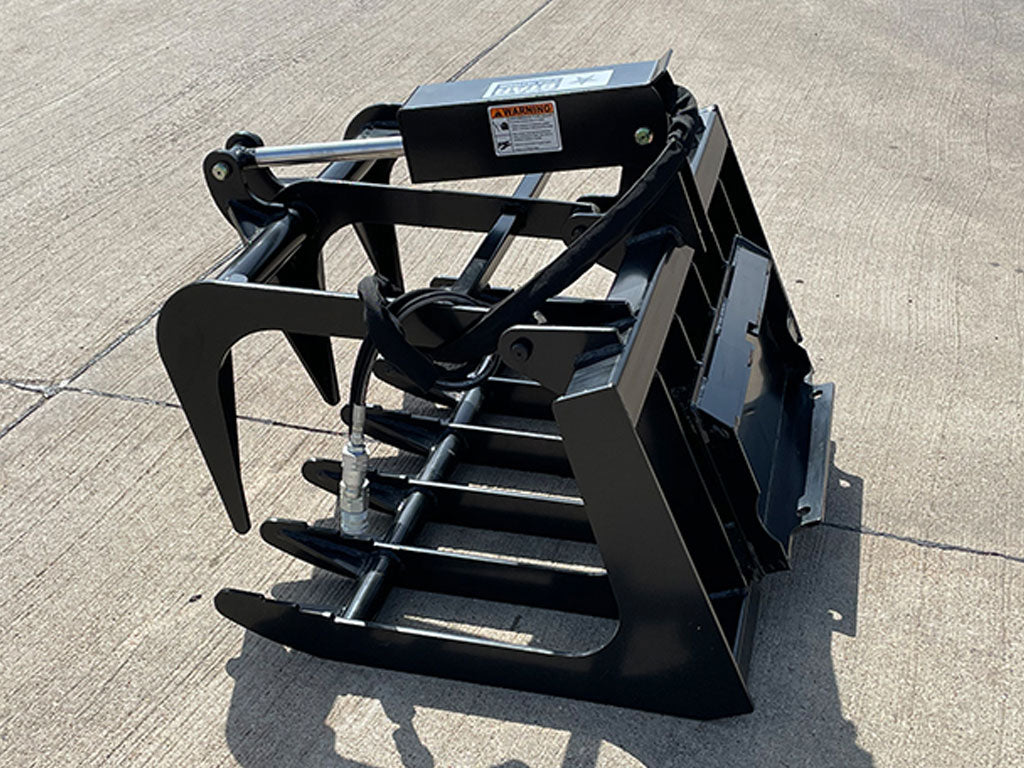

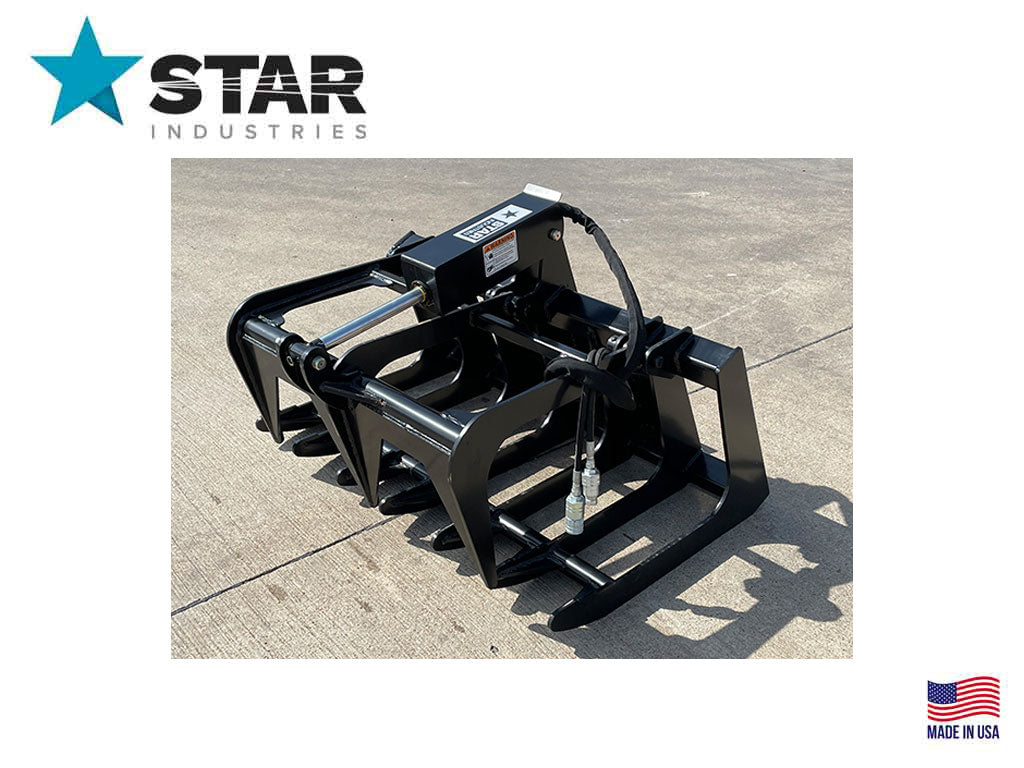

STAR Mini Loader Root Grapple Bucket

Style
Size

Mini Root Grapple Buckets

Move bulky, hard-to-handle materials like brush and logs easily with a Star Industries Mini Root Grapple. The root grapples lets dirt sift out when loading large rocks and trash making it the perfect attachment of debris clean up. Grapple opens extra wide for a full load.

  • Made for Dingo, Ditchwitch, Vermeer, Boxer, Ramrod and Bobcat Mini Skid-Steers
  • Protective sleeves on all hydraulic lines



    Mini Root Grapple

    Model 170-MI-44 170-MIBC-44
    Fits Dingo, Ditchwitch, Vermeer, Boxer and Ramrod Bobcat
    Empty Weight 245 lbs 245 lbs


    Specifications

    Measurements Root Grapple
    Width 44” O.D.
    Hyd. Cylinder 2” Bore by 10” Stroke
    Grapple Tines 5/16” thick
    Grapple Max Opening 30”
    Overall Depth 35 ½”
    Overall Height 26”
    Bucket Height 20”
    Bucket Depth Does not apply
    Pivot Pins 1” DIA: Grease fittings on all pivot points
    Hyd. Hoses Protective sleeves on all hydraulic lines
    Hyd. Quick-Disconnects ½” flat body couplers included
