STAR

1302

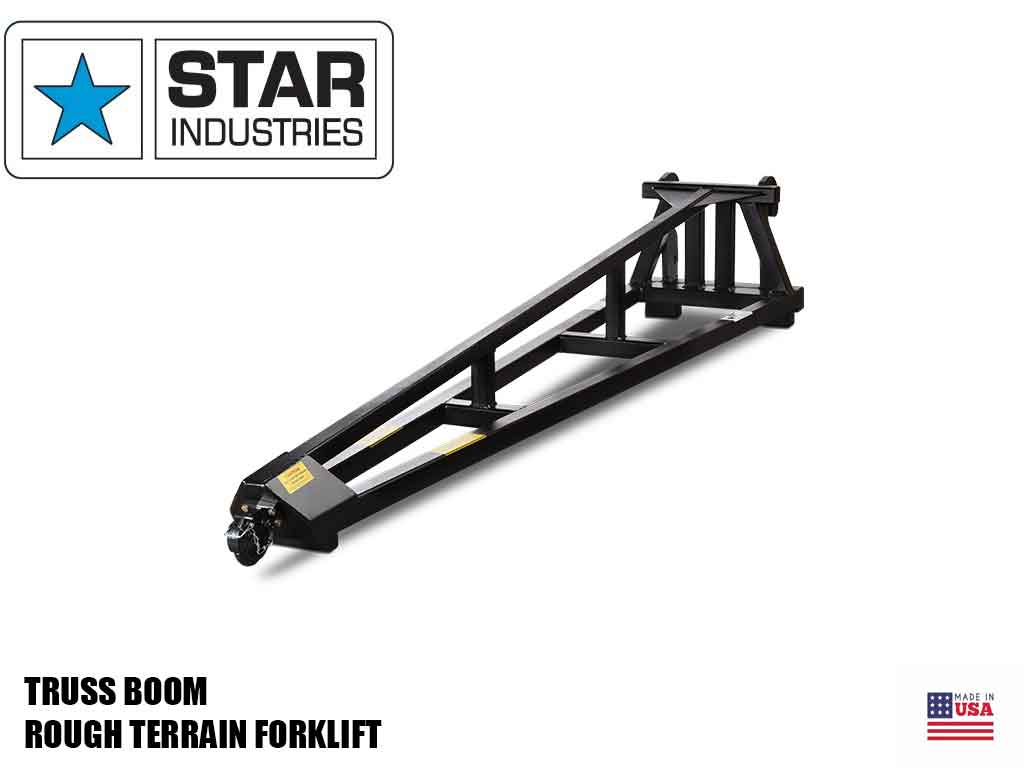

STAR TRUSS BOOM

Size
Capacity

Quick-Tach Truss Booms

For Rough Terrain Forklifts

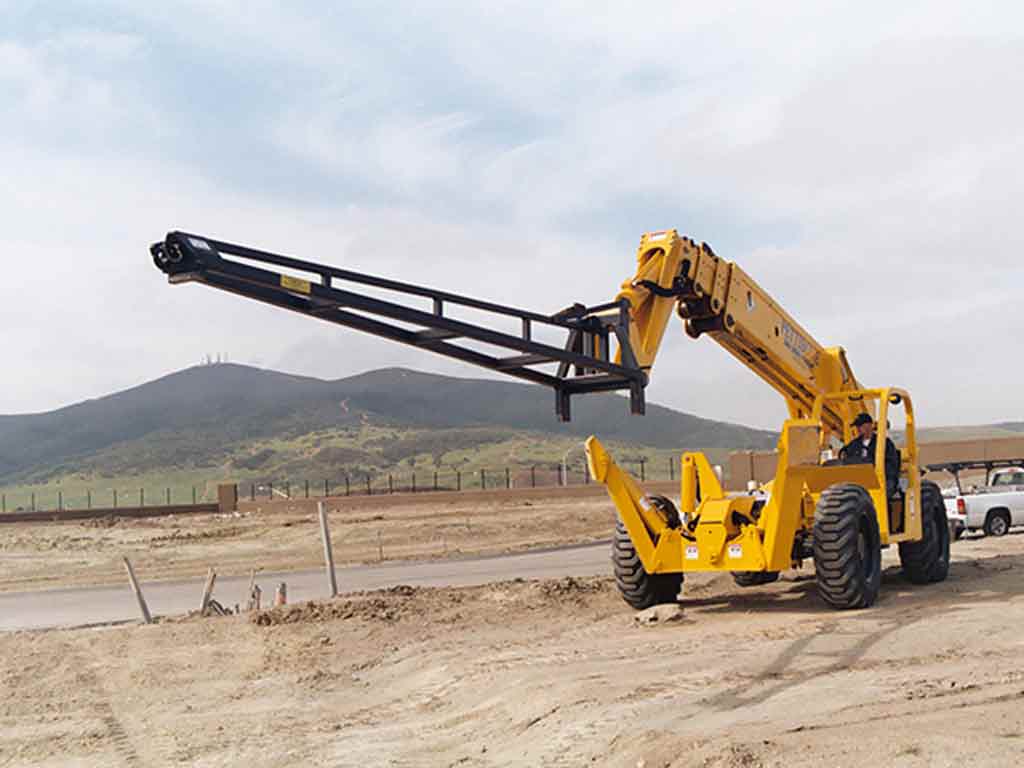

  • Combine the lifting capability of a crane with the speed and maneuverability of an extendable reach forklift
  • Suitable for use on most surfaces including muddy and rough job sites
  • Built to last with fully welded, square tube construction for extra strength and durability.

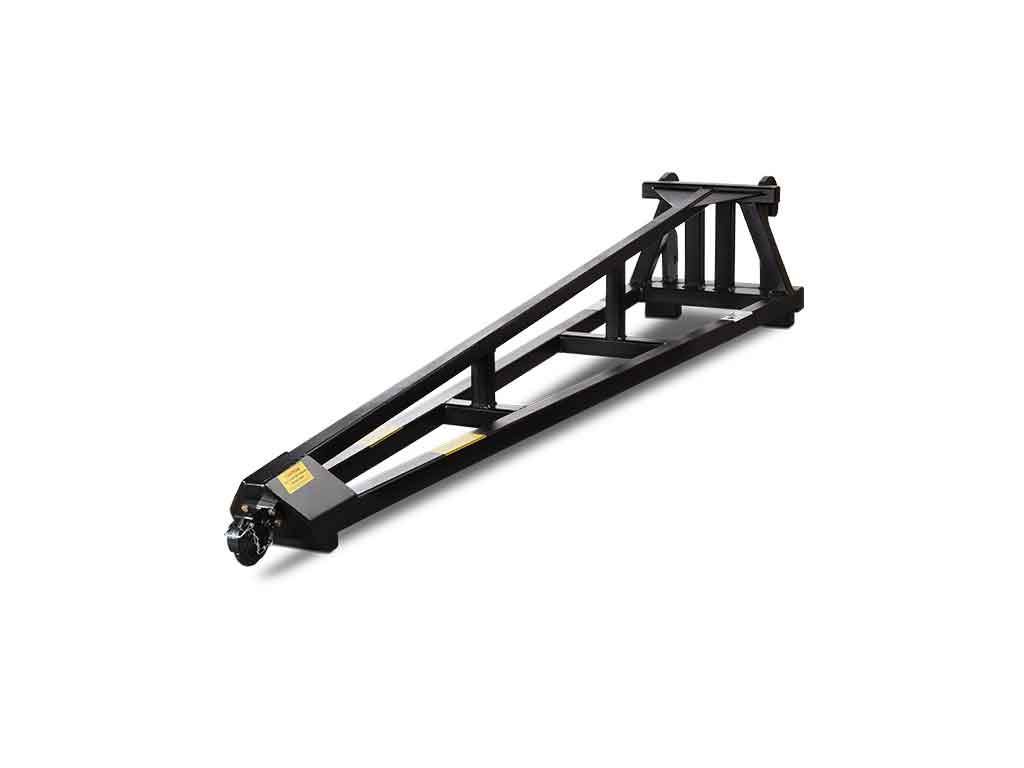

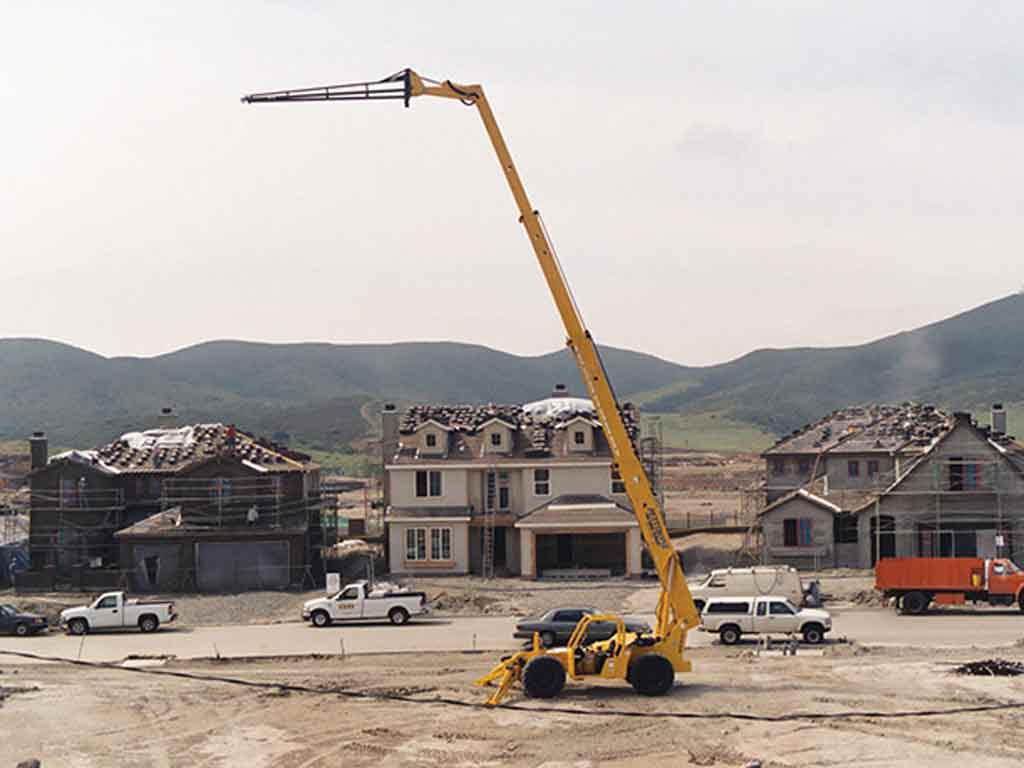

Save the cost of an expensive crane with a Star Industries Quick Tach (QT) Truss Boom. With a vertical reach of up to 15’ and load capacity from 2,000 lbs to 22,000 lbs, the Star QT Truss Boom is ideal for metal building erection, setting wooden trusses, putting up post frame buildings and many more crane type jobs.

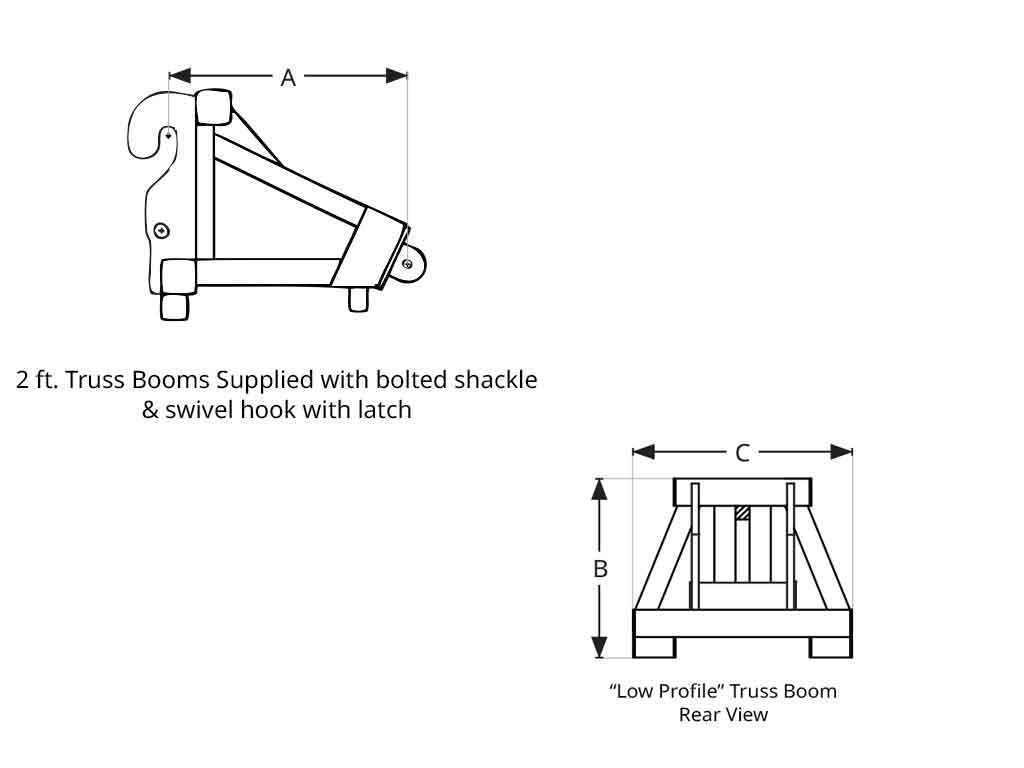

Style Model A Effective Length B Effective Length C Back Width Capacity Empty Weight Overall Length
Low Profile
Truss Boom

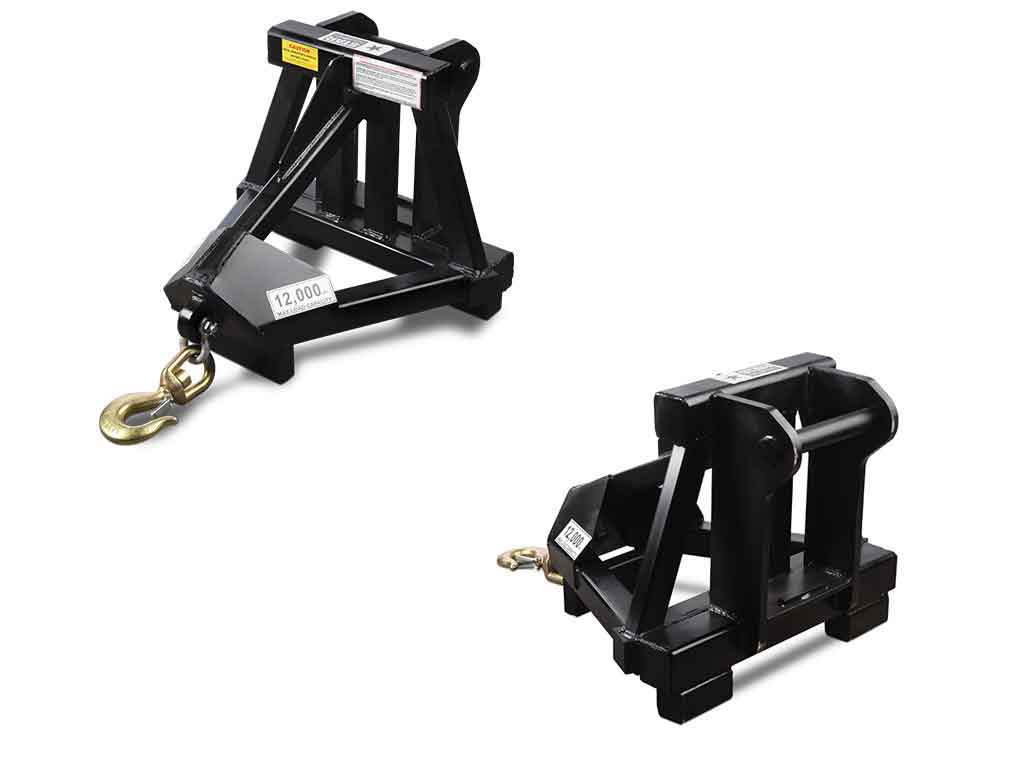

1302 2 ft 26.5” 31” 10,000 lbs ± 335 lbs 2’ – 5”

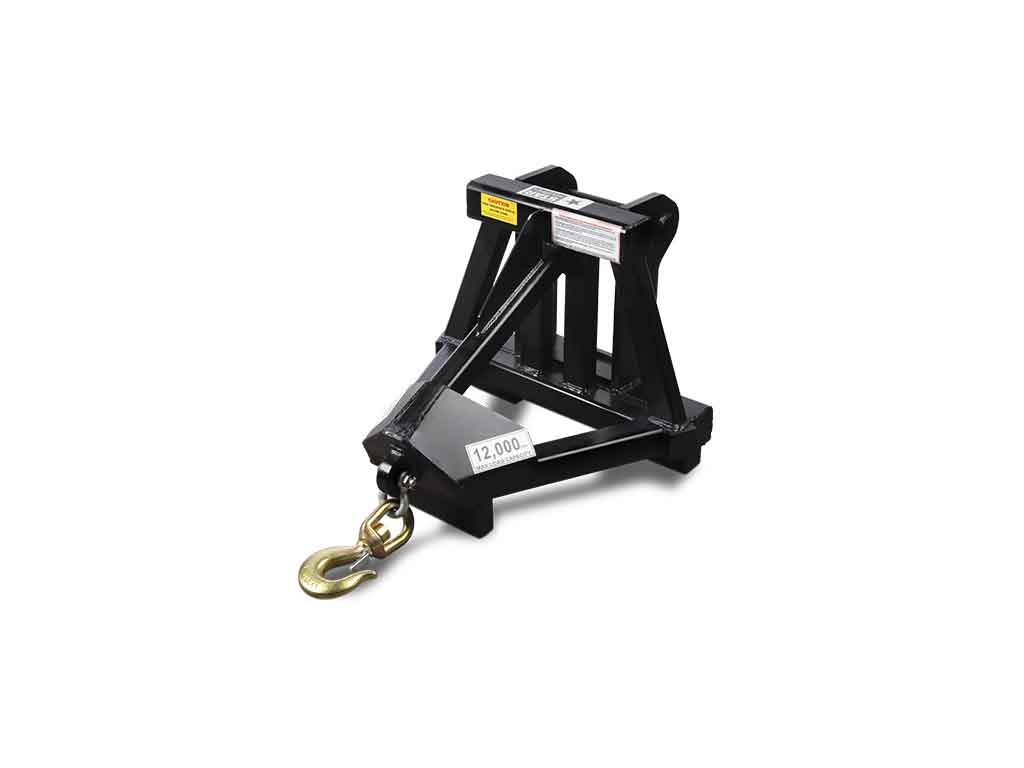

1302-12K 2 ft 26.5” 31” 12,000 lbs ± 341 lbs 2’ – 5”
1303 2 ft 36” 40” up to 22,000 lbs ± 550 lbs 2’ – 5”
1310 10 ft 26.5” 31” 2,000 lbs ± 480 lbs 10’ – 5”
1320 12 ft 26.5” 31” 2,000 lbs ± 560 lbs 12’ – 0”

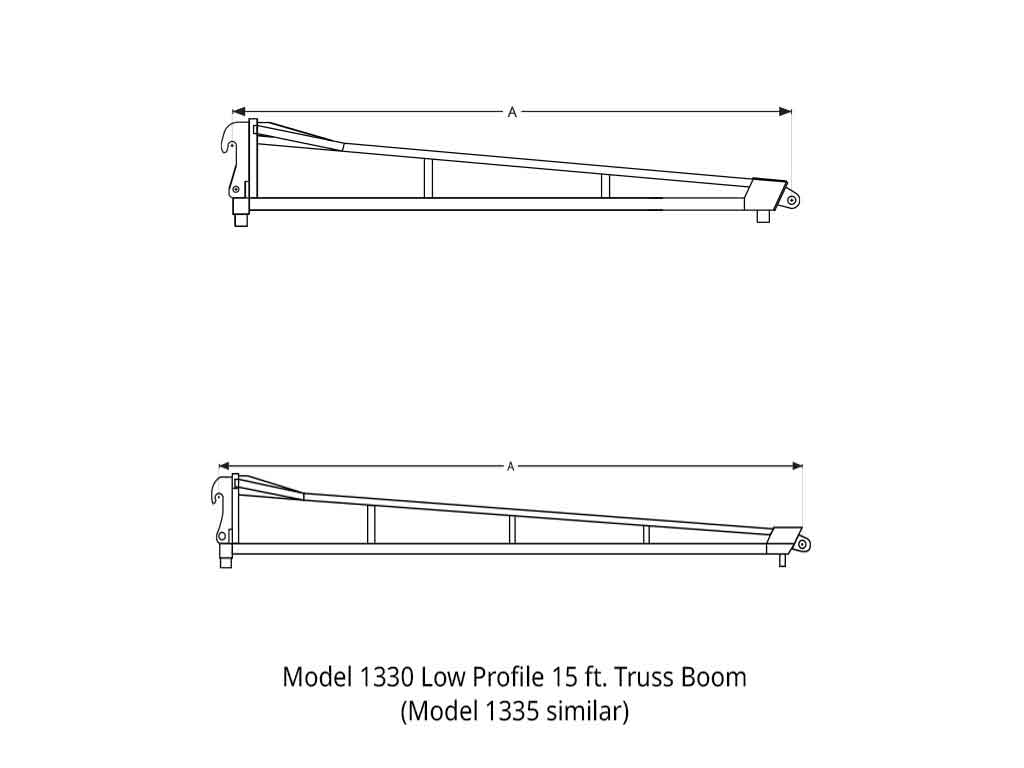

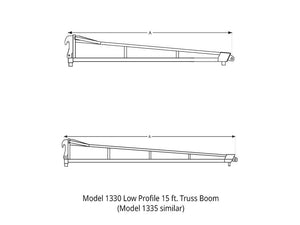

1330 15 ft 26.5” 31” 2,000 lbs ± 640 lbs 15’ – 5”
Wide Back
Truss Boom

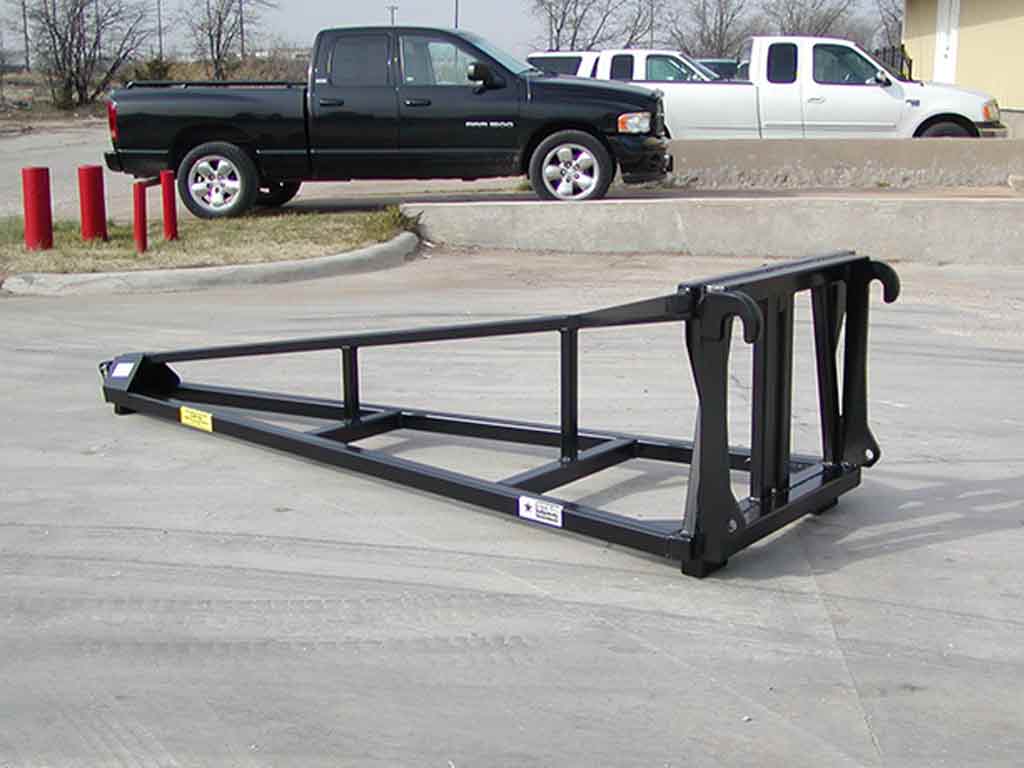

1325 12 ft 36” 45” 2,000 lbs ± 90 lbs 12’ – 4”
1335 15 ft 36” 45” 2,000 lbs ± 795 lbs 15’ – 4”



  • The standard “Low Profile” Truss Boom is used with most forklift models except those that utilize an extra wide quick-tach design.
  • JCB Q-Fit, Gehl Dynacarrier, Bobcat Versa Handler and Ingersoll-Rand models VR518, VR623, VR638 quick-tach designs require the “Wide Back”.
  • Dimensions and empty weights will vary depending on which Quick-Tach is required. Above load ratings are for the truss boom only and do not reflect actual forklift load capabilities. Forklift make, model, quick-tach style and serial number may be required when ordering.

USUALLY SHIPS IN 2-3 WEEKS
