TAG

1005MX2

TAG 4000 - 10000 lbs dirt style excavator buckets

Mounting
Size

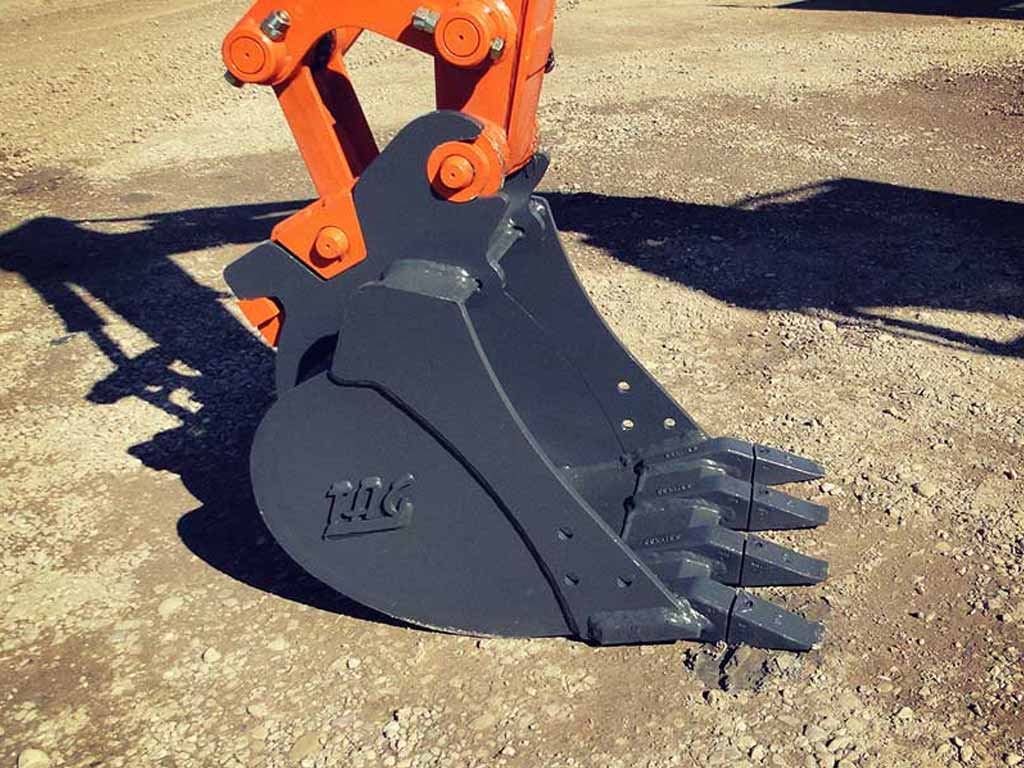

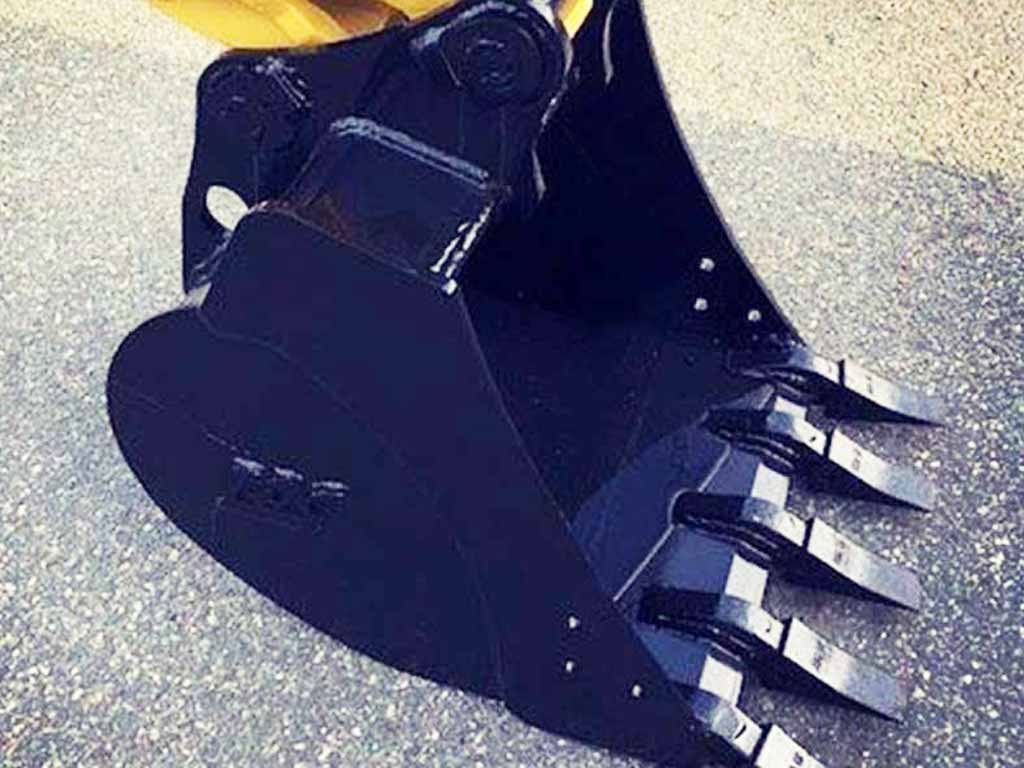

HEAVY DIRT BUCKETS

These durable high quality buckets were designed with performance in mind. Dirt buckets are typically ordered with teeth. These buckets are use to dig in most soil conditions including dirt, mud, compacted soil, shale and sand.

A heavy duty bucket can be ordered without teeth, this is a special order. I will need to talk to you on the phone to make sure we order the bucket without teeth if desired.

  • Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
  • Please use the "FITS" tab to find compatible Make and model machines.

Mountings

STYLE


 Pin On - OEM mounting style, (2) horizontal pins

typically a pin kit is added if using coupler

Quick Coupler - Wain Roy style hook and pin

1.25" vertical pin design (QC27)

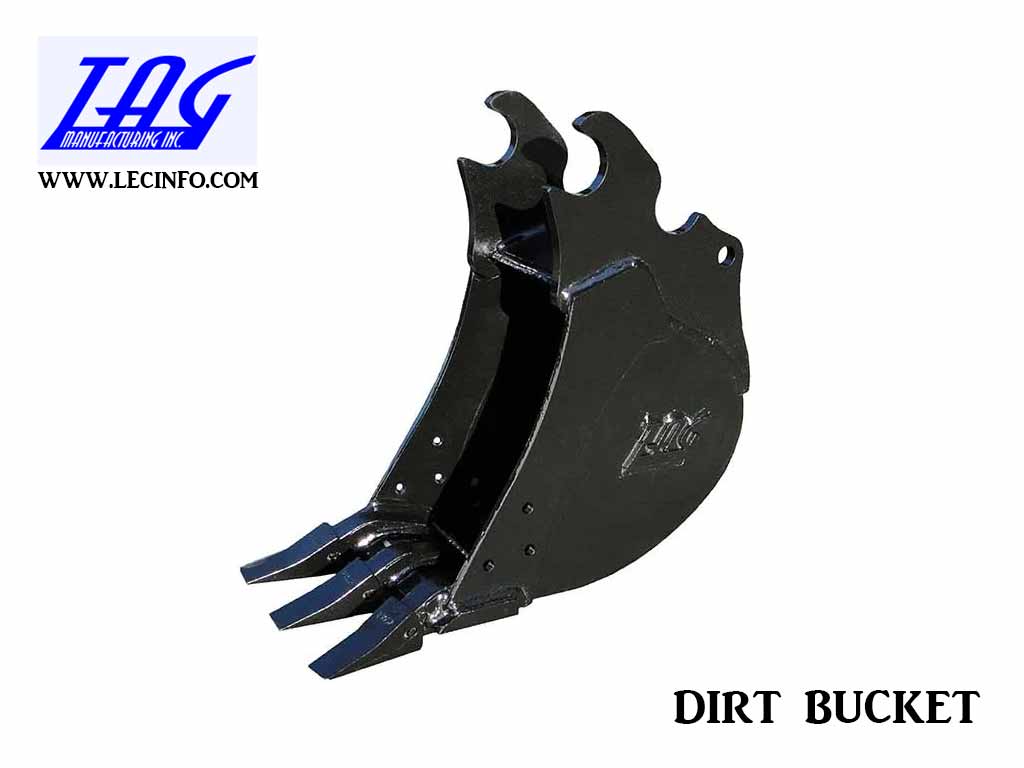

Kubota - Kubota OEM design, Only fits

Kubota couplers

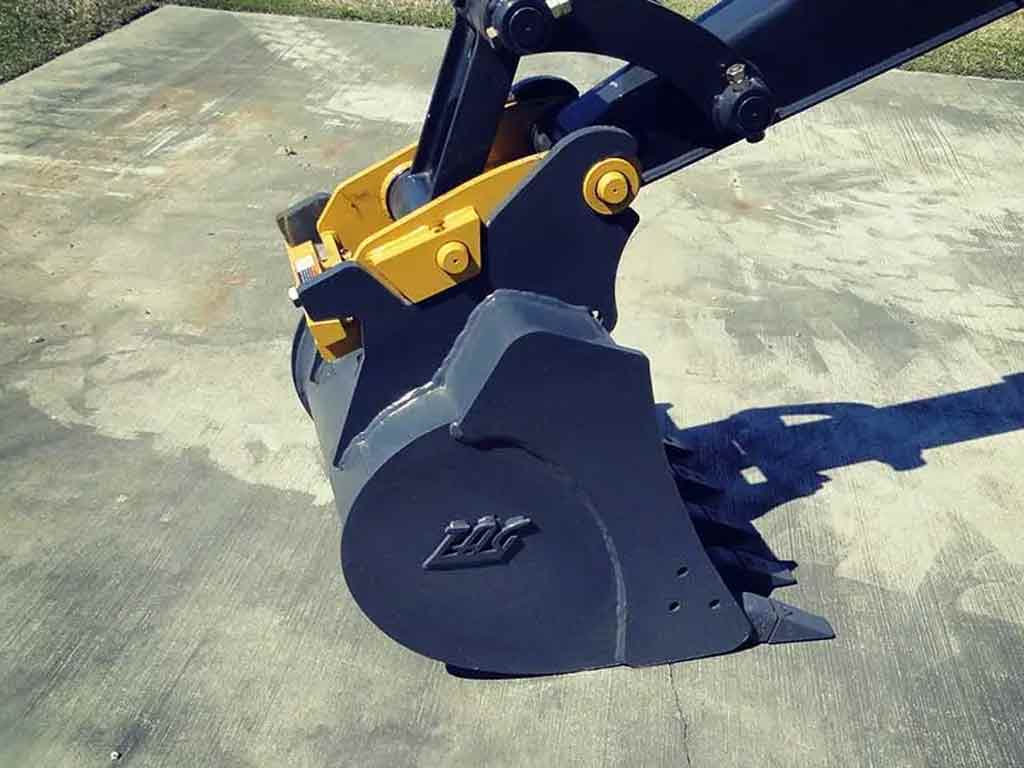

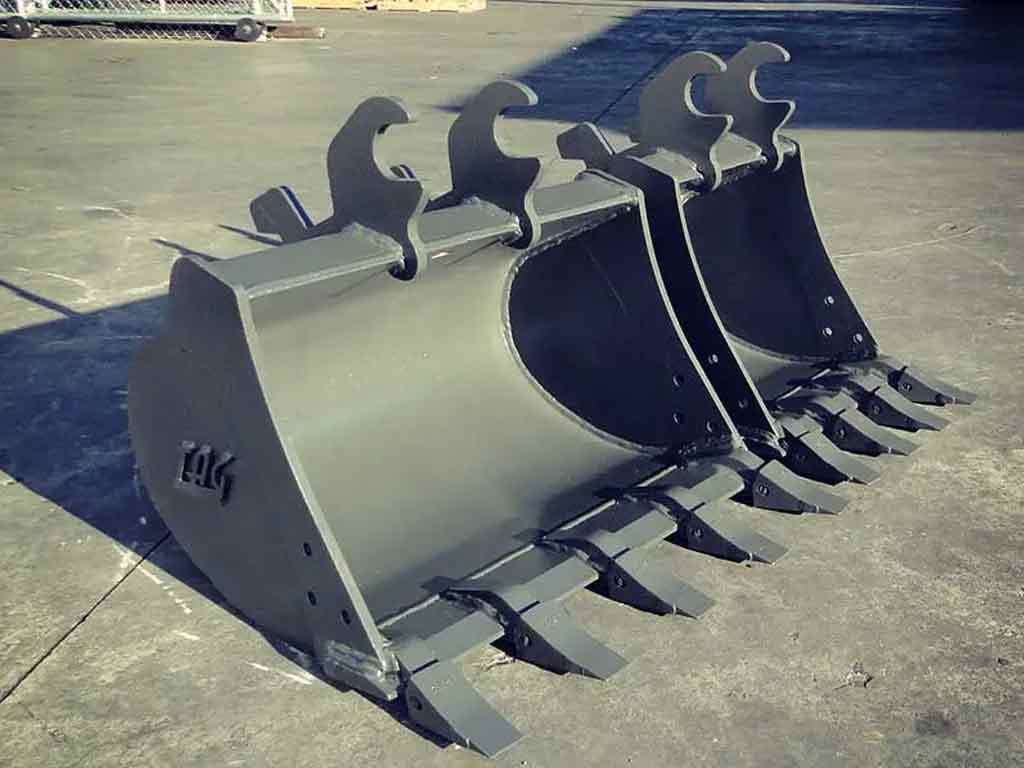

Wedge Lock - Deere and Hitachi excavators are

fitted with this coupler system from the Factory

DIRECTIONS
  1. CHOOSE YOUR MOUNTING / COUPLER SYSTEM
  2. CHOOSE YOUR SIZE
  3. ADD ITEM(S) TO CART
  4. PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
  5. ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
PIN ON ORDER # WIDTH CAP LBS
1005MX2 10" .055 135
1205MX2 12" .070 150
1605MX2 16" .095 185
1805MX2 18" .105 195
2005MX2 20" .120 205
2405MX2 24" .145 225
3005MX2 30" .180 255
3605MX2 36" .220 290
QUICK COUPLER ORDER # WIDTH CAP LBS
1027Q2 10 .055 125
1227Q2 12 .070 135
1627Q2 16 .095 165
1827Q2 18 .105 175
2027Q2 20 .120 185
2427Q2 24 .145 245
3027Q2 30 .180 250
3627Q2 36 .218 290
KUBOTA ORDER # WIDTH CAP LBS
1005MX2-KUBOTA 10 .055 125
1205MX2-KUBOTA 12 .070 135
1605MX2-KUBOTA 16 .095 165
1805MX2-KUBOTA 18 .105 175
2005MX2-KUBOTA 20 .120 185
2405MX2-KUBOTA 24 .145 245
3005MX2-KUBOTA 30 .180 250
3605MX2-KUBOTA 36 .218 290
WEDGE LOCK ORDER # WIDTH CAP LBS
1005WL2 10 .055 135
1205WL2 12 .070 150
1605WL2 16 .095 185
1805WL2 18 .105 195
2005WL2 20 .120 205
2405WL2 24 .145 225
3005WL2 30 .180 255
3605WL2 36 .218 290



 BRAND MODELS
BOBCAT

325,328,329,331,334,335,

425,430,E26,E32,E32i,E35,E35i

CASE

CX25,CX27,CX27B,CX31,

CX31B, CX36B,CX36,

D100,D125

CAT

302.5C,303.5D CR,302.5,303CR,

303CR CR,303.5,303.5C CR

DOOSAN

030,035

GEHL

303,353,373,383Z,ME3003

HITACHI

ZX27U-3,ZX35U-3,EX27,EX35,

ZX27U,ZX27U-2,ZX35U-2,EX30

IHI

28N-3,30NX-2,35N-3,35VX,

20NX,25NX-2,28N-2,35,35N-2,

35NX-2,40N, 25NX4,30V4,35V4

25NX,28N,30NX,35N,35NX

JCB

8025ZTS,8030ZTS,8035ZTS,8040ZTS,

802,802.4,802.7,803,804,8027,8032,8025

8030,8035

JOHN DEERE

27 ZTS, 27C ZTS, 27D ZTS,27G,

35 ZTS,35C ZTS, 35D ZTS,35G,

110

KOBELCO

25SR,25SR-2,27SR-2,30SR-2,

30SR-3,27SR-3,35SR-3,SK25,

SK27,SK30,SK35

KOMATSU

PC27MR-2,PC27MR-3,PC27MRX-1,

PC30MR-2,PC30MR-3,PC35MR-2

KUBOTA

KH91,KX61-2S,KX71-3,KX91-2,

KX91-3S,U25,U35,KX61-3,KX71

KX121-3,U25,U35,L39,KX040

MUSTANG

3003,3503,3703,3803

NEW HOLLAND

E27,E30,E35,E25,EH35

TAKEUCHI

TB025,TB035,TB23R,TB28FR,

TB125,TB135,TB138FR.TB240

TB228,TB230,TB235

TEREX

HR14,TC29

VOLVO

EC25,EC30,EC35ECR28,ECR38

WACKER

28Z3,3503,38Z3

YANMAR

VIO20-3,VIO27-5,VIO27-5,VIO35-5

VIO27-5,VIO035-5,VIO27-3,VIO35-3

CBL40
