3609WL2

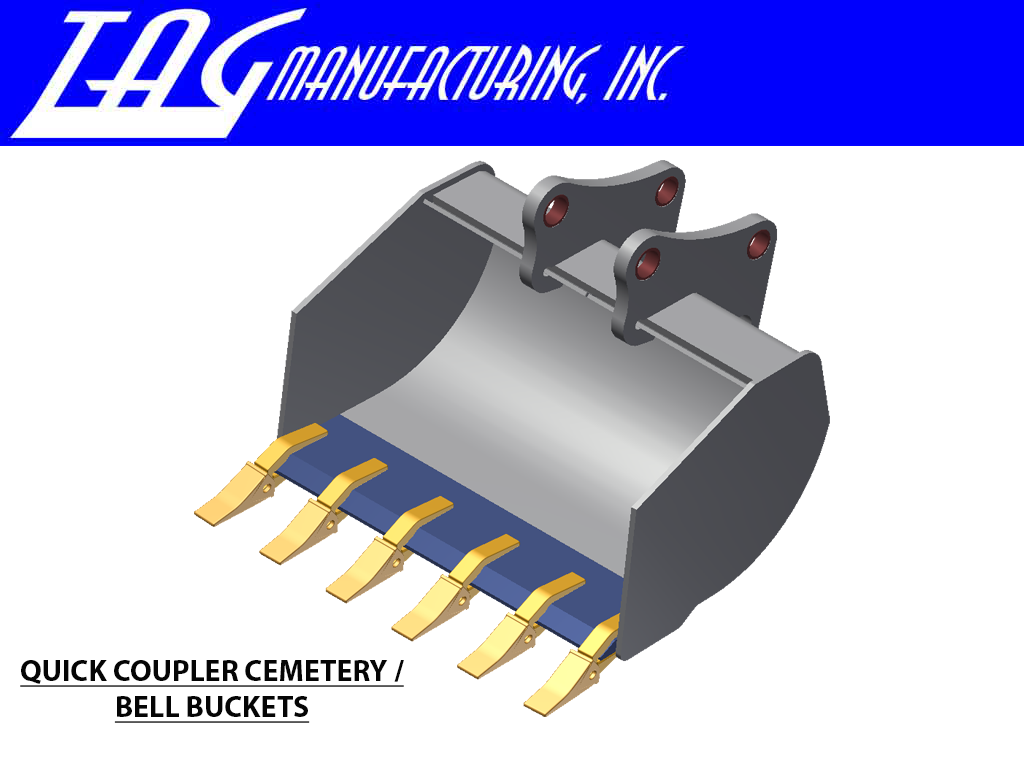

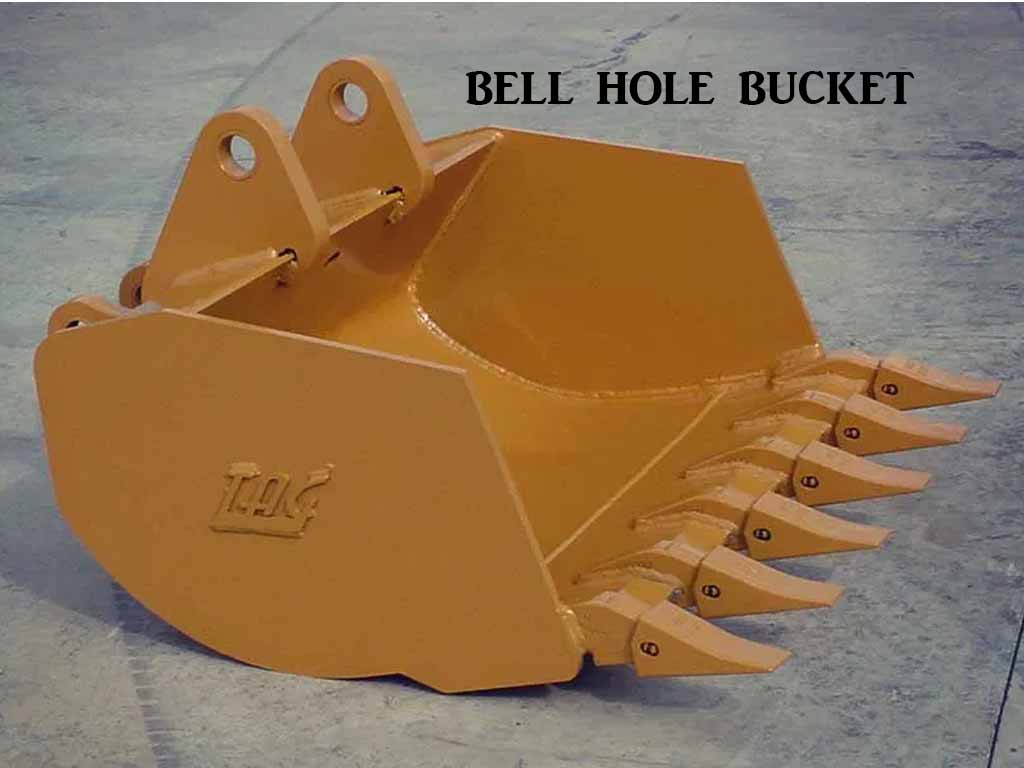

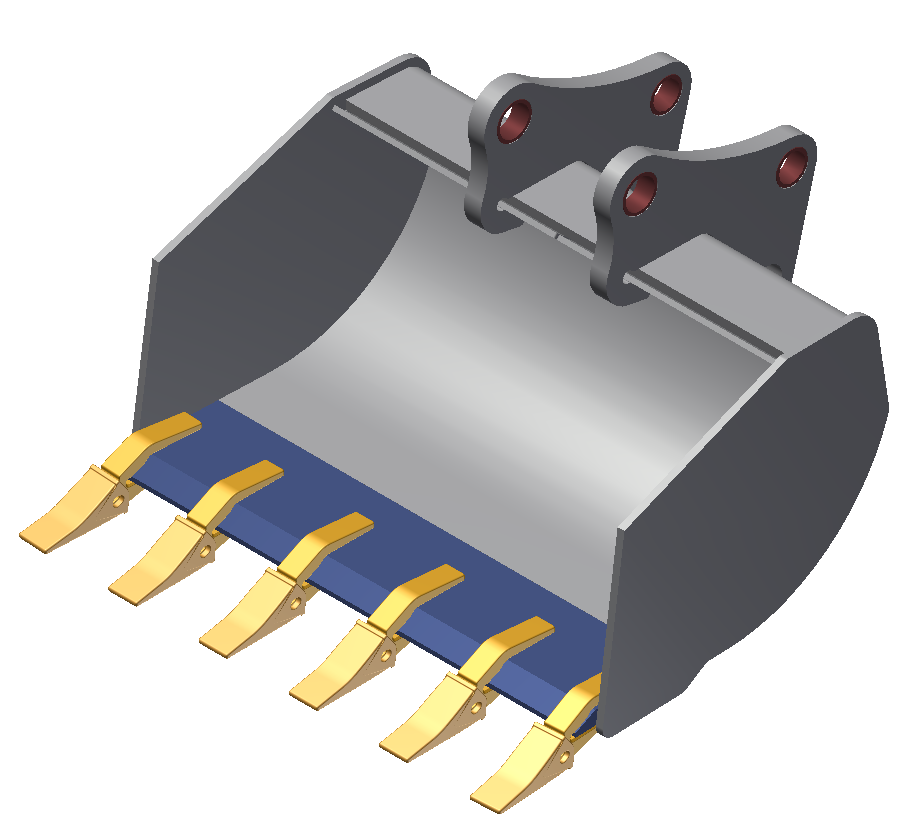

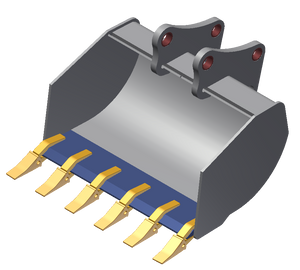

TAG Bellhole / Grave Buckets 4,000 - 8,000 lbs. excavators
$1,200.00 - $1,250.00
1/26
Bellhole / grave buckets
TAG Bellhole / Grave Buckets Offer A Solution For Straight Walled Holes Needed To Accommodate Burial Caskets And Vaults.
Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
Please use the "FITS" tab to find compatible Make and model machines.
Mountings
|
STYLE |
PHOTO |
| OEM PIN ON - All excavators can use this set up by removing the coupler. Multi pin and pin grabber couplers also use this mounting |  |
| WEDGE LOCK - John Deere and Hitachi use this system in the USA. You also see this type of coupler in Canada. |  |
| KUBOTA USA - Kubota uses this coupler type in the USA. They are machine specific. Canada Kubota couplers are typically different. |  |
|
Quick Coupler - Wain Roy style hook and pin 1.25" vertical pin design (QC27) SOLD ON ANOTHER PAGE |
 |
|
BOBCAT EXCHANGE - Bobcat uses this coupler system from the factory. TAG DOES NOT MAKE THIS COUPLER SYSTEM |
 |
| MOUNT | ORDER # | WIDTH | CAPACITY (CUBIC YD.) | LBS. |
| OEM PIN ON | 3609MX2 | 36" | 0.140 | 225 |
| KUBOTA USA | 3609MX2-KUB | 36" | 0.140 | 225 |
| WEDGE - DEERE / HITACHI | 3609WL2-JD | 36" | 0.140 | 225 |
| HOOK 1.25" T-PIN | 3011Q2 | 30" | 0.093 | 358 |
| HOOK 1.25" T-PIN | 3611Q2 | 36" | 0.111 | 371 |
HERE ARE SOME MODELS THIS CAN FIT (QUESTIONS PLEASE CALL)
| MAKE | MODEL 2500 - 6000 LBS. |
| BOBCAT | E26, E30, E32, E35 |
| CASE | CX27, CX31, CX36 |
| CAT | 302.5, 303.5, 303 |
| DEERE | 26, 27, 30, 35 |
| DOOSAN | 035 |
| GEHL | 353, 383Z |
| HITACHI | 26, 27, 30, 35 |
| HYUNDAI | R28, R35, R36 |
| IHI / KATO | 25, 28, 30, 35 |
| JCB | 8025, 8030, 8035 |
| KOBELCO | SK25, SK27, SK30, SK35 |
| KOMATSU |
PC27MR, PC35MR |
| KUBOTA | KX61, KX71, KX91, KX121, U25, U35, L39, KX040 |
| MUSTANG | 3503, 3803 |
| TAKEUCHI | TB125, TB135, TB138FR, TB240, TB228, TB230, TB235 |
| TEREX |
HR14, TC29 |
| THOMAS | |
| VOLVO | 25, 28, 30, 35, 38 |
| WACKER | 28, 3503, 38 |
| YANMAR |
VIO27, VIO35 |
