P600PTC10660

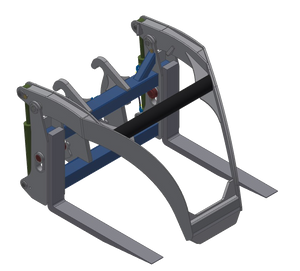

TAG Log & Lumber Forks with Paddle Top Clamp for Class 600 Wheel Loaders
$24,160.00 - $32,850.00

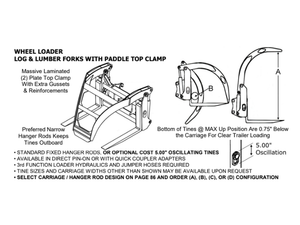

Log & Lumber Forks with Paddle Top Clamp (Class 600 Only)
PLEASE CHECK THE PICTURES OF THE STYLES BELOW!
TAG Log & Lumber Forks With Paddle Clamp Offer A Heavy Duty Clamping Fork Solution For Lumber Yards. All The Attributes Of Our Standard Log & Lumber Forks Plus The Addition Of A Paddl4 Top Clamp For Added Versatility.
- Paddle Clamp Offer The Largest Clamping Area
- Heavy Duty Carriage
- Full Length Sides And Gussets With Optional Extra Height Single Piece Back Stops
- Rod Mounted Tines
- Carriages Offered With Fixed Tine Rods Or 5.00" Oscillating Rods
- Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
- Carriage Widths: 60" - 106"
- Tine Lengths: 48" - 96"
- Requires 3Rd Function Hydraulics
- **See Fork Carriage Configurations For Further Options**
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
Pin On
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 600 | P600PTC10660 | 106" | 3.5" X 8" X 60" | 38"-100" | 51700 LBS | 5525 LBS |
| 600 | P600PTC10672 | 106" | 3.5" X 8" X 72" | 38"-100" | 51700 LBS | 5725 LBS |
| 600 | P600PTC10684 | 106" | 3.5" X 8" X 84" | 38"-100" | 51700 LBS | 5925 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 600 | QC600PTC10660 | 106" | 3.5" X 8" X 60 | 38"-100" | 51700 LBS | 5525 LBS |
| 600 | QC600PTC10672 | 106" | 3.5" X 8" X 72" | 38"-100" | 51700 LBS | 5725 LBS |
| 600 | QC600PTC10684 | 106" | 3.5" X 8" X 84" | 38"-100" | 51700 LBS | 5925 LBS |
