P200MY8048

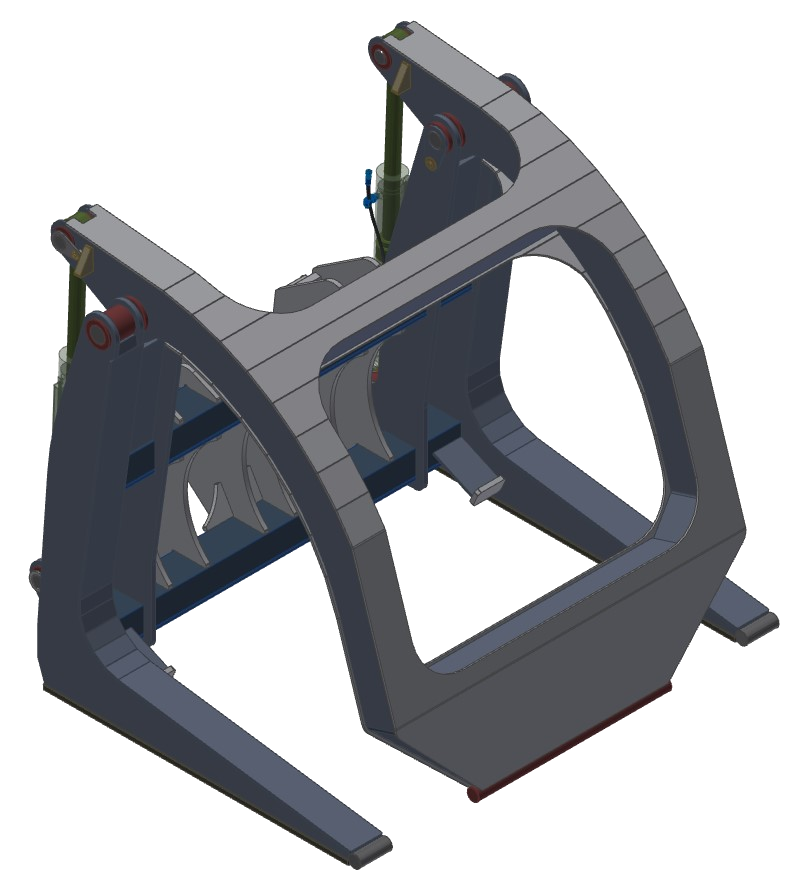

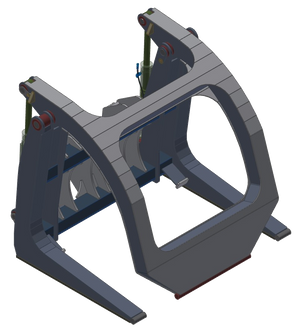

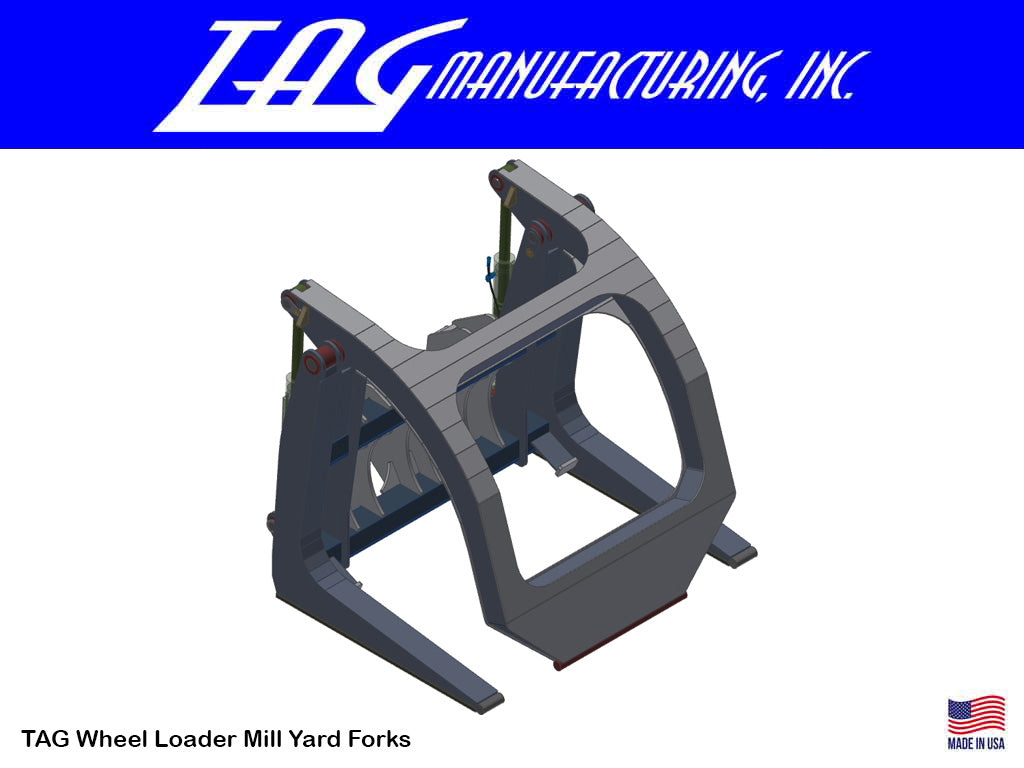

TAG Mill Yard Forks for Wheel Loaders
$24,025.00 - $56,750.00
Mill Yard Forks
TAG Mill Yard Forks Offers A Robust Boxed Tine Integrated Carriage With A Paddle Style Clamp.
- Boxed Tines Fabricated From High Strength Steel
- Single Piece High Strength Steel Clamp Plates & Skins
- Adjustable Cross-Over Relief Valve To Protect Cylinders
- Oversized Heat-Treated Hinge & Cylinder Pins
- Standard Weld On Bottom Wear Strips For Additional Tine Wear Protection
- Carriages: 80" - 110"
- Tines: 48" - 90"
- Required 3Rd Function Hydraulics
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
Pin On
| Size | SKU # | Carr Width | Tine Width | Tine Length | Min-Max Clamp Opening | Weight |
| 200 | P200MY8048 | 80" | 5" | 48" | 11"-101" | 3050 LBS |
| 300 | P300MY8460 | 84" | 6" | 60" | 12"-104" | 3250 LBS |
| 500 | P500MY8460 | 84" | 6" | 60" | 12"-104" | 3450 LBS |
| 600 | P600MY9066 | 90" | 7" | 66" | 13"-110" | 4830 LBS |
| 700 | P700MY10472 | 104" | 8" | 72" | 16"-116" | 5500 LBS |
| 800 | P800MY11090 | 110" | 8" | 90" | 14"-160" |
6740 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Width | Tine Length | Min-Max Clamp Opening | Weight |
| 200 | QC200MY8048 | 80" | 5" | 48" | 11"-101" | 3050 LBS |
| 300 | QC300MY8460 | 84" | 6" | 60" | 12"-104" | 3250 LBS |
| 500 | QC500MY8460 | 84" | 6" | 60" | 12"-104" | 3450 LBS |
| 600 | QC600MY9066 | 90" | 7" | 66" | 13"-110" | 4830 LBS |
| 700 | P700MY10472 | 104" | 8" | 72" | 16"-116" | 5500 LBS |
| 800 | QC800MY11090 | 110" | 8" | 90" | 14"-160" | 6740 LBS |
