P200PGF

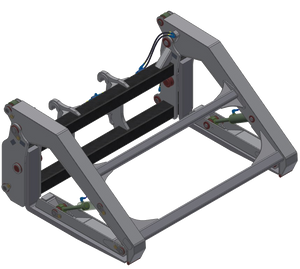

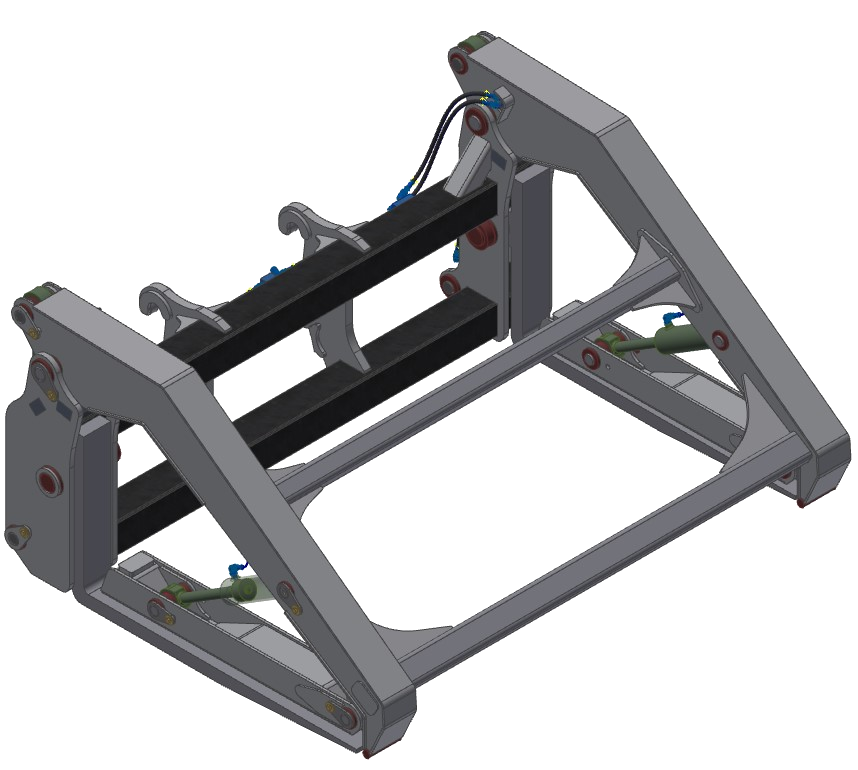

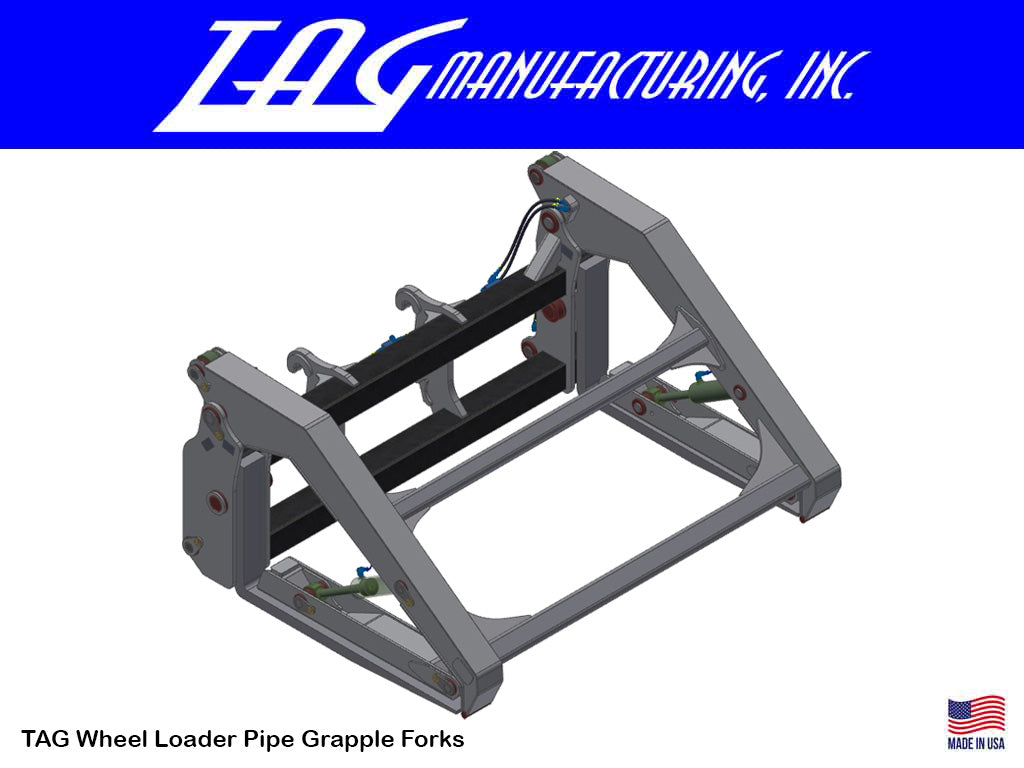

TAG Pipe Grapple Forks for Wheel Loaders
$38,270.00 - $53,870.00
Wheel Loader Pipe Grapple Forks
TAG Pipe Grapple Forks Offer A Pipe Handling Solution With A Clamp That Will Secure Pipe From Falling From Tines.
- Designed Specifically For Pipe Handling
- High Strength Steel Construction
- Single Clamp Design With Independent Hold Downs
- Optional Over Bite Configuration For Clamp
- Carriages: 96" - 120"
- Tines: 60" - 72"
- Requires 3rd Function Hydraulics
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
| Class | SKU | Width | Max Opening | Width Over Tines | Tine Length | Tine Size | Tine Cap @ 24" | Weight |
| 200 |
P200PGF QC200PGF |
96" | 90" | 92-1/2" | 60" | 2-1/2" X 6" | 19700 LBS | 4270 LBS |
| 300 |
P300PGF QC300PGF |
106" | 110" | 102-1/2" | 60" | 3" X 7" | 33250 LBS | 4800 LBS |
| 500 |
P500PGF QC500PGF |
106" | 110" | 102-1/2" | 60" | 3" X 7" | 33250 LBS | 4800 LBS |
| 600 |
P600PGF QC600PGF |
110" | 116" | 106-1/2" | 72" | 3-1/2" X 8" | 51700 LBS | 5455 LBS |
| 700 |
P700PGF QC700PGF |
120" | 134" | 116" | 72" | 3-1/2" X 8" | 51700 LBS | 6835 LBS |
