P100SD
TAG Side Dump Bucket for Wheel Loaders
$14,815.00 - $38,210.00
12/24

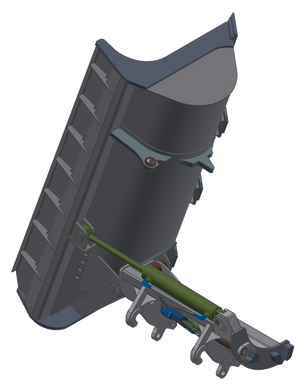

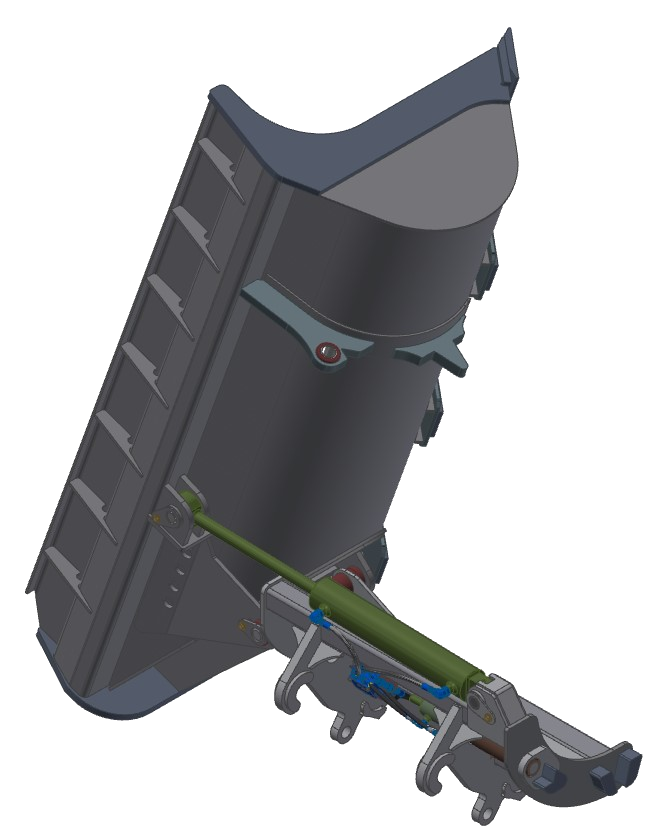

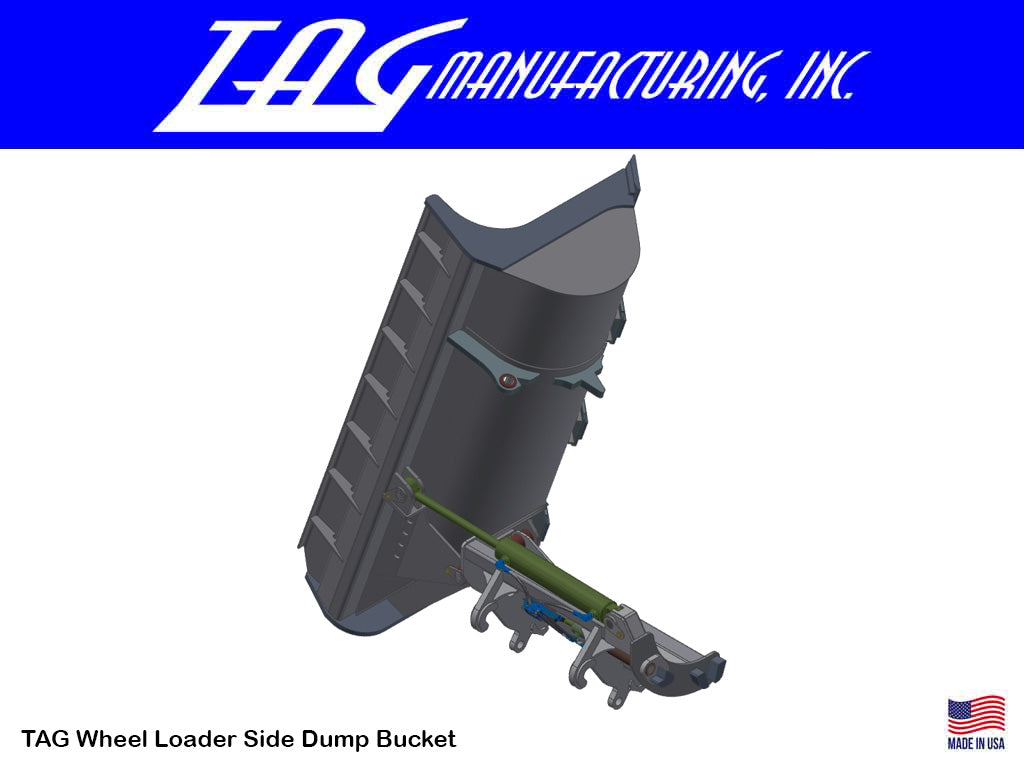

Wheel Loader Side Dump Buckets
TAG Side Dump Buckets Allow Material to Be Dumped to the Left or Right Hand Side of the Machine.
- Left Hand Dump Standard, Right Hand Dump Available
- Chute Dumps at 45 Degree Angle
- Includes Bolt on Edge & Rear Wear Pads
- Requires 3rd Function Hydraulic.
Mountings
Buckets available in direct pin on or with quick coupler adapters
| PART # | MOUNTING | BUCKET CAPACITY W/ BOCE | ESTIAMTED WEIGHT |
| P100SD | PIN-ON | 1.00 yd | 1600 LBS |
| QC100SD | QUICK COUPLER | 1.00 yd | 1600 LBS |
| P125SD | PIN-ON | 1.25 yd | 1850 LBS |
| QC125SD | QUICK COUPLER | 1.25 yd | 1850 LBS |
| P150SD | PIN-ON | 1.50 yd | 2300 LBS |
| QC150SD | QUICK COUPLER | 1.50 yd | 2300 LBS |
| P175SD | PIN-ON | 1.75 yd | 2450 LBS |
| QC175SD | QUICK COUPLER | 1.75 yd | 2450 LBS |
| P200SD | PIN-ON | 2.00 yd | 3100 LBS |
| QC200SD | QUICK COUPLER | 2.00 yd | 3100 LBS |
| P225SD | PIN-ON | 2.25 yd | 3250 LBS |
| QC225SD | QUICK COUPLER | 2.25 yd | 3250 LBS |
| P250SD | PIN-ON | 2.50 yd | 3600 LBS |
| QC250SD | QUICK COUPLER | 2.50 yd | 3600 LBS |
| P275SD | PIN-ON | 2.75 yd | 3750 LBS |
| QC275SD | QUICK COUPLER | 2.75 yd | 3750 LBS |
| P300SD | PIN-ON | 3.00 yd | 3800 LBS |
| QC300SD | QUICK COUPLER | 3.00 yd | 3800 LBS |
| P325SD | PIN-ON | 3.25 yd | 3900 LBS |
| QC325SD | QUICK COUPLER | 3.25 yd | 3900 LBS |
| P350SD | PIN-ON | 3.50 yd | 4050 LBS |
| QC350SD | QUICK COUPLER | 3.50 yd | 4050 LBS |
| P375SD | PIN-ON | 3.75 yd | 4225 LBS |
| QC375SD | QUICK COUPLER | 3.75 yd | 4225 LBS |
| P400SD | PIN-ON | 4.00 yd | 4400 LBS |
| QC400SD | QUICK COUPLER | 4.00 yd | 4400 LBS |
| P425SD | PIN-ON | 4.25 yd | 4600 LBS |
| QC425SD | QUICK COUPLER | 4.25 yd | 4600 LBS |
| P450SD | PIN-ON | 4.50 yd | 4800 LBS |
| QC450SD | QUICK COUPLER | 4.50 yd | 4800 LBS |
