P100BMR
TAG Bio Mass Rake with Independent Top Clamps for Wheel Loaders
$16,748.00 - $42,416.00
4/5

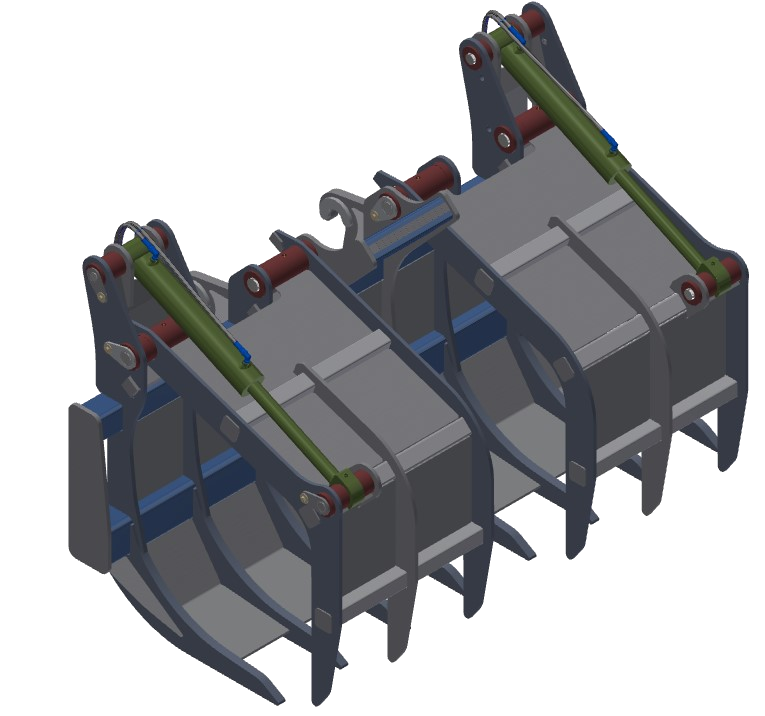

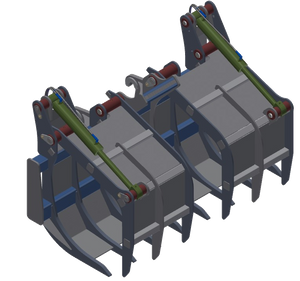

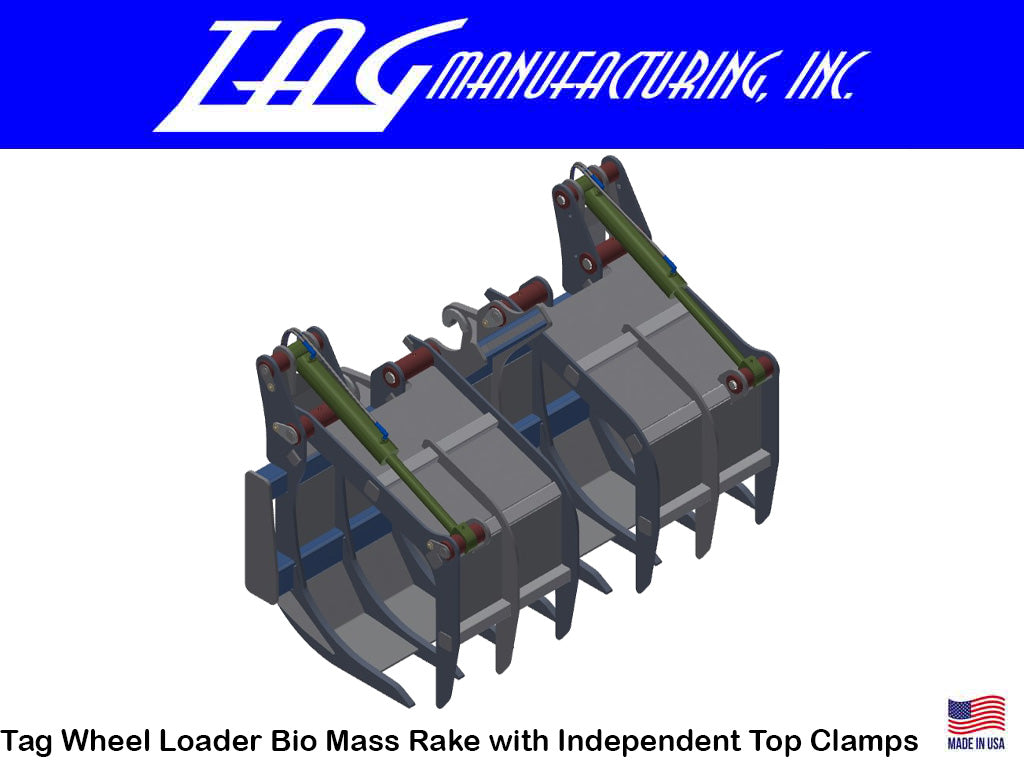

Wheel Loader Bio Mass Rake with Independent Top Clamps
TAG Severe Duty Bio Mass Rakes With Independent Top Clamps
- Special Top Clamp Design With Enclosed Clamp And Rake Sections For Max Material Retention
- Cylinder Towers And Hing Points Are Fully Integrated Extensions Of The Vertical Upper Struts
- Full Mechanical Clamp Stops
- Requires 3Rd Function Hydraulics
Mountings
Buckets available in direct pin on or with quick coupler adapters
| SKU | Width Across Tines | Tine Spacing | Tine Thickness | # of Tines | MAX Opening | Weight |
|
P100BMR QC100BMR |
94" | 13-1/4" | 1-1/4" | 8 | 70-7/8" | 2600 LBS |
|
P200BMR QC200BMR |
96" | 13-1/2" | 1-1/2" | 8 | 70-7/8" | 3600 LBS |
|
P300BMR QC300BMR |
106" | 13-1/8" | 1-1/2" | 9 | 70-7/8" | 4000 LBS |
|
P500BMR QC500BMR |
106" | 13-1/8" | 1-1/2" | 9 | 70-7/8" | 4000 LBS |
|
P600BMR QC600BMR |
114" | 14" | 2" | 9 | 76" | 5150 LBS |
|
P700BMR QC700BMR |
122" | 13-1/4" | 2-1/4" | 10 | 97-3/4" | 6000 LBS |
|
P800BMR QC800BMR |
135" | 14-3/4" | 2-1/2" | 10 | 97-3/4" | 7750 LBS |
Special Class 300/500 Skidder Tire Rake
| 130-0031Q | 114" | 12-1/2" | 1-1/2" | 10 | 70-7/8" | 4860 LBS |
| 130-0021q | 120" | 13-3/16" | 1-1/2" | 10 | 70-7/8" | 5000 LBS |
