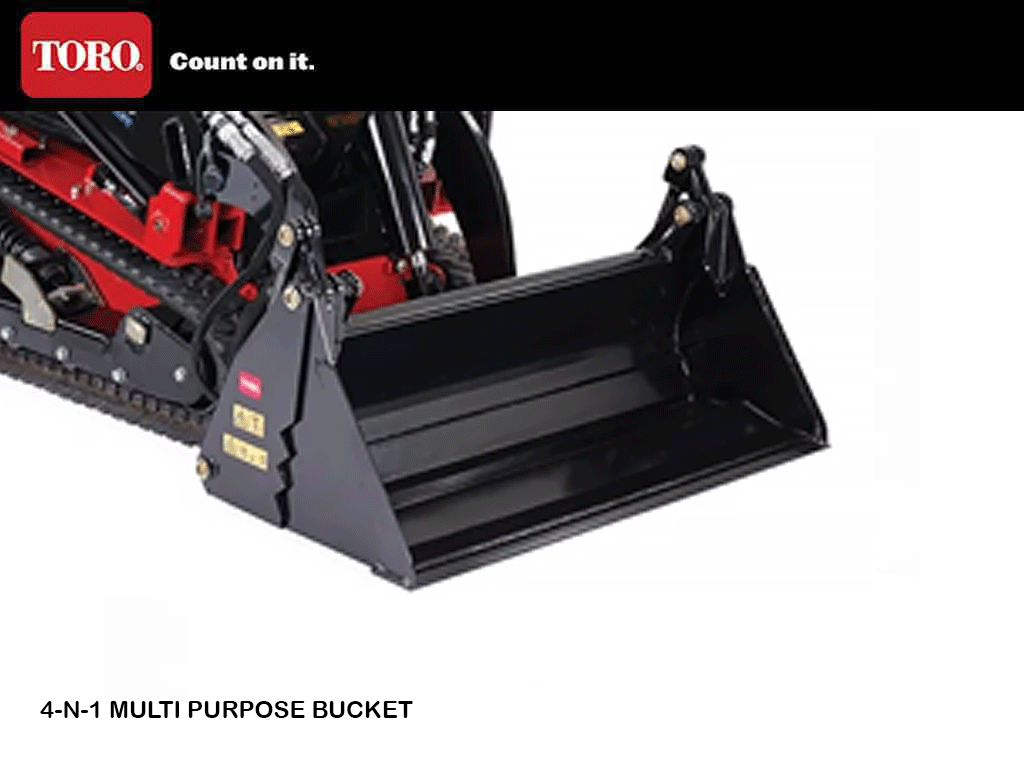

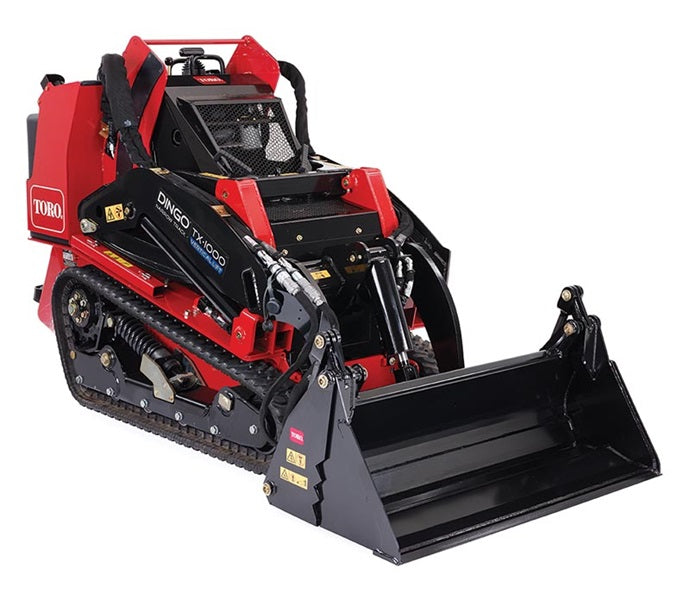

Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525 and TX 1000 models, this attachment offers the versatility of 4 attachments.
With the jaws completely closed, use this attachment as a standard bucket. Open the Dingo 4-in-1 bucket jaws to dump the contents into a higher area than a standard bucket can reach.
With the jaws completely open, use the bucket floor’s rear cutting edge as a leveler. Tip the bucket slightly forward so that the rear cutting edge of the bucket floor is on the ground and the forward edge is off the ground. Lower the cutting edge and begin leveling by dragging it in reverse across the surface of the ground.
With the jaws completely open, use the back of the bucket as a blade to push material. Or, partially close the jaws and use the bottom of the front bucket to knock the top of clumps and grade with the rear blade.
While using the traction units forward and reverse auxiliary function, the side jaws can be used for picking up material by closing them over objects or materials to be transported.
Capacity 2.7 cu. ft. (SAE struck), 3.3 cu. ft (heaped)
Height 22 in (55 cm)
Length 27 in (68 cm)
Weight 292 lbs. (132 kg)
Width 49 in (125cm)
