22318

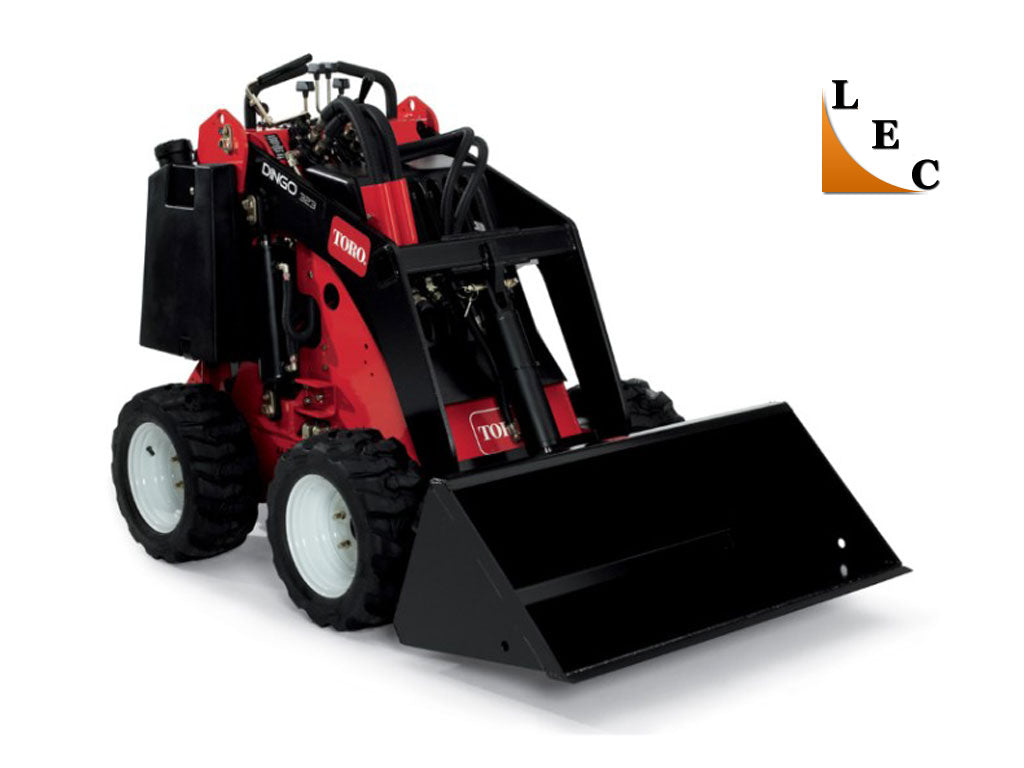

TORO DINGO 323
$31,005.00
Revised 1/26

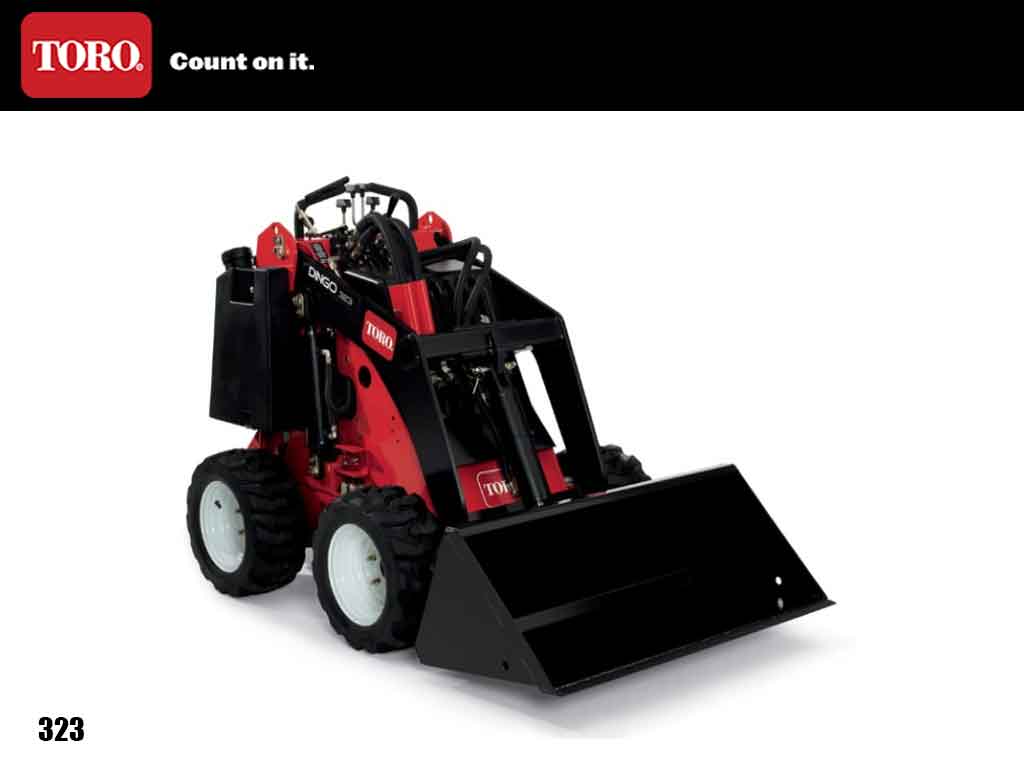

Dingo® 323 Mini Skid Steer
Overview
Equipped with the Toro designed 4-Paw®, independent 4-wheel drive system, the Dingo® 323 at 3000 psi (206.7 bar) offers incredible power and durability. Delivering 10.8 gpm (40.9 lpm) of hydraulic power with this 23 hp (17.2 kw) Kohler engine will guarantee jobsite productivity.- Independent patented hydraulic flow to all wheels, improving traction and mobility on terrain.
- Choose between low and high speeds to provide more hydraulic power to attachments or increase transport speed.
- Short wheelbase design offers excellent maneuverability.
- Accessible 4-stick fingertip hand controls enable all functions from the operator position.
4-Paw® Independent 4-Wheel Drive
Four independent wheel motors deliver hydraulic flow and pressure to all our wheels for improved traction and mobility. Fewer moving parts also mean less maintenance.
Two Transport Speeds
Low speed sends more hydraulic power to the attachment and high speed sends more power to the wheels. The low speed option also helps new operators shorten their learning curve.
Highly Maneuverable
Short wheelbase design offers excellent maneuverability. Get into tight spaces where only hand labor could go before.
Fingertip Controls
Easy-to-reach 4-stick fingertip hand controls enable all functions from the operator position. The operator controls all movements of the machine and attachments with his fingertips.
| Air Filter | Two-stage, heavy-duty, remote |
|---|---|
| Cooling System | Air Cooled |
| Dump Angle | 34 deg |
| Dump Height | 47 in. / 119.3 cm |
| Engine Displacement | 674 cc (41 cu. in.) |
| Engine Horsepower | 25 hp (18.6 kW) @ 3,600 rpm |
| Engine Make | Kohler |
| Engine Model | Command Series CH23 |
| Fuel Tank | 11.2 gal. / 42.4 L |
| Fuel Type | Gasoline |
| Ground Clearance | 5.8 in. / 14.7 cm |
| Ground Speed - Forward | Up to 3.7 mph / 6.1 km/h |
| Ground Speed - Reverse | Up to 3.7 mph / 6.1 km/h |
| Height | 48.7 in. / 123.7 cm |
| Hinge Pin Height | 66 in. / 167.6 cm |
| Hydraulic High Flow | 10.8 GPM |
| Hydraulic High-Flow Hydraulic Circuit | 10.8 GPM |
| Hydraulic Low Flow | 4 GPM |
| Hydraulic Pressure | 3,250 PSI |
| Length | 62 in. / 157.5 cm |
| Length - With Bucket | 82.2 in. / 208.8 cm |
| Max Operating Height | 91.2 in. / 231.6 cm |
| Oil Capacity | 2 qt / 1.9 L |
| Rated Operating Capacity* | 515 lbs / 233.6 kg |
| Reach - Fully Raised | 28 in. / 71.1 cm |
| Reservoir Capacity | 17 gal. / 6.4 L |
| Tip Capacity | 1,030 lbs / 467 kg |
| Track Length | 96.6 in. / 245.3 cm |
| Track Width | 5.9 in. / 14.9 cm |
| Weight | 1,567 lbs / 711 kg |
| Wheelbase | 28 in. / 71.1 cm |
| Width - With Narrow Tires | 35 in. / 88.9 cm |
| Width - With Standard Tires | 40.5 in. / 102.8 cm |
*Per ISO 14397-1
This little gas powered engine unit makes short time out of big jobs. The TORO 323 is usually equipped with a 42" bucket. The are also other very common attachments used on the universal quick coupler. S
