TORO DINGO bore drive head for mini loader
$4,104.52 - $6,131.05
Revised 1/26

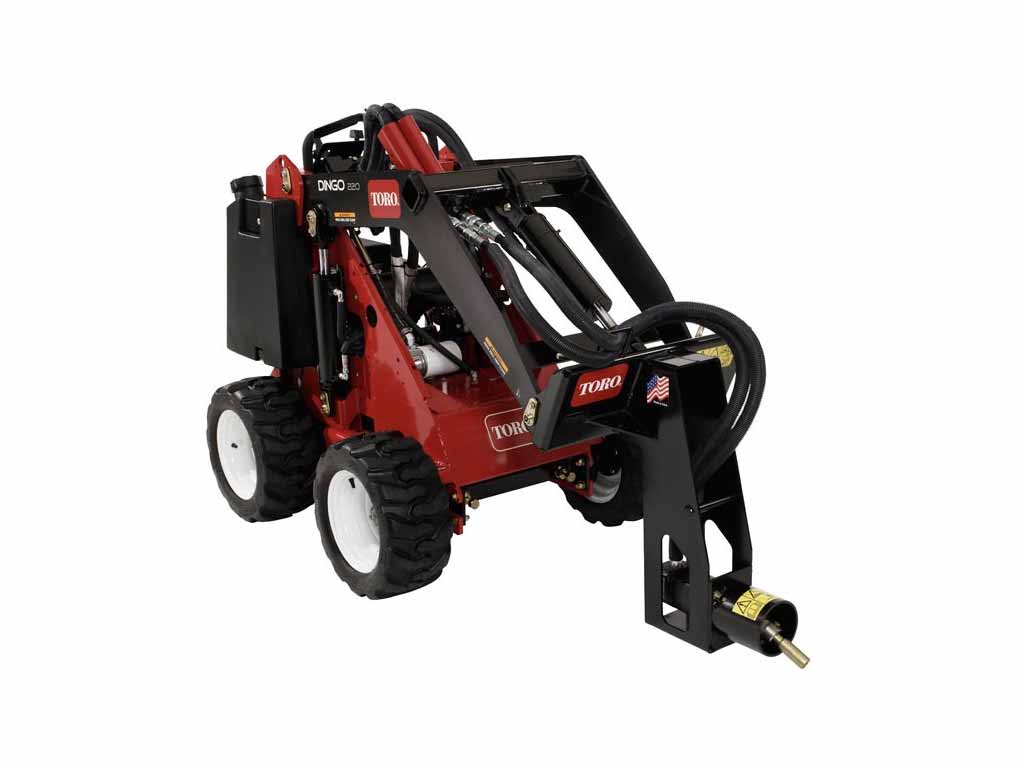

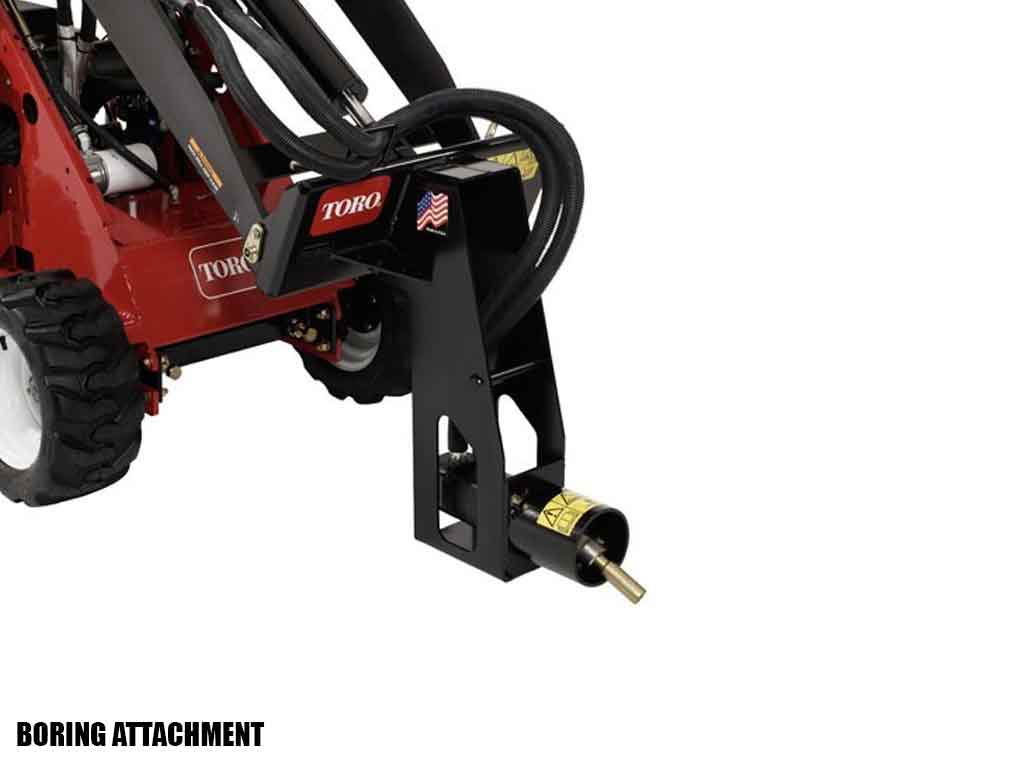

Bore Drive Head Attachment
The Toro Dingo boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.
- Universal joint keeps rods horizontal
- 19" working depth
- Accommodates pipe up to 3" diameter
- Rod and reamer kit sold separately
Features
-
Bore Depth
Bore up to 19" below ground surface
-
Universal Joint
Increases productivity by allowing you to keep rods in a horizontal digging position in the toughest soil conditions.
- Rod Connection - Hex Coupler with Snap Button
- Weight - 120 lbs.
- Working Width - 6"

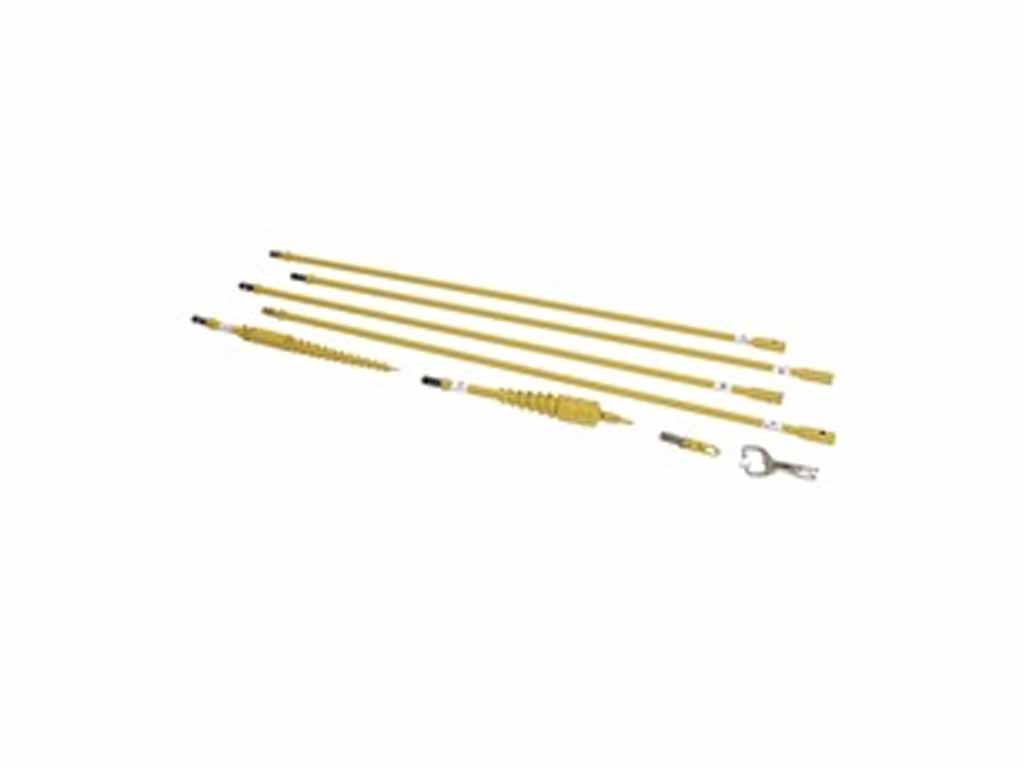

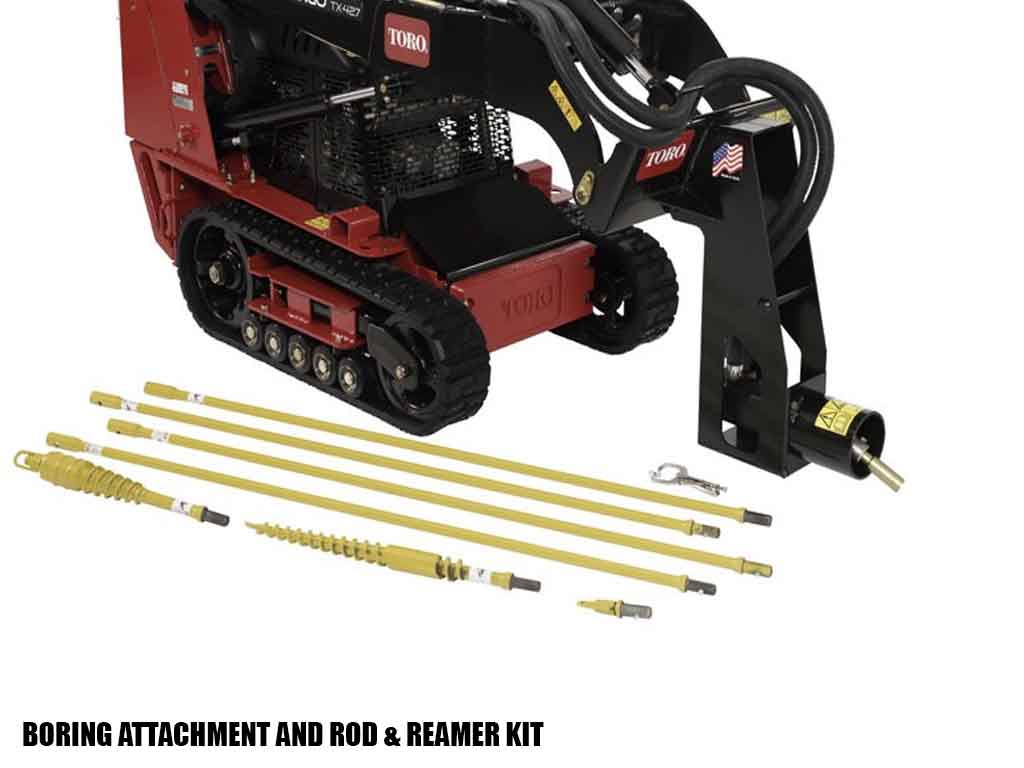

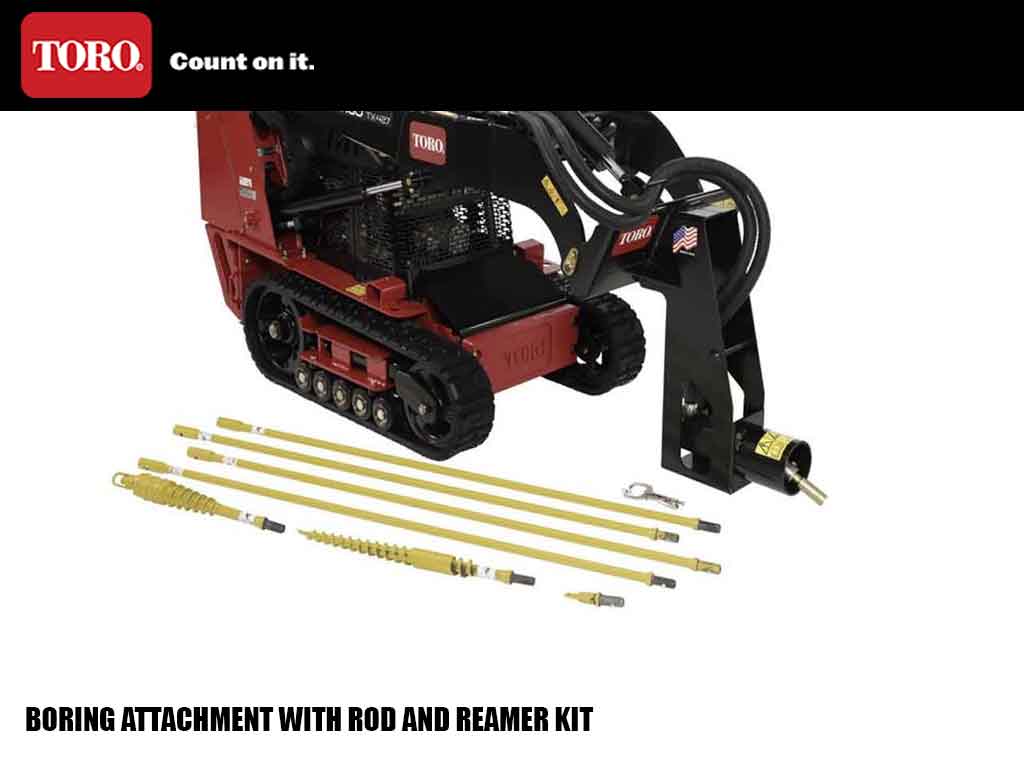

Rod and Reamer Kit
Easily bore under driveways and sidewalks to simplify irrigation and cable installations. Use with Bore Drive Head attachment model 22420. Working depth: 19". Bits and reamers up to 3.5" in diameter.
| Construction | Fabricated, welded steel frame |
|---|---|
| Height | 25 in. / 63.5 cm |
| Length | 22 in. / 55.8 cm |
| Models | Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700 |
| Mounting Frame | Dingo® quick-attach mount plate, fabricated, welded base |
| Quick Couplers | Dripless, flush face quick couplers |
| Rated Pressure | 3,000 PSI (207 BAR) |
| Rod Connection | Hex coupler with snap button |
| Torque | 430 ft/lbs at 2000 psi (59 KgVm at 138 bar) |
| Weight | 120 lbs / 54.4 kg |
| Width | 24 in. / 60.9 cm |
| Working Width | 6 in. / 15.2 cm |
