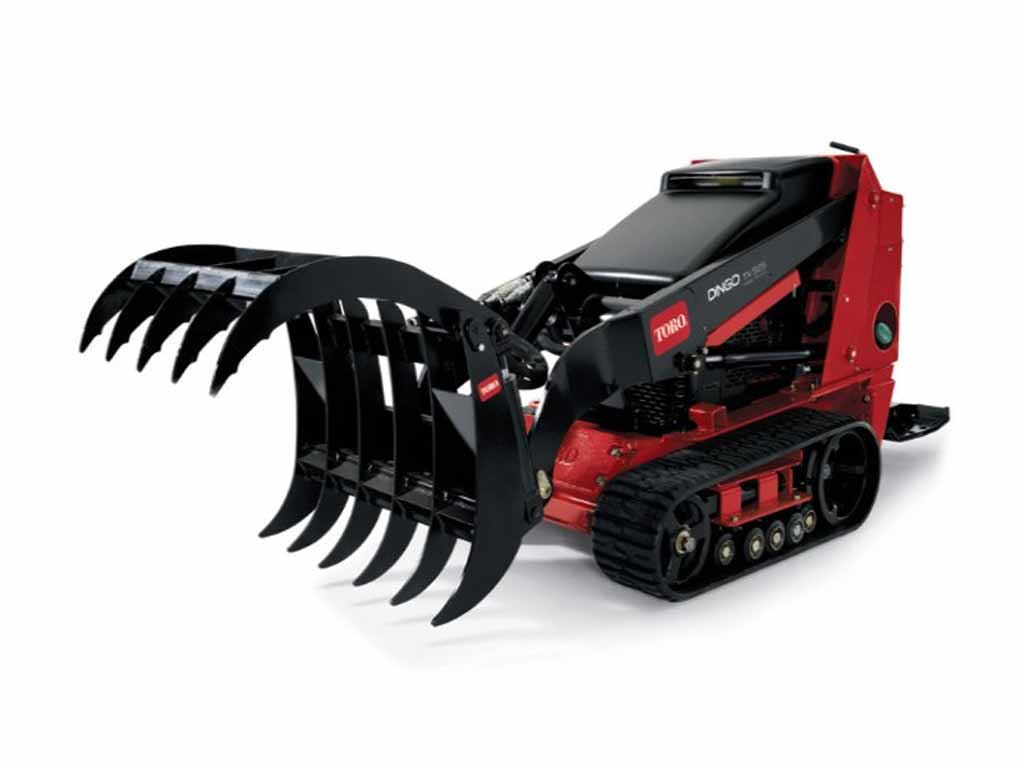

TORO DINGO GRAPPLE RAKE FOR MINI LOADER
$4,896.61
1/26

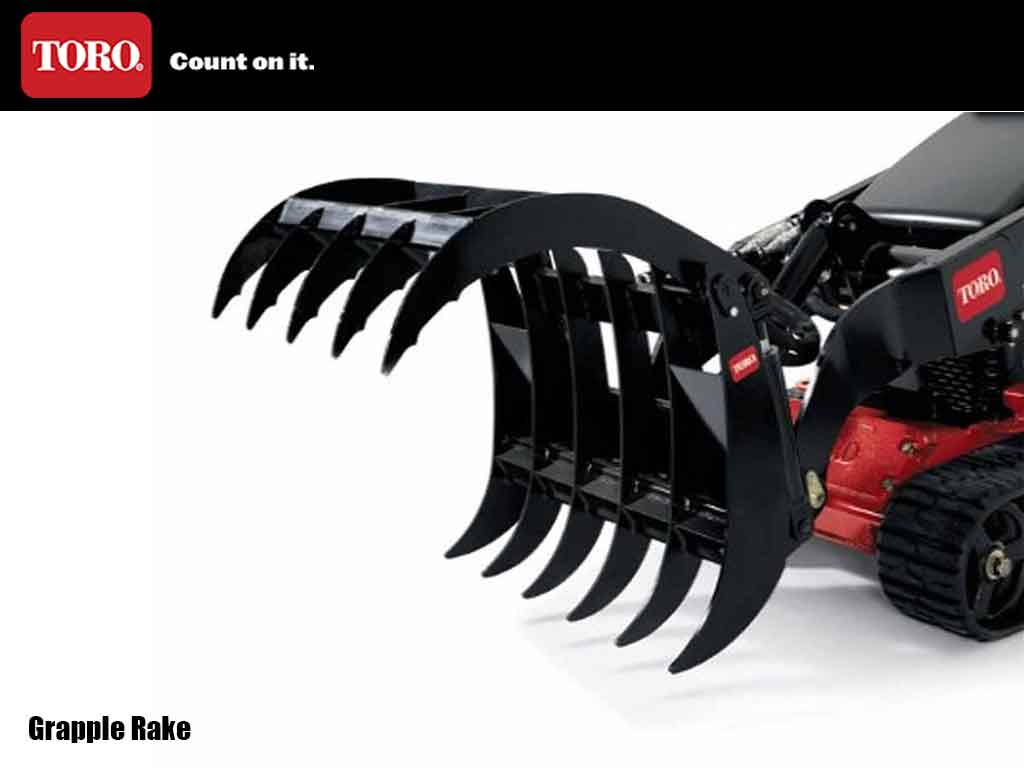

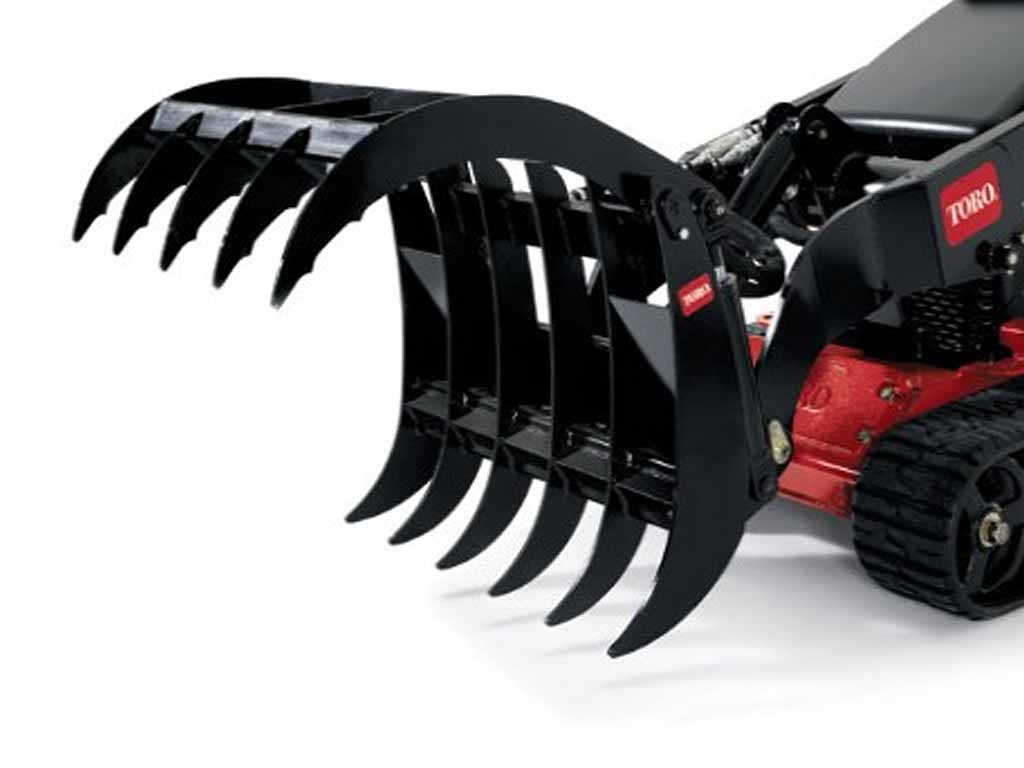

Grapple Rake Attachment
The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.
- Twin heavy-duty hydraulic cylinders
- 34.5" (87.6 cm) width guarantees access to tight areas
- Tines constructed of 3/8" (1 cm) AR400 steel*
- Four greaseable pivots reduce wear
Tines
Constructed of AR400* steel make the Toro grapple one of the strongest and most durable grapples on the market. Tines are spaced 7" (17.8 cm) apart while the bottom tine have 6 1/4" (15.9 cm) spacing, allowing the tines to intertwine to hold even the smallest loads tightly.
| Construction | Fabricated, welded steel barrel |
|---|---|
| Height | 30 in. / 76.2 cm |
| Length | 18 in. / 45. 7 cm |
| Models | Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500 |
| Mounting Frame | Dingo® quick-attach mount plate, fabricated, welded base |
| Quick Couplers | Dripless, flush face quick couplers |
| Weight | 265 lbs / 120.2 kg |
| Width | 35.5 in. / 90.2 cm |
