23136

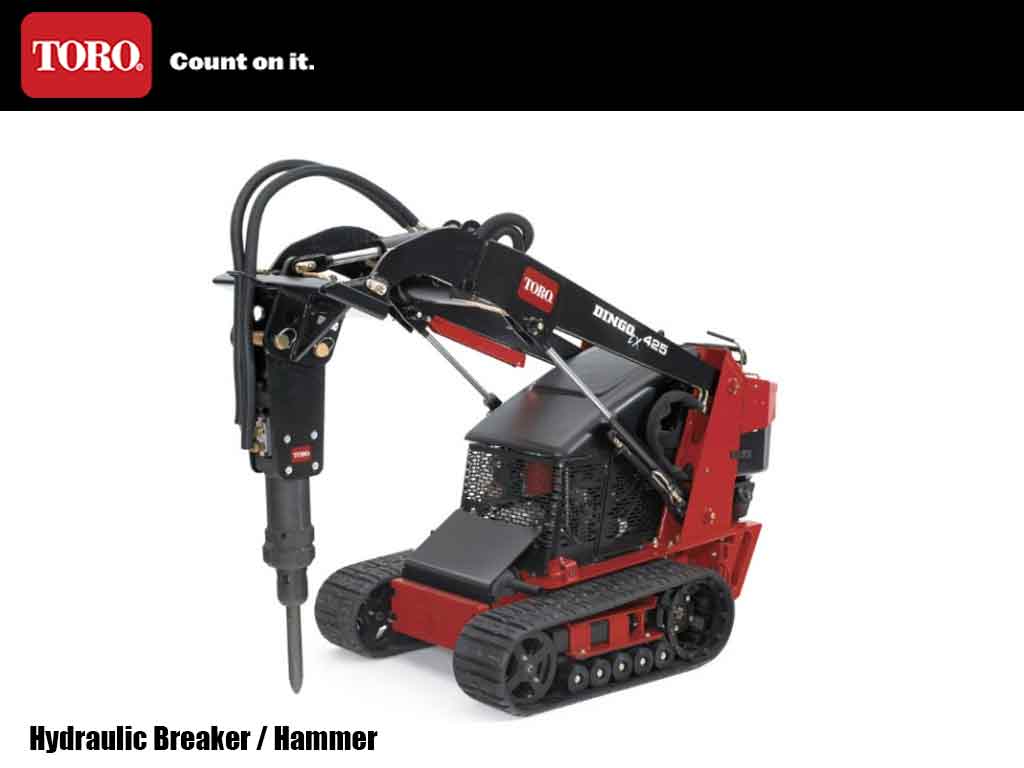

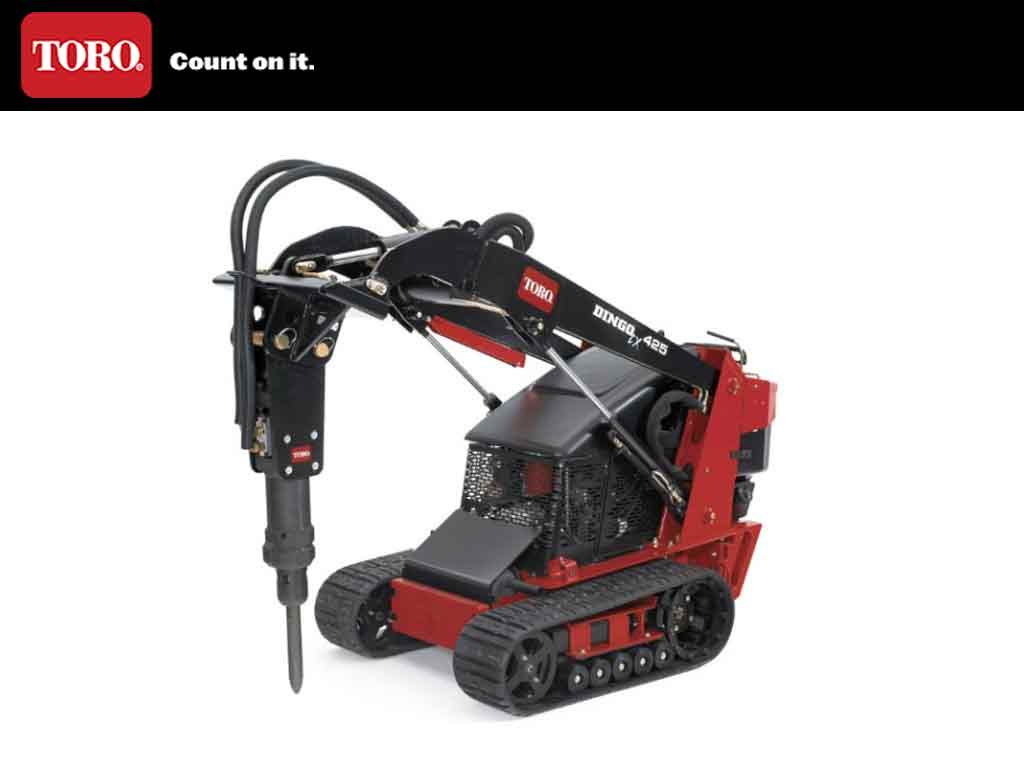

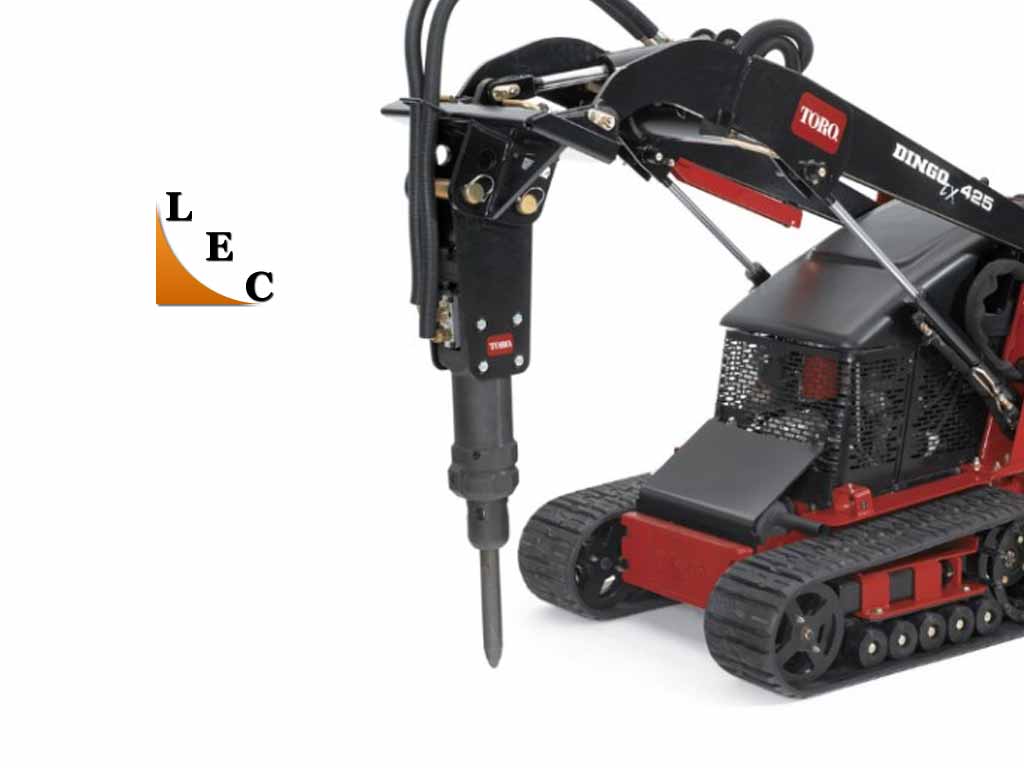

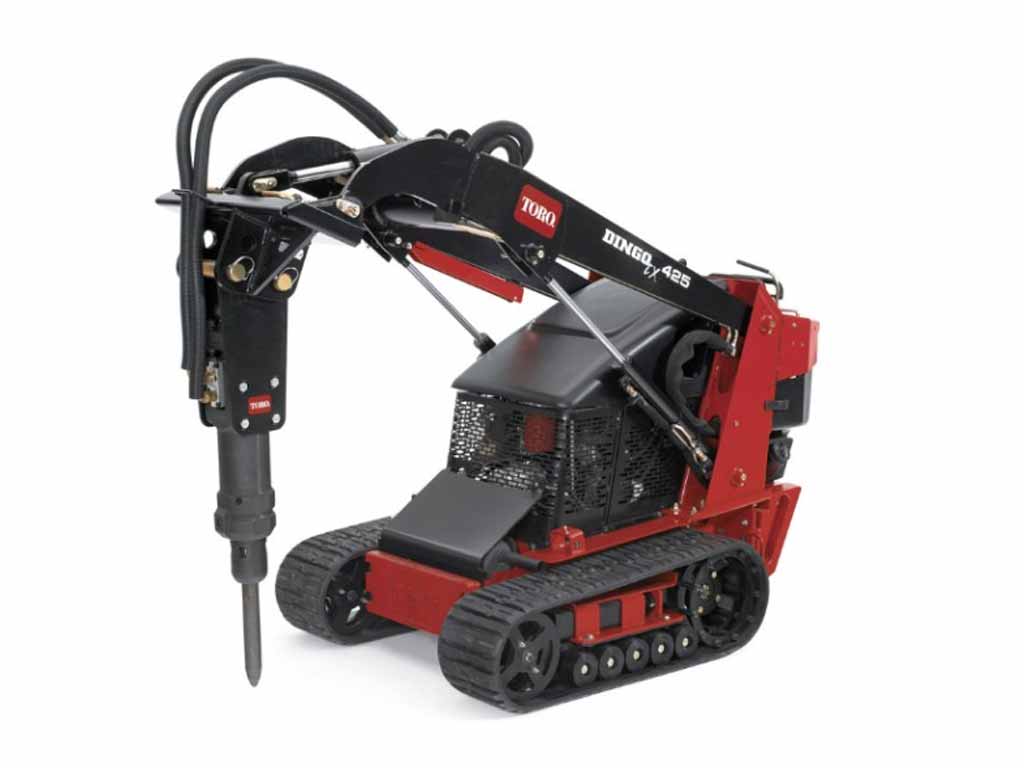

TORO DINGO HAMMER FOR MINI LOADER

Revised 2/24

The Toro Dingo hydraulic breaker simplifies the tough job of breaking concrete, asphalt, rock or brick during renovation jobs. This rugged unit helps break up footings, sidewalks, foundations and a host of other solid structures. The unique mounting configuration also allows for horizontal alignment, particularly useful in breaking apart walls.

  • Breaks Down to 10" (25.4 cm) depth

    Standard, conical tool bit breaks down to an 10" (25.4 cm) depth. Other bits available such as line, chisel and 8" (20.3 cm) tamper, moil.

  • Multi-Position Mounting Head

    Lets you break in horizontal and vertical positions.

  • 180 ft-lbs (244 N) of Force

    Powerful, 180 lbs. (244 N) of force delivers 1250 blows per minute.

  • Flow
    3.5 to 11 gpm (13.2 kpm to 41.6 lpm)
  • Required Equipment
    Crossover Relief Valve
  • Standard Equipment
    Quick Couplers 13/16" (2.1 cm)
 WIDTH 25"
HEIGHT 13"
LENGTH 50"
WEIGHT 262 LB
BIT LENGTH 17"
BIT DIAMETER 2"
ENERGY CLASS 244J
BLOW PER MIN 850 - 1250
FLOW RANGE 4 - 11 GPM

Tool Use

  • Chisel Use for all earth-moving duties, excavations in narrow trenches, stratified soil, or rock up to medium rock.
  • Moil Use to demolish rocks and materials, not stratified rock, up to medium hardness.
  • Asphalt Cutter Use to cut asphalt paving, brick walls, or turf.
