TORO DINGO

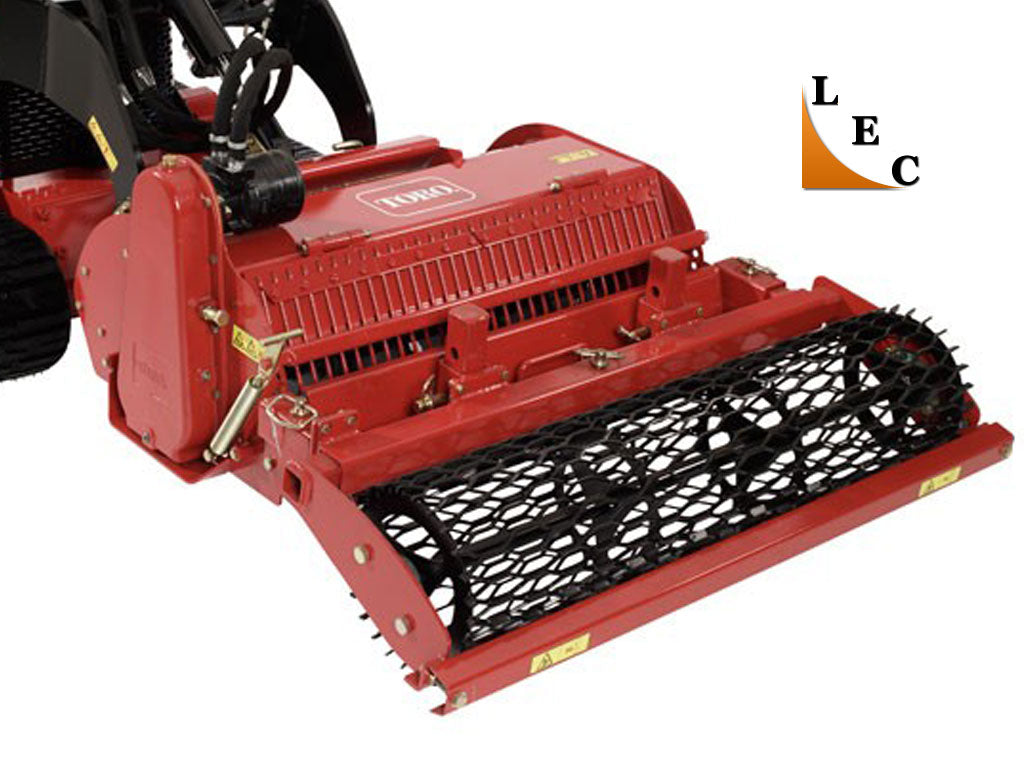

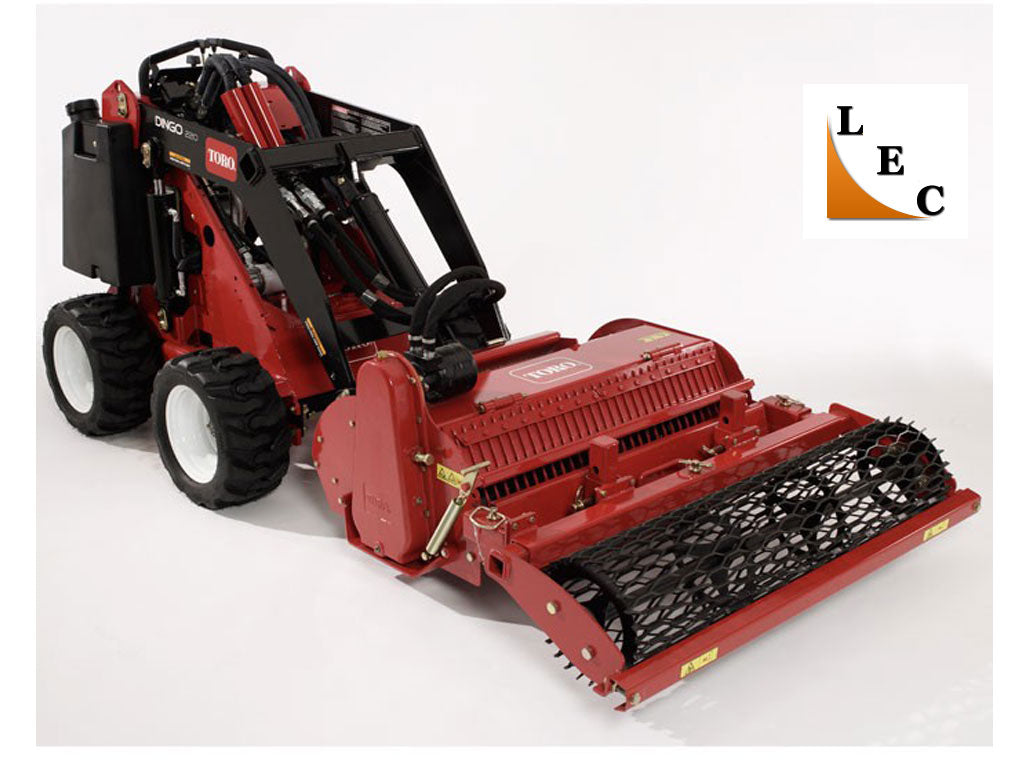

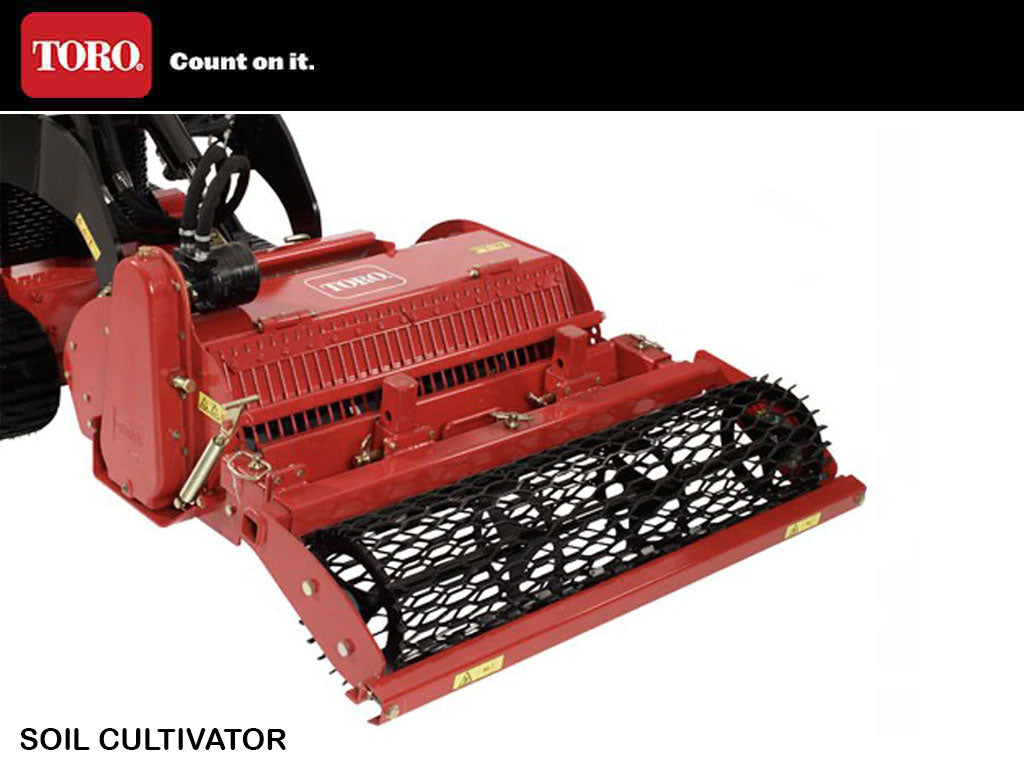

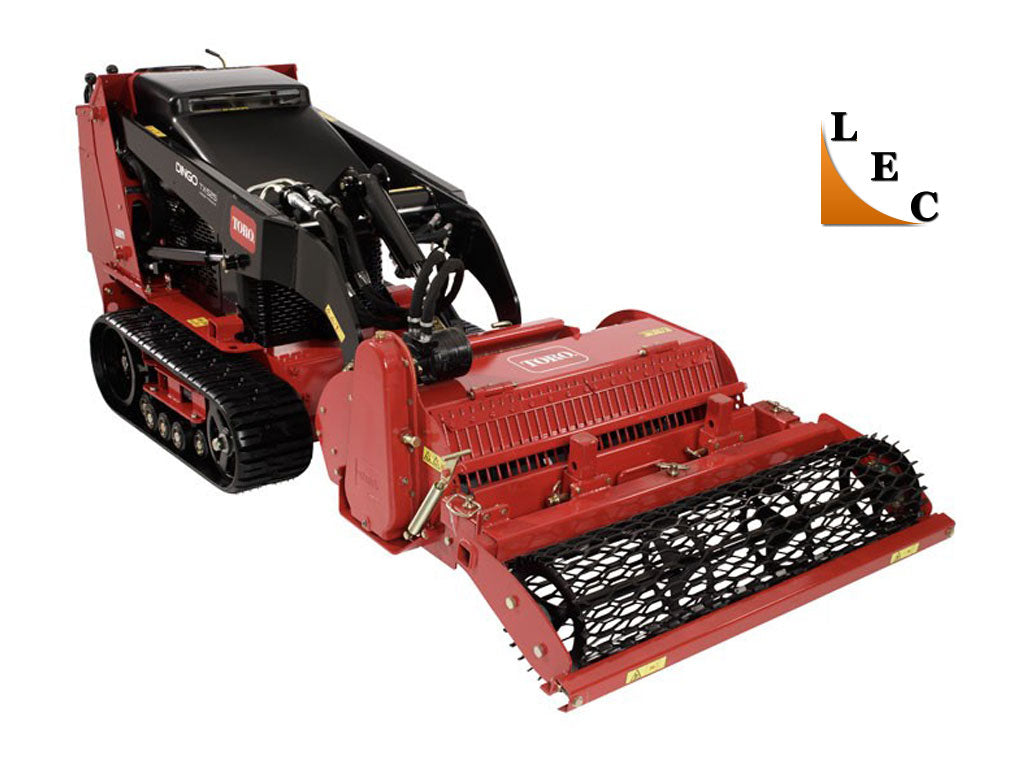

TORO DINGO SOIL CULTIVATOR

The TORO DINGO soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.

Offset Wire Mesh Rear Roller

Eliminates ridges between machine passes, and ensures for a uniform seed bed. Creates dimpled surface for maximum seed germination and root penetration.

Deep Soil Cultivation

Tiller cultivates soil up to 5.5" (14 cm) deep for maximum root penetration and healthy turf. Contractor can choose optimal depth for seed bed preparation.

High Filtering Grate

The grate permits only loose soil to pass through. Rocks, sticks, clods and debris are buried below the fresh tilled soil.

Blade Adjustment Mechanical Adjustment
Depth Control Mechanical Adjustment
Flow 7 - 14 gpm (26.5 - 53 lpm)
Height 21" (53.3 cm)
Number of Blades 20 "V" non-panning blades
Rated Pressure 3000 psi (206.7 bar)
Roller Adjustment Mechanical adjustment
Rotor Outside Diameter 11.25" (28.6 cm)
Width 51" (129.5 cm)
Working Depth 5.5" (14 cm)
Working Width 36" (91.4 cm)
Standard Equipment Dripless flush face couplers
Weight 550 lbs (249.5 kg)
Motor type LSHT Motor
Length 51" (129.5 cm)

USUALLY SHIPS IN (7) DAYS

This is one of the best attachments you can put on a mini loader for soil preparation. It is truly a one pass operation to get the job done. The design is much like a tiller. The tines are slightly different and it has a compaction roller. The compaction roller can be removed when you are in tight places.
