TORO DINGO

22530

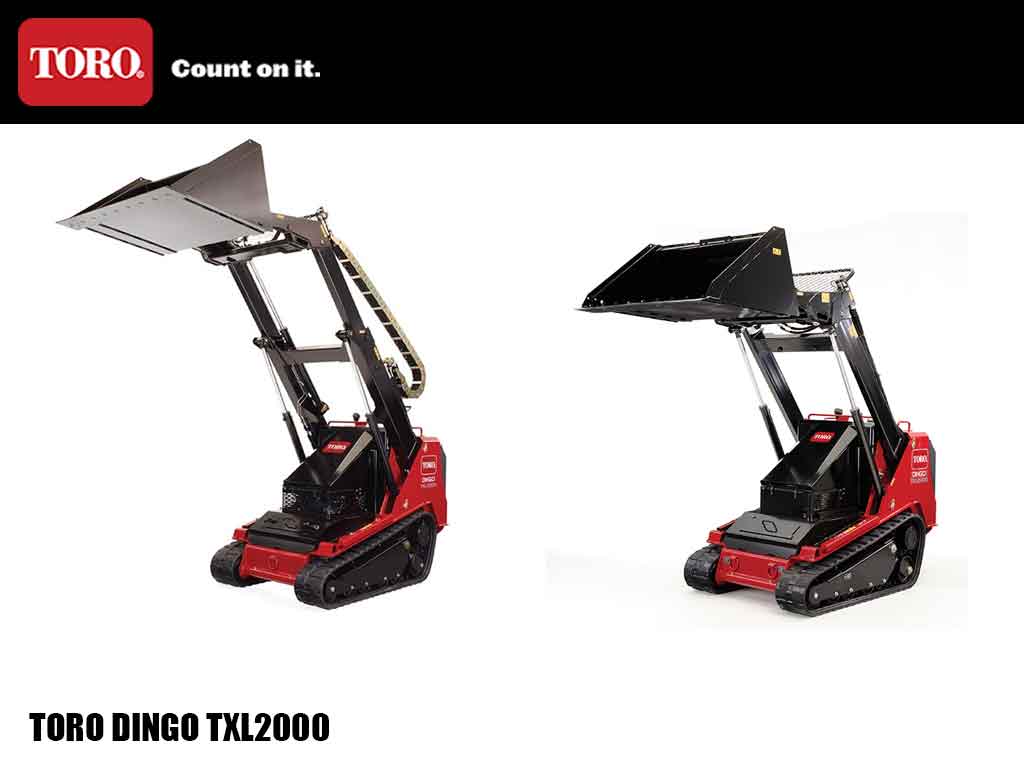

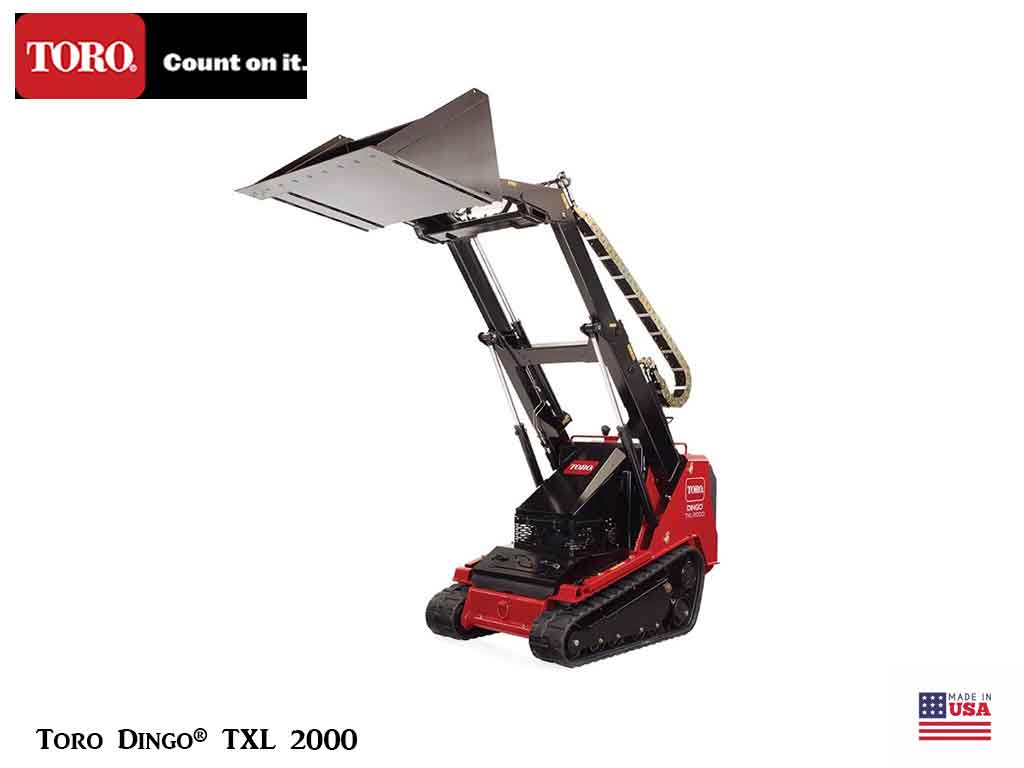

TORO DINGO TLX2000 LOADER

MODEL

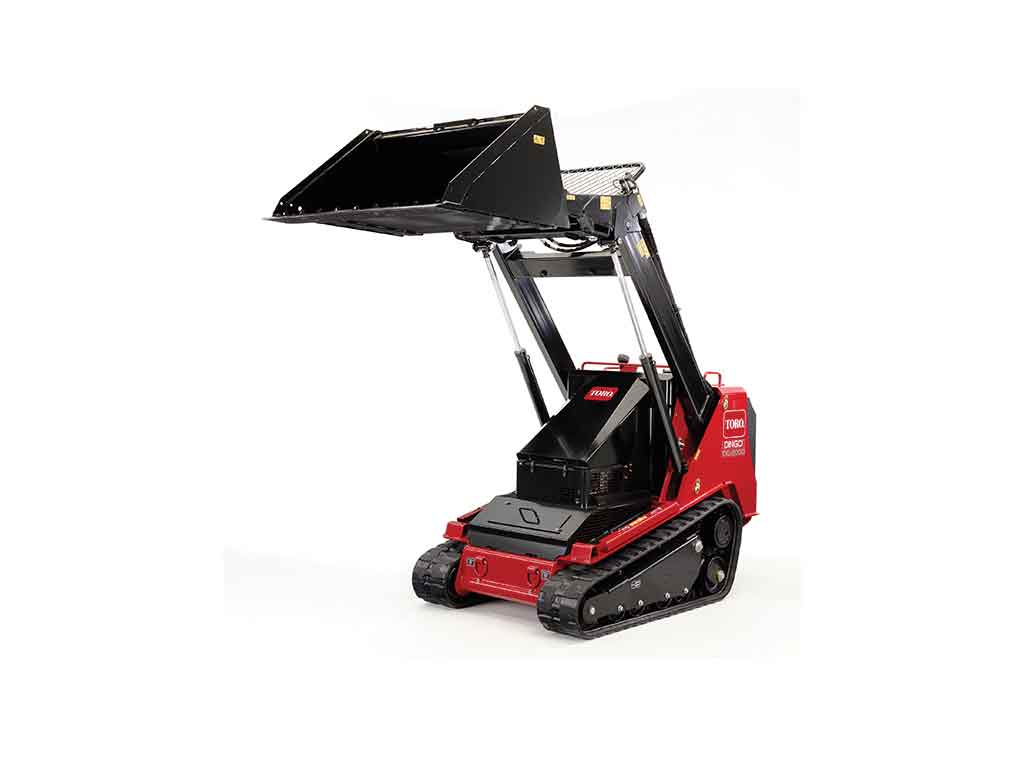

Dingo® TXL 2000 Non-Telescoping

  • Rated operating capacity over 2,000-lbs to lift more than any compact utility loader on the market, comparable to larger compact track and skid steer loaders.
  • Exclusive traction control design is intuitive, easy to operate, and effortless. Loader arm joystick includes telescoping function, proportional auxiliary control, and directional left/right control for applicable Toro TXL 2000 attachments.

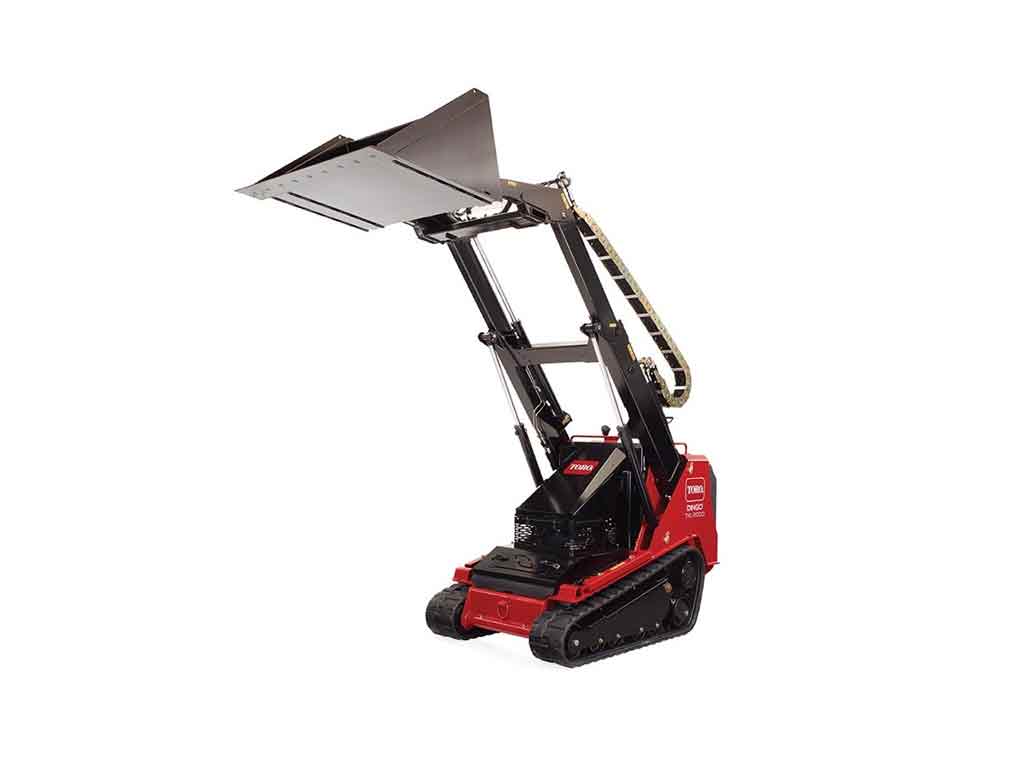

Dingo® TXL 2000 Telescoping

  • Toro-exclusive telescoping arm design increases machine versatility with the ability to reach farther and dig below grade without even moving.
  • Rated operating capacity over 2,000-lbs to lift more than any compact utility loader on the market, comparable to larger compact track and skid steer loaders.

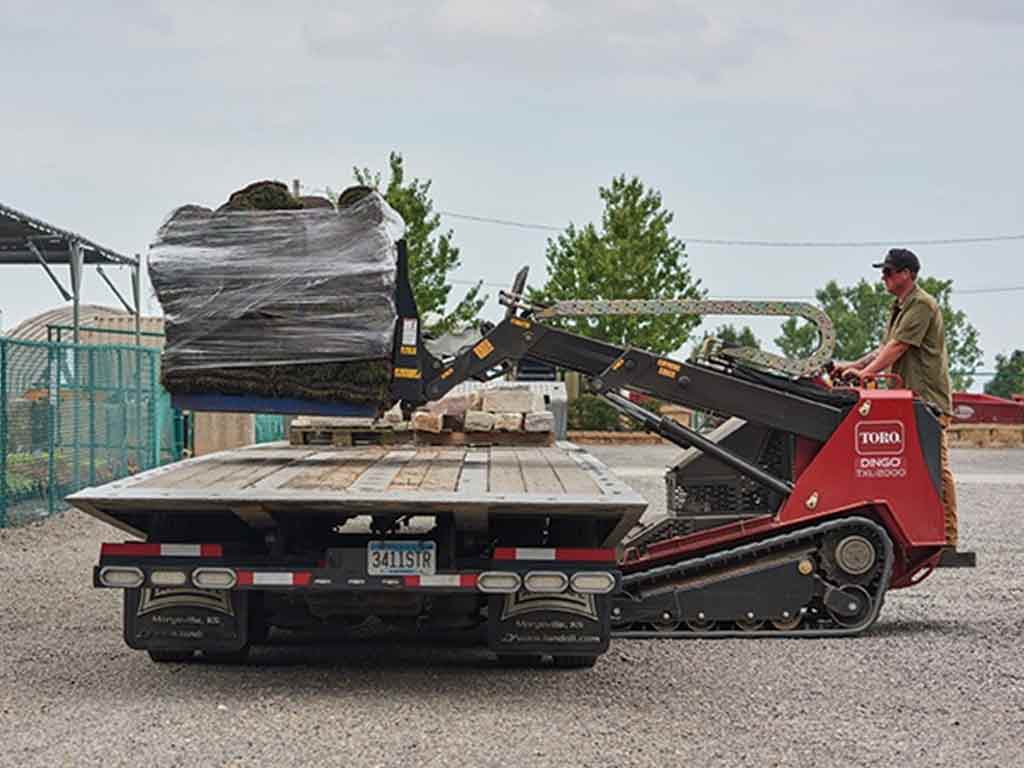

  • 123” (3.1 m) telescoped hinge pin height easily clears the side of a standard dump truck and 44” (112 cm) of telescoped reach allows for unloading of a flat-bed truck from one side.
  • Exclusive traction control design is intuitive, easy to operate, and effortless. Loader arm joystick includes telescoping function, proportional auxiliary control, and directional left/right control for applicable Toro TXL 2000 attachments.

FEATURES

2,000 lbs. ROC

An industry leading 2,000 lbs. rated operating capacity allows the operator to handle many jobsite materials suited for larger machines.

Superior Visibility

A dedicated stand-on machine offers superior 360° visibility for optimized jobsite performance and awareness.

Controls

Toro’s exclusive traction control design allows operator’s of all skill levels to operate the machine with ease and precision. The loader arm control is designed to allow not only loader arm function control, but has the telescoping function, proportional auxiliary control, and directional left/right control for applicable Toro TXL 2000 attachments.

Compact Footprint

A 54” wide frame allows the machine to access smaller spaces that larger machines are not able to.

Ease of Access

The dedicated stand-on platform allows the operator to step-on and step-off the machine with ease and comfort to allow for enhanced jobsite efficiencies – not having to enter/exit a cab.

Telescoping Arms (If Equipped)

A Toro-exclusive telescoping arm design allows the operator to lift loads up to 123” high (hinge pin height) and reach out 44” for placement and removal of jobsite materials.



MODEL NON-TELESCOPING TELESCOPING
MODEL NUMBER 22531 22530
AIR FILTER Two-stage Two-stage
AUX FLOW 21.4 gpm 21.4 gpm
CONTROLS electronic electronic
COOLING Liquid Liquid
ENGINE

49.6 hp (37 kW)

Kubota D1803 Diesel

49.6 hp (37 kW)

Kubota D1803 Diesel

CLEARANCE 6.3" 6.3"
PRESSURE 5.3 PSI 5.3 PSI
SPEED 5.4 mph 5.4 mph
HEIGHT 67.8" 67.8"
HINGE PIN 98.6"  98.6"/123.4"
PRESSURE 5.3 PSI 5.3 PSI
LENGTH 98.8"/136.9" 98.8"/136.9"
OPERATING CAP 2,000 lbs  2,000 lbs / 920 lbs
RESERVOIR CAP 15.25 gal 15.25 gal
STEERING electronic electronic
TIP CAP 5,715 lbs 5,715 lbs /2,620 lbs
TRACK 162.2 " x 11.8" 162.2 " x 11.8"
TRACK WIDTH 11.8" 11.8"
TRACTION FLOW 21.5 gpm 21.5 gpm
WEIGHT  6,235 lbs 6,655 lbs
WIDTH 54" 54"
