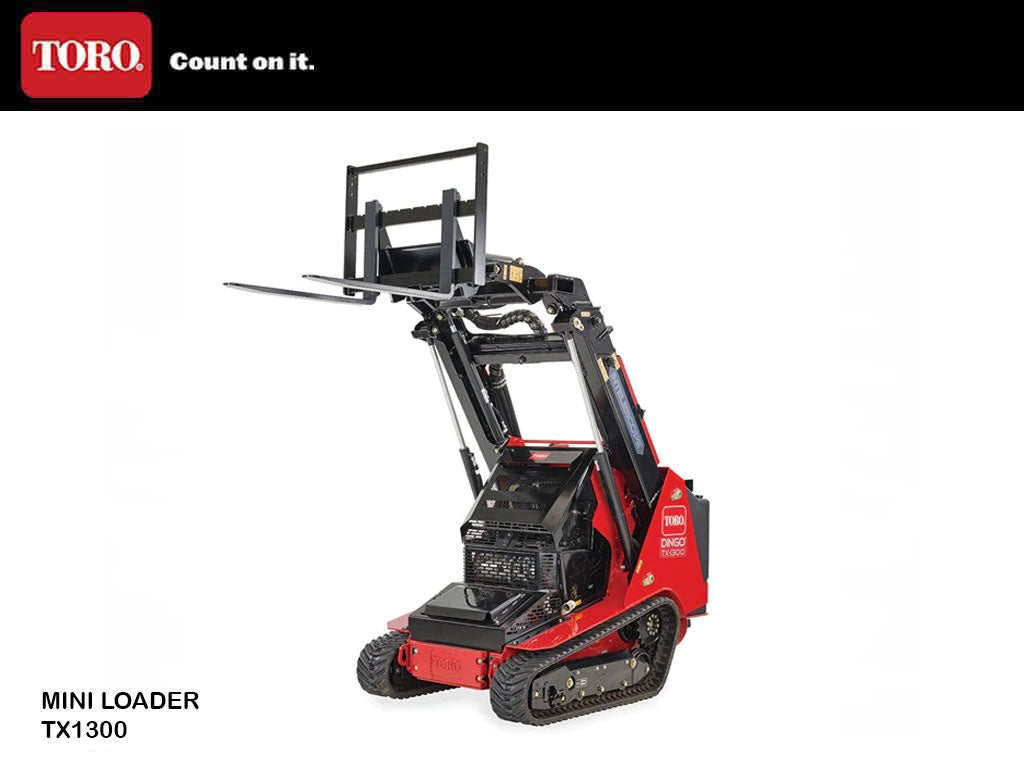

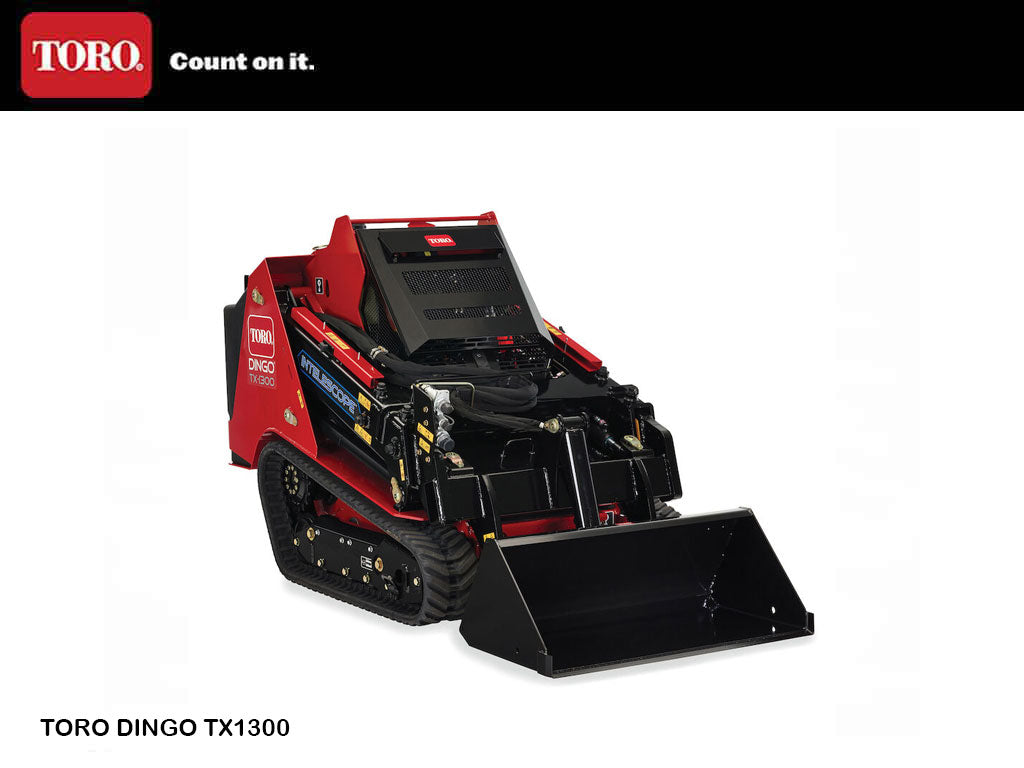

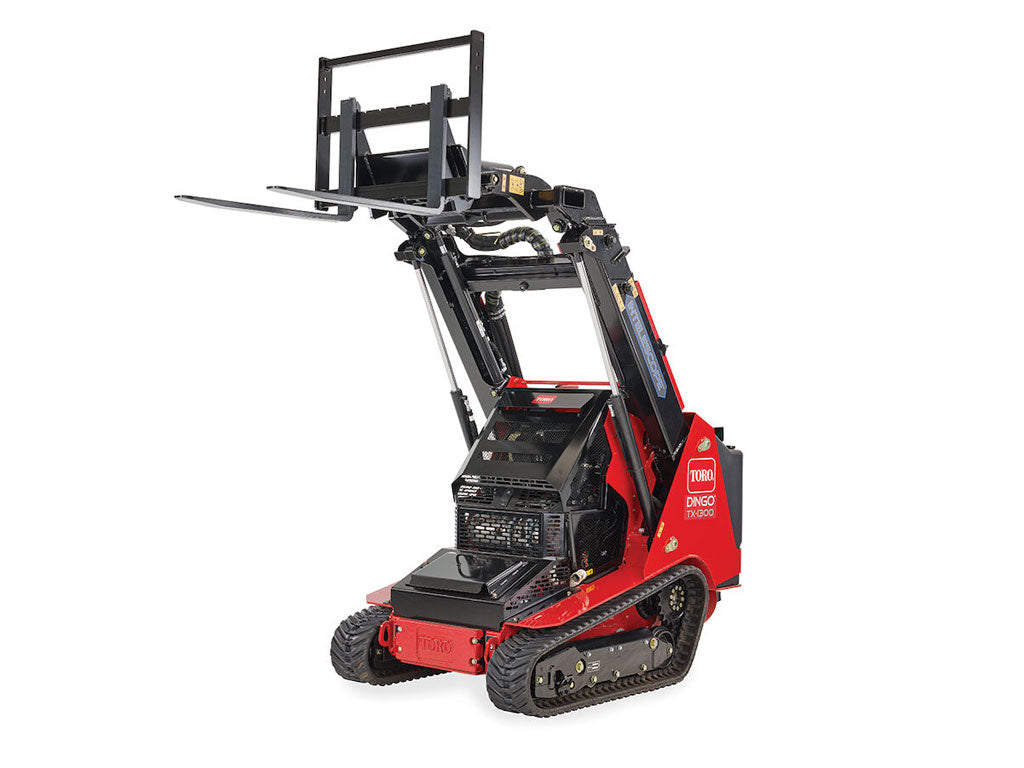

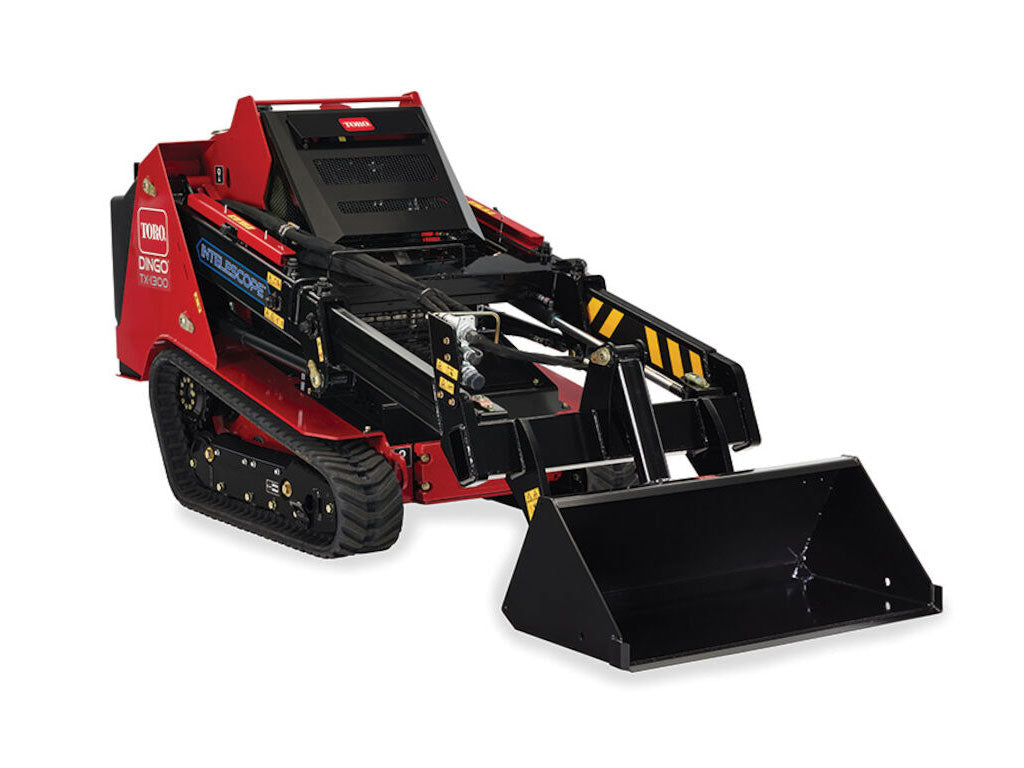

TORO DINGO TX1300 mini loader
$62,592.00
- DESCRIPTION
- Intelescope Loader Arm
- Outstanding ROC
- Quick Coupler System
- Auxiliary Pedal
- Ease of Use
- SPECS
Dingo® TX 1300
- MODEL: 22370 UPC/EAN: 21038223704
- Intelescope Loader Arm
- Outstanding ROC
- Quick Coupler System
- User friendly auxiliary pedal
Overview
Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26" of reach, and the telescoped hinge-pin height of 109" means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.- Featuring SmartLoad for a hinge-pin height of 109" which adds 26" of reach over other compact utility loaders.
- The durable loader arm with improved q-tach casting, allows for a more durable loader arm design and up to 1,300 lbs of operating capacity
- Pressure relieving quick coupler system makes connection of attachments easier
- User friendly auxiliary pedal on an enlarged operator platform improves ease of engagement
- Toro patented traction control and integrated hydraulic operation in loader arm control
Specifications
| Air Filter | Remote dual element |
|---|---|
| Dump Angle | 38 degrees |
| Dump Height (cm) | 230.3 |
| Dump Height (inches) | 90.7 |
| Engine Make | Yanmar |
| Fuel Tank (gallons) | 11 |
| Fuel Tank (liters) | 42 |
| Fuel Type | Diesel |
| Ground Clearance (cm) | 15 |
| Ground Clearance (inches) | 5.9 |
| Ground Pressure | 5.5 psi |
| Ground Speed Forward (mph) | 4.7 |
| Ground Speed Foward (km/h) | 7.6 |
| Ground Speed Reverse (km/h) | 7.6 |
| Ground Speed Reverse (mph) | 4.7 |
| Hinge Pin Height (cm) | 277.4 |
| Hinge Pin Height (inches) | 109.2 |
| Hydraulic Flow Auxilary | 14.3 gpm |
| Hydraulic Flow Traction | 13.4 gpm (each pump) |
| Hydraulic Pressure | 3,200 psi |
| Loader Arms | Radial |
| Manufacturer's Gross HP Rating (HP) | 37 |
| Manufacturer's Gross HP Rating (kW) | 27 |
| Max Operating Height (cm) | 337.8 |
| Max Operating Height (inches) | 133 |
| Oil Capacity (liters) | 4.7 |
| Oil Capacity (quarts) | 5 |
| Overall Height (cm) | 143.5 |
| Overall Height (inches) | 56.5 |
| Overall Length w/bucket (cm) | 262 |
| Overall Length w/bucket (inches) | 103.1 |
| Overall Length w/o bucket (cm) | 215.6 |
| Overall Length w/o bucket (inches) | 84.9 |
| Overall Width (cm) | 116.8 |
| Overall Width (inches) | 46 |
| Rated Operating Capacity - 35% of Tip Capacity (kg) | 590 |
| Rated Operating Capacity - 35% of Tip Capacity (lbs) | 1300 |
| Reach – Fully Raised (cm) | 67.8 |
| Reach – Fully Raised (inches) | 26.7 |
| Reservoir Capacity (gallons) | 9.2 |
| Reservoir Capacity (liters) | 34.8 |
| RPM | 3000 |
| Tip Capacity (kg) | 1685 |
| Tip Capacity (lbs) | 3714 |
| Track Length (inches) | 126.6 |
| Track Length(cm) | 322 |
| Track Width (cm) | 23 |
| Track Width (inches) | 9.1 |
| Tracks | MERT track with "TF" style tread |
| Traction | Dual Hydrostatic Pump |
| Weight (kg) | 1750 |
| Weight (lbs) | 3858 |
| Wheelbase (inches) | 39 |
