22323

TORO DINGO TX525

MODEL
Revised 1/24

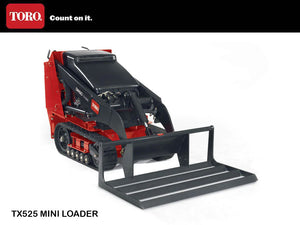

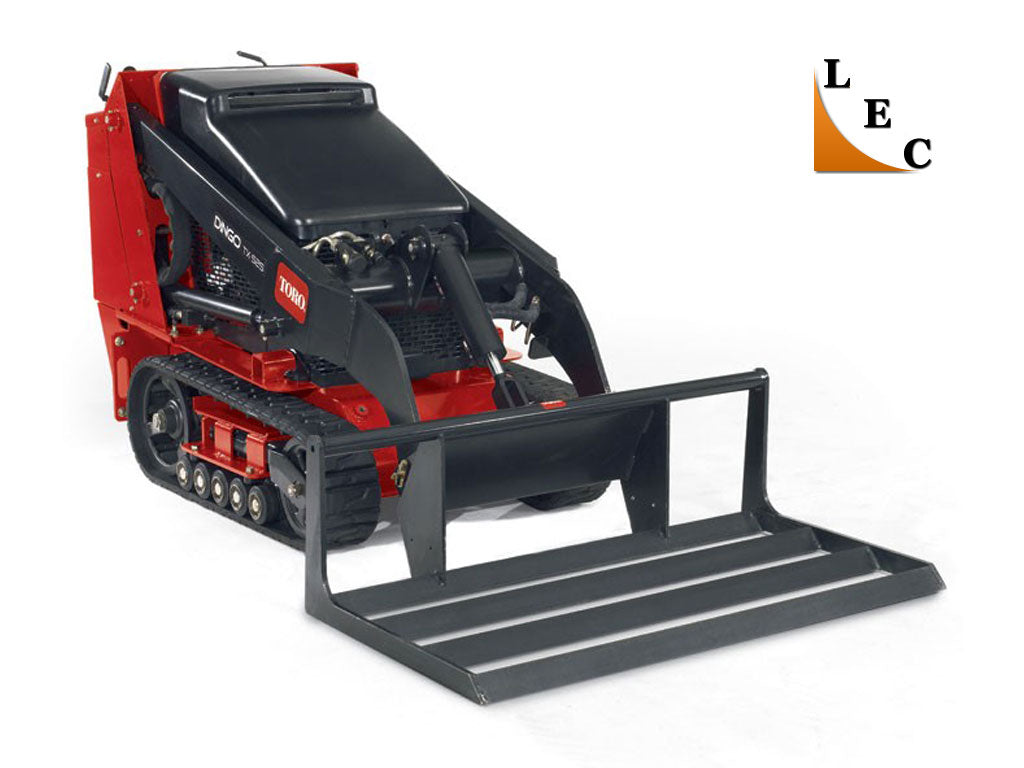

Dingo® TX 525 Track Loader

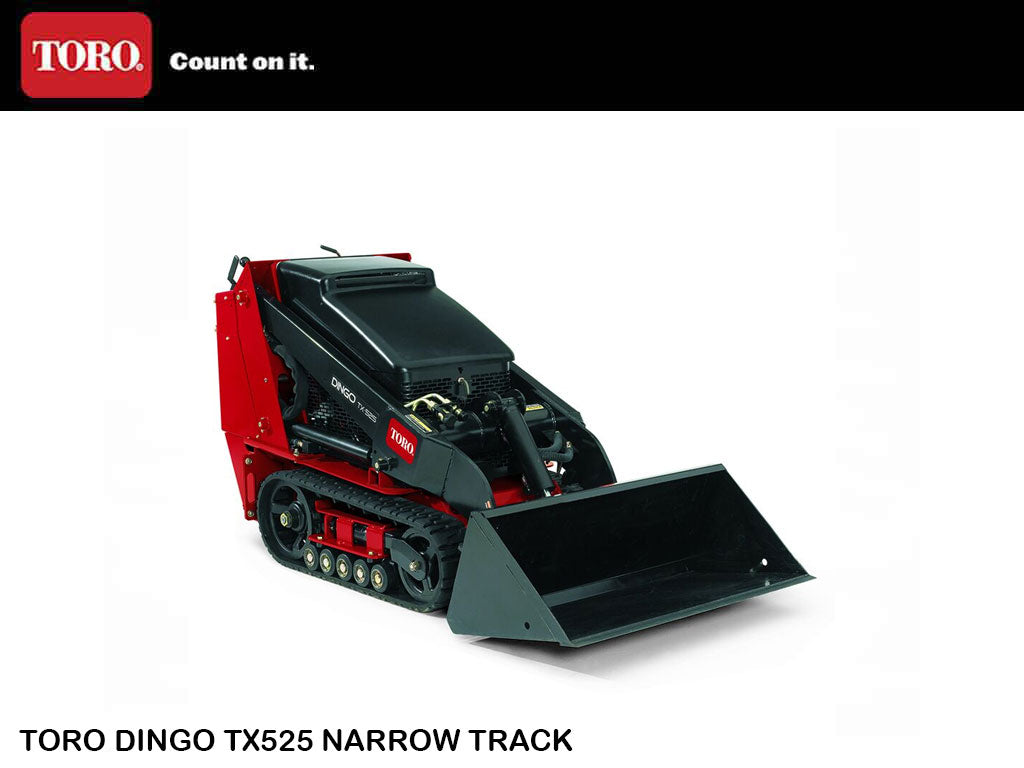

  • Model: 22323 (Narrow track)

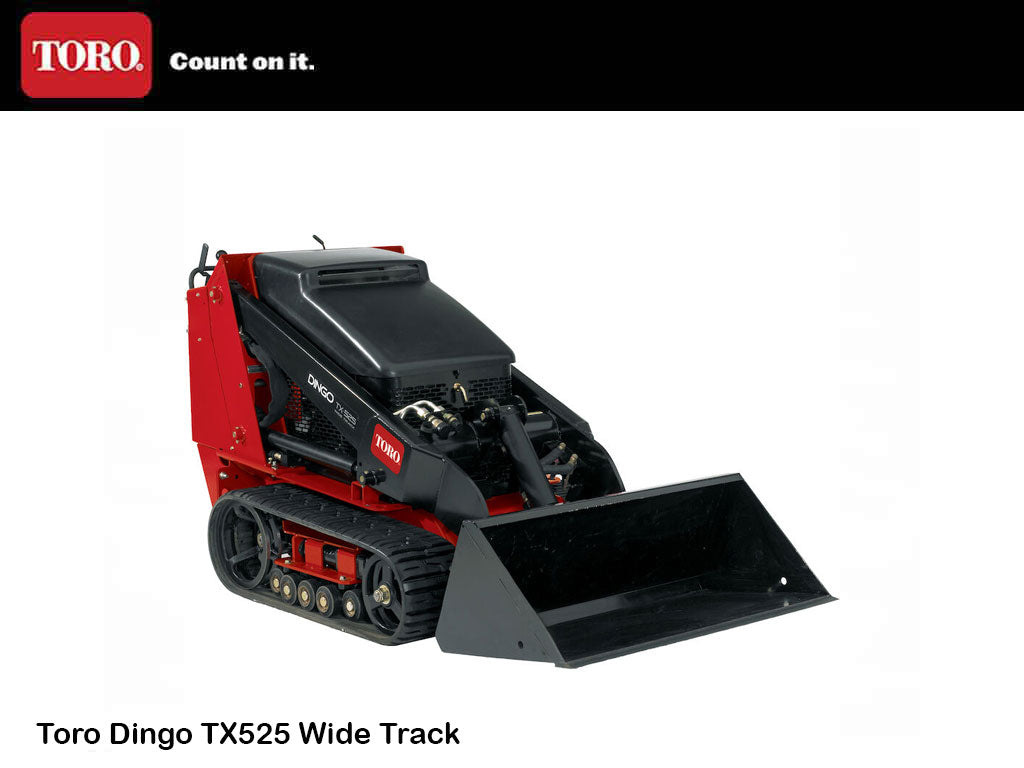

  • Model: 22324 (Wide track)
  • Patented TX control system
  • Narrow track compact footprint fits through standard 36" gates
  • Liquid-Cooled Kubota diesel engine

Toro Dingo compact utility loaders possess the versatility to handle countless jobs on every site: dig, haul, plant and build. The TX525 design provides a low ground pressure which is easy on turf. Designed with workers in mind, all of its power is harnessed in only 3 easy to use controls, which make it simple for any worker to step up and be productive immediately! The TX525 comes in narrow and wide configurations.

Diesel. Done Right.
Our diesel Dingo TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachments, yet has a ground pressure as low as 5.2 psi. And because they're part of the full-line family, these diesels are compatible with all of Toro's compact utility loader attachments.

Simple Controls

You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.

Exclusive TX Track Drive

Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.

4-Pump Hydraulic System

4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Compact Size

Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.

Liquid-Cooled Diesel Engine

The 25 hp (18.6 kw) Kubota diesel engines torque curve combined with the added auxiliary hp provide attachments the added power tough jobs require.

Hydraulic Power

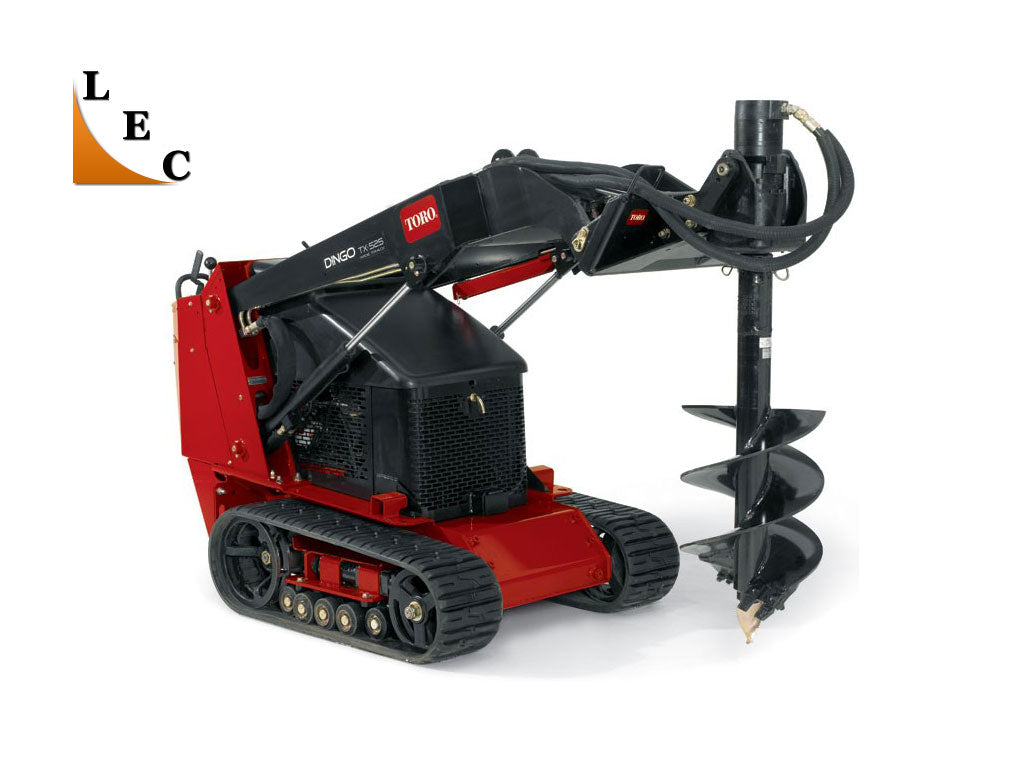

Up to 10.8 gpm (40.9 lpm) at 3000 psi (207 bar) hydraulic system gives you incredible hydraulic power to auger up to 30" (76 cm) holes or trench 36" (91 cm) deep.

Reinforced Tracks

Durable Kevlar reinforced tracks offer extended life, unlike competitive units with metal inserts. Open design of tracks offers self cleaning, preventing the collection of sand, rock, mud, and debris that could jam tracks.


TRANSPORT / DIMENSIONS NARROW WIDE
 WEIGHT 1904 LB 2013 LB
LENGTH W/ BUCKET 92" 92"
LENGTH W/O BUCKET 70.7" 70.7"
WIDTH 33.7" 41"
HEIGHT 46.1" 46.1"
GROUND CLEARANCE 4.6" 4.6"
PERFORMANCE
OPERATING CAPACITY 553 LB 553 LB
TIP CAPACITY 1580 LB 1580 LB
SPEED FORWARD 0 - 4.5 MPH 0 - 4.5 MPH
SPEED REVERSE 0 - 2 MPH 0 - 2 MPH
HINGE PIN HEIGHT 65.8" 65.8"
TRACK 96"X5.9" 96"X9.5"
GROUND PRESSURE 5.0 PSI 3.5 PSI
ENGINE
HORSEPOWER 23.3 HP 23.3 HP
MAKE  KUBOTA KUBOTA
MODEL D902 D902
COOLING SYSTEM LIQUID LIQUID
FUEL DIESEL DIESEL
HYDRAULICS
FLOW (AUX) 13.8 GPM 13.8 GPM
PRESSURE 3000 PSI 3000 PSI
RESERVOIR  10.5 GAL 10.5 GAL
TRACTION FLOW 16.9 GPM 16.9 GPM
LOADER ARM FLOW 6 GPM 6 GPM
WARRANTY
MACHINE 1 YEAR 1 YEAR
ENGINE 2 YEAR 2 YEAR

     Toro is the top selling mini loader. More attachments, low cost of ownership, and by far the best resale value. When looking for a mini loader the Toro Dingo TX525 is defiantly a unit to look at. The TX525 can come in narrow or wide track. All TX525’s have KUBOTA diesel engines.
