TORO

22423

TORO multi purpose tool for mini loader

Notify me when this product is available:

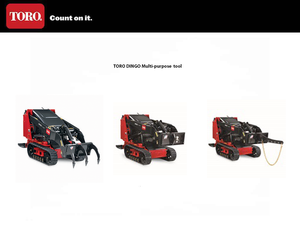

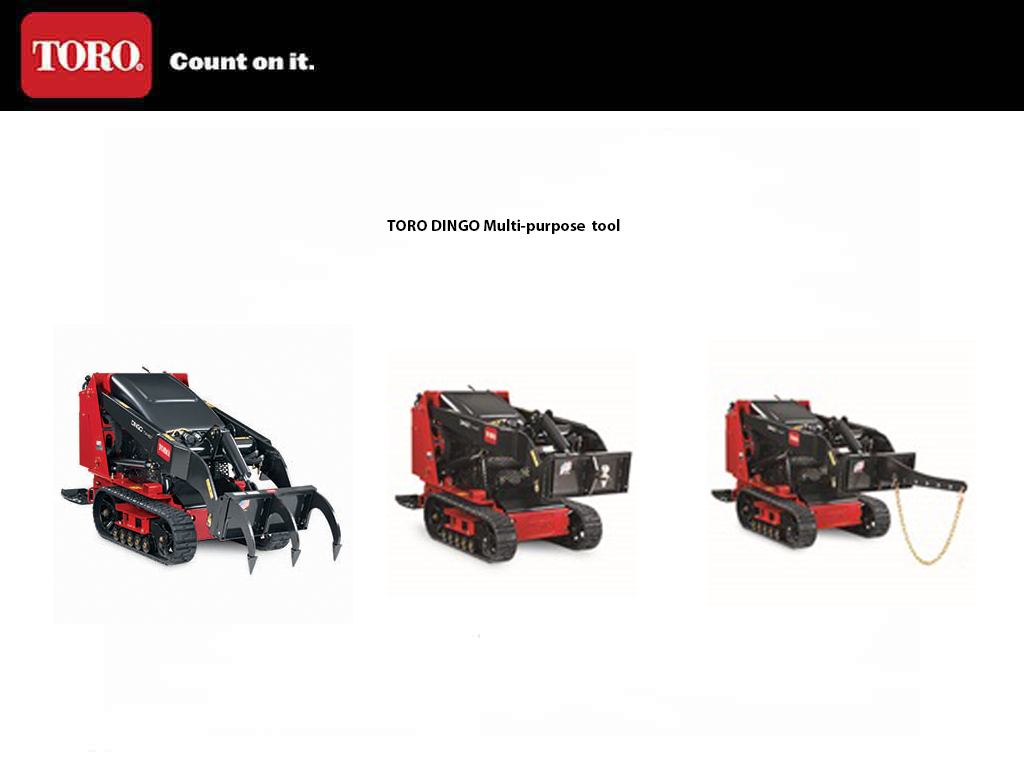

This versatile attachment is actually 3 tools in 1! Easily converts into a ripper, boom or towbar by simply changing a few pins. Use these tools to move, carry, lift, prep, rip, dig up, transport and haul.

A quick conversion pin system makes it easy to switch between the three tools. Simply slide in the pins to lock in place, and slide out to change to another tool.

Multiple attachment points allow you to carry heavy objects in multiple positions. Excellent for carrying and placing Ball and Burlap trees without damaging the root ball. Also takes strain out of positioning once in the hole.

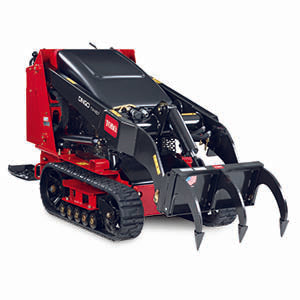

Three hardened tines allow you to break through hard ground. Also used to rip out existing shrubs and other plant materials.

Allows you to use the Dingo to move trailer around the job site when you install a ball hitch.

  • Boom System
    Fabricated .63" ( 1.6 cm) thick steel
  • Fits
    All Dingo traction units
  • Frame
    Fabricated frame assembly
  • Recommended Counter Weight
    When Boom or Towbar is used
  • Standard Equipment
    Dingo Quick-Attach Mount Plate

Frame
Width Length Height Weight
Boom Jib (1)
Width Length
Height Weight Chain
Scarifier Teeth (3)
Width (with tip) Width (without tip) Length
Height Weight (each) Tip
24 inches (61 cm) 4 inches (10 cm) 10 inches (25 cm) 40 lb (18 Kg)
0.63 inches (1.6 cm) 32.4 inches (82.3 cm)
9.4 inches (23.9 cm) 23.2 lb (10.5 Kg)
35 links, approximately 2.5 ft (76 cm), with S-hook ends
2.0 inches (5.1 cm) 0.63 inches (1.6 cm) 13.0 inches (13.0 cm)
11.7 inches (29.7 cm) 9.0 lb (4.1 Kg)
Replaceable, cast iron spear
