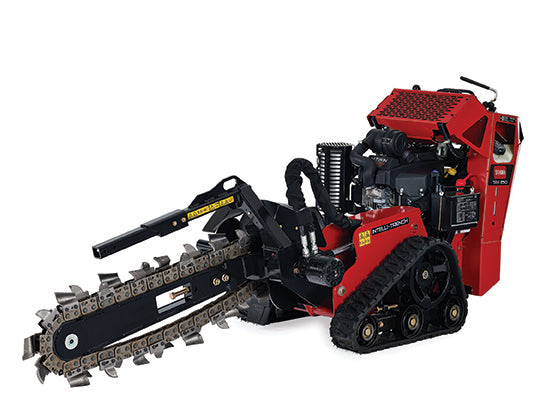

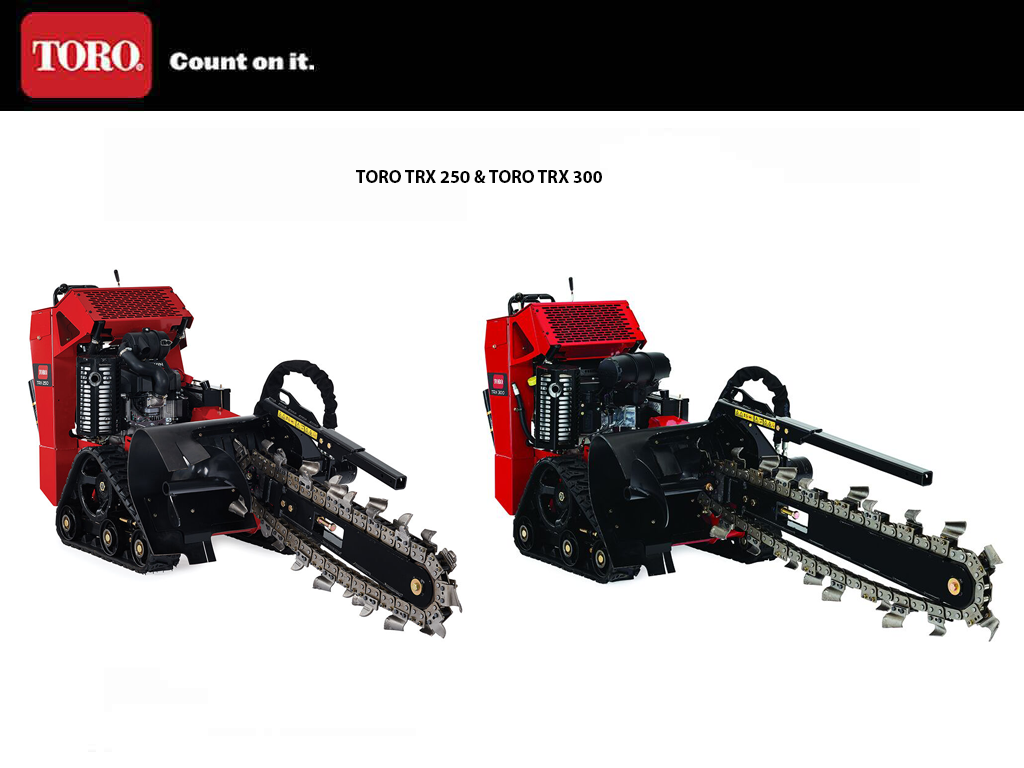

TORO TRX250/300 WALK BEHIND TRENCHER

MODEL
TRENCHER BOOM
CHAINS AND CRUMBER

Toro TRX walk-behind trenchers are now more efficient and powerful than ever. We’ve improved our lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.

*CALL FOR TRX BORE DRIVE HEAD & TRX BACKFILL BLADE*

FEATURES

Intelli-Trench

Intelli-Trench™ provides optimized hydraulic performance and automatically diverts the hydraulic flow from the traction motors to the trencher motor when needed, delivering higher torque while reducing trenching times. Track speed is also adjusted faster and more accurately, eliminating the need for constant manual adjustment of the traction controls.

Streamlined Controls

The TRX’s streamlined controls are easy to learn and operate. The new design includes the familiar TRX trencher valve handle and boom lift lever, as well as independent traction control for the left track and the right track.

Simplified Service

The new TRX design has significantly fewer parts than previous models, simplifying maintenance and potentially reducing service needs.

Boom Motion

The boom lift and lower function has been enhanced hydraulically, allowing the boom to move up and down smoothly.

Maneuverability

The track drive design provides a low center of gravity and large footprint, offering stability and increased maneuverability while minimizing damage to existing turf.

 TORO TRX 250



  • Engine
    24.5 hp (18.3 kW) @ 3,600 rpm Toro® V-twin
  • Engine Oil Capacity
    2.5 quarts (2.4 liters)
  • Flow
    Trencher: 13.2 gpm (50.0 lpm) Traction: 16.2 gpm (61.3 lpm) Transport, 3.0 gpm (11.4 lpm) Trenching
  • Fuel Capacity
    4.0 gallons (15.1 liters)
  • Headshaft Speed
    210 rpm with 498 ft/lbs of torque
  • Hour Meter
    Standard
  • Hydraulic Oil Capacity
    6.3 gallons (23.8 L)
  • Hydraulic System Pressure
    2,670 psi (200 BAR)
  • Track
    5.9" (15 cm) wide - endless nylon reinforced rubber track
  • Transport Speed
    2.4 mph (3.9 km/h) / 1.2 mph (2.4 km/h) 211 ft/min (64.3 m/min)/ 132 ft/min (40.2 m/min)

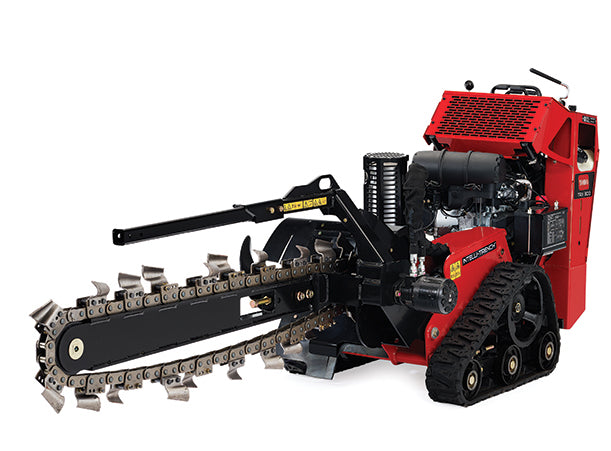

 TORO TRX 300

  • Engine Oil Capacity
    2.0 quarts (1.9 liters)
  • Fuel Capacity
    4.0 gallons (15.1 liters)
  • Headshaft Speed
    210 rpm with 498 ft/lbs of torque
  • Height
    46” (117 cm)
  • Hour Meter
    Standard
  • Hydraulic Flow
    Trencher: 13.2 gpm (50.0 lpm), Traction: 16.2 gpm (61.3 lpm) Transport, 3.0 gpm (11.4 lpm) Trenching
  • Hydraulic Oil Capacity
    6.3 gallons (23.8 liters)
  • Hydraulic System Pressure
    2,610 psi
  • Length
    82.5” (210 cm)
  • Track
    5.9" (15 cm) wide - endless nylon reinforced rubber track
  • Transport Speed
    2.3 mph (3.7 km/h) / 1.2 mph (2.4 km/h) 202 ft/min (61.6 m/min) / 132 ft/min (40.2 m/min)
  • Weight
    1,114 lbs. (505 kg)
  • Wheelbase
    23" (58 cm)
  • Width
    33.8" (86 cm)

Not available at this time
