Uni Pro™ - KM 441 Seat Assembly
$399.00 - $439.00
2/25

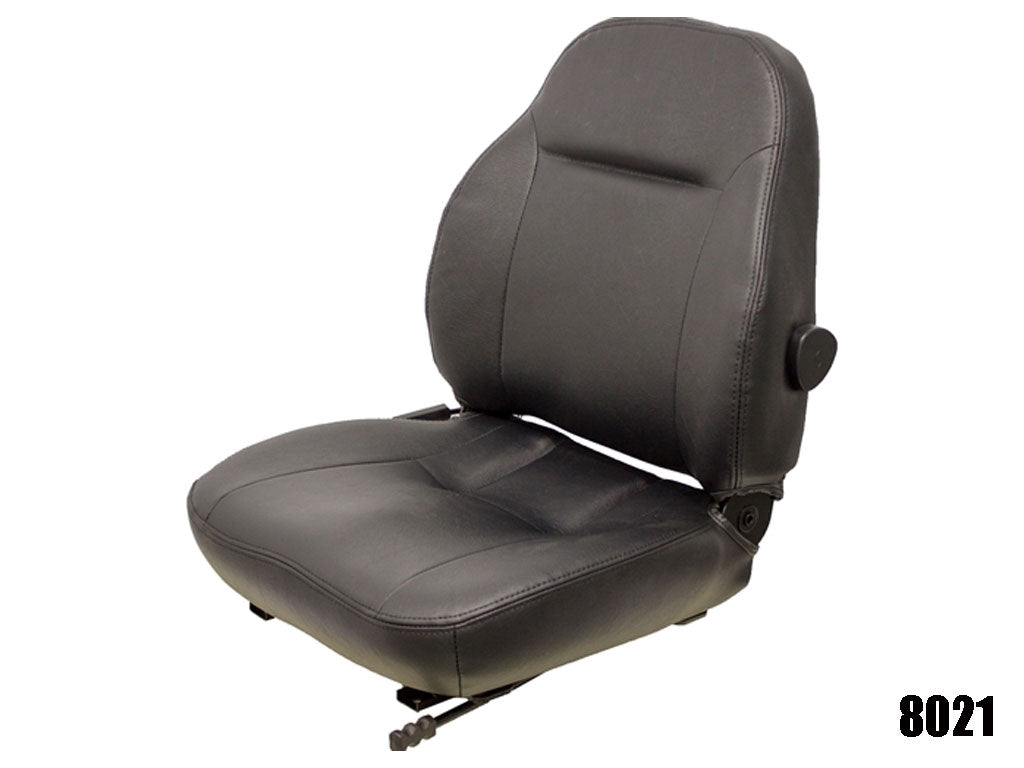

Uni Pro™ - KM 441 Seat Assembly
The Uni Pro™ - KM 441 Seat Assembly is designed to fit a wide range of commercial turf, turf equipment, material handling, skid steers and ground service equipment to add maximum comfort while you're busy at work.
SKU: 8021
Features
- Heavy-duty vinyl covering
- Cut and sew vinyl to create a more rugged, comfortable cover
- Vinyl is water-resistant
- Adjustable backrest folds forward and reclines
- 3-position lumbar support to help prevent lower back pain
- Adjustable black Dura-Tex armrests fold up and out of the way allowing for easy access to the seat and 8390 only, optional on PN: 8021)

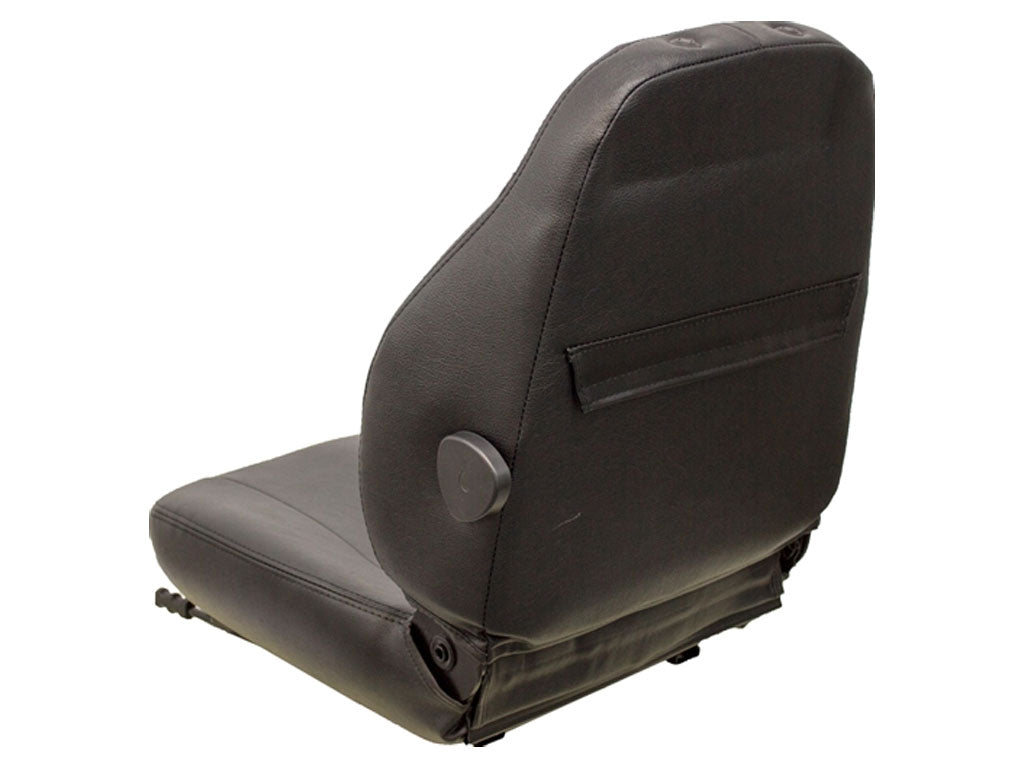

- Durable document pouch stores owner's manual and other valuables

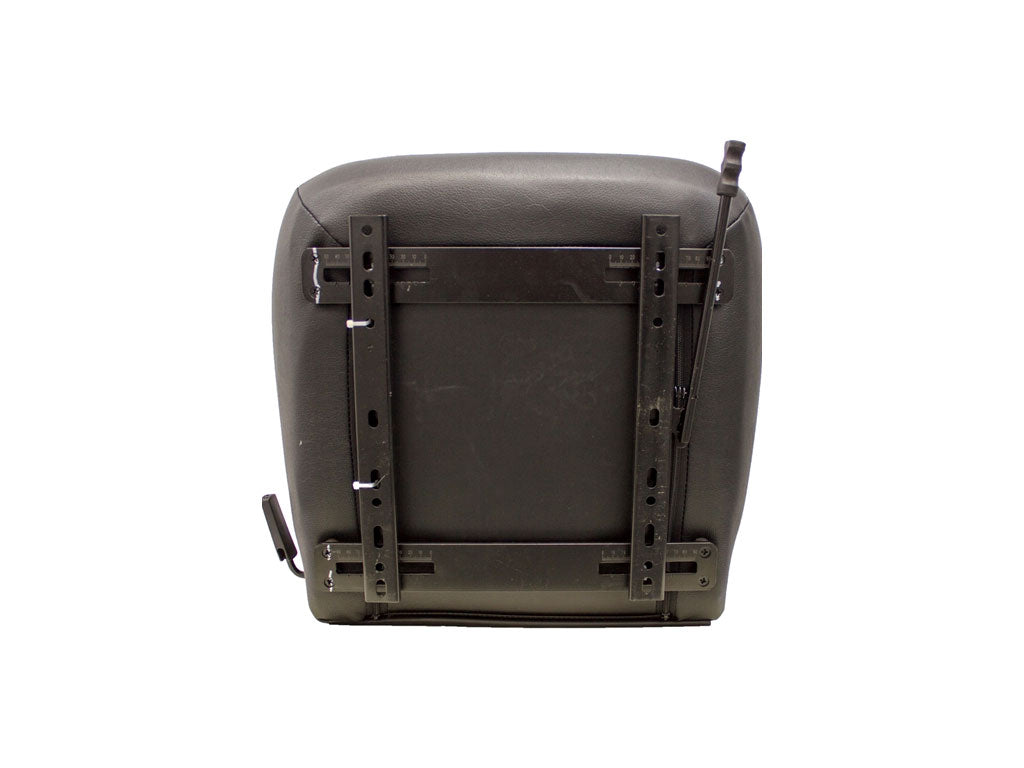

- Adjustable slide rails from 6.5" - 13" side-to-side for universal fit
- Accepts flange bolt mount operator presence switch
Available Color Options:
- Black Vinyl (PN: 8021)

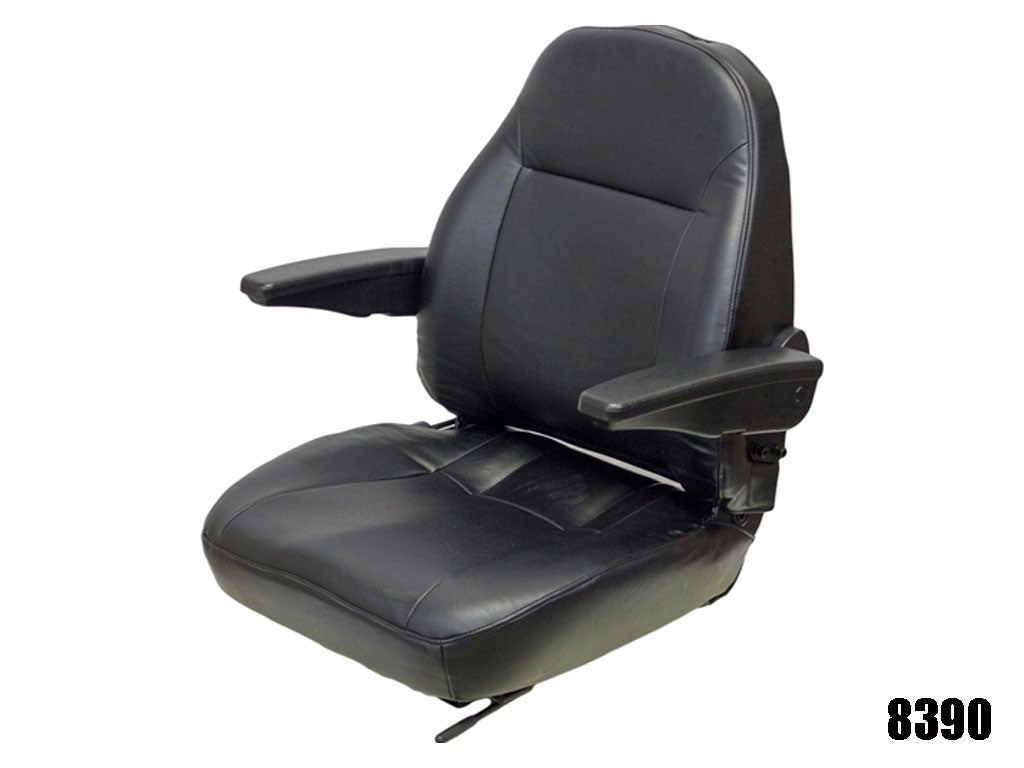

- Black Vinyl with Armrests (PN: 8390)

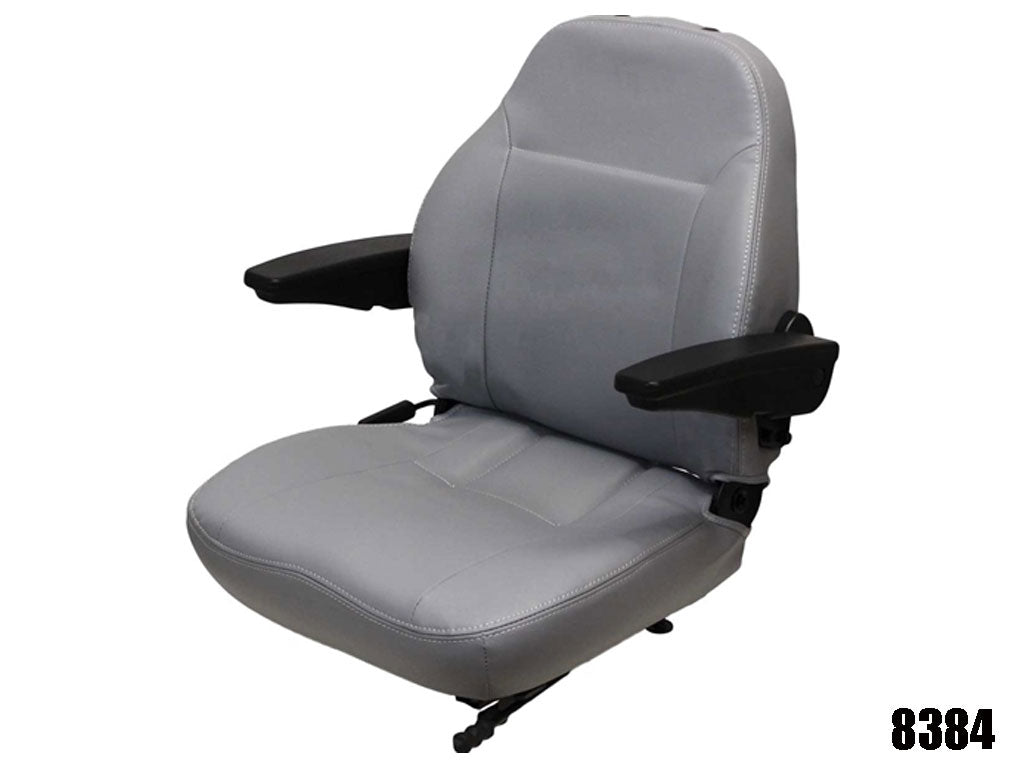

- Gray Vinyl with Armrests (PN: 8384)

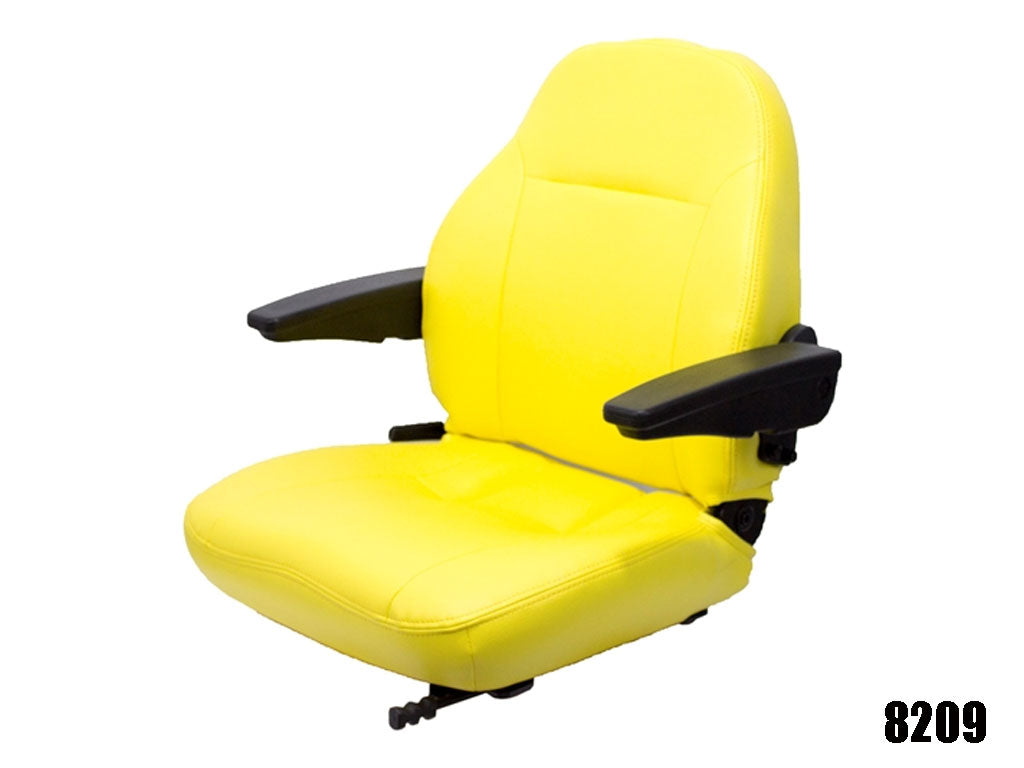

- Yellow Vinyl with Armrests (PN: 8209)
Available Options:
- Seat Belt Bracket Kit Necessary with Part Number: 7911 (PN: 6002)
- Lap Belt Kit (PN: 7911)
- Operator Presence Switch - Normally Open (PN: 8665)
Will not fit if original seat was a Grammer DS44.
Will not fit if the original seat had an integrated swivel.

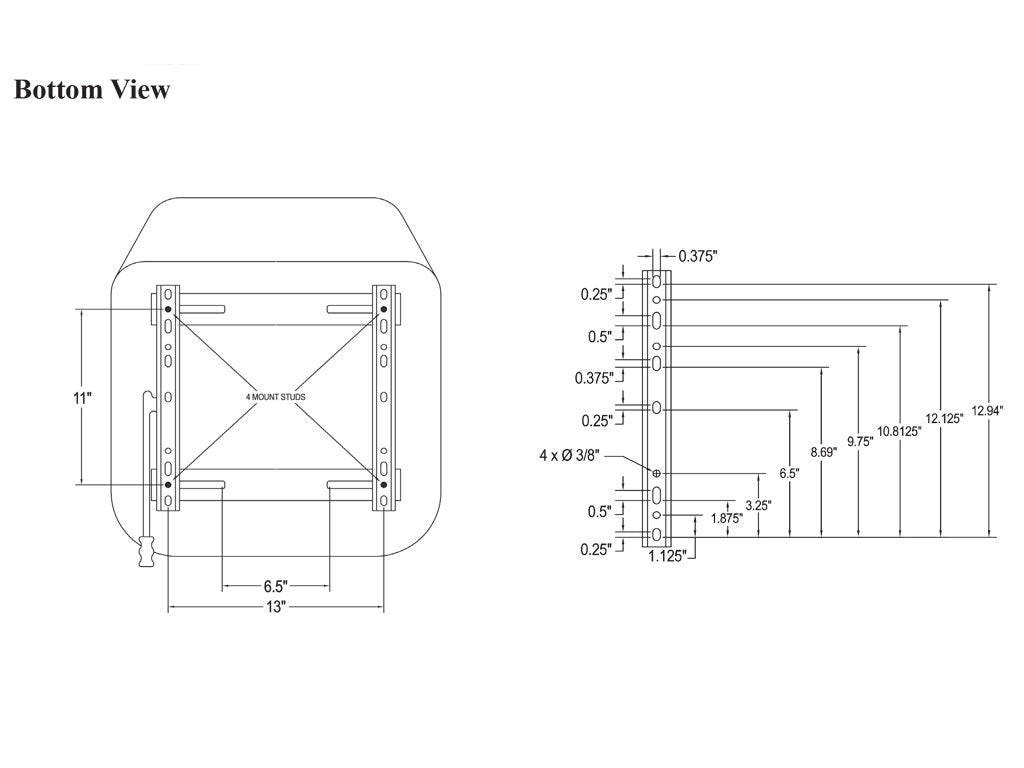

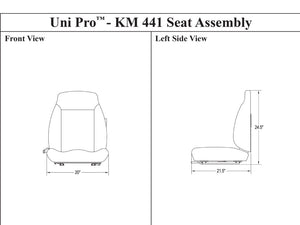

Check Bolt Pattern to Ensure Proper Fit (W x L - 6.5"-13" x 11")
AGCO® Allis Tractors: 4650, 4660, 5650, 5660, 5670, 5680
Allis Chalmers® Tractors: 6670, 6680, 6690
Bad Boy® Lawn Mowers:
2007-2011 PUP Models
2010 ZT Models
2010-2011 CZT Models
Replaces Bad Boy® Part Numbers: 071-2004-00, 071-2010-00
Bobcat® Mini Excavator: 328
CASE Backhoe Loaders (only fits if the original seat did NOT have a suspension): 480, 480B, 480C, 480CK, 480D, 480E, 480E LL, 480F
580B, 580C, 580D, 580F, 580G, 580K, 580L, 580M, 580N, 580 SD, 580 SE, 580 SK, 580 SL, 580 SM, 580 SN, 590, 590 SL, 590 SM, 5
680G, 680H, 680K, 680L, 780, 780B, 780C, 780D
Dozer Crawlers (only fits if the original seat did NOT have a suspension): 450B, 450C, 550, 550E, 550G, 550H, 650, 650G, 650H,
750L, 850, 850B, 850C, 850E, 850G, 850H, 850L, 1150, 1150B, 1150C, 1150G, 1150H, 1150K, 1650K, 1850K
Excavators: 880, 980
Wheel Loaders (must also replace the original suspension with the MSG95A24 Air Suspension (PN: 8076), MSG85 Mechanical
or MSG95 Air Suspension (PN: 8078)): 21E, 221D, 221E, 321D, 321E, 521D, 521E, 621C, 621D, 621E, 721C, 721D, 721E, 821C, 82
Wheel Loaders (must also replace the original suspension with the Heavy-Duty Mechanical Suspension (PN: 6111)): 621, 621B,
921B, W11, W11B, W14B, W14C, W14FL, W18, W18B, W20, W20B, W20C, W24C, W30, W36
Wheel Loaders: W4, W5, W7, W7E, W8B, W8C, W8E, W9, W9A, W9B, W9C, W9E, W10, W10B, W10C, W10E, W12, W14, W14H, W
Case IH® Farmall®, JX, Maxxum, MX Maxxum, MXU and Puma Series Tractors:
Farmall® Series: 75C, 85U, 90, 95, 95C, 95U, 105U
JX Series: JX55, JX60, JX70, JX75, JX80, JX85, JX90, JX95
Maxxum Series: 110, 115, 120, 125, 130, 140
MX Maxxum Series: MX80C, MX90C, MX100, MX100C, MX120, MX135
MXU Series: MXU100, MXU110, MXU125, MXU130, MXU135
Puma Series: Puma 115, Puma 125, Puma 140, Puma 145, Puma 155, Puma 210
Caterpillar® Dozers and Excavators:
Dozers: D3, D3B LGP, D4D, D4D LGP, D4D SA, D4E, D6D, D7G SA, D8K, D9G, D9H
Dozers (must also replace the original suspension with the Heavy-Duty Mechanical Suspension (PN: 6111)): D3B, D3C LGP, D3
LGP III, D4C XL II, D4H, D4H II, D4H LGP II, D5, D5 LGP, D5C III, D5H XL, D5H XL III, D5M LGP, D5M XL, D6D LGP, D6D PS, D6H II,
II, D6H LGP II, D6H LGP III, D6H LT, D6H XL, D6H XL II, D7G SA, D7C, D7E, D7F, D7G SA, D7G LGP, D7H LGP, D8K, D8L, D9H, D9L
Excavators: 307 SSR, 313B CR, 313B SR, 321B
Cub Cadet® Lawn Mowers: M60, M60KW, M72CT, M72GN, M72KW
Replaces Cub Cadet® Part Number: 02001122
Deutz-Allis® Tractors with Original Grammer Seat: 7085, 7110, 7120, 7145, 9130, 9150, 9170, 9190
Ditch Witch® Trencher: HT110
Dixie Chopper® Lawn Mowers:
Year 1998: LX2000-42 (SN 8916618 - 8919915), LX2001-42 (SN 8916618 - 8919915), LX2400-42 (SN 8916618 - 8919915), LX2401-42
8919915), X2000-50 (SN 8916618 - 8919915), X2400-50 (SN 8916618 - 8919915)
Year 1999-2000: LX2002-42 (SN 9920013 - 0030089), X2000-50 (SN 9920013 - 0030089), X2002-50 (SN 9920013 - 0030089), X2200-
0030089), X2202-50 (SN 9920013 - 0030089), X2500-50 (SN 9920013 - 0030089), X2502-50 (SN 9920013 - 0030089), XF2200-50 (SN
XF2200-60 (SN 9920013 - 0030089), XF2500-60 (SN 9920013 - 0030089), XW2000-60 (SN 9920013 - 0030089), XW2002-60 (SN 992
XW2200-60 (SN 9920013 - 0030089), XW2202-60 (SN 9920013 - 0030089), XW2500-60 (SN 9920013 - 0030089), XW2502-60 (SN 99
Year 2001: XW2400-60 (SN 1027270 - 1034039), XW2500-60 (SN 1027270 - 1034039), XWK2501-60 (SN 1027270 - 1034039), XWK2
1034039 Year 2002: XF2300-50 (SN 2034040 - 2038888), XF2500-60 (SN 2034040 - 2038888), XW2300-60 (SN 2034040 - 2038888), XW2400-
2038888), XW2500-60 (SN 2034040 - 2038888), XW2600-60 EFI (SN 2034040 - 2038888), XWK2501-60 (SN 2034040 - 2038888), XW
2038888)
Year 2003: LT2000-50 (SN SE3000001 & Up), LT2000-50D (SN SE3000001 & Up), X2503-50 (SN 3039028 & Up), X2503-60 (SN 3039
(SN 3039028 & Up), XF2600EFI-60 (SN 3038889 & Up), XFG2700-60 (SN 3038889 & Up), XK2503-50 (SN 3039028 & Up), XK2503-60
XT2800EFI-60 (SN 3038889 & Up), XT2800EFI-72 (SN 3038889 & Up), XT3000-60 (SN 3038889 & Up), XT3000-72 (SN 3038889 & Up
3038889 & Up), XWF2300-60 (SN 3038889 & Up), XWF2400-60 (SN 3038889 & Up), XWF2700-60 (SN 3038889 & Up)
Year 2004: SP2800-72 (SN 4043976 & Up), SP2800EFI-60 (SN 4043076 & Up), SP3000-72 (SN 4043976 & Up), X2503-50 (SN 40440
4044008 & Up), XT3000-60 (SN 4043076 & Up), XT3000-72 (SN 4043976 & Up), XWF2700-60 (SN 4043076 & Up)
Year 2005: LT2000-50D (SN SE5043301 & Up), LT2400-50D (SN SE5043301 & Up), LT2700-60D (SN SE5043301 & Up), SP2800EFI-6
X2003-50 (SN 5051479 & Up), X2503-50 (SN 5051479 & Up), XF2700-50 (SN 5051479 & Up), XT3200-60 (SN 5051029 & Up), ST3200
XWF2700-60 (SN 5051028 & Up)
Year 2006: LT2000-44 (Serial Number 6057252 & Up), LT2000-44, LT2000-50D (SN 6057252 & Up), LT2000-50D, LT2200-34 (SN 6057
LT2500-44D (SN 6057252 & Up), LT2500-44D, LT2500-50D (SN 6057252 & Up), LT2500-50D, LT2700-60D (SN 6057252 & Up), LT270
6057560 & Up), XFG2700-50 (SN 6057206 & Up), XFG2700-50, XFG2700-60 (SN 6057206 & Up), XFG2700-60, XT3300-60 (SN 6057
XT3300-72 (SN 6057560 & Up), XT3300-72, XWF2700-60 (SN 6057206 & Up), XWF2700-60, XXG5400-72
Year 2007: LP3000-60, LP3000-72, XFG2700-50, XFG2700-60, XT3300-60, XT3300-72, XWF3000-60
Dixie Chopper® Part Numbers: 40100-W, 400220
Dixon® Lawn Mowers:
Lawn Mowers: 1950-50, 2300-50, 2300-60, 2560-60, 2700-60, 2700-72, 4515B, 4516K, 4518K
Blackbear: 34
Grizzly: 52-968999588, 60-968999590, 968999591, 968999626, 60-968999627, 60-968999637, 72-968999592, 72-968999628
Grizzly 27HP Kohler: 52-968999588, 60-968999590
Grizzly 30HP Kohler: 60-968999591, 72-968999592
Grizzly 29FX BF: 60-966516602
Grizzly 34GX BF 72-966516702
Grizzly SE: 6029FX-966516601, 7234FX-966516701
Grizzly ZTR 27HP Kohler: 52-968999588, 60-968999590, 60-968999626
Grizzly ZTR 30HP Kohler: 60-968999591, 60-968999627, 72-968999592, 72-968999628
Kodiak: 50, 52-968999576, 52-968999577, 52-968999578, 52-968999579, 52-968999620, 52-968999621, 52-968999622, 52-9689995
968999624
Honda Kodiak 20HP: 52-968999577, 52-968999578, 52-968999621, 52-968999622,
Kawasaki Kodiak 21HP : 52-968999576, 52-968999576, 52-968999620
Kodiak 25HP Kohler : 52-968999579, 60-968999580, 60-968999624
Kodiak 26HP B&S : 60-968999581
Kodiak SE : 5223 VAN-965871801, 5223 VAN BF-965884601, 5225 CE-966057501, 6125 KOH-965871802, 6125 KOH BF-965884701
Ram : 42, 44, 48ZT-965882601, 50, 50KZ-965882901, 50ZT-965882701, 52ZT-966038601, 52ZT-966038701, 52ZT-966054301, 61KZ966038801, 61ZT BF-966054401
Ram 26HP B&S: 44-968999551, 50-968999552
Ram B&S : 44-968999551, 50-968999552
Ram Honda : 44-968999559, 50-968999562
Ram Mag 20HP Kohler : 44-968999560, 50-968999563, 50-968999562
Ram Mag Kohler : 44-968999650, 50-968999651
Ram Mag 21HP Kawasaki : 50-968999561
Kawasaki Ram Mag : 50-968999561
Ram Ultra : 52-966985301, 52-966985302, 61-966985401, 61-966985402, 72-968999724, 72-968999773
Ram Ultra Kohler : XS5025 50-968999722, XS5025BF 50-968999725, XS6025 60-968999723, XS6025BF 60-968999726, XS7227 72
72-968999773
Silver Tip : 60, 72
Speed ZTR : 36, 38, 42, 44
ZTR: 424, 427, 428, 429, 501, 502, 503, 542, 560, 4421, 4422, 4423, 4425, 4426, 4515B, 4515K, 4516K, 4518K, 5004, 5005, 5017, 502
5421, 5425, 5501, 5502, 5601, 6022, 6023, 6025, 6601, 7025, 7523, 7525, 8025, 8026D, Classic
Dixon® Part Numbers: 4415, 4701, 4733, 5690, 5874, 5967, 7270, 8540, 8936, 10059, 10727, 12289, 12512, 12872, 16351, 1
60346, 61582, 522875902, 539117860, 539119274, 539122379, 539130930, 574030801
Dresser® Dozers:
Dozers (must also replace the original suspension (if equipped) with the Heavy-Duty Mechanical Suspension (PN: 6111)): TD7H
TD15E, TD20E, TD25E, TD40C
Dozers (only fits if the original seat did NOT have a suspension): TD7E, TD7G, TD8C, TD8E, TD8G, TD12, TD15, TD15C, TD20B,
Exmark® Lawn Mowers:
Explorer Series: EX20KC (SN 130000-149999)
Explorer/Explorer II Series: EXS-20KC (SN 102000-114999), EXS-20KC (SN 115000-129999), EXS-20KC-2 (SN 102000-114999), EX
129999)
Front Runner Air Cooled Series: FR23KC (SN 67000 & Up), FR23KC (SN 72000 & Up), FR25KD (SN 67000 & Up), FR27KC (SN 670
72000 & Up), FR27KC (SN 79000 & Up), FR31BV (SN 67000 & Up), FR27KC (SN 72000 & Up), FR27KC (SN 79000 & Up), SN 600000
Front Runner Diesel Series: FR25KD (SN 72000 & Up), SR25KD (SN 600000 - 669000)
Navigator Series: NAV20KC (SN 510000 - 599999), NAV20KC (SN 67000 & Up), NAV20KC (SN 72000 & Up), NAV20KC (SN 79000 &
850000 & Up), NAV20KC (SN 510000 - 599000), NAV20KC (SN 670000 & Up), NAV20KC (SN 720000 & Up), NAV20KC (SN 790000 &
850000 & Up), SN 600000 - 669999
Next Lazer ASX Series: LZAS22KA484 (SN 85000 & Up), LZAS22KA484CA (SN 85000 & Up), LZAS23KC524 (SN 85000 & Up), LZAS
Up), LZAS26LKA604 (SN 85000 & Up), LZAS27KC524 (SN 85000 & Up), LZAS27KC524CA (SN 85000 & Up), LZAS27KC604 (SN 850
LZAS27KC604CA (SN 85000 & Up), LZAS29KA724 (SN 85000 & Up)
Next Lazer Z Air Cooled Series: LZ23KA526 (SN 790000 & Up), LZ23KC486 (SN 790000 & Up), LZ23KC526 (SN 790000 & Up), LZ2
Up), LZ27KC606 (SN 790000 & Up), LZ29KA606 (SN 790000 & Up), LZ34KA606 (SN 790000 & Up), LZ34KA726 (SN 790000 & Up), L
& Up), LZZ23KC526 (SN 850000 & Up), LZZ24KA526 (SN 850000 & Up), LZZ24KA526CA (SN 850000 & Up), LZZ26KC606 (SN 85000
(SN 850000 & Up), LZZ27KC526A (SN 850000 & Up), LZZ27KC606CA (SN 850000 & Up), LZZ29KA606 (SN 850000 & Up), LZZ29KCE
LZZ34KA606 (SN 850000 & Up), LZZ34KA726 (SN 850000 & Up), LZZ38KC5606 (SN 850000 & Up), LZZ38KC726 (SN 850000 & Up)
Next Lazer Z Propane Series: LZAS29KA604LP (SN 85000 & Up), LZAS29KA724LP (SN 85000 & Up), LZZ29KA606LP (SN 85000 &
Replaces Exmark® Part Numbers: 103-9483, 116-0036, 116-0037, 1-522411-03
Ford®-New Holland® Tractors:
Tractors: 4835, 5635, 6635, 6640, 7410, 7635, 8560
T Series: T6070, T6080, T7030, T7040, T7070
TD Series: TD80D, TD95D, TD5030, TD5050
TL Series: TL70, TL80, TL90, TL100
TN Series: TN55D, TN55S, TN65D, TN65F, TN65S, TN65V, TN70D, TN70S, TN75D, TN75F, TN75S, TN75V, TN90F
TS Series: TS90, TS100, TS110, TS115, TS115A, TS125A, TS130A, TS135A
Gehl® Telehandlers: 883, DL-7L, DL-9L, DL10L-55, DL11H-55, DL11L-55, RS5-19, RS5-34, RS6-34 (SN 22451 & Up), RS6-42 (SN Begin
RS8-42 (SN Beginning with 17151), RS8-44, RS8-44 (SN Beginning with 17151), RS10-44, RS10-55
Replaces Gehl® Part Number: 210170
Genie® Telehandlers: GTH-1056 (SN GTH1006A-8418), GTH-1544, GTH-5519 (SN GTH5514B-101, SN 10242 - 18818, SN 16381 - 163
17822 - 17825, SN 18154 - 18168, SN 18556 - 18586, SN 19006 - 20367, and SN 20368 - 25040)
Genie® Part Numbers: 7-197-01, 09.4610.0024, 09.4610.0042, 09.4610.0056
Grasshopper® Lawn Mowers : 218, 220, 223, 225, 227, 325, 329, 612, 614, 616, 718, 725, 1210 1212, 1622, 1822D, 1822K, 321D, 322D
718K, 720K, 721D, 721D2, 721DH2, 721G2, 722D2, 723KH2, 725K2, 727K2, 729G2, 928D, 928D2
Grasshopper® Part Numbers: 603756, 603757, 603758, 603761, 603763, 604730, 604735, 604740, 604741, 604745
Gravely® Lawn Mowers: PM300, PM310, PM360
Replaces Gravely® Part Numbers: 09072300, 09086300
Hustler® Lawn Mowers:
261 Series: Serial Number 922278 & 923037
275 Series: SN 921635
295 Series: SN 922427 & 922765
305 Series: SN 922849
3200 Series: SN 925073
3400 Series: SN 925362, 925370
275LPG Series: SN 922450
305D Series: SN 922880
3200 Rear Steer Series: SN 925610
3200ZT Series: SN 925552 & 926071
3400 Rear Steer Series: SN 925578
3400 Rear Steer 4x4 Series: SN 925586
3400ZT Series: SN 925560 & 926089
BDM X-1052 SD Briggs & Stratton 26HP Series: SN 930321
BDM X-1052 SD Kawasaki 24HP Series: SN 930347
BDM X-1052 SD Kohler 25HP Series: SN 930339
BDM X-1060 SD Briggs & Stratton 26HP Series: SN 930354
BDM X-1060 SD Kawasaki 26HP Series: SN 930370
BDM X-1060 Kohler 27HP Series: SN 930362
BDM X-1060 SD31 Kawasaki Series: SN 930735
BDM X-1072 SD31 Kawasaki Series: SN 930743
Padded Backrest Seat Series: SN 963259
SZ31 Kawasaki 60RD Series: SN 930024
SZ31 Kawasaki 60SD Series: SN 930875 & 930875
SZ31 Kawasaki 72RD Series: SN 930065
SZ31 Kawasaki 72SD Series: SN 931048
SZ37 Kawasaki 60SD Series: SN 929935
SZ37 Kawasaki 66SD Series: SN 929943
SZ37 Kawasaki 72SD Series: SN 929950
X-1052 Briggs & Stratton 26HP Series: SN 929638
Categories Brands Deals Find a Dealer Quick Order
X-1052 Kawasaki 24HP Series: SN 929489
X-1052 Kohler 25HP Series: SN 929505
X-1060 Briggs & Stratton 26HP Series: SN 929497
X-1060 Kawasaki 26HP Series: SN 929497
X-1060 Kohler 27HP Series: SN 929513
X-124 Kawasaki 48SD Series: SN 930503
X-124 Kawasaki 54RD Series: SN 930522
X-125 Kohler 48SD Series: SN 930578
X-126 Kawasaki 54SD Series: SN 930529
X-126 Kawasaki 54SD US Series: SN 930529US
X-126 Kawasaki 60RD Series: SN 930560
X-126 Kawasaki 54SD Series: SN 930529
X-126 Kawasaki 60SD Series: SN 930537
X-126 Kawasaki 60SD US Series: SN 930537US
X-127 Kohler 54SD Series: SN 930586
X-127 Kohler 60SD Series: SN 930594
X-131 Kawasaki 54SD Series: SN 930511
X-131 Kawasaki 60SD Series: SN 930545
Hustler® Part Numbers: 082222, 602966, 602967
JCB® Forklift and Telehandler:
Forklift: 520
Telehandler (only fits if the original seat did NOT have a suspension): 506 CHL, 520
JLG® Telehandlers: G6-42A, G9-43A (SN 0193001 - 0193007, and SN 0160000008 - 0160048670 including 0160048773)
Replaces JLG® Part Number: 09.4610.0056
John Deere® Backhoe Loaders, Compactors, Dozers/Crawlers, Mini Excavators and Wheel Loaders:
Backhoe Loaders: 210C, 300D, 310C, 310D, 410B, 410C, 410D, 510B, 510C, 510D, 610B, 610C, 710B, 710C, 710D
Compactors: 646, 646B

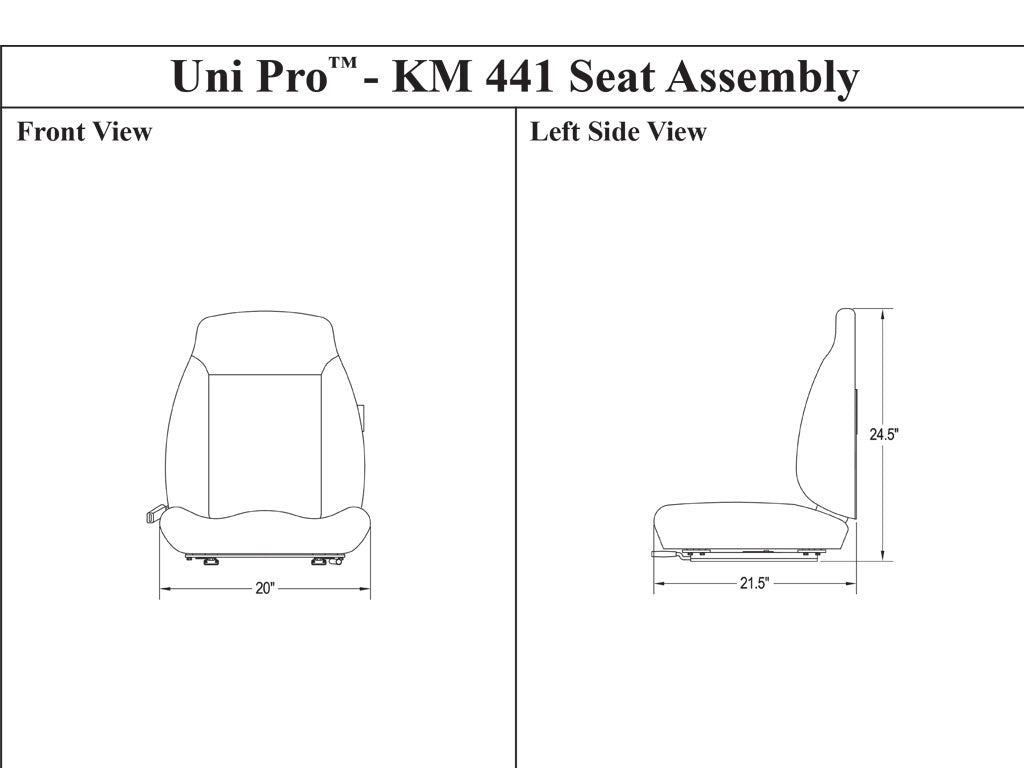

Dozers/Crawlers (Use KM 441 with Low Profile ROPS Only. Original Did Not have Suspension. OE Cushions Not Available.): 35
450E, 450G, 455G, 455E, 550B, 550G, 555B, 555G, 650G
Mini Excavators: 17D, 85D, 17ZTS
Wheel Loaders: 84, 244E, 244H, 444, 544, 544A, 544B, 644A, 644B
Wheel Loaders (if the original seat had a suspension, you must also replace the original suspension with the Heavy-Duty Mech
6111)): 344E, 444, 444C, 444CH, 444D, 444E, 544, 544A, 544C, 544D, 644A, 644B, 644C, 644D, 844
Replaces John Deere® Part Numbers: AT39617, AT105140
John Deere® Tractors with Original Grammer Seat and MSG83 Mechanical or MSG93 Air Suspension: 5083E, 5085E, 5093E, 5101E
5420, 5425, 5520, 5525, 5603, 5625, 6110, 6110L, 6120, 6120L, 6200, 6200L, 6210, 6210L, 6215, 6220, 6220L, 6230, 6300, 6300L, 6310,
6400L, 6403, 6405, 6410, 6410L, 6415, 6420, 6430, 6500, 6500L, 6510L, 6603, 6605, 6615, 6715, 7130, 7230, 7330
John Deere® Lawn Mowers: 737, 757, 777, 797, 997, 717A, 717E, 727A, Z510A, Z520A, Z645, Z655, Z710A, Z720A, Z810A, Z820A, Z8
Z860A, Z910A, Z920A, Z925A, Z930A, Z950A, Z960A, Z970A
Replaces John Deere® Part Numbers: AM141104, TCA13427, TCA14949, TCA15503, TCA18428, TCA19473, TCA18026
Komatsu® Dozers, Excavators, Skid Steers and Wheel Loaders:
Dozers (drilling may be required): D20A-5, D20A-6, D20P-5, D20P-6, D20P-7A, D20Q-6, D21A-6, D21A-7, D21A-8, D31A-16, D31AD31S-17, D45P-1, D50A-17, D60P-6, D65A-6, D65E-6, D65EX-15, D65PX-12, D65WX-15, D70LE, D70LE-8, D85A-12, D85E-SS-2, D1
Dozers (must also replace the original suspension with the Heavy-Duty Mechanical Suspension (PN: 6111) and drilling may be
D31P-17, D31P-18, D31P-20, D32E, D32E-1, D37E-5, D37P-5A, D38E, D38E-1, D39E-1, D41A-3, D41P-3, D41P-6, D41P-6K, D41S-3
D53P-16, D53P-17, D53S-16, D53S-17, D57S-1, D58E-1, D58P-1, D60P-8, D60P-11, D60P-12, D65A-8, D65E-8, D65E-12, D65EX-12,
D75S-3, D75S-5, D85A-18, D85A-21, D85E-18, D85E-21, D85P-18, D85P-21, D135A-1, D155A-1, D355A-3, D455A-1, WD600-1
Excavators: PC03-2, PC12R-8, PC20-6, PC20-7, PC27R-8, PC30-6, PC35R-8, PC38UU-1, PC38UU-3, PC40-7, PC45-1, PC45-8, PC5
PC60-7, PC75UU-1, PC75UU-2, PC75UU-3, PC88MR-6, PC88MR-8, PC90-1, PC95-1, PC95R-2, PC100-5, PC100-6, PC120-3, PC120
PC128UU-1, PC128UU-2, PC130-6, PC130-6K, PC130-7, PC130-7K, PC138US-8, PC150-5, PC150LC-3, PC150LC-6K, PC160-6K, PC
PC200-3, PC200-5, PC200-6, PC200-8, PC200LC-3, PC200LC-5, PC200LC-6S, PC200LC-7, PC200LC-8, PC200LC-81, PC210-6K, PC
PC210-7K, PC210-8K, PC210LC-5K, PC210LC-7K, PC220-3, PC220-5, PC220-5C, PC220-6, PC220LC-3, PC220LC-5, PC220LC-6, P
PC220LC-2, PC228US-1, PC228UU-1, PC240NLC-5K, PC250-6, PC250LC-6, PC270LC-7L, PC290NLL-6K, PC300-3, PC300-6, PC30
PC300LC-8, PC340-6K, PC340LC-6K, PC350LC-8, PC360-7, PC400-6Z, PC400-8, PC-400LC-3, PC400LC-6, PC400LC-8, PC450-7K,
PC450LC-8, PC1250-7, PC2007-7
Skid Steers: CK30-1, CK35-1, SK714-5, SK815, SK815-5, SK815-5N, SK818, SK820, SK820-5, SK820-5N, SK820-5T, SK1020-5, SK1
SK1026, SK1026-5, SK1026-5N
Wheel Loaders: WA30-2, WA40-3, WA70-1, WA80-3, WA100-1, WA100-3A, WA120-1, WA120-E, WA150-1, WA150-5, WA180-1, WA1
WA200PT-5, WA200PZ-6, WA250-1, WA250-3, WA250-5, WA250-6, WA250PT-3, WA250PT-5, WA300-1, WA320-1, WA320PZ-6, WA3
DZ-3, WA400-1, WA420-1, WA420-DZ-3, WA450-1, WA450-2, WA470-1, WA470-DZ-3, WA500-1, WA600-1, WA700-1, WA800-1, WA80
Land Pride® Lawn Mowers: Z44, Z48, Z52, Z54, Z60, Z72, ZR44, ZR52, ZSR54, ZSR60, ZT60, ZT60I, ZT72, ZT72I, ZXT54, ZXT60
Replaces Land Pride® Part Numbers: 356-113A, 839-320C
Lull® Telehandlers: 644B-42, 644E-42 (SN 17569-20123 & 0160002514 - Present), 944E-42 (SN 17569-20123 & 0160002514 - Present)
Lull® Part Number: 364778C
Massey Ferguson® Tractors with Original Grammer Seat: 471, 481, 491, 492, 573, 583, 593, 596, 670, 690, 698, 699, 2220, 2640, 265
3060, 3070, 3075, 3120, 3315, 3325, 3330, 3340, 3350, 3355, 3525, 3545, 3615, 3625, 3635, 3645, 3650, 3660, 3680, 3690, 4225, 4235, 4
4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4370, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 6150, 6170,
6255, 6270, 6280, 6290, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 7465, 7475, 7480, 7485, 7490, 7495,
8140, 8150, 8160, 8210, 8220, 8240, 8250, 8270, 8280, 8450, 8460, 8470, 8480, 8650, 8660, 8670, 8680, 8690
McCormick® Tractors if the Tractor Does NOT Have a Cab: CX70, CX80, CX85, CX95
New Holland® Backhoe Loaders, Dozers, Skid Steer and Wheel Loaders:
Backhoe Loaders (only fits if the original seat did NOT have a suspension): 555, 555A, 555B, 555C, 555D, 575D, 655, 655A, 655C
LB75.B, LB90.B, LB110.B, LB620
Backhoe Loaders: 555E, 575E, 655E, 675E, B90B, B95, B95B, B95BLR, B95BTC, B95LR, B95TC, B110, B110B, LB90, LB95, LB110,
Dozers: D75, D85, D85B, D95, D95B, D150B, DC70, DC75, DC80, DC85, DC95, DC100, FD80
Skid Steer: L778
Wheel Loaders: LW50.B, LW80.B, W50BTC, W50TC, W60BTC, W70BTC, W80BTC, W80TC
Scag® Lawn Mowers:
Cougar Series: SCR48-25CH (SN 5590001 - 559999 )
Freedom Z Series: SFZ36-17KA (SN E2800001 - E2899999 ), SFZ36-20BS (SN E3000001 - E3099999), SFZ48-19KA (SN D1700001
19KA (SN D8600001 - D8600300), SFZ48-19KA (SN D8600400 - D8699999), SFKZ48-26BS (SN D1500001 - D1599999), SFZ48-26BS
D8500300), SFZ48-26BS (SN D8500400 - D8599999), SFZ52-19KA (SN D1900001 - D1999999), SFZ52-19KA (SN D8800001 - D8800
D8800250 - D8899999), SFZ52-26BS (SN D1800001 - D1899999), SFZ52-26BS (SN D8700001 - D8700200), SFZ52-26BS (SN D8700
28BS (SN E6900001 - D6999999), SMFZ-36 (SN E3100001 - E3199999), SMFZ-48 (SN D9700001 -D9799999), SMFZ-52 (SN D98000
(SN E7000001 - E7099999)
Sabre Tooth Tiger Series: STT-31BSD (SN 9460001 - 9469999)
Tiger Cub Series: SMTC-48A (SN A5400001 - A5499999 ), SMTC-52A (SN A5500001 - A5599999 ), STC48A-19KA (SN 9250001 - 925
(SN A4800001 - A4899999), STC48A-20CV (SN 9260001 - 9269999), STC48A-20CV (SN A4900001 - A4999999), STC48A-21KA (SN 9
STC48A-21KA (SN A5100001 - A5199999), STC48V-19KAI (SN C1600001 - C1699999), STC48V-21KA (SN B5100001 - B5199999), S
C2000001 - C2099999), STC52A-23KA (SN 9290001 - 9299999), STC52A-23KA (SN A5200001 - A5299999), STC52A-24HN (SN 9300
24HN (SN A5300001 - A5399999), STC52V-23KA (SN B5200001 - B5299999), STC52V-24HN (SN B5300001 - B5399999)
Turf Tiger Series: SMST-72A (SN A7600001 - A7699999), SMT-52A (SN A7100001 - A7199999), SMT-61A (SN A7200001 - A7299999)
- A7399999), STT-27KA (SN 9410001 - 9419999), STT-27KA (SN A6800001 - A6899999), STT-29DFI-SS (SN A9500001 - A9599999), S
B7100001 - B7199999), STT-29KA-DFI (SN 9420001 - 9429999), STT-31BV (SN 9430001 - 9439999), STT-31BV-SS (SN A9600001 - A
SS (SN C0300001 - C0399999), STT-35BV-SS (SN B7300001 - B7399999), STT52A-23KA (SN 9350001 - 9359999), STT52A-27CH (S
STT52A-27CH (SN A5900001 - A5999999), STT52V-27CH (SN B6200001 - B6299999), STT61A-27CH (SN 9380001 - 9389999), STT6
A6099999), STT61A-27KA (SN 9390001 - 9399999), STT61A-27KA (SN A6200001 - A6299999), STT61A-29DFI-SS (SN A6500001 - A6
DFI (SN 9400001 - 9409999), STT61A-31BV (SN 9640001 - 9649999), STT61A-31BV-SS (SN A6700001 - A6799999), STT61V-27CH (
B6399999), STT61V-27CH-NS (SN B6400001 - B6499999), STT61V-27CH-SS (SN B6500001 - B6599999), STT61V-27KA (SN B66000
27KA-SS (SN B6700001 - B6799999), STT61V-29DFI-SS (SN B6800001 - B6899999), STT61V-35BVAC-SS (SN C0200001 - C020999
B7000001 - B7099999)
Wildcat Series: SMWC-52A (SN A5500001 - A5599999), SMWC-52V (SN B6000001 - B6099999), SMWC-61A (SN A5700001 - A5799
B6100001 - B6199999), STWC52A-25KA (SN A8700001 - A8799999), STWC52V-25KA (SN B5400001 - B5499999), STWC52V-26KA-L
B5599999), STWC61A-27CV (SN 9660001 - 9669999), STWC61A-27CV (SN A5600001 - A5699999), STWC61V-26KA-LC (SN B56000
STWC61V-27CV (SN B5700001 - B5799999), STWC61V-30CV (SN B5800001 - B5899999)
Scag Series: SCR42-25CH (SN 6430001 - 6439999), SCR42-25CH (SN 7530001 - 7539999), SCR48-25CH (SN 6460001 - 6469999),
7540001 - 7549999), SCR48-27KA (SN 6450001 - 6459999), SCR48-27KA (SN 7550001 - 7559999), SCR52-25CH (SN 6480001 - 648
7560001 - 7569999), SCR52-27KA (SN 7160001 - 7169999), SCR52-27KA (SN 7570001 - 7579999), SFZ36-18FS (SN F3100001 - F31
F3200400 - F3299999), SFZ48-26BS (SN F3300400 - F3399999), SFZ52-20FS (SN F3400250 - F3499999), SFZ52-26BS (SN F35003
28BS (SN F3600001 - F3699999), SM-61V (SN B3700001 - B3799999), SM-72A (SN B3900001 - B3899999), SMST-61A (SN 7810001
(SN 7820001 - 8619999), SMST-72A (SN 8610001 - 8619999), SMT-52A (SN 8560001 - 8569999), SMT-61A (SN 8570001 - 8579999),
6649999), SMTC-48A (SN 6650000 - 6659999), SMTC-48A (SN 7680001 - 7689999), SMTC-48A (SN 8450000 - 8459999), SMTC-48V
B5999999), SMTC-52A (SN 6660000 - 6669999), SMTC-52A (SN 7690001 - 7699999), SMTC-52A (SN 8460000 - 8469999), SMTC-61
8479999), STC40-17KA (SN 6570000 - 6579999), STC48A-19KA (SN 6580000 - 6589999), STC48A-19KA (SN 8400000 - 8409999), ST
76300001 - 7639999), STC48A-20CV (SN 6590000 - 6599999), STC48A-20CV (SN 7640001 - 7649999), STC48A-20CV (SN 8410000
21KA (SN 6600000 - 6609999), STC48A-21KA (SN 7650001 - 7659999), STC48A-21KA (SN 8420000 - 8429999), STC48V-24BS (SN B
STC52A-21KA (SN 6610000 - 6619999), STC52A-21KA (SN 7660001 - 7669999), STC52A-23KA (SN 6620000 - 6629999), STC52A-23
7679999), STC52A-23KA (SN 8430000 - 8439999), STC52A-23LV (SN 6630000 - 6639999), STC52A-24HN (SN 8750000 - 8759999),
8770000 - 8779999), STC61A-25KA (SN 8440000 - 8449999), STHM-23CV (SN 8270001 - 8279999), STHM-23CV (SN 9220001 - 9229
A3900001 - A3999999), STHM-23CV (SN B2600001 - B3699999), STHM-23CV (SN C5300001 - C5399999), STHM-23CV (SN D63000
31BSD (SN 7800001 - 8599999), STT-31BSG (SN 7790001 - 8589999), STT52A-23KA (SN 848001 - 8489999), STT52A-23KA (SN 770
STT52A-25CH (SN 7710001 - 7719999), STT52A-25CH (SN 8490001 - 8499999), STT52A-27CH (SN 8720001 - 8729999), STT61A-23
7729999), STT61A-23KA (SN 8500001 - 8509999), STT61A-25CH (SN 7730001 - 7739999), STT61A-25CH (SN 8510001 - 8519999), S
Categories Brands Deals Find a Dealer Quick Order
8730001 - 8739999), STT61A-27KA (SN 7740001 - 7749999), STT61A-27KA (SN 8520001 - 8529999), STT61A-29KA-DFI (SN 853000
27KA (SN 7750001 - 7759999), STT72A-27KA (SN 8540001 - 8549999), STT72A-29KA-DFI (SN 8550001 - 8559999)
Scag® Part Numbers: 482119, 482220, 482551, 482597, 482631, 482840, 483408
Takeuchi® Mini Excavators: TB007, TB014, TB015, TB016, TB025, TB15, TB108
White® Tractors: 6045, 6065, 6085
Woods® Lawn Mowers:
Mow'n Machine Series: 1250, 1850, 1855, 2150, 2850, 2855, 2860, 5120, 5140, 5160 (SN 340850 & Up ), 5180 (SN 327344 & Up), 51
5182 (SN 327344 & Up), 5182 (SN 345170 & Up), 5200 (SN 327344 & Up), 5200 (SN 345170 & Up), 5210 (SN 345170 & Up), 5215 (SN
330786 & Up), 5250 (SN 345170 & Up), 6140 (SN 580179 & Up), 6160 (SN 580179 & Up), 6170, 6180 (SN 580179 & Up), 6180 (SN 62
(SN 621004 & Up), 6182, 6200 (SN 580179 & Up), 6200 (SN 621004 & Up), 6200, 6210 (SN 580179 & Up), 6210, 6215 (SN 580179 &
621004 & Up), 6250 (SN 580179 & Up), F21D, F23, F25, F25L, F27, FE21B, FZ21D, FZ23B (SN 7832500001 & Up ), FZ25D, FZ28K (S
Woods® Part Numbers: 70257, 70354 (Original OEM 71646), 70724, 71645, 73037, 75225, 583519
AGCO® Allis Tractors: 4650, 4660, 5650, 5660, 5670, 5680
Allis Chalmers® Tractors: 6670, 6680, 6690
Bad Boy® Lawn Mowers:
2007-2011 PUP Models
2010 ZT Models
2010-2011 CZT Models
Replaces Bad Boy® Part Numbers: 071-2004-00, 071-2010-00
Bobcat® Mini Excavator: 328
CASE Backhoe Loaders (only fits if the original seat did NOT have a suspension): 480, 480B, 480C, 480CK, 480D, 480E, 480E LL, 480F
580B, 580C, 580D, 580F, 580G, 580K, 580L, 580M, 580N, 580 SD, 580 SE, 580 SK, 580 SL, 580 SM, 580 SN, 590, 590 SL, 590 SM, 5
680G, 680H, 680K, 680L, 780, 780B, 780C, 780D
Dozer Crawlers (only fits if the original seat did NOT have a suspension): 450B, 450C, 550, 550E, 550G, 550H, 650, 650G, 650H,
750L, 850, 850B, 850C, 850E, 850G, 850H, 850L, 1150, 1150B, 1150C, 1150G, 1150H, 1150K, 1650K, 1850K
Excavators: 880, 980
Wheel Loaders (must also replace the original suspension with the MSG95A24 Air Suspension (PN: 8076), MSG85 Mechanical
or MSG95 Air Suspension (PN: 8078)): 21E, 221D, 221E, 321D, 321E, 521D, 521E, 621C, 621D, 621E, 721C, 721D, 721E, 821C, 82
Wheel Loaders (must also replace the original suspension with the Heavy-Duty Mechanical Suspension (PN: 6111)): 621, 621B,
921B, W11, W11B, W14B, W14C, W14FL, W18, W18B, W20, W20B, W20C, W24C, W30, W36
Wheel Loaders: W4, W5, W7, W7E, W8B, W8C, W8E, W9, W9A, W9B, W9C, W9E, W10, W10B, W10C, W10E, W12, W14, W14H, W
Case IH® Farmall®, JX, Maxxum, MX Maxxum, MXU and Puma Series Tractors:
Farmall® Series: 75C, 85U, 90, 95, 95C, 95U, 105U
JX Series: JX55, JX60, JX70, JX75, JX80, JX85, JX90, JX95
Maxxum Series: 110, 115, 120, 125, 130, 140
MX Maxxum Series: MX80C, MX90C, MX100, MX100C, MX120, MX135
MXU Series: MXU100, MXU110, MXU125, MXU130, MXU135
Puma Series: Puma 115, Puma 125, Puma 140, Puma 145, Puma 155, Puma 210
Caterpillar® Dozers and Excavators:
Dozers: D3, D3B LGP, D4D, D4D LGP, D4D SA, D4E, D6D, D7G SA, D8K, D9G, D9H
Dozers (must also replace the original suspension with the Heavy-Duty Mechanical Suspension (PN: 6111)): D3B, D3C LGP, D3
LGP III, D4C XL II, D4H, D4H II, D4H LGP II, D5, D5 LGP, D5C III, D5H XL, D5H XL III, D5M LGP, D5M XL, D6D LGP, D6D PS, D6H II,
II, D6H LGP II, D6H LGP III, D6H LT, D6H XL, D6H XL II, D7G SA, D7C, D7E, D7F, D7G SA, D7G LGP, D7H LGP, D8K, D8L, D9H, D9L
Excavators: 307 SSR, 313B CR, 313B SR, 321B
Cub Cadet® Lawn Mowers: M60, M60KW, M72CT, M72GN, M72KW
Replaces Cub Cadet® Part Number: 02001122
Deutz-Allis® Tractors with Original Grammer Seat: 7085, 7110, 7120, 7145, 9130, 9150, 9170, 9190
Ditch Witch® Trencher: HT110
Dixie Chopper® Lawn Mowers:
Year 1998: LX2000-42 (SN 8916618 - 8919915), LX2001-42 (SN 8916618 - 8919915), LX2400-42 (SN 8916618 - 8919915), LX2401-42
8919915), X2000-50 (SN 8916618 - 8919915), X2400-50 (SN 8916618 - 8919915)
Year 1999-2000: LX2002-42 (SN 9920013 - 0030089), X2000-50 (SN 9920013 - 0030089), X2002-50 (SN 9920013 - 0030089), X2200-
0030089), X2202-50 (SN 9920013 - 0030089), X2500-50 (SN 9920013 - 0030089), X2502-50 (SN 9920013 - 0030089), XF2200-50 (SN
XF2200-60 (SN 9920013 - 0030089), XF2500-60 (SN 9920013 - 0030089), XW2000-60 (SN 9920013 - 0030089), XW2002-60 (SN 992
XW2200-60 (SN 9920013 - 0030089), XW2202-60 (SN 9920013 - 0030089), XW2500-60 (SN 9920013 - 0030089), XW2502-60 (SN 99
Year 2001: XW2400-60 (SN 1027270 - 1034039), XW2500-60 (SN 1027270 - 1034039), XWK2501-60 (SN 1027270 - 1034039), XWK2
1034039 Year 2002: XF2300-50 (SN 2034040 - 2038888), XF2500-60 (SN 2034040 - 2038888), XW2300-60 (SN 2034040 - 2038888), XW2400-
2038888), XW2500-60 (SN 2034040 - 2038888), XW2600-60 EFI (SN 2034040 - 2038888), XWK2501-60 (SN 2034040 - 2038888), XW
2038888)
Year 2003: LT2000-50 (SN SE3000001 & Up), LT2000-50D (SN SE3000001 & Up), X2503-50 (SN 3039028 & Up), X2503-60 (SN 3039
(SN 3039028 & Up), XF2600EFI-60 (SN 3038889 & Up), XFG2700-60 (SN 3038889 & Up), XK2503-50 (SN 3039028 & Up), XK2503-60
XT2800EFI-60 (SN 3038889 & Up), XT2800EFI-72 (SN 3038889 & Up), XT3000-60 (SN 3038889 & Up), XT3000-72 (SN 3038889 & Up
3038889 & Up), XWF2300-60 (SN 3038889 & Up), XWF2400-60 (SN 3038889 & Up), XWF2700-60 (SN 3038889 & Up)
Year 2004: SP2800-72 (SN 4043976 & Up), SP2800EFI-60 (SN 4043076 & Up), SP3000-72 (SN 4043976 & Up), X2503-50 (SN 40440
4044008 & Up), XT3000-60 (SN 4043076 & Up), XT3000-72 (SN 4043976 & Up), XWF2700-60 (SN 4043076 & Up)
Year 2005: LT2000-50D (SN SE5043301 & Up), LT2400-50D (SN SE5043301 & Up), LT2700-60D (SN SE5043301 & Up), SP2800EFI-6
X2003-50 (SN 5051479 & Up), X2503-50 (SN 5051479 & Up), XF2700-50 (SN 5051479 & Up), XT3200-60 (SN 5051029 & Up), ST3200
XWF2700-60 (SN 5051028 & Up)
Year 2006: LT2000-44 (Serial Number 6057252 & Up), LT2000-44, LT2000-50D (SN 6057252 & Up), LT2000-50D, LT2200-34 (SN 6057
LT2500-44D (SN 6057252 & Up), LT2500-44D, LT2500-50D (SN 6057252 & Up), LT2500-50D, LT2700-60D (SN 6057252 & Up), LT270
6057560 & Up), XFG2700-50 (SN 6057206 & Up), XFG2700-50, XFG2700-60 (SN 6057206 & Up), XFG2700-60, XT3300-60 (SN 6057
XT3300-72 (SN 6057560 & Up), XT3300-72, XWF2700-60 (SN 6057206 & Up), XWF2700-60, XXG5400-72
Year 2007: LP3000-60, LP3000-72, XFG2700-50, XFG2700-60, XT3300-60, XT3300-72, XWF3000-60
Dixie Chopper® Part Numbers: 40100-W, 400220
Dixon® Lawn Mowers:
Lawn Mowers: 1950-50, 2300-50, 2300-60, 2560-60, 2700-60, 2700-72, 4515B, 4516K, 4518K
Blackbear: 34
Grizzly: 52-968999588, 60-968999590, 968999591, 968999626, 60-968999627, 60-968999637, 72-968999592, 72-968999628
Grizzly 27HP Kohler: 52-968999588, 60-968999590
Grizzly 30HP Kohler: 60-968999591, 72-968999592
Grizzly 29FX BF: 60-966516602
Grizzly 34GX BF 72-966516702
Grizzly SE: 6029FX-966516601, 7234FX-966516701
Grizzly ZTR 27HP Kohler: 52-968999588, 60-968999590, 60-968999626
Grizzly ZTR 30HP Kohler: 60-968999591, 60-968999627, 72-968999592, 72-968999628
Kodiak: 50, 52-968999576, 52-968999577, 52-968999578, 52-968999579, 52-968999620, 52-968999621, 52-968999622, 52-9689995
968999624
Honda Kodiak 20HP: 52-968999577, 52-968999578, 52-968999621, 52-968999622,
Kawasaki Kodiak 21HP : 52-968999576, 52-968999576, 52-968999620
Kodiak 25HP Kohler : 52-968999579, 60-968999580, 60-968999624
Kodiak 26HP B&S : 60-968999581
Kodiak SE : 5223 VAN-965871801, 5223 VAN BF-965884601, 5225 CE-966057501, 6125 KOH-965871802, 6125 KOH BF-965884701
Ram : 42, 44, 48ZT-965882601, 50, 50KZ-965882901, 50ZT-965882701, 52ZT-966038601, 52ZT-966038701, 52ZT-966054301, 61KZ966038801, 61ZT BF-966054401
Ram 26HP B&S: 44-968999551, 50-968999552
Ram B&S : 44-968999551, 50-968999552
Ram Honda : 44-968999559, 50-968999562
Ram Mag 20HP Kohler : 44-968999560, 50-968999563, 50-968999562
Ram Mag Kohler : 44-968999650, 50-968999651
Ram Mag 21HP Kawasaki : 50-968999561
Kawasaki Ram Mag : 50-968999561
Ram Ultra : 52-966985301, 52-966985302, 61-966985401, 61-966985402, 72-968999724, 72-968999773
Ram Ultra Kohler : XS5025 50-968999722, XS5025BF 50-968999725, XS6025 60-968999723, XS6025BF 60-968999726, XS7227 72
72-968999773
Silver Tip : 60, 72
Speed ZTR : 36, 38, 42, 44
ZTR: 424, 427, 428, 429, 501, 502, 503, 542, 560, 4421, 4422, 4423, 4425, 4426, 4515B, 4515K, 4516K, 4518K, 5004, 5005, 5017, 502
5421, 5425, 5501, 5502, 5601, 6022, 6023, 6025, 6601, 7025, 7523, 7525, 8025, 8026D, Classic
Dixon® Part Numbers: 4415, 4701, 4733, 5690, 5874, 5967, 7270, 8540, 8936, 10059, 10727, 12289, 12512, 12872, 16351, 1
60346, 61582, 522875902, 539117860, 539119274, 539122379, 539130930, 574030801
Dresser® Dozers:
Dozers (must also replace the original suspension (if equipped) with the Heavy-Duty Mechanical Suspension (PN: 6111)): TD7H
TD15E, TD20E, TD25E, TD40C
Dozers (only fits if the original seat did NOT have a suspension): TD7E, TD7G, TD8C, TD8E, TD8G, TD12, TD15, TD15C, TD20B,
Exmark® Lawn Mowers:
Explorer Series: EX20KC (SN 130000-149999)
Explorer/Explorer II Series: EXS-20KC (SN 102000-114999), EXS-20KC (SN 115000-129999), EXS-20KC-2 (SN 102000-114999), EX
129999)
Front Runner Air Cooled Series: FR23KC (SN 67000 & Up), FR23KC (SN 72000 & Up), FR25KD (SN 67000 & Up), FR27KC (SN 670
72000 & Up), FR27KC (SN 79000 & Up), FR31BV (SN 67000 & Up), FR27KC (SN 72000 & Up), FR27KC (SN 79000 & Up), SN 600000
Front Runner Diesel Series: FR25KD (SN 72000 & Up), SR25KD (SN 600000 - 669000)
Navigator Series: NAV20KC (SN 510000 - 599999), NAV20KC (SN 67000 & Up), NAV20KC (SN 72000 & Up), NAV20KC (SN 79000 &
850000 & Up), NAV20KC (SN 510000 - 599000), NAV20KC (SN 670000 & Up), NAV20KC (SN 720000 & Up), NAV20KC (SN 790000 &
850000 & Up), SN 600000 - 669999
Next Lazer ASX Series: LZAS22KA484 (SN 85000 & Up), LZAS22KA484CA (SN 85000 & Up), LZAS23KC524 (SN 85000 & Up), LZAS
Up), LZAS26LKA604 (SN 85000 & Up), LZAS27KC524 (SN 85000 & Up), LZAS27KC524CA (SN 85000 & Up), LZAS27KC604 (SN 850
LZAS27KC604CA (SN 85000 & Up), LZAS29KA724 (SN 85000 & Up)
Next Lazer Z Air Cooled Series: LZ23KA526 (SN 790000 & Up), LZ23KC486 (SN 790000 & Up), LZ23KC526 (SN 790000 & Up), LZ2
Up), LZ27KC606 (SN 790000 & Up), LZ29KA606 (SN 790000 & Up), LZ34KA606 (SN 790000 & Up), LZ34KA726 (SN 790000 & Up), L
& Up), LZZ23KC526 (SN 850000 & Up), LZZ24KA526 (SN 850000 & Up), LZZ24KA526CA (SN 850000 & Up), LZZ26KC606 (SN 85000
(SN 850000 & Up), LZZ27KC526A (SN 850000 & Up), LZZ27KC606CA (SN 850000 & Up), LZZ29KA606 (SN 850000 & Up), LZZ29KCE
LZZ34KA606 (SN 850000 & Up), LZZ34KA726 (SN 850000 & Up), LZZ38KC5606 (SN 850000 & Up), LZZ38KC726 (SN 850000 & Up)
Next Lazer Z Propane Series: LZAS29KA604LP (SN 85000 & Up), LZAS29KA724LP (SN 85000 & Up), LZZ29KA606LP (SN 85000 &
Replaces Exmark® Part Numbers: 103-9483, 116-0036, 116-0037, 1-522411-03
Ford®-New Holland® Tractors:
Tractors: 4835, 5635, 6635, 6640, 7410, 7635, 8560
T Series: T6070, T6080, T7030, T7040, T7070
TD Series: TD80D, TD95D, TD5030, TD5050
TL Series: TL70, TL80, TL90, TL100
TN Series: TN55D, TN55S, TN65D, TN65F, TN65S, TN65V, TN70D, TN70S, TN75D, TN75F, TN75S, TN75V, TN90F
TS Series: TS90, TS100, TS110, TS115, TS115A, TS125A, TS130A, TS135A
Gehl® Telehandlers: 883, DL-7L, DL-9L, DL10L-55, DL11H-55, DL11L-55, RS5-19, RS5-34, RS6-34 (SN 22451 & Up), RS6-42 (SN Begin
RS8-42 (SN Beginning with 17151), RS8-44, RS8-44 (SN Beginning with 17151), RS10-44, RS10-55
Replaces Gehl® Part Number: 210170
Genie® Telehandlers: GTH-1056 (SN GTH1006A-8418), GTH-1544, GTH-5519 (SN GTH5514B-101, SN 10242 - 18818, SN 16381 - 163
17822 - 17825, SN 18154 - 18168, SN 18556 - 18586, SN 19006 - 20367, and SN 20368 - 25040)
Genie® Part Numbers: 7-197-01, 09.4610.0024, 09.4610.0042, 09.4610.0056
Grasshopper® Lawn Mowers : 218, 220, 223, 225, 227, 325, 329, 612, 614, 616, 718, 725, 1210 1212, 1622, 1822D, 1822K, 321D, 322D
718K, 720K, 721D, 721D2, 721DH2, 721G2, 722D2, 723KH2, 725K2, 727K2, 729G2, 928D, 928D2
Grasshopper® Part Numbers: 603756, 603757, 603758, 603761, 603763, 604730, 604735, 604740, 604741, 604745
Gravely® Lawn Mowers: PM300, PM310, PM360
Replaces Gravely® Part Numbers: 09072300, 09086300
Hustler® Lawn Mowers:
261 Series: Serial Number 922278 & 923037
275 Series: SN 921635
295 Series: SN 922427 & 922765
305 Series: SN 922849
3200 Series: SN 925073
3400 Series: SN 925362, 925370
275LPG Series: SN 922450
305D Series: SN 922880
3200 Rear Steer Series: SN 925610
3200ZT Series: SN 925552 & 926071
3400 Rear Steer Series: SN 925578
3400 Rear Steer 4x4 Series: SN 925586
3400ZT Series: SN 925560 & 926089
BDM X-1052 SD Briggs & Stratton 26HP Series: SN 930321
BDM X-1052 SD Kawasaki 24HP Series: SN 930347
BDM X-1052 SD Kohler 25HP Series: SN 930339
BDM X-1060 SD Briggs & Stratton 26HP Series: SN 930354
BDM X-1060 SD Kawasaki 26HP Series: SN 930370
BDM X-1060 Kohler 27HP Series: SN 930362
BDM X-1060 SD31 Kawasaki Series: SN 930735
BDM X-1072 SD31 Kawasaki Series: SN 930743
Padded Backrest Seat Series: SN 963259
SZ31 Kawasaki 60RD Series: SN 930024
SZ31 Kawasaki 60SD Series: SN 930875 & 930875
SZ31 Kawasaki 72RD Series: SN 930065
SZ31 Kawasaki 72SD Series: SN 931048
SZ37 Kawasaki 60SD Series: SN 929935
SZ37 Kawasaki 66SD Series: SN 929943
SZ37 Kawasaki 72SD Series: SN 929950
X-1052 Briggs & Stratton 26HP Series: SN 929638
Categories Brands Deals Find a Dealer Quick Order
X-1052 Kawasaki 24HP Series: SN 929489
X-1052 Kohler 25HP Series: SN 929505
X-1060 Briggs & Stratton 26HP Series: SN 929497
X-1060 Kawasaki 26HP Series: SN 929497
X-1060 Kohler 27HP Series: SN 929513
X-124 Kawasaki 48SD Series: SN 930503
X-124 Kawasaki 54RD Series: SN 930522
X-125 Kohler 48SD Series: SN 930578
X-126 Kawasaki 54SD Series: SN 930529
X-126 Kawasaki 54SD US Series: SN 930529US
X-126 Kawasaki 60RD Series: SN 930560
X-126 Kawasaki 54SD Series: SN 930529
X-126 Kawasaki 60SD Series: SN 930537
X-126 Kawasaki 60SD US Series: SN 930537US
X-127 Kohler 54SD Series: SN 930586
X-127 Kohler 60SD Series: SN 930594
X-131 Kawasaki 54SD Series: SN 930511
X-131 Kawasaki 60SD Series: SN 930545
Hustler® Part Numbers: 082222, 602966, 602967
JCB® Forklift and Telehandler:
Forklift: 520
Telehandler (only fits if the original seat did NOT have a suspension): 506 CHL, 520
JLG® Telehandlers: G6-42A, G9-43A (SN 0193001 - 0193007, and SN 0160000008 - 0160048670 including 0160048773)
Replaces JLG® Part Number: 09.4610.0056
John Deere® Backhoe Loaders, Compactors, Dozers/Crawlers, Mini Excavators and Wheel Loaders:
Backhoe Loaders: 210C, 300D, 310C, 310D, 410B, 410C, 410D, 510B, 510C, 510D, 610B, 610C, 710B, 710C, 710D
Compactors: 646, 646B
Dozers/Crawlers (Use KM 441 with Low Profile ROPS Only. Original Did Not have Suspension. OE Cushions Not Available.): 35
450E, 450G, 455G, 455E, 550B, 550G, 555B, 555G, 650G
Mini Excavators: 17D, 85D, 17ZTS
Wheel Loaders: 84, 244E, 244H, 444, 544, 544A, 544B, 644A, 644B
Wheel Loaders (if the original seat had a suspension, you must also replace the original suspension with the Heavy-Duty Mech
6111)): 344E, 444, 444C, 444CH, 444D, 444E, 544, 544A, 544C, 544D, 644A, 644B, 644C, 644D, 844
Replaces John Deere® Part Numbers: AT39617, AT105140
John Deere® Tractors with Original Grammer Seat and MSG83 Mechanical or MSG93 Air Suspension: 5083E, 5085E, 5093E, 5101E
5420, 5425, 5520, 5525, 5603, 5625, 6110, 6110L, 6120, 6120L, 6200, 6200L, 6210, 6210L, 6215, 6220, 6220L, 6230, 6300, 6300L, 6310,
6400L, 6403, 6405, 6410, 6410L, 6415, 6420, 6430, 6500, 6500L, 6510L, 6603, 6605, 6615, 6715, 7130, 7230, 7330
John Deere® Lawn Mowers: 737, 757, 777, 797, 997, 717A, 717E, 727A, Z510A, Z520A, Z645, Z655, Z710A, Z720A, Z810A, Z820A, Z8
Z860A, Z910A, Z920A, Z925A, Z930A, Z950A, Z960A, Z970A
Replaces John Deere® Part Numbers: AM141104, TCA13427, TCA14949, TCA15503, TCA18428, TCA19473, TCA18026
Komatsu® Dozers, Excavators, Skid Steers and Wheel Loaders:
Dozers (drilling may be required): D20A-5, D20A-6, D20P-5, D20P-6, D20P-7A, D20Q-6, D21A-6, D21A-7, D21A-8, D31A-16, D31AD31S-17, D45P-1, D50A-17, D60P-6, D65A-6, D65E-6, D65EX-15, D65PX-12, D65WX-15, D70LE, D70LE-8, D85A-12, D85E-SS-2, D1
Dozers (must also replace the original suspension with the Heavy-Duty Mechanical Suspension (PN: 6111) and drilling may be
D31P-17, D31P-18, D31P-20, D32E, D32E-1, D37E-5, D37P-5A, D38E, D38E-1, D39E-1, D41A-3, D41P-3, D41P-6, D41P-6K, D41S-3
D53P-16, D53P-17, D53S-16, D53S-17, D57S-1, D58E-1, D58P-1, D60P-8, D60P-11, D60P-12, D65A-8, D65E-8, D65E-12, D65EX-12,
D75S-3, D75S-5, D85A-18, D85A-21, D85E-18, D85E-21, D85P-18, D85P-21, D135A-1, D155A-1, D355A-3, D455A-1, WD600-1
Excavators: PC03-2, PC12R-8, PC20-6, PC20-7, PC27R-8, PC30-6, PC35R-8, PC38UU-1, PC38UU-3, PC40-7, PC45-1, PC45-8, PC5
PC60-7, PC75UU-1, PC75UU-2, PC75UU-3, PC88MR-6, PC88MR-8, PC90-1, PC95-1, PC95R-2, PC100-5, PC100-6, PC120-3, PC120
PC128UU-1, PC128UU-2, PC130-6, PC130-6K, PC130-7, PC130-7K, PC138US-8, PC150-5, PC150LC-3, PC150LC-6K, PC160-6K, PC
PC200-3, PC200-5, PC200-6, PC200-8, PC200LC-3, PC200LC-5, PC200LC-6S, PC200LC-7, PC200LC-8, PC200LC-81, PC210-6K, PC
PC210-7K, PC210-8K, PC210LC-5K, PC210LC-7K, PC220-3, PC220-5, PC220-5C, PC220-6, PC220LC-3, PC220LC-5, PC220LC-6, P
PC220LC-2, PC228US-1, PC228UU-1, PC240NLC-5K, PC250-6, PC250LC-6, PC270LC-7L, PC290NLL-6K, PC300-3, PC300-6, PC30
PC300LC-8, PC340-6K, PC340LC-6K, PC350LC-8, PC360-7, PC400-6Z, PC400-8, PC-400LC-3, PC400LC-6, PC400LC-8, PC450-7K,
PC450LC-8, PC1250-7, PC2007-7
Skid Steers: CK30-1, CK35-1, SK714-5, SK815, SK815-5, SK815-5N, SK818, SK820, SK820-5, SK820-5N, SK820-5T, SK1020-5, SK1
SK1026, SK1026-5, SK1026-5N
Wheel Loaders: WA30-2, WA40-3, WA70-1, WA80-3, WA100-1, WA100-3A, WA120-1, WA120-E, WA150-1, WA150-5, WA180-1, WA1
WA200PT-5, WA200PZ-6, WA250-1, WA250-3, WA250-5, WA250-6, WA250PT-3, WA250PT-5, WA300-1, WA320-1, WA320PZ-6, WA3
DZ-3, WA400-1, WA420-1, WA420-DZ-3, WA450-1, WA450-2, WA470-1, WA470-DZ-3, WA500-1, WA600-1, WA700-1, WA800-1, WA80
Land Pride® Lawn Mowers: Z44, Z48, Z52, Z54, Z60, Z72, ZR44, ZR52, ZSR54, ZSR60, ZT60, ZT60I, ZT72, ZT72I, ZXT54, ZXT60
Replaces Land Pride® Part Numbers: 356-113A, 839-320C
Lull® Telehandlers: 644B-42, 644E-42 (SN 17569-20123 & 0160002514 - Present), 944E-42 (SN 17569-20123 & 0160002514 - Present)
Lull® Part Number: 364778C
Massey Ferguson® Tractors with Original Grammer Seat: 471, 481, 491, 492, 573, 583, 593, 596, 670, 690, 698, 699, 2220, 2640, 265
3060, 3070, 3075, 3120, 3315, 3325, 3330, 3340, 3350, 3355, 3525, 3545, 3615, 3625, 3635, 3645, 3650, 3660, 3680, 3690, 4225, 4235, 4
4255, 4260, 4263, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4370, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 6150, 6170,
6255, 6270, 6280, 6290, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 7465, 7475, 7480, 7485, 7490, 7495,
8140, 8150, 8160, 8210, 8220, 8240, 8250, 8270, 8280, 8450, 8460, 8470, 8480, 8650, 8660, 8670, 8680, 8690
McCormick® Tractors if the Tractor Does NOT Have a Cab: CX70, CX80, CX85, CX95
New Holland® Backhoe Loaders, Dozers, Skid Steer and Wheel Loaders:
Backhoe Loaders (only fits if the original seat did NOT have a suspension): 555, 555A, 555B, 555C, 555D, 575D, 655, 655A, 655C
LB75.B, LB90.B, LB110.B, LB620
Backhoe Loaders: 555E, 575E, 655E, 675E, B90B, B95, B95B, B95BLR, B95BTC, B95LR, B95TC, B110, B110B, LB90, LB95, LB110,
Dozers: D75, D85, D85B, D95, D95B, D150B, DC70, DC75, DC80, DC85, DC95, DC100, FD80
Skid Steer: L778
Wheel Loaders: LW50.B, LW80.B, W50BTC, W50TC, W60BTC, W70BTC, W80BTC, W80TC
Scag® Lawn Mowers:
Cougar Series: SCR48-25CH (SN 5590001 - 559999 )
Freedom Z Series: SFZ36-17KA (SN E2800001 - E2899999 ), SFZ36-20BS (SN E3000001 - E3099999), SFZ48-19KA (SN D1700001
19KA (SN D8600001 - D8600300), SFZ48-19KA (SN D8600400 - D8699999), SFKZ48-26BS (SN D1500001 - D1599999), SFZ48-26BS
D8500300), SFZ48-26BS (SN D8500400 - D8599999), SFZ52-19KA (SN D1900001 - D1999999), SFZ52-19KA (SN D8800001 - D8800
D8800250 - D8899999), SFZ52-26BS (SN D1800001 - D1899999), SFZ52-26BS (SN D8700001 - D8700200), SFZ52-26BS (SN D8700
28BS (SN E6900001 - D6999999), SMFZ-36 (SN E3100001 - E3199999), SMFZ-48 (SN D9700001 -D9799999), SMFZ-52 (SN D98000
(SN E7000001 - E7099999)
Sabre Tooth Tiger Series: STT-31BSD (SN 9460001 - 9469999)
Tiger Cub Series: SMTC-48A (SN A5400001 - A5499999 ), SMTC-52A (SN A5500001 - A5599999 ), STC48A-19KA (SN 9250001 - 925
(SN A4800001 - A4899999), STC48A-20CV (SN 9260001 - 9269999), STC48A-20CV (SN A4900001 - A4999999), STC48A-21KA (SN 9
STC48A-21KA (SN A5100001 - A5199999), STC48V-19KAI (SN C1600001 - C1699999), STC48V-21KA (SN B5100001 - B5199999), S
C2000001 - C2099999), STC52A-23KA (SN 9290001 - 9299999), STC52A-23KA (SN A5200001 - A5299999), STC52A-24HN (SN 9300
24HN (SN A5300001 - A5399999), STC52V-23KA (SN B5200001 - B5299999), STC52V-24HN (SN B5300001 - B5399999)
Turf Tiger Series: SMST-72A (SN A7600001 - A7699999), SMT-52A (SN A7100001 - A7199999), SMT-61A (SN A7200001 - A7299999)
- A7399999), STT-27KA (SN 9410001 - 9419999), STT-27KA (SN A6800001 - A6899999), STT-29DFI-SS (SN A9500001 - A9599999), S
B7100001 - B7199999), STT-29KA-DFI (SN 9420001 - 9429999), STT-31BV (SN 9430001 - 9439999), STT-31BV-SS (SN A9600001 - A
SS (SN C0300001 - C0399999), STT-35BV-SS (SN B7300001 - B7399999), STT52A-23KA (SN 9350001 - 9359999), STT52A-27CH (S
STT52A-27CH (SN A5900001 - A5999999), STT52V-27CH (SN B6200001 - B6299999), STT61A-27CH (SN 9380001 - 9389999), STT6
A6099999), STT61A-27KA (SN 9390001 - 9399999), STT61A-27KA (SN A6200001 - A6299999), STT61A-29DFI-SS (SN A6500001 - A6
DFI (SN 9400001 - 9409999), STT61A-31BV (SN 9640001 - 9649999), STT61A-31BV-SS (SN A6700001 - A6799999), STT61V-27CH (
B6399999), STT61V-27CH-NS (SN B6400001 - B6499999), STT61V-27CH-SS (SN B6500001 - B6599999), STT61V-27KA (SN B66000
27KA-SS (SN B6700001 - B6799999), STT61V-29DFI-SS (SN B6800001 - B6899999), STT61V-35BVAC-SS (SN C0200001 - C020999
B7000001 - B7099999)
Wildcat Series: SMWC-52A (SN A5500001 - A5599999), SMWC-52V (SN B6000001 - B6099999), SMWC-61A (SN A5700001 - A5799
B6100001 - B6199999), STWC52A-25KA (SN A8700001 - A8799999), STWC52V-25KA (SN B5400001 - B5499999), STWC52V-26KA-L
B5599999), STWC61A-27CV (SN 9660001 - 9669999), STWC61A-27CV (SN A5600001 - A5699999), STWC61V-26KA-LC (SN B56000
STWC61V-27CV (SN B5700001 - B5799999), STWC61V-30CV (SN B5800001 - B5899999)
Scag Series: SCR42-25CH (SN 6430001 - 6439999), SCR42-25CH (SN 7530001 - 7539999), SCR48-25CH (SN 6460001 - 6469999),
7540001 - 7549999), SCR48-27KA (SN 6450001 - 6459999), SCR48-27KA (SN 7550001 - 7559999), SCR52-25CH (SN 6480001 - 648
7560001 - 7569999), SCR52-27KA (SN 7160001 - 7169999), SCR52-27KA (SN 7570001 - 7579999), SFZ36-18FS (SN F3100001 - F31
F3200400 - F3299999), SFZ48-26BS (SN F3300400 - F3399999), SFZ52-20FS (SN F3400250 - F3499999), SFZ52-26BS (SN F35003
28BS (SN F3600001 - F3699999), SM-61V (SN B3700001 - B3799999), SM-72A (SN B3900001 - B3899999), SMST-61A (SN 7810001
(SN 7820001 - 8619999), SMST-72A (SN 8610001 - 8619999), SMT-52A (SN 8560001 - 8569999), SMT-61A (SN 8570001 - 8579999),
6649999), SMTC-48A (SN 6650000 - 6659999), SMTC-48A (SN 7680001 - 7689999), SMTC-48A (SN 8450000 - 8459999), SMTC-48V
B5999999), SMTC-52A (SN 6660000 - 6669999), SMTC-52A (SN 7690001 - 7699999), SMTC-52A (SN 8460000 - 8469999), SMTC-61
8479999), STC40-17KA (SN 6570000 - 6579999), STC48A-19KA (SN 6580000 - 6589999), STC48A-19KA (SN 8400000 - 8409999), ST
76300001 - 7639999), STC48A-20CV (SN 6590000 - 6599999), STC48A-20CV (SN 7640001 - 7649999), STC48A-20CV (SN 8410000
21KA (SN 6600000 - 6609999), STC48A-21KA (SN 7650001 - 7659999), STC48A-21KA (SN 8420000 - 8429999), STC48V-24BS (SN B
STC52A-21KA (SN 6610000 - 6619999), STC52A-21KA (SN 7660001 - 7669999), STC52A-23KA (SN 6620000 - 6629999), STC52A-23
7679999), STC52A-23KA (SN 8430000 - 8439999), STC52A-23LV (SN 6630000 - 6639999), STC52A-24HN (SN 8750000 - 8759999),
8770000 - 8779999), STC61A-25KA (SN 8440000 - 8449999), STHM-23CV (SN 8270001 - 8279999), STHM-23CV (SN 9220001 - 9229
A3900001 - A3999999), STHM-23CV (SN B2600001 - B3699999), STHM-23CV (SN C5300001 - C5399999), STHM-23CV (SN D63000
31BSD (SN 7800001 - 8599999), STT-31BSG (SN 7790001 - 8589999), STT52A-23KA (SN 848001 - 8489999), STT52A-23KA (SN 770
STT52A-25CH (SN 7710001 - 7719999), STT52A-25CH (SN 8490001 - 8499999), STT52A-27CH (SN 8720001 - 8729999), STT61A-23
7729999), STT61A-23KA (SN 8500001 - 8509999), STT61A-25CH (SN 7730001 - 7739999), STT61A-25CH (SN 8510001 - 8519999), S
Categories Brands Deals Find a Dealer Quick Order
8730001 - 8739999), STT61A-27KA (SN 7740001 - 7749999), STT61A-27KA (SN 8520001 - 8529999), STT61A-29KA-DFI (SN 853000
27KA (SN 7750001 - 7759999), STT72A-27KA (SN 8540001 - 8549999), STT72A-29KA-DFI (SN 8550001 - 8559999)
Scag® Part Numbers: 482119, 482220, 482551, 482597, 482631, 482840, 483408
Takeuchi® Mini Excavators: TB007, TB014, TB015, TB016, TB025, TB15, TB108
White® Tractors: 6045, 6065, 6085
Woods® Lawn Mowers:
Mow'n Machine Series: 1250, 1850, 1855, 2150, 2850, 2855, 2860, 5120, 5140, 5160 (SN 340850 & Up ), 5180 (SN 327344 & Up), 51
5182 (SN 327344 & Up), 5182 (SN 345170 & Up), 5200 (SN 327344 & Up), 5200 (SN 345170 & Up), 5210 (SN 345170 & Up), 5215 (SN
330786 & Up), 5250 (SN 345170 & Up), 6140 (SN 580179 & Up), 6160 (SN 580179 & Up), 6170, 6180 (SN 580179 & Up), 6180 (SN 62
(SN 621004 & Up), 6182, 6200 (SN 580179 & Up), 6200 (SN 621004 & Up), 6200, 6210 (SN 580179 & Up), 6210, 6215 (SN 580179 &
621004 & Up), 6250 (SN 580179 & Up), F21D, F23, F25, F25L, F27, FE21B, FZ21D, FZ23B (SN 7832500001 & Up ), FZ25D, FZ28K (S
Woods® Part Numbers: 70257, 70354 (Original OEM 71646), 70724, 71645, 73037, 75225, 583519
